LAN15L-PRMDEN (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507-0808)LAN15,35

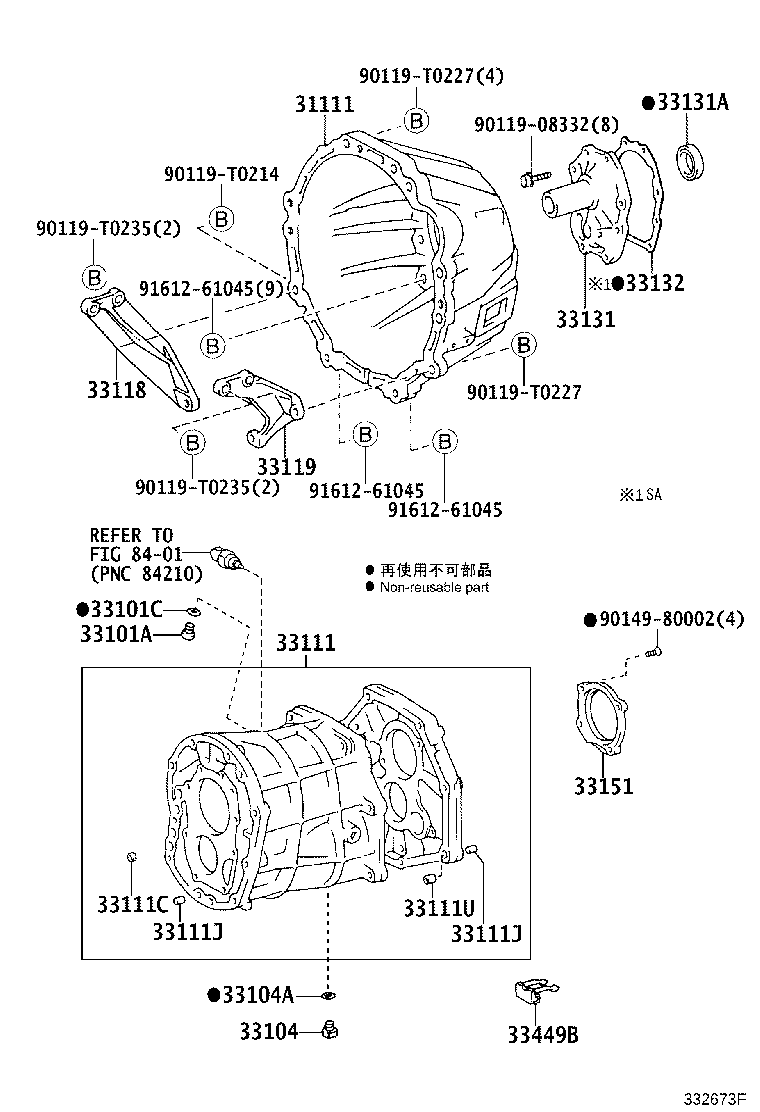

Click highlighted areas on diagram

G58

diagram 31111 33101A 33101C 33104 33104A 33111 33111C 33111J 33111J 33111U 33118 33119 33131 33131A 33132 33151 33449B 8401 9011908332 90119T0214 90119T0227 90119T0227 90119T0235 90119T0235 9014980002 9161261045 9161261045 9161261045
Part # Description Qty Price
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA)

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA)

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA)

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

OD=14

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

L=16,OD=12

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

L=16,OD=12

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

L=14,OD=15

 2
33449B - MAGNET, TRANSMISSION
33449-26010

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

 1
Common parts
90119-08332
90119-T0214
90119-T0227
90119-T0235
90149-80002
91612-61045
Linked diagrams
8401

(0808- )LAN15,35

Click highlighted areas on diagram

G58

diagram 31111 33019C 33019D 33101A 33101C 33104 33104A 33111 33111C 33111J 33111J 33111U 33118 33119 3312 33131 33131A 33132 33151 33449B 8401 876160K010 9011908332 90119T0214 90119T0227 90119T0227 90119T0235 90119T0235 9014980002 9161261045 9161261045 9161261045 9613251000
Part # Description Qty Price
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA)

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA)

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA)

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

OD=14

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

L=16,OD=12

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

L=16,OD=12

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

L=14,OD=15

 2
33449B - MAGNET, TRANSMISSION
33449-26010

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

 1
Common parts
87616-0K010
90119-08332
90119-T0214
90119-T0227
90119-T0235
90149-80002
91612-61045
96132-51000
Linked diagrams
3312
8401

(0808- )TGN10,15

Click highlighted areas on diagram

G55

diagram 31111 31121 31121 33019C 33019D 33101A 33101C 33104 33104A 33111 33111C 33111J 33111J 33111U 33111U 3312 33131 33131A 33132 33151 33449B 8401 876160K010 9011908332 90119T0138 90119T0214 90119T0215 90119T0224 9014980002 90949T1024 9161261045 9613251000
Part # Description Qty Price
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA)

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA)

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA)

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

OD=14

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

L=16,OD=12

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

L=16,OD=12

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

L=14,OD=15

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

L=14,OD=15

 2
33449B - MAGNET, TRANSMISSION
33449-26010

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

 1
Common parts
87616-0K010
90119-08332
90119-T0138
90119-T0214
90119-T0215
90119-T0224
90149-80002
90949-T1024
91612-61045
96132-51000
Linked diagrams
3312
8401
