LAN125L-DNMXEN (2016)

Toyota Hilux

Production Jan 2016 - Sep 2020
Engine 5LE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1601- )5LE

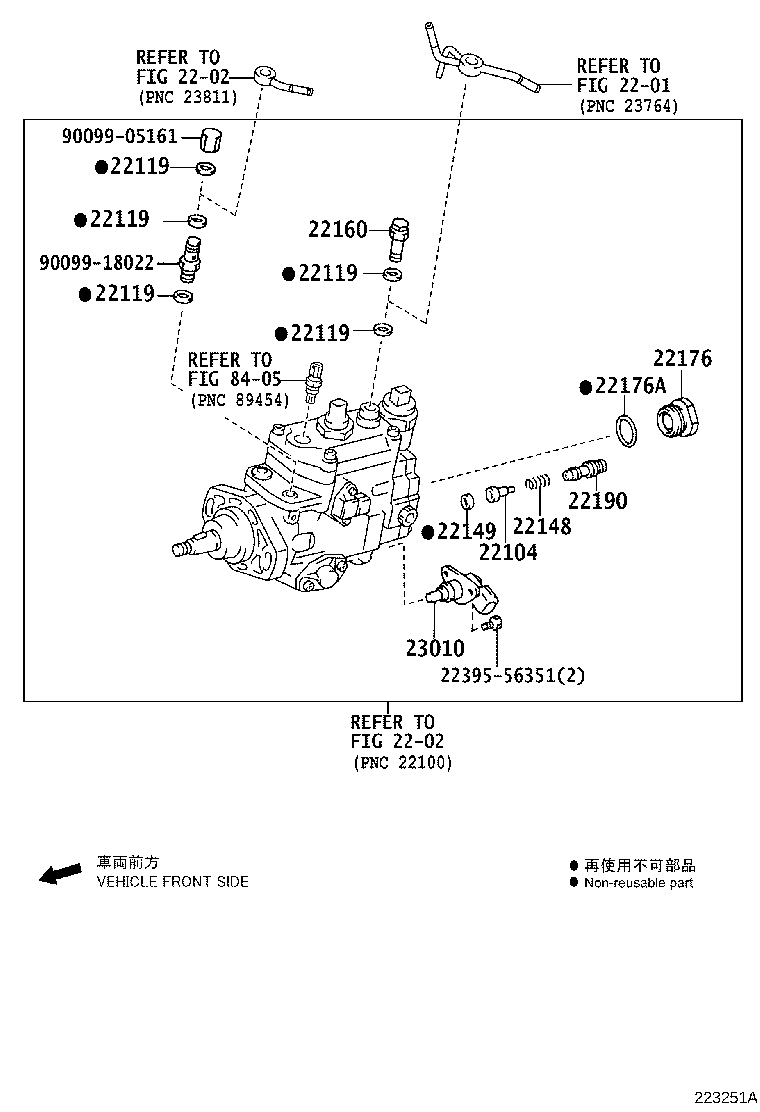

Click highlighted areas on diagram

diagram 2201 2202 2202 22104 22119 22119 22119 22119 22119 22148 22149 22160 22176 22176A 22190 2239556351 23010 8405 9009905161 9009918022
Part # Description Qty Price
22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22104-6A640

5LE..LAN125

 4
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

5LE..LAN125

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

5LE..LAN125

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

5LE..LAN125

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

5LE..LAN125

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

5LE..LAN125

 5
22148 - SPRING, DELIVERY VALVE
22148-54010

5LE..LAN125

 4
22149 - GASKET, DELIVERY VALVE
22149-56351

5LE..LAN125

 4
22160 - SCREW SUB-ASSY, OVERFLOW
22160-54271

5LE..LAN125

 1
22176 - PLUG, DISTRIBUTIVE HEAD
22176-54640

5LE..LAN125

 1
22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG)
22193-54772

5LE..LAN125

 1
22190 - VALVE SUB-ASSY, SNUBBER
22190-5D180

5LE..LAN125

 4
23010 - VALVE ASSY, TIMING CONTROL
23010-67010

5LE..LAN125

 1
Common parts
22395-56351
90099-05161
90099-18022
Linked diagrams
2201
2202
8405
