LAN125L-DNMSEN (2016)
Toyota Hilux
Production
Jan 2016
-
Sep 2020
Engine
5LE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1601- )LAN125

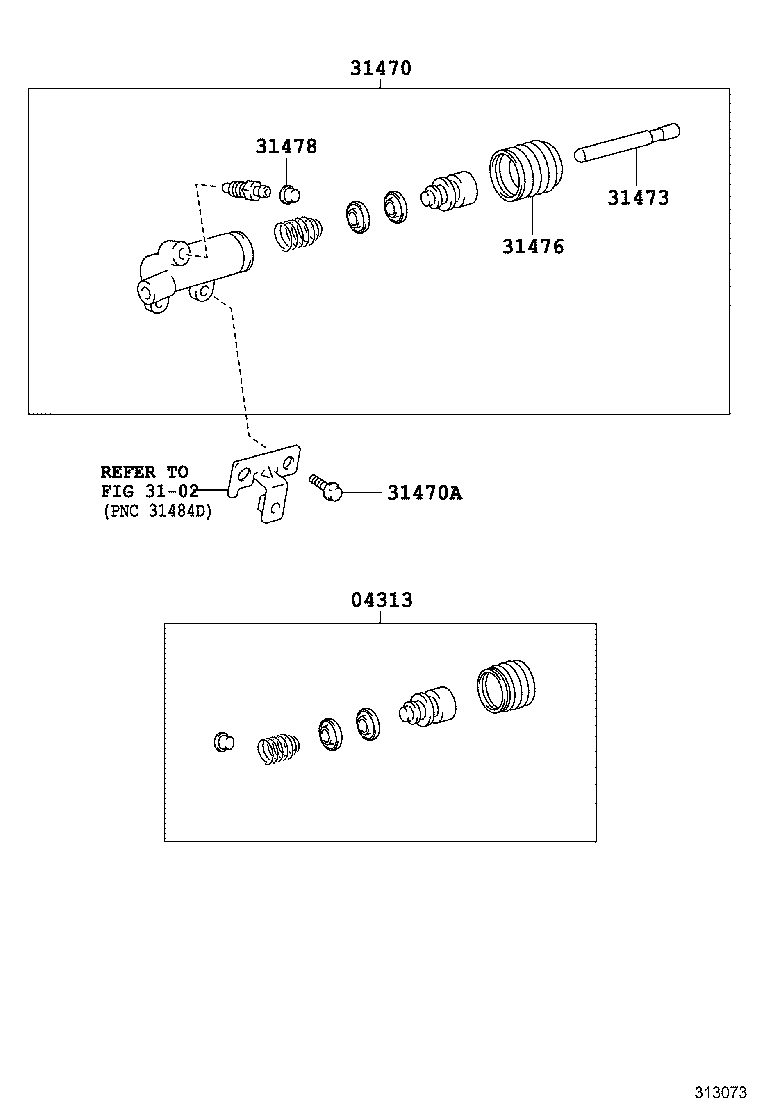

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04313 - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-0K100 |
LAN125 |
1 | ||
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-0K140 |
LAN125 |
1 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 90119-T0221 |
LAN125..SDC;LAN125..SSC..X;GUN122,125,126,13#,TGN120,121,126,136..MTM..SA *8-1.25PX25-20.1 |
2 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-0K050 |
LAN125 |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-04010 |
LAN125..SDC;LAN125..SSC..X;GUN122,125,126,13#,TGN120,121,126,136..MTM..SA |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
LAN125..SDC;LAN125..SSC..X;GUN122,125,126,13#,TGN120,121,126,136..MTM..SA |
1 | ||
| Linked diagrams | ||||
| 3102 | ||||
(2006- )GUN112,122,123,125,126,13#..MTM..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,S
