LAN125L-DNMSEN (2016)
Toyota Hilux
Production
Jan 2016
-
Sep 2020
Engine
5LE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

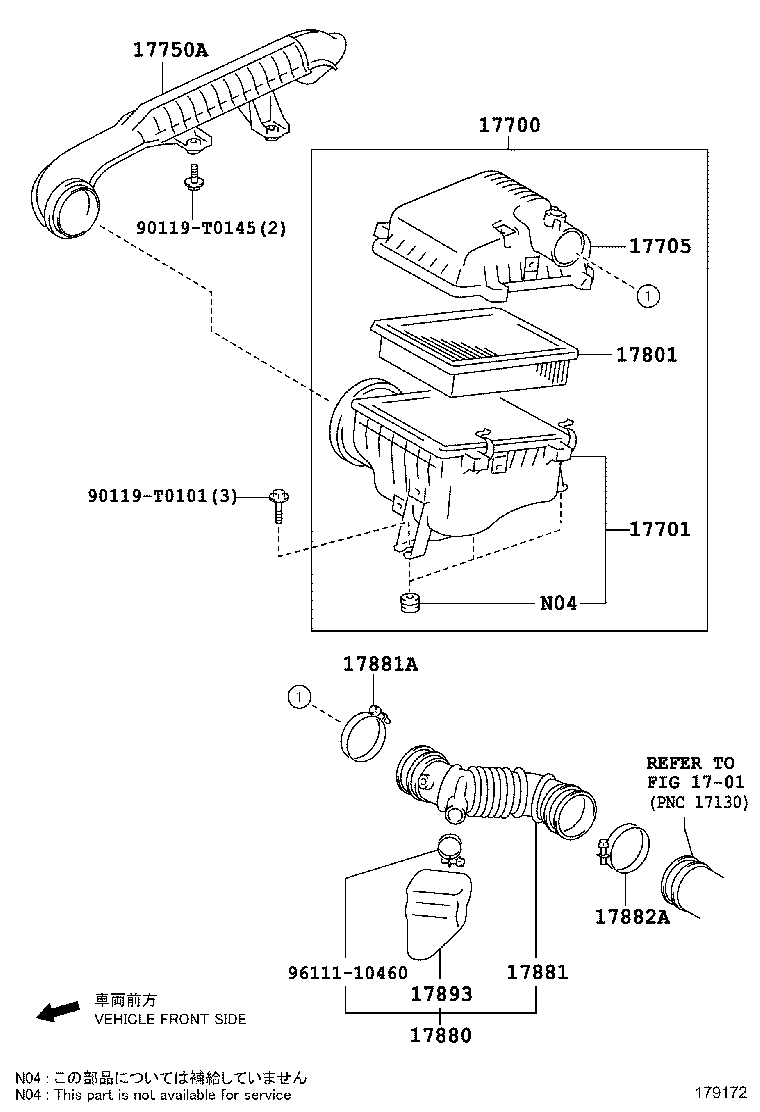

(1601- )5LE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0L290 |
5LE..LAN125 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0C180 |
5LE..LAN125 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L280 |
5LE..LAN125 |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-05030 |
5LE..LAN125 |
1 | ||
| 17750-05031 |
5LE..LAN125 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0L040 |
5LE..LAN125 |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-05020 |
5LE..LAN125 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-05060 |
5LE..LAN125 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0020 |
5LE..LAN125 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-T0005 |
5LE..LAN125 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-0C070 |
5LE..LAN125 |
1 | ||
| Common parts | ||||
| 90119-T0101 | ||||
| 90119-T0145 | ||||
| 96111-10460 | ||||
| Linked diagrams | ||||
| 1701 | ||||
(2006- )2GDFTV..GUN125..TD..LA ; (2006- )1GDFTV..GUN126,136..LA,TWN ; (2006-
Click highlighted areas on diagram
W(INTERCOOLER (WATER COOLED TYPE))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-0KC70 | ||||
| 82715-6A680 | ||||
| 90099-00289 | ||||
| 90119-06953 | ||||
| 90119-T0101 | ||||
| 90119-T0134 | ||||
| 90119-T0145 | ||||
| 90119-T0342 | ||||
| 90167-T0033 | ||||
| 91671-80612 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
| 2501 | ||||
| 2606 | ||||
| 8405 | ||||
