LAN125L-BNMLEN3 (2020)
Toyota Hilux
Production
Sep 2020
-
Sep 2021
Engine
5LE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(2009- )5LE

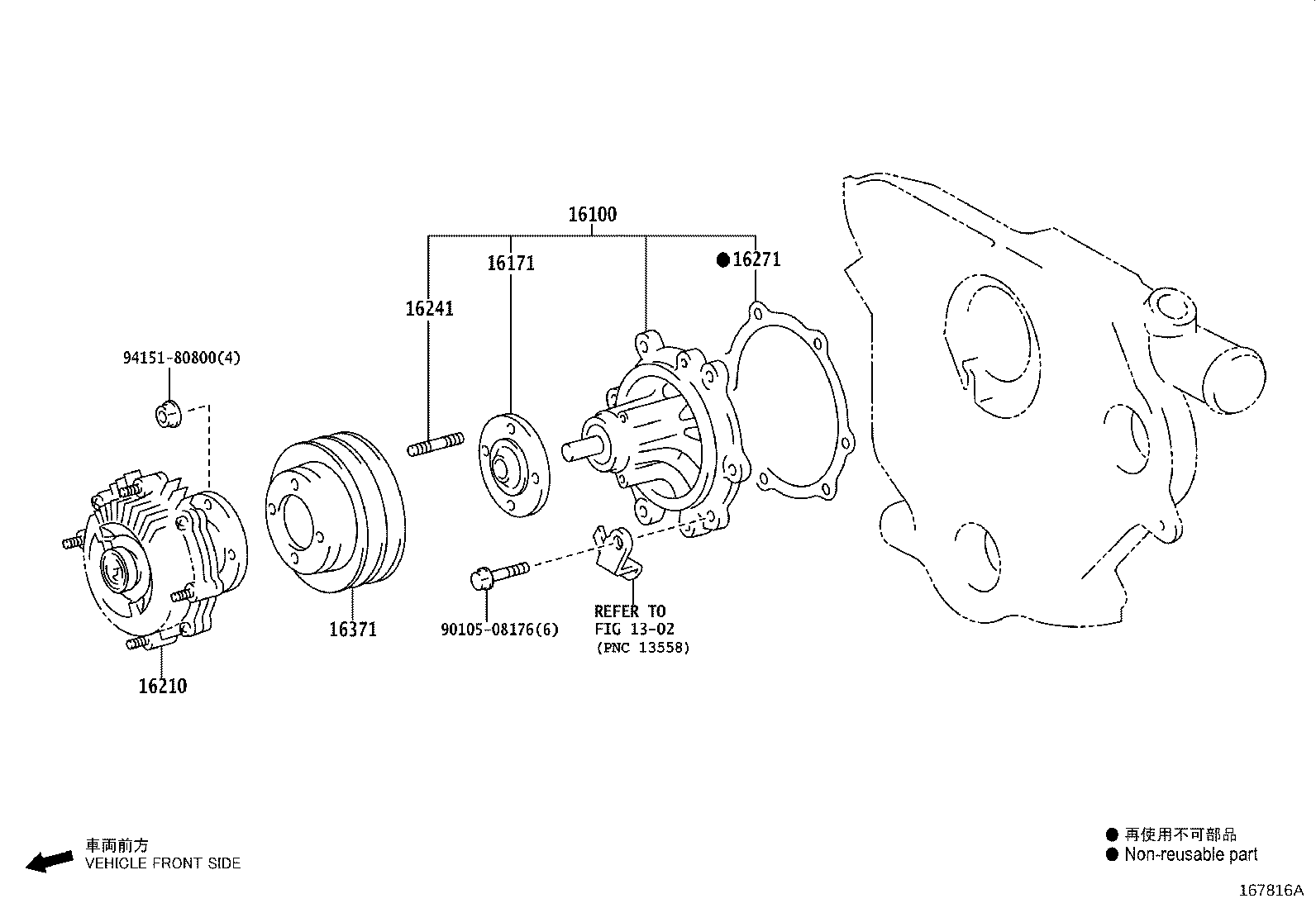

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-59257 |
5LE..LAN125 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-75020 |
5LE..LAN125 |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-54230 |
5LE..LAN125 |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 92122-80818 |
5LE..LAN125 |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-54030 |
5LE..LAN125 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-05010 |
5LE..LAN125 (L) |
1 | ||
| 16371-54030 |
5LE..LAN125 (J) |
1 | ||
| Common parts | ||||
| 90105-08176 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1302 | ||||
