LAN125L-BNMLEN (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 5LE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

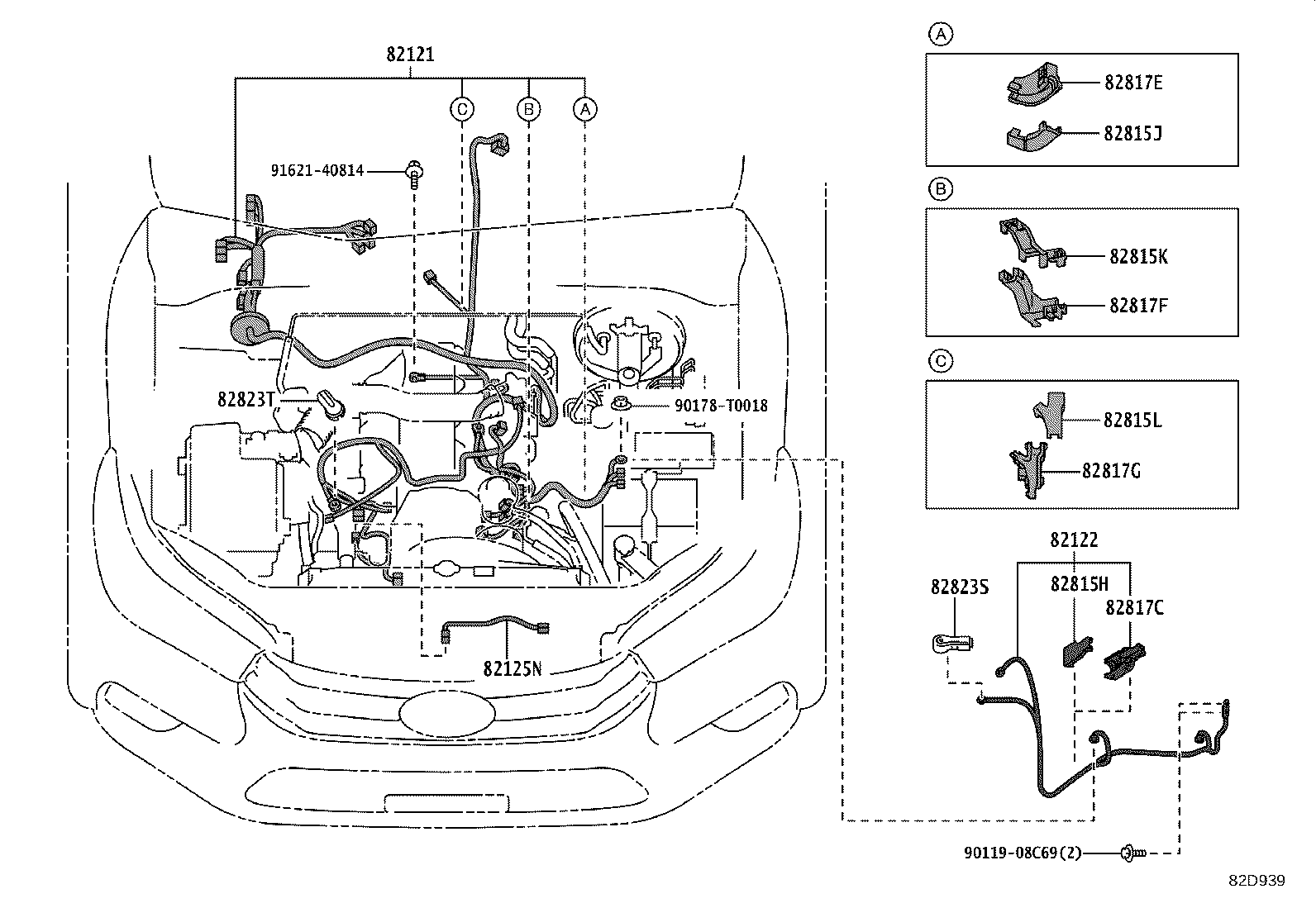

ILLUST NO. 2 OF13(2009- )LAN125

Click highlighted areas on diagram

ENGINE

diagram 82121 82122 82125N 82815H 82815J 82815K 82815L 82817C 82817E 82817F 82817G 82823S 82823T 9011908C69 90178T0018 9162140814
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-71151

LAN125

 1
82122 - WIRE, ENGINE, NO.2
82122-KK120

LAN125

 1
82125N - WIRE, ENGINE, NO.5
82125-KK010

GGN125,GUN125,126,LAN125,TGN126,128..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-0K270

GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
82815-0K610

LAN125

 1
82815-0K661

TGN11#,12#,13#..AD,AS,SD,SS,TD,TS

 1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-0K600

LAN125

 1
82815K - COVER, WIRING HARNESS PROTECTOR, NO.8
82815-0K720

LAN125

 1
82815L - COVER, WIRING HARNESS PROTECTOR, NO.9
82815-0K710

LAN125

 1
82815-0K510

GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-0K640

LAN125

 1
82817-0K691

TGN11#,12#,13#..AD,AS,SD,SS,TD,TS

 1
82817-0K270

GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-0K630

LAN125

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-0K510

GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
82817-0K780

LAN125

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-0K670

LAN125

 1
82817-0K300

GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
82823S - CAP, STARTER TERMINAL
82823-35050

GUN126..TD..6F..TH;GUN135,TGN126..(H,S)..GEN;GUN125..(AD,MD,SD,SS,TD,TX)..6FC;GUN135..ARL,BZAG,KEN,LA,PH,SA,TH,VN;GUN126..TD..(ARL,GCC,GEN,LA,PH,TWN,VN);GUN126..AD,AS,KD,MD,MMD,SD,SS,SX,TS,TX;GUN112,120,122,123,136,LAN125..AD,SD,SS,SX,TD,TS,TX;GUN125..6F..(ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN)

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX

 1
Common parts
90119-08C69
90178-T0018
91621-40814
