KZN165R-TRMSTQ3 (1999)
Toyota Hilux

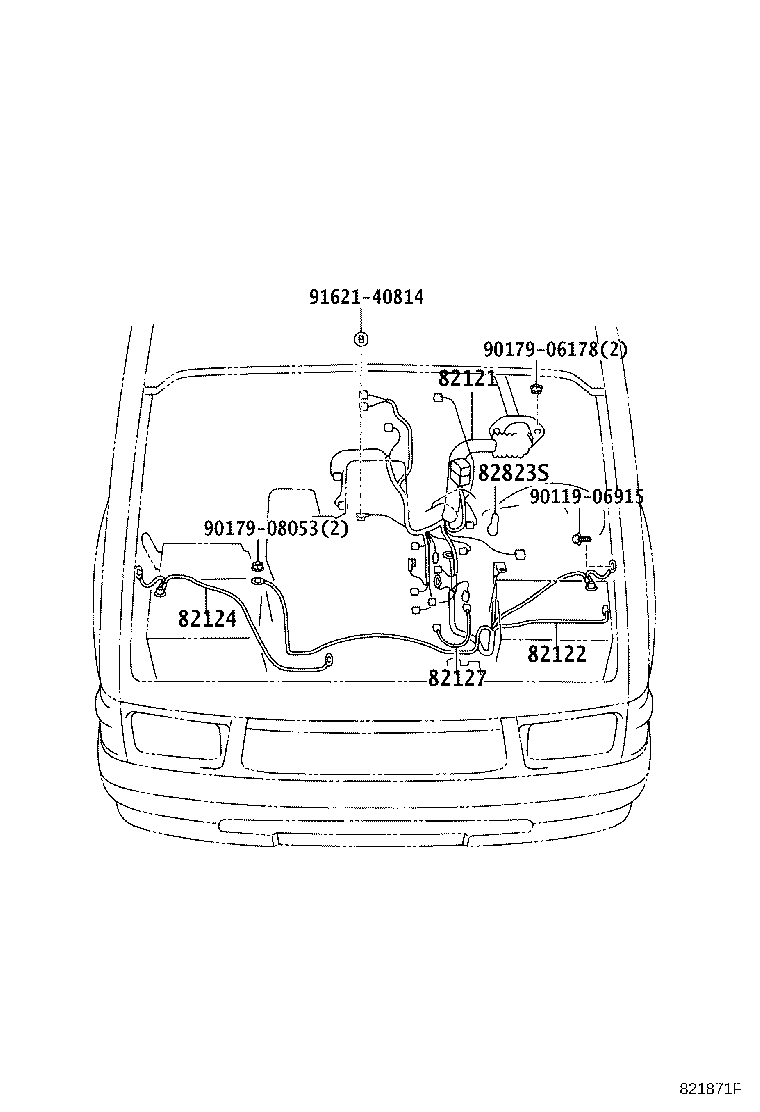

ILLUST NO. 1 OF 6(9909- )KZN165,190
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3G530 |
KZN165..ARL |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35060 |
LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN150,192..XTR..SR;KZN165,LN145..SCB..DLX..(ARL,GEN,TH);LN167,192..(SCB,THDCB,THSCB)..DLX..DEFI;LN147,172..(THDCB,THSCB,THXTR)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN152,16#..RHD..(DCB,SCB,XTR)..DSL..(ARL,GEN,TH);KZN190,LN141,146,147,155,157,172..(DCB,SCB,XTR)..DLX |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06178 | ||||
| 90179-08053 | ||||
| 91621-40814 | ||||

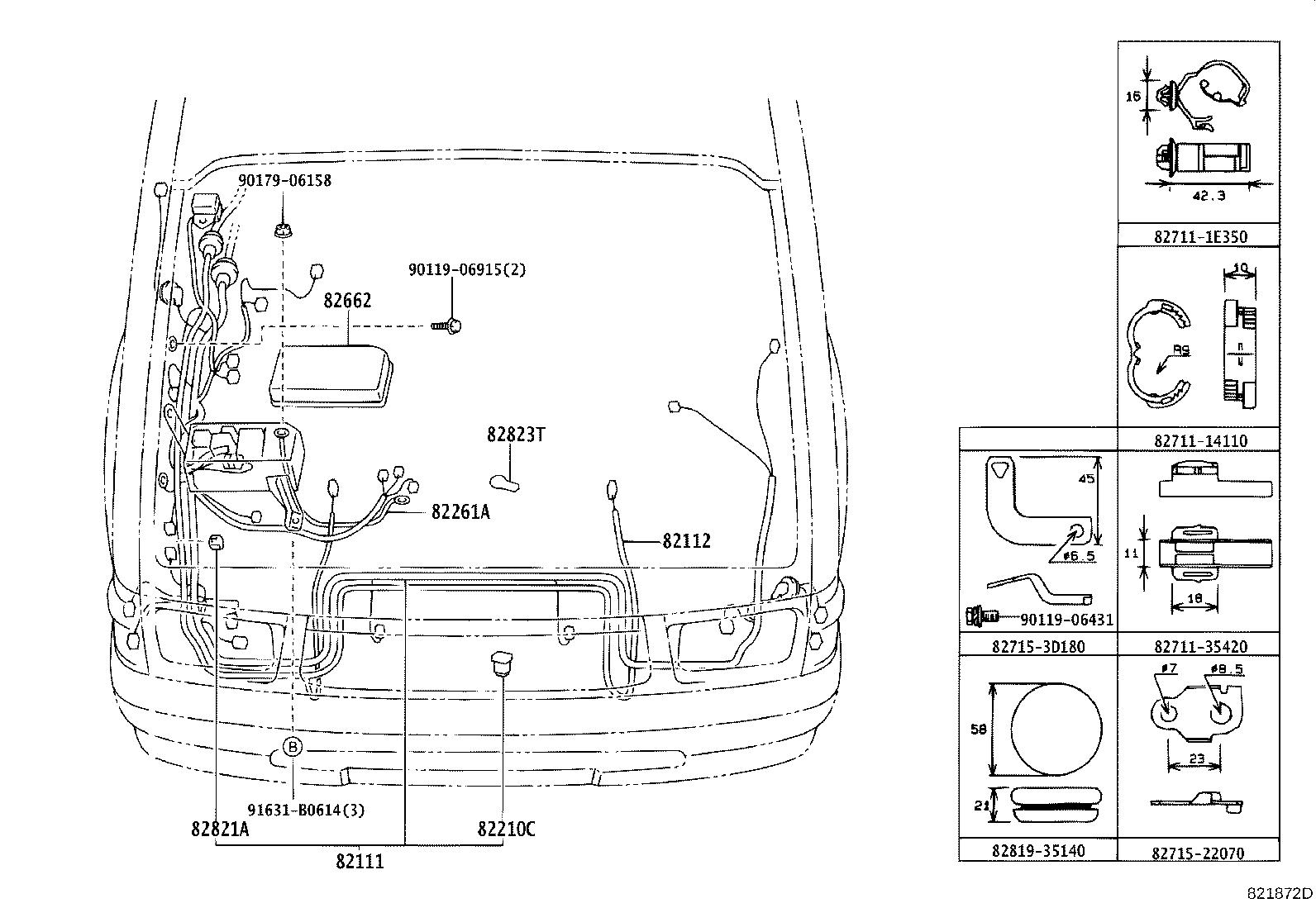

ILLUST NO. 2 OF 6(9909- )KZN165,190
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
LN152..XTR..IV3;LN152..THXTR..DEFI..IV3;RZN169,194..(DCB,SCB)..SA;KZN165..(THDCB,THSCB)..SR;LN147,167..(DCB,SCB)..DLX..ARL;KZN165,LN172..(DCB,SCB,XTR)..ARL;LN147,167,172..(THDCB,THSCB,THXTR)..DLX..DEFI 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08203 |
RZN147..GCC,SA;KZN165..SR..ARL;RZN147..LHD..GEN;RZN149..EFI..GEN;RZN169..LHD..CBR;LN152..THXTR..DEFI..IV3;LN147,167..(DCB,SCB)..DLX..ARL;LN147,167..(THDCB,THSCB)..DLX..DEFI;LN152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN172,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DEFI,DSL) 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08285 |
KZN165..SR..ARL;RZN169..DCB..SA;RZN169..DLX..SA;RZN147..LHD..GEN;RZN149..EFI..GEN;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN147..(THDCB,THSCB)..DLX..DEFI;LN145,172,RZN194..(DCB,SCB,XTR)..(ARL,SA);KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN145,166,RZN169..LHD..DLX..(CBR,DSL)..(GCC,GEN)..CBU;LN147,RZN147..(DCB,SCB)..DLX..(CBR,DEFI,DSL)..(ARL,GCC,SA);LN140,141,146,167,171,19#,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
KZN165..SR..ARL;RZN169..DCB..SA;RZN147..LHD..GEN;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN147..(THDCB,THSCB)..DLX..DEFI;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN145,166,RZN169..LHD..DLX..(CBR,DSL)..(GCC,GEN)..CBU;LN147,RZN149..(DCB,SCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);LN145,172,RZN147,154,174,194..(DCB,SCB,XTR)..(ARL,GCC,SA);LN140,141,146,167,171,19#,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA) 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08284 |
KZN165..SR..ARL;RZN169..DCB..SA;RZN169..DLX..SA;RZN147..LHD..GEN;RZN149..EFI..GEN;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN147..(THDCB,THSCB)..DLX..DEFI;LN145,172,RZN194..(DCB,SCB,XTR)..(ARL,SA);KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN145,166,RZN169..LHD..DLX..(CBR,DSL)..(GCC,GEN)..CBU;LN147,RZN147..(DCB,SCB)..DLX..(CBR,DEFI,DSL)..(ARL,GCC,SA);LN140,141,146,167,171,19#,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08282 |
KZN165..SR..ARL;RZN169..DCB..SA;RZN147..LHD..GEN;LN167..DLX..DEFI..ARL;LN152..THXTR..DEFI..IV3;LN147..(THDCB,THSCB)..DLX..DEFI;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN172..(SCB,THXTR)..DLX..(DEFI,TDE);LN145,152,RZN148..(SCB,XTR)..(ARL,GEN)..IV3;KZN165,RZN169..RHD..DCB..DLX..(CBR,TDE)..CBU;LN145,166,RZN169..LHD..DLX..(CBR,DSL)..(GCC,GEN)..CBU;LN147,RZN149..(DCB,SCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN);LN145,172,RZN147,154,174,194..(DCB,SCB,XTR)..(ARL,GCC,SA);LN140,141,146,167,171,19#,RZN142,144,149,154..(DCB,SCB,XTR)..(CBR,DSL)..(ARL,GCC,GEN,SA) 50A,TERM.:FEMALE,RED,YAZAKI |
1 | ||
| 82662 - COVER, RELAY BLOCK, UPPER | ||||
| 82662-35740 |
KZN165..ARL |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
LN192;LN150..SR;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..DEFI..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;LN152,167..(DCB,SCB,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN147,172..(THDCB,THSCB,THXTR)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-1E350 | ||||
| 82711-35420 | ||||
| 82715-22070 | ||||
| 82715-3D180 | ||||
| 82819-35140 | ||||
| 90119-06431 | ||||
| 90119-06915 | ||||
| 90179-06158 | ||||
| 91631-B0614 | ||||

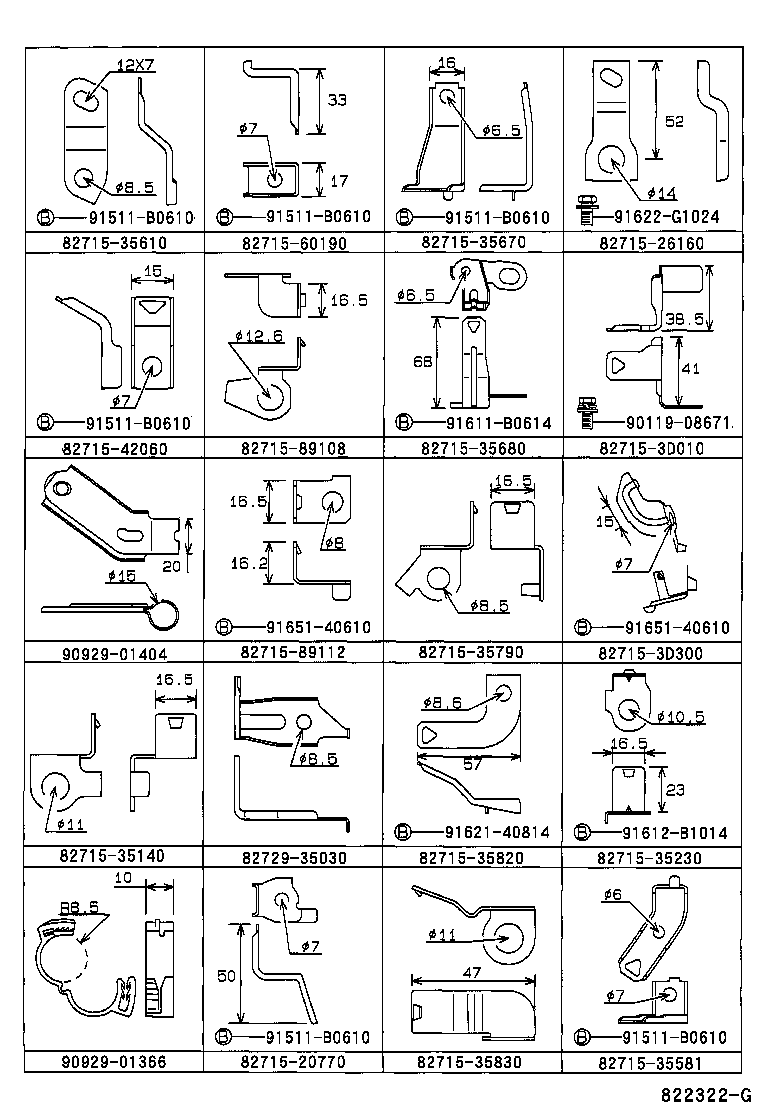

ILLUST NO. 1 OF 6(9909- )KZN165,190
ENGINE WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-20770 | ||||
| 82715-26160 | ||||
| 82715-35140 | ||||
| 82715-35230 | ||||
| 82715-35581 | ||||
| 82715-35610 | ||||
| 82715-35670 | ||||
| 82715-35680 | ||||
| 82715-35790 | ||||
| 82715-35820 | ||||
| 82715-35830 | ||||
| 82715-3D010 | ||||
| 82715-3D300 | ||||
| 82715-42060 | ||||
| 82715-60190 | ||||
| 82715-89108 | ||||
| 82715-89112 | ||||
| 82729-35030 | ||||
| 90119-08671 | ||||
| 90929-01366 | ||||
| 90929-01404 | ||||
| 91511-B0610 | ||||
| 91611-B0614 | ||||
| 91612-B1014 | ||||
| 91621-40814 | ||||
| 91651-40610 | ||||
