KZN165R-TRMSTQ3 (1999)

Toyota Hilux

Production Sep 1999 - Aug 2000
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )KZN165,190

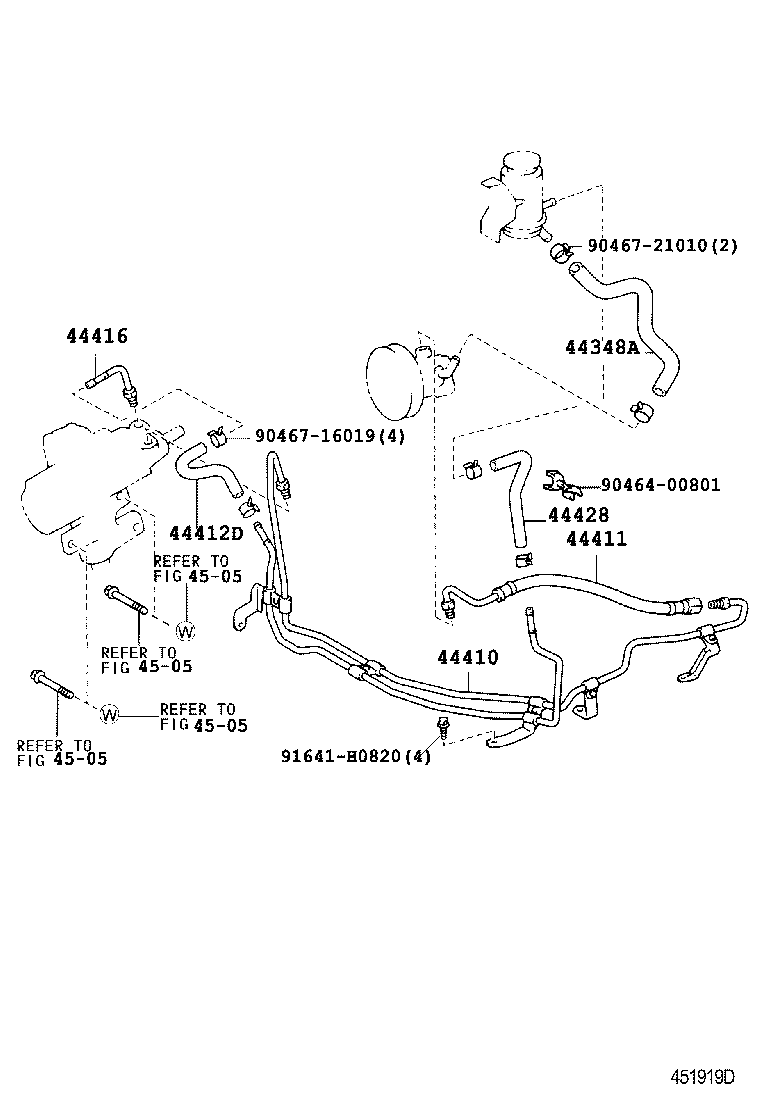

Click highlighted areas on diagram

diagram 44348A 44410 44411 44412D 44416 44428 4505 4505 4505 4505 9046400801 9046716019 9046721010 91641H0820
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-35210

LN140,145,147,152,16#,172,192..RHD..(ARL,GEN,SA)

 1
44412D - HOSE, RETURN, NO.1
44412-35110

KZN165..SCB

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-35100

KZN165..SCB

 1
Common parts
90464-00801
90467-16019
90467-21010
91641-H0820
Linked diagrams
4505
