KZN165R-TRMSTQ3 (1999)

Toyota Hilux

Production Sep 1999 - Aug 2000
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )1KZTE

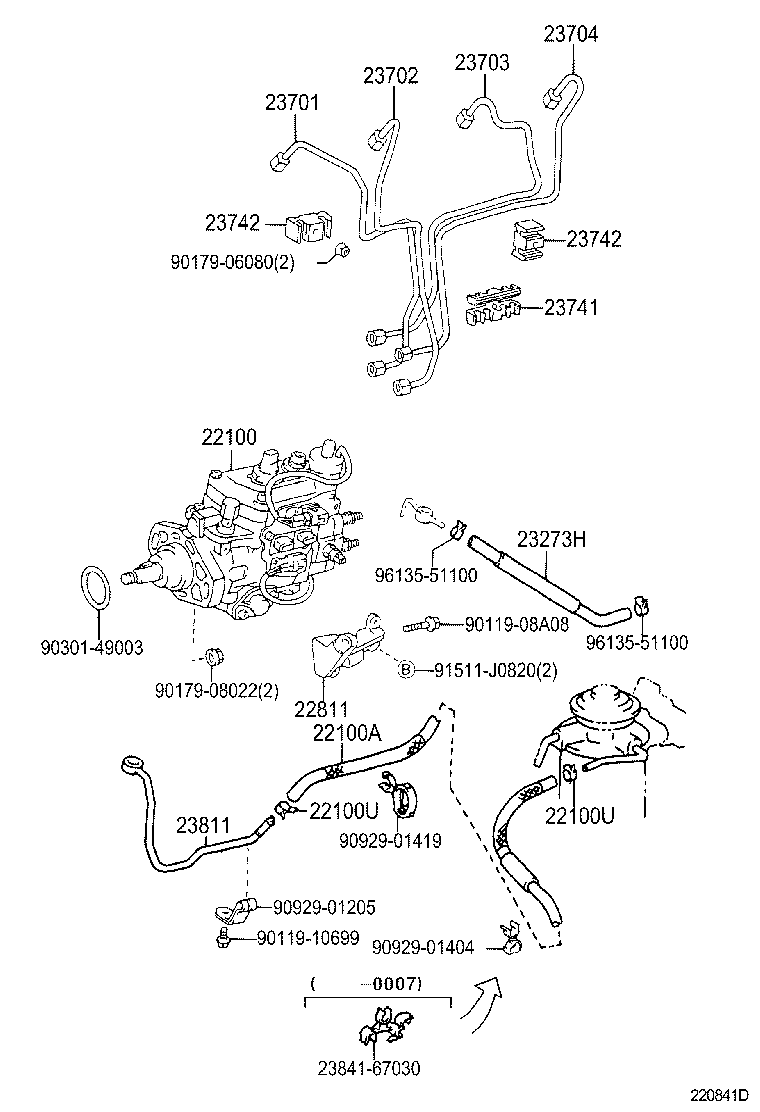

Click highlighted areas on diagram

diagram 22100 22100A 22100U 22100U 22811 23273H 23701 23702 23703 23704 23741 23742 23742 23811 2384167030 9011908A08 9011910699 9017906080 9017908022 9030149003 9092901205 9092901404 9092901419 91511J0820 9613551100 9613551100
Part # Description Qty Price
Common parts
23841-67030
90119-08A08
90119-10699
90179-06080
90179-08022
90301-49003
90929-01205
90929-01404
90929-01419
91511-J0820
96135-51100
