KZN165R-TRMSTQ3 (1999)

Toyota Hilux

Production Sep 1999 - Aug 2000
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

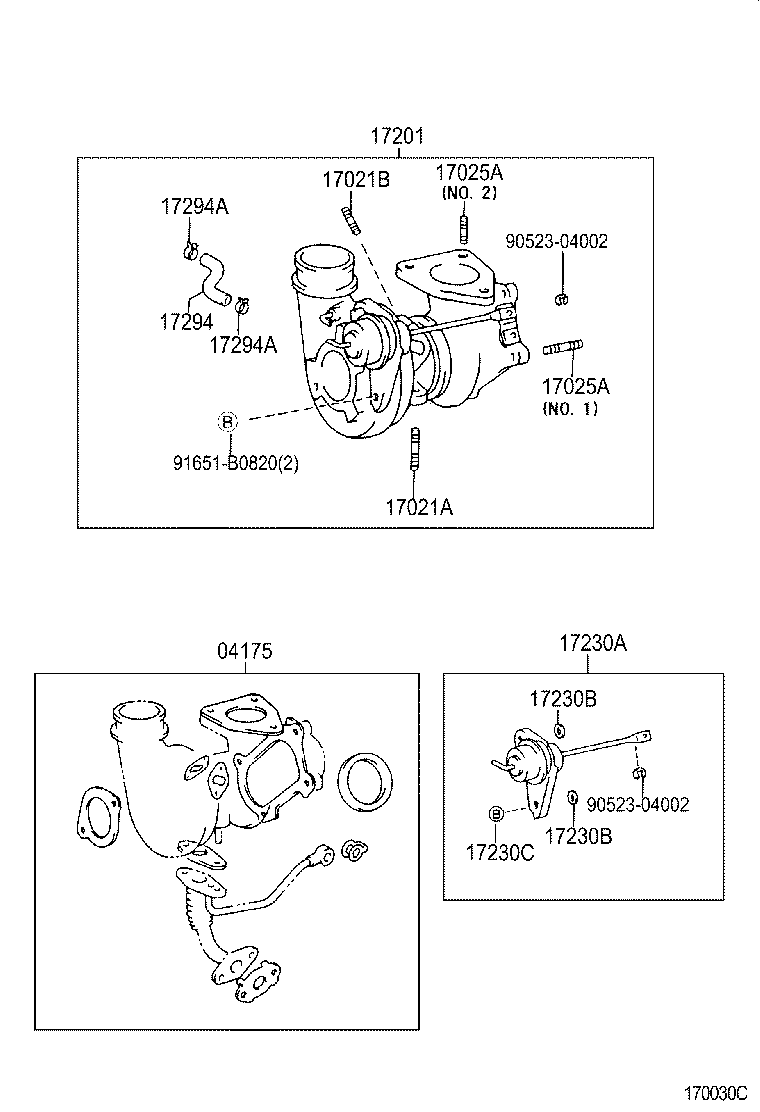

ILLUST NO. 2 OF 2(9909- )1KZTE

Click highlighted areas on diagram

diagram 04175 17021A 17021B 17025A 17025A 17201 17230A 17230B 17230B 17230C 17294 17294A 17294A 9052304002 9052304002 91651B0820
Part # Description Qty Price
17201 - TURBOCHARGER SUB-ASSY
17201-67010

1KZTE..KZN165..ARL

 1
17230A - REPAIR ACTUAOR ASSY, W/BRACKET
17230-69015

1KZTE..KZN165..ARL

 1
Common parts
90523-04002
91651-B0820

ILLUST NO. 1 OF 2(0007- )1KZTE..SA ; (0008- )1KZTE..KZN165..DCB,SCB,THDCB,XTR..ARL,TH ; (0109-

Click highlighted areas on diagram

diagram 15407 15407A 15407B 15471 15472 16347C 17111 17113 17114B 17141 17152 17159 17159 17167 17173 17177 17177 17177 17177 17201 17271 17274 17276 17278 17279 17291 17293 17293 17296 17342H 17342J 17342J 9011606070 9011608260 9011608260 9011608348 9011608410 9011906747 9011906747 9011906748 9011910778 9017906080 9017908054 9017908150 9017908150 9017908150 9017908229 9017908229 9017910094 9020110109 9021008039 9164180814 9164180814 9212260610 9212260614 9418401041
Part # Description Qty Price
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-67030

1KZTE..KZN165

 1
17201 - TURBOCHARGER SUB-ASSY
17201-67010

1KZTE..KZN165..ARL

 1
Common parts
90116-06070
90116-08260
90116-08348
90116-08410
90119-06747
90119-06748
90119-10778
90179-06080
90179-08054
90179-08150
90179-08229
90179-10094
90201-10109
90210-08039
91641-80814
92122-60610
92122-60614
94184-01041

(0408-0908)2KDFTV..KUN15,25..HDCR..TH ; (0908-)2KDFTV..KUN15..HDCR ; (1008-

Click highlighted areas on diagram

diagram 04175 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17141 17167 17173 17177 17201 17230A 17230B 17230B 17230C 17274 17278 17279 17291 17293 17294 17294A 17294A 17341H 17341J 17341J 17341M 1901 90105T0118 90105T0156 9011608408 90116T0006 90116T0015 9011906748 90119T0057 90119T0062 90119T0236 9012610034 90126T0006 90126T0009 90177T0006 90177T0009 90178T0019 9017906298 9017908101 9017908229 9017910070 90182T0007 9020110109 9038710171 90560T0006 9155180814 9155180835 91651B0814 9167100816 9212280870 9415180800 9418401041
Part # Description Qty Price
Common parts
90105-T0118
90105-T0156
90116-08408
90116-T0006
90116-T0015
90119-06748
90119-T0057
90119-T0062
90119-T0236
90126-10034
90126-T0006
90126-T0009
90177-T0006
90177-T0009
90178-T0019
90179-06298
90179-08101
90179-08229
90179-10070
90182-T0007
90201-10109
90387-10171
90560-T0006
91551-80814
91551-80835
91651-B0814
91671-00816
92122-80870
94151-80800
94184-01041
Linked diagrams
1901

(1107-1502)2TRFE..TGN16..DCB,XTR..GEN ; (1107-1502)2TRFE..TGN16,36..ANCOM,GCC,SA ;

Click highlighted areas on diagram

W/O(AIR INJECTION SYSTEM)

diagram 17111 17111Z 17118 17141 17141K 17167 17173 17177 2211 90105T0108 90119T0233 90119T0236 90119T0238 90119T0342 90178T0019 9017908101 91551B0828 9161961230 9167100835
Part # Description Qty Price
Common parts
90105-T0108
90119-T0233
90119-T0236
90119-T0238
90119-T0342
90178-T0019
90179-08101
91551-B0828
91619-61230
91671-00835
Linked diagrams
2211

ILLUST NO. 1 OF 2(1107-1408)1KDFTV..KUN26..THDCB..5F..SR ; (1107-)1KDFTV..KUN26..THDCB..DLX ; (1

Click highlighted areas on diagram

CHILE SPEC(EURO 4 REGULATION)

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17118B 17135A 17136 17141 17167 17173 17177 17271 17274 17276 17278 17279 17291 17293 2321130030 9011608408 9011906748 9012608052 9012610034 9017908101 9017908229 9017910070 9020110109 9038710171 9046907011 9155180610 9155180814 9155180835 91651B0814 9167100816 9415180600 9415180800 9415180800 9418401041
Part # Description Qty Price
Common parts
23211-30030
90116-08408
90119-06748
90126-08052
90126-10034
90179-08101
90179-08229
90179-10070
90201-10109
90387-10171
90469-07011
91551-80610
91551-80814
91551-80835
91651-B0814
91671-00816
94151-80600
94151-80800
94184-01041
