KZN165R-TRMSTQ3 (1999)

Toyota Hilux

Production Sep 1999 - Aug 2000
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )1KZTE

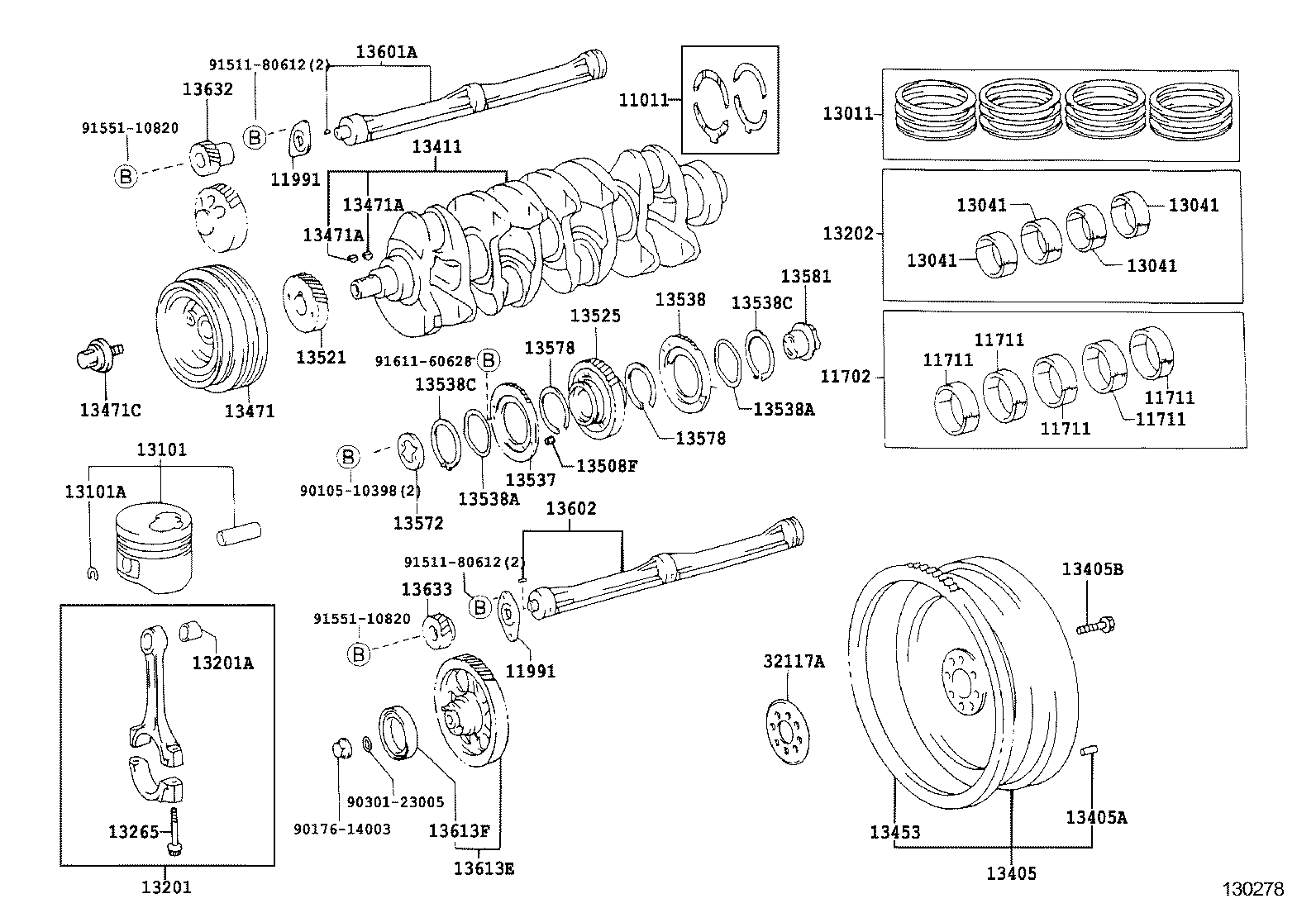

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 11991 11991 13011 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13405 13405A 13405B 13411 13453 13471 13471A 13471A 13471C 13508F 13521 13525 13537 13538 13538A 13538A 13538C 13538C 13572 13578 13578 13581 13601A 13602 13613E 13613F 13632 13633 32117A 9010510398 9017614003 9030123005 9151180612 9151180612 9155110820 9155110820 9161160628
Part # Description Qty Price
11702 - BEARING SET, CRANKSHAFT
11705-67020

1KZTE..KZN165,190

U/S 0.50

 1
11704-67020

1KZTE..KZN165,190

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-6702003

1KZTE..KZN165,190

MARK 3,REFER REPAIR MANUAL

 5
11701-6702006

1KZTE..KZN165,190

MARK 6,REFER REPAIR MANUAL

 5
11701-6702004

1KZTE..KZN165,190

MARK 4,REFER REPAIR MANUAL

 5
11701-6702002

1KZTE..KZN165,190

MARK 2,REFER REPAIR MANUAL

 5
11701-6702005

1KZTE..KZN165,190

MARK 5,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-6702003

1KZTE..KZN165,190

MARK 3,REFER REPAIR MANUAL

 5
11701-6702006

1KZTE..KZN165,190

MARK 6,REFER REPAIR MANUAL

 5
11701-6702004

1KZTE..KZN165,190

MARK 4,REFER REPAIR MANUAL

 5
11701-6702002

1KZTE..KZN165,190

MARK 2,REFER REPAIR MANUAL

 5
11701-6702005

1KZTE..KZN165,190

MARK 5,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-6702003

1KZTE..KZN165,190

MARK 3,REFER REPAIR MANUAL

 5
11701-6702006

1KZTE..KZN165,190

MARK 6,REFER REPAIR MANUAL

 5
11701-6702004

1KZTE..KZN165,190

MARK 4,REFER REPAIR MANUAL

 5
11701-6702002

1KZTE..KZN165,190

MARK 2,REFER REPAIR MANUAL

 5
11701-6702005

1KZTE..KZN165,190

MARK 5,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-6702003

1KZTE..KZN165,190

MARK 3,REFER REPAIR MANUAL

 5
11701-6702006

1KZTE..KZN165,190

MARK 6,REFER REPAIR MANUAL

 5
11701-6702004

1KZTE..KZN165,190

MARK 4,REFER REPAIR MANUAL

 5
11701-6702002

1KZTE..KZN165,190

MARK 2,REFER REPAIR MANUAL

 5
11701-6702005

1KZTE..KZN165,190

MARK 5,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-6702003

1KZTE..KZN165,190

MARK 3,REFER REPAIR MANUAL

 5
11701-6702006

1KZTE..KZN165,190

MARK 6,REFER REPAIR MANUAL

 5
11701-6702004

1KZTE..KZN165,190

MARK 4,REFER REPAIR MANUAL

 5
11701-6702002

1KZTE..KZN165,190

MARK 2,REFER REPAIR MANUAL

 5
11701-6702005

1KZTE..KZN165,190

MARK 5,REFER REPAIR MANUAL

 5
13202 - BEARING SET, CONNECTING ROD
13205-67030

1KZTE..KZN165..ARL

U/S 0.50

 1
13204-67030

1KZTE..KZN165..ARL

U/S 0.25

 1
13411 - CRANKSHAFT
13401-67010

1KZTE..KZN165

 1
Common parts
90105-10398
90176-14003
90301-23005
91511-80612
91551-10820
91611-60628
