KZN165R-TRMSTQ3 (1999)

Toyota Hilux

Production Sep 1999 - Aug 2000
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

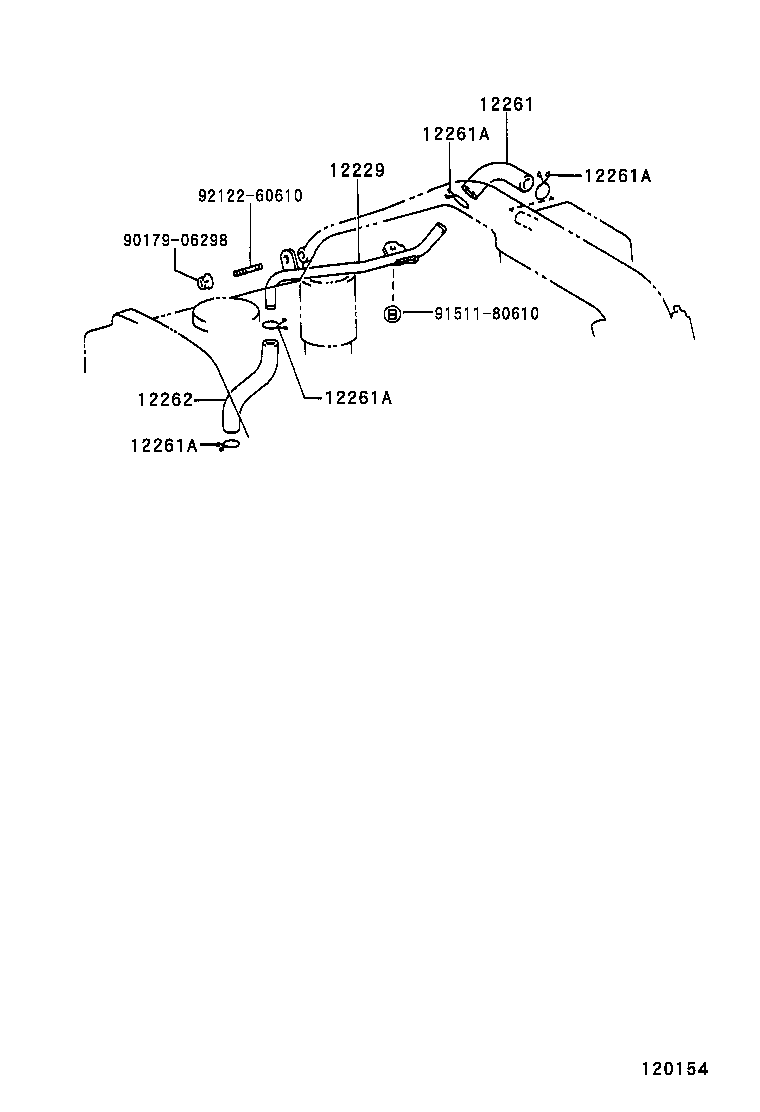

(9909- )1KZTE

Click highlighted areas on diagram

diagram 12229 12261 12261A 12261A 12261A 12261A 12262 9017906298 9151180610 9212260610
Part # Description Qty Price
Common parts
90179-06298
91511-80610
92122-60610

(1107- )2KDFTV..KUN10,35..DLX..GCC,IDN,LA,SA; (1109-1210)2KDFTV..KUN25..MA ; (1

Click highlighted areas on diagram

W/O(INTERCOOLER)

diagram 12261 12261A 12261A 12278 1703 90119T0249 91651B0814
Part # Description Qty Price
Common parts
90119-T0249
91651-B0814
Linked diagrams
1703
