KZN165R-TRMSTQ3 (1999)

Toyota Hilux

Production Sep 1999 - Aug 2000
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )1KZTE

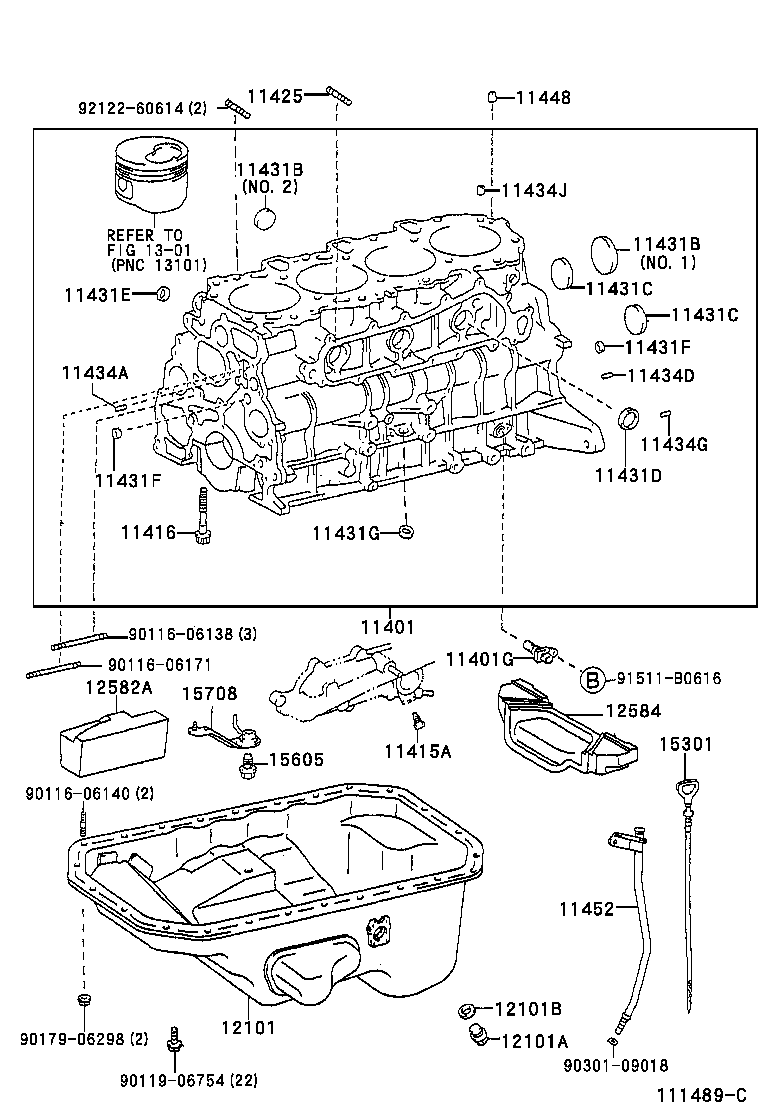

Click highlighted areas on diagram

diagram 11401 11401G 11415A 11416 11425 11431B 11431B 11431C 11431C 11431D 11431E 11431F 11431F 11431G 11434A 11434D 11434G 11434J 11448 11452 12101 12101A 12101B 12582A 12584 1301 15301 15605 15708 9011606138 9011606140 9011606171 9011906754 9017906298 9030109018 91511B0616 9212260614
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69705

1KZTE..KZN165

 1
11401-69706

1KZTE..KZN165

 1
Common parts
90116-06138
90116-06140
90116-06171
90119-06754
90179-06298
90301-09018
91511-B0616
92122-60614
Linked diagrams
1301
