KZN165R-TRMSTQ3 (1999)

Toyota Hilux

Production Sep 1999 - Aug 2000
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )1KZTE

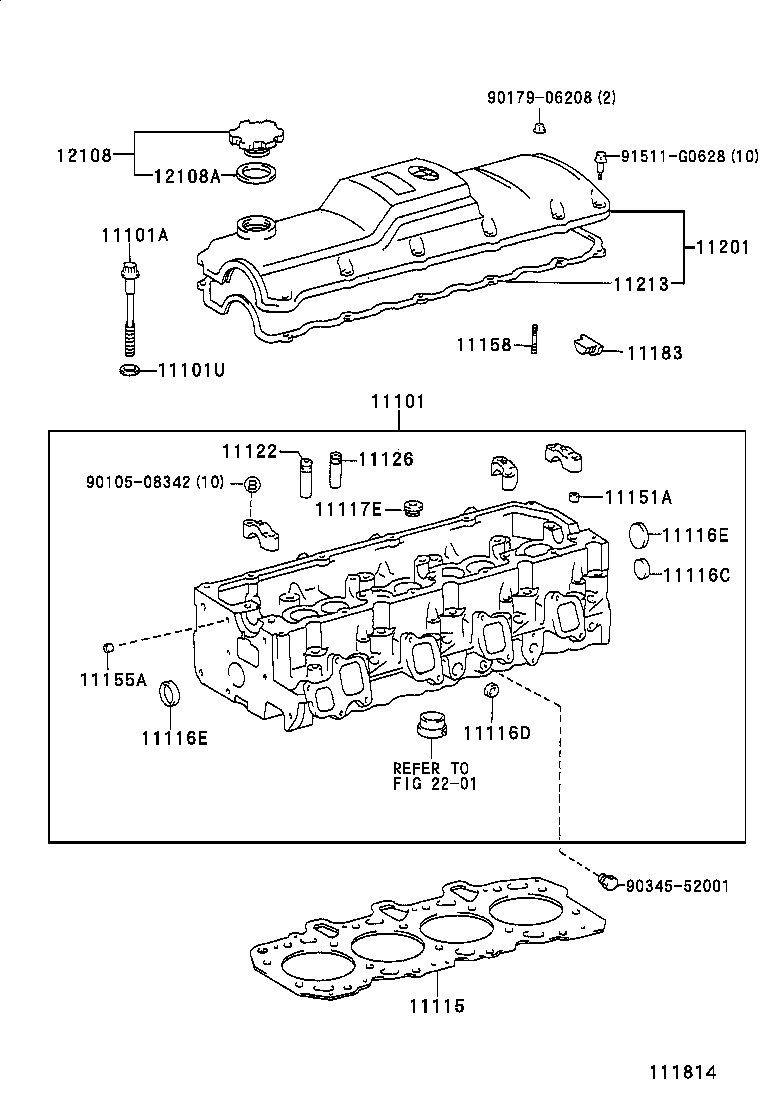

Click highlighted areas on diagram

diagram 11101 11101A 11101U 11115 11116C 11116D 11116E 11116E 11117E 11122 11126 11151A 11155A 11158 11183 11201 11213 12108 12108A 2201 9010508342 9017906208 9034552001 91511G0628
Part # Description Qty Price
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-22008

1KZTE..KZN165,190

 4
11155A - PIN, RING W/HEAD
90253-10004

1KZTE..KZN165,190

 2
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-06149

1KZTE..KZN165,190

S=9 & 16,L=37

 2
11183 - PLUG, SEMICIRCULAR
11183-54020

1KZTE..KZN165

 1
Common parts
90105-08342
90179-06208
90345-52001
91511-G0628
Linked diagrams
2201
