KZN165R-KRMSTQ (1999)

Toyota Hilux

Production Sep 1999 - Sep 2000
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )1KZTE..SA ; (0008- )1KZTE..KZN165..DCB,SCB,THDCB,XTR..ARL,TH ; (0110-

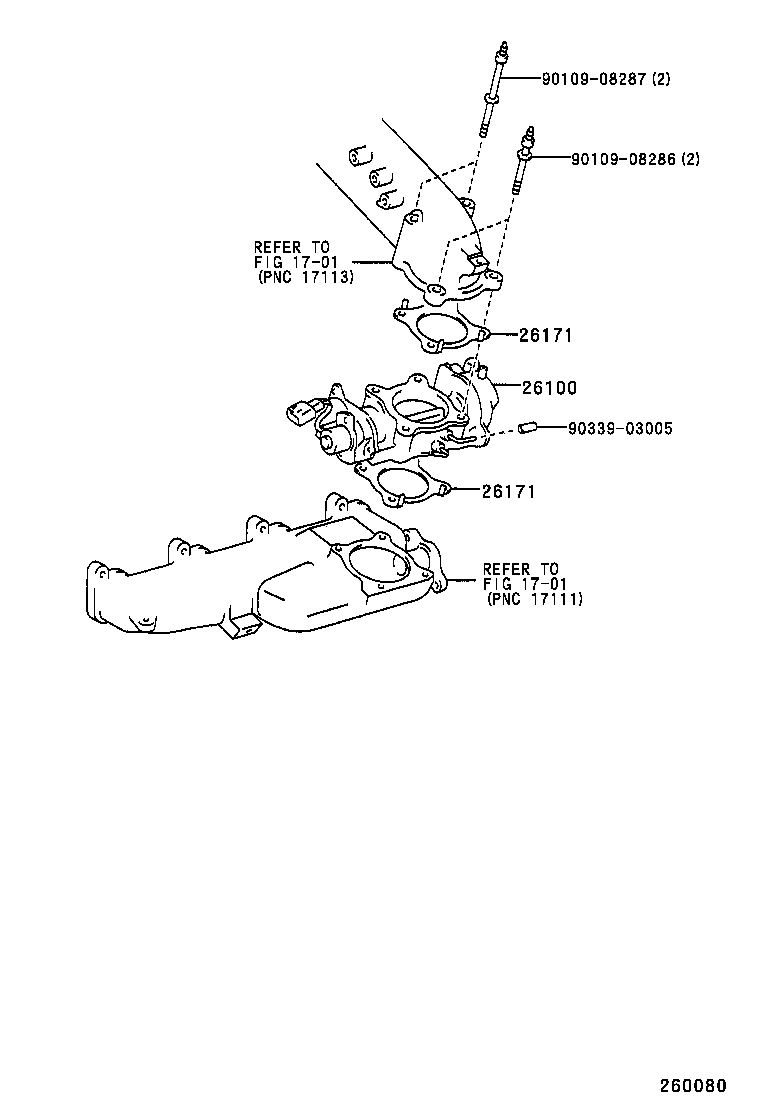

Click highlighted areas on diagram

diagram 1701 1701 26100 26171 26171 9010908286 9010908287 9033903005
Part # Description Qty Price
26100 - VENTURI ASSY
26100-67040

1KZTE..KZN165..SR..ARL

 1
26171 - GASKET, VENTURI
26171-67010

1KZTE..KZN165..SR..ARL

 1
26171 - GASKET, VENTURI
26171-67010

1KZTE..KZN165..SR..ARL

 1
Common parts
90109-08286
90109-08287
90339-03005
Linked diagrams
1701

(9909-0009)1KZTE..KZN165..SR..ARL

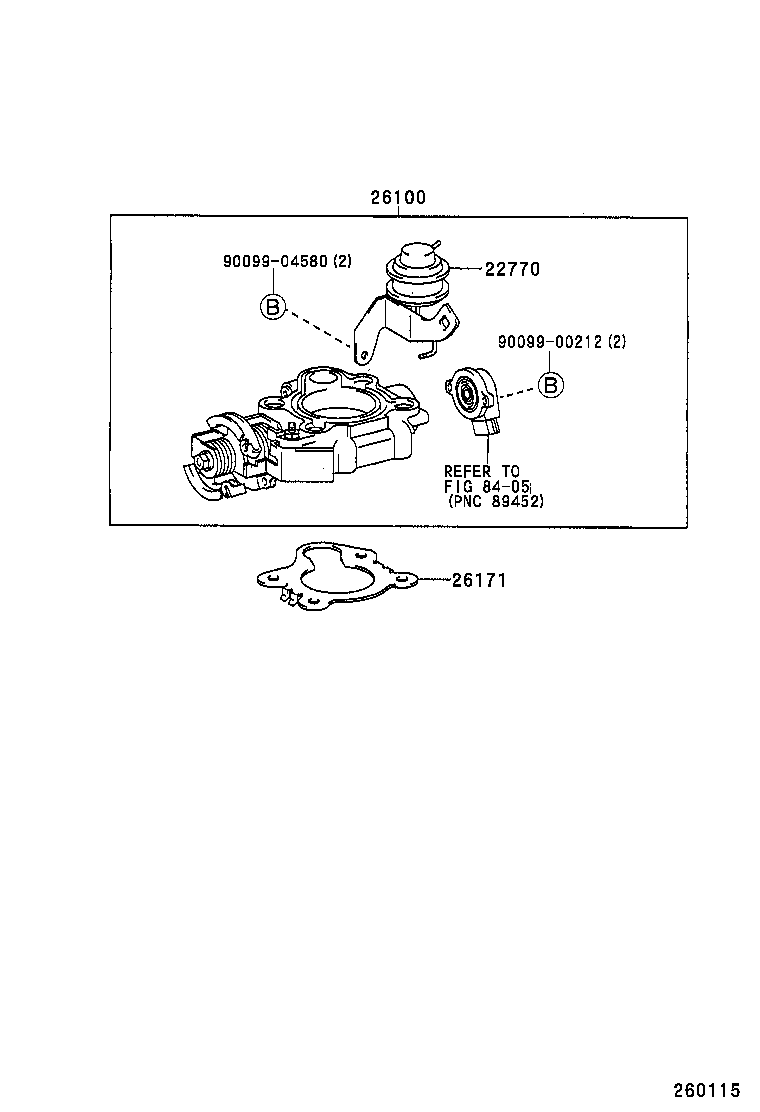

Click highlighted areas on diagram

diagram 22770 26100 26171 8405 9009900212 9009904580
Part # Description Qty Price
22770 - ACTUATOR, IDEL UP
26133-67010

1KZTE..KZN165..SR..ARL

 1
26100 - VENTURI ASSY
26100-67040

1KZTE..KZN165..SR..ARL

 1
26171 - GASKET, VENTURI
26171-67010

1KZTE..KZN165..SR..ARL

 1
Common parts
90099-00212
90099-04580
Linked diagrams
8405
