Toyota Hilux KZN165 HOOD & FRONT FENDER

Manufacturers Home
Toyota
GR
HILUX
KZN165R-JRMSTQ (1999)
5353 - HOOD & FRONT FENDER

KZN165R-JRMSTQ (1999)

Toyota Hilux

Production Sep 1999 - Aug 2002

Engine 1KZTE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9708-0108)

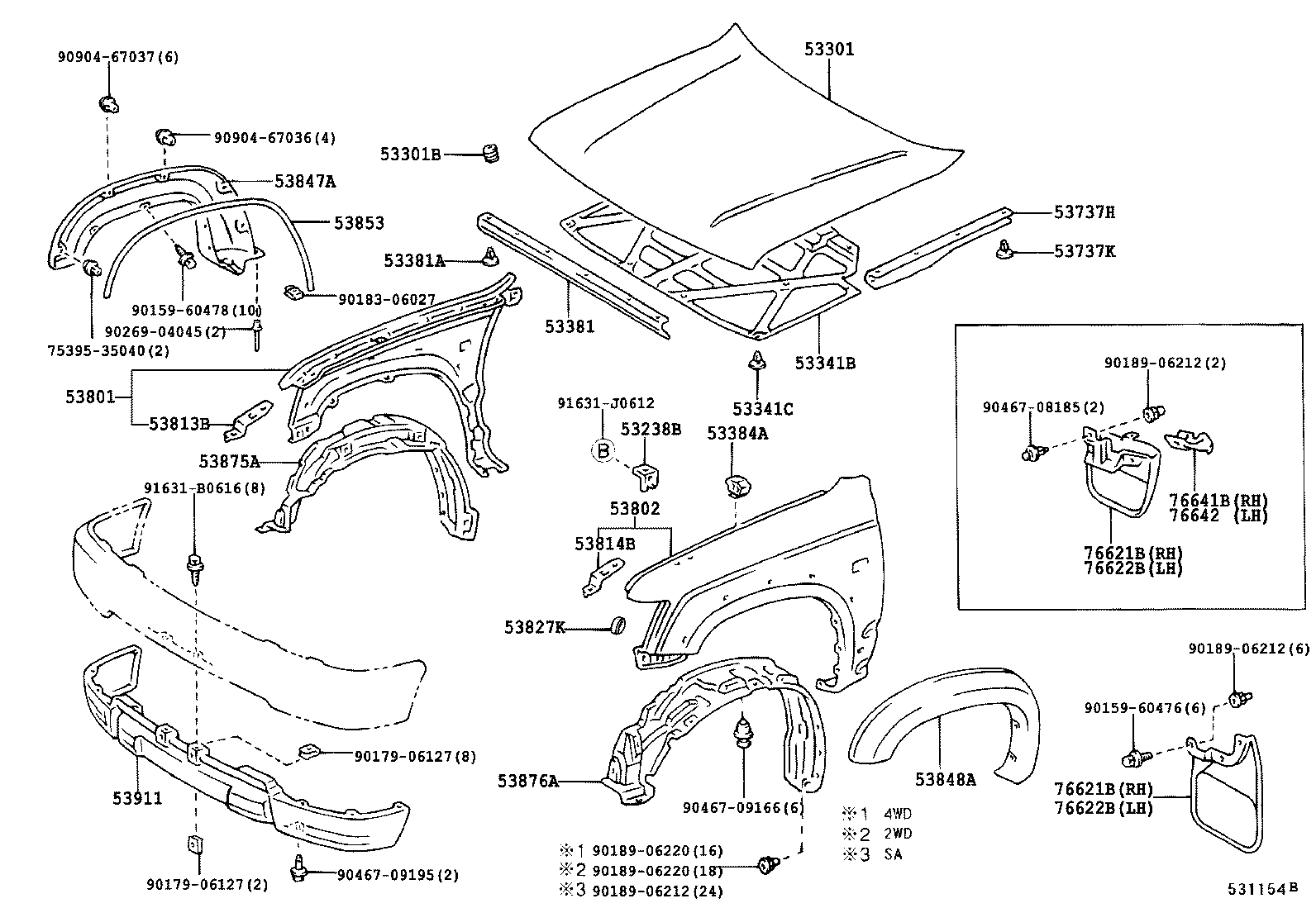

Click highlighted areas on diagram

Part #	Description	Period	Qty
53238B - BRACKET, HOOD BUMPER MOUNTING
53238-35010	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
53301 - HOOD SUB-ASSY
53301-35060	KZN165,LN145,147,15#,167,172,192,RZN147,149,154,169,174..ARL,TH	08/1997 - 09/2001	1
53301B - CUSHION, HOOD BUMPER
90541-15010	LN14#,16#,191,RZN14#,16#,193	08/1997 - 11/1997	2
53341B - INSULATOR, HOOD
53341-35121	LN152..IV3;LN167..DLX..ARL;KZN190,LN147,172..DLX;KZN165..(DCB,SCB)..(ARL,SA);KZN165..(THDCB,THSCB,XTR)..SR	08/1997 - 03/2002	1
53384A - BUMPER, FENDER TO HOOD
53384-35010	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	3
53737H - SEAL, FRONT FENDER APRON, LH
53737-35040	LN157,192;LN152,167..DSL;LN152..DEFI..IV3;LN167..DLX..DEFI..ARL;LN152,167..DEFI..(SA,TH);KZN165..(DCB,SCB)..(ARL,SA);KZN165,LN150..(THDCB,THSCB,XTR)..SR;KZN190,LN140,145,147,172..DLX..(ARL,SA)	08/1997 - 03/2002	1
53737K - CLIP(FOR FRONT FENDER APRON SEAL)
90467-08011	LN152..DEFI..IV3;LN167..DLX..DEFI;LN152,157,167,192..DSL;KZN165..(THDCB,THSCB)..SR;KZN190,LN14#,166,172..DLX..(ARL,GCC,SA);KZN165,LN192..(DCB,SCB)..(DEFI,TDE)..(ARL,SA)	08/1997 - 03/2002	4
53801 - FENDER SUB-ASSY, FRONT RH
53801-35120	KZN190;LN167,RZN169..(DCB,THDCB)..(ARL,GEN);KZN165,LN166..(DCB,THDCB)..(ARL,GEN,SA) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/1997 - 08/2000	1
53801-35110	KZN190..SCB;KZN165,LN167,172,RZN169,174..ARL W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53801-35130	KZN190;KZN165,LN166..RHD..(DCB,THDCB);LN167,RZN169..RHD..(DCB,THDCB)..DLX W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53801-35100	KZN190..SCB;RZN169..LHD..GEN;KZN165,LN167,172,RZN169,174..ARL W(SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53801-35121	KZN190,LN192..(DEFI,TDE)..SA;KZN165,RZN194..(DCB,THDCB)..SR;LN16#,RZN169..(DCB,THDCB)..(ARL,GEN) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/2000 - 08/2001	1
53801-35111	LN167,192..DEFI..SA;LN167,RZN169..DLX..ARL;KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;KZN190,LN172,RZN174..SCB,THXTR,XTR W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/2000 - 03/2002	1
53801-35101	KZN165..SR..ARL;LN167,RZN169..DLX..ARL;LN167,192..SCB..DEFI..SA;KZN190,LN172,RZN174..(SCB,THXTR,XTR)..DLX W(SIDE TURN SIGNAL LAMP)	08/2000 - 06/2002	1
53801-35131	KZN190,LN192..DLX..(DEFI,TDE);RZN169..(DCB,THDCB)..DLX..ARL;KZN165,RZN194..(DCB,THDCB)..SR..(ARL,SA);LN16#,RZN169..RHD..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GEN) W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/2000 - 12/2999	1
53802 - FENDER SUB-ASSY, FRONT LH
53802-35240	KZN190;LN167,RZN169..(DCB,THDCB)..(ARL,GEN);KZN165,LN166..(DCB,THDCB)..(ARL,GEN,SA) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/1997 - 08/2000	1
53802-35230	LN166,RZN169..LHD..DCB..GEN;KZN165,LN167,RZN169..(DCB,THDCB)..ARL W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53802-35200	KZN165..ARL;RZN169..LHD..GEN;LN167,RZN169..(DCB,THDCB)..ARL W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53802-35241	KZN190;KZN165..(DCB,THDCB)..SR;LN16#,RZN169..(DCB,THDCB)..(ARL,GEN) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/2000 - 09/2000	1
53802-35201	KZN165..SR..ARL;LN167,RZN169..(DCB,THDCB)..ARL W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/2000 - 09/2001	1
53802-35241	LN192,RZN169,194..SA;KZN165..SR..(ARL,SA);LN167,RZN169..(DCB,THDCB)..ARL W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/2001 - 09/2001	1
53802-35321	LN167,192..DEFI..SA;LN167,RZN169..DLX..ARL;KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;KZN190,LN172,RZN174..SCB,THXTR,XTR W(SIDE TURN SIGNAL LAMP)	08/2000 - 03/2002	1
53802-35320	KZN190..SCB;RZN169..LHD..GEN;KZN165,LN167,172,RZN169,174..ARL W(SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53802-35231	KZN165..(DCB,THDCB)..SR..ARL;LN167,RZN169..(DCB,THDCB)..ARL;LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/2000 - 09/2001	1
53813B - EXTENSION, FRONT FENDER, RH
53813-35010	LN17#,RZN154,174;LN14#,152,155,157,16#,19#,RZN14#,16#,19#,YN140..DCB,SCB,THXTR	08/1997 - 09/1998	1
53813-35010	LN145..DCB;LN147..SCB..IV3;RZN149..(SCB,THSCB)..ARL..CBU;LN145,155,RZN154..LHD..(SCB,XTR);RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN147,RZN149..(DCB,SCB,THSCB)..(CBR,DSL)..CBU;LN152,RZN147..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN);KZN165,190,LN141,146,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
53813-35010	LN145..IV3;RZN149..LHD;RZN147..SCB,THSCB;LN145,RZN147..DCB..(GCC,GEN,TH)..CBU;LN145,155,RZN154..LHD..(SCB,XTR)..CBU;LN145,RZN149..(SCB,THSCB)..(ARL,SA)..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,190,LN140,141,146,147,152,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	09/2000 - 08/2001	1
53813-35010	LN147..IV3;LN147..DCB,THDCB;LN145,155..LHD..TH;RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,LN140,145,167,172,192,RZN142,147,169,174,194..ARL,SA	08/2001 - 09/2001	1
53814B - EXTENSION, FRONT FENDER, LH
53814-35010	LN145..DCB;LN147..SCB..IV3;LN147,RZN149..CBU;RZN147..ARL,GCC,GEN;LN145,155,RZN154..LHD..(SCB,XTR);RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;KZN165,190,LN141,146,152,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
53814-35010	LN147..IV3;LN147..DCB,THDCB;RZN149..ARL..CBU;LN145,155..LHD..TH;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,LN140,145,167,172,192,RZN142,147,169,174,194..ARL,SA	08/2001 - 09/2001	1
53814-35010	LN17#,RZN154,174;LN14#,152,155,157,16#,19#,RZN14#,16#,19#,YN140..DCB,SCB,THXTR	08/1997 - 09/1998	1
53814-35010	LN145..SA;LN145..IV3;RZN147..GCC;RZN149..CBU;LN145..DCB..CBU;RZN147..RHD..DCB..GEN;RZN147..RHD..(SCB,THSCB);LN145,155,RZN154..LHD..(SCB,XTR)..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,190,LN140,141,146,147,152,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	09/2000 - 08/2001	1
53847A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH
53087-35901	LN167,RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN194..(DCB,SADCB,THDCB)..SR..(ARL,SA);KZN190,LN166,RZN169..DCB..DLX..(CBR,DSL,TDE)..(GEN,SA)	08/1997 - 03/2006	1
53848A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH
53088-35901	LN167,RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN194..(DCB,SADCB,THDCB)..SR..(ARL,SA);KZN190,LN166,RZN169..DCB..DLX..(CBR,DSL,TDE)..(GEN,SA)	08/1997 - 03/2006	1
53853 - PAD, FRONT WHEEL OPENING EXTENSION, NO.3
53853-35050G0	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) LIGHT GREEN,6P4	08/1997 - 09/2000	2
53853-35050G1	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) DARK GREEN,6N7	08/1997 - 09/2000	2
53853-35050J0	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) DARK BLUE,8L7	08/1997 - 09/2000	2
53853-35050K0	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) GRAISH PURPLE,058 ,926	08/1997 - 09/2000	2
53853-35050A3	KZN165..SR..(ARL,SA);LN167,RZN169..(DCB,THDCB)..DLX..ARL;KZN190,LN167,192,RZN169,194..(DCB,SADCB)..(SA,TH) GRAYISH PURPLE,058 ,926	09/2000 - 03/2002	2
53911 - PANEL, FRONT VALANCE
53911-35190	KZN165,LN167,172,192,RZN169,174..ARL,TH	08/1997 - 09/2001	1
76621B - MUDGUARD, FRONT BODY, RH
76621-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76603-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76621-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76621-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76621B - MUDGUARD, FRONT BODY, RH
76621-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76603-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76621-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76621-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76622B - MUDGUARD, FRONT BODY, LH
76622-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76604-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76622-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76622-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76622B - MUDGUARD, FRONT BODY, LH
76622-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76604-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76622-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76622-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76641B - BRACKET, FRONT FENDER PANEL MUDGUARD, RH
76641-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA)	08/1997 - 03/2006	1
76642 - BRACKET, FRONT FENDER PANEL MUDGUARD, LH
76642-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA)	08/1997 - 03/2006	1
Common parts
75395-35040
90159-60476
90159-60478
90179-06127
90183-06027
90189-06212
90189-06220
90269-04045
90467-08185
90467-09166
90467-09195
90904-67036
90904-67037
91631-B0616
91631-J0612

(0108-0109)ARL,SA,TH ; (0109-0203)SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
53238B - BRACKET, HOOD BUMPER MOUNTING
53238-35010	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
53301 - HOOD SUB-ASSY
53301-35060	KZN165,LN145,147,15#,167,172,192,RZN147,149,154,169,174..ARL,TH	08/1997 - 09/2001	1
53301B - CUSHION, HOOD BUMPER
90541-15010	LN14#,16#,191,RZN14#,16#,193	08/1997 - 11/1997	2
53341B - INSULATOR, HOOD
53341-35121	LN152..IV3;LN167..DLX..ARL;KZN190,LN147,172..DLX;KZN165..(DCB,SCB)..(ARL,SA);KZN165..(THDCB,THSCB,XTR)..SR	08/1997 - 03/2002	1
53384A - BUMPER, FENDER TO HOOD
53384-35010	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	3
53737H - SEAL, FRONT FENDER APRON, LH
53737-35040	LN157,192;LN152,167..DSL;LN152..DEFI..IV3;LN167..DLX..DEFI..ARL;LN152,167..DEFI..(SA,TH);KZN165..(DCB,SCB)..(ARL,SA);KZN165,LN150..(THDCB,THSCB,XTR)..SR;KZN190,LN140,145,147,172..DLX..(ARL,SA)	08/1997 - 03/2002	1
53737K - CLIP(FOR FRONT FENDER APRON SEAL)
90467-08011	LN152..DEFI..IV3;LN167..DLX..DEFI;LN152,157,167,192..DSL;KZN165..(THDCB,THSCB)..SR;KZN190,LN14#,166,172..DLX..(ARL,GCC,SA);KZN165,LN192..(DCB,SCB)..(DEFI,TDE)..(ARL,SA)	08/1997 - 03/2002	4
53801 - FENDER SUB-ASSY, FRONT RH
53801-35120	KZN190;LN167,RZN169..(DCB,THDCB)..(ARL,GEN);KZN165,LN166..(DCB,THDCB)..(ARL,GEN,SA) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/1997 - 08/2000	1
53801-35110	KZN190..SCB;KZN165,LN167,172,RZN169,174..ARL W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53801-35130	KZN190;KZN165,LN166..RHD..(DCB,THDCB);LN167,RZN169..RHD..(DCB,THDCB)..DLX W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53801-35100	KZN190..SCB;RZN169..LHD..GEN;KZN165,LN167,172,RZN169,174..ARL W(SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53801-35121	KZN190,LN192..(DEFI,TDE)..SA;KZN165,RZN194..(DCB,THDCB)..SR;LN16#,RZN169..(DCB,THDCB)..(ARL,GEN) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/2000 - 08/2001	1
53801-35111	LN167,192..DEFI..SA;LN167,RZN169..DLX..ARL;KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;KZN190,LN172,RZN174..SCB,THXTR,XTR W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/2000 - 03/2002	1
53801-35101	KZN165..SR..ARL;LN167,RZN169..DLX..ARL;LN167,192..SCB..DEFI..SA;KZN190,LN172,RZN174..(SCB,THXTR,XTR)..DLX W(SIDE TURN SIGNAL LAMP)	08/2000 - 06/2002	1
53801-35131	KZN190,LN192..DLX..(DEFI,TDE);RZN169..(DCB,THDCB)..DLX..ARL;KZN165,RZN194..(DCB,THDCB)..SR..(ARL,SA);LN16#,RZN169..RHD..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GEN) W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/2000 - 12/2999	1
53802 - FENDER SUB-ASSY, FRONT LH
53802-35240	KZN190;LN167,RZN169..(DCB,THDCB)..(ARL,GEN);KZN165,LN166..(DCB,THDCB)..(ARL,GEN,SA) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/1997 - 08/2000	1
53802-35230	LN166,RZN169..LHD..DCB..GEN;KZN165,LN167,RZN169..(DCB,THDCB)..ARL W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53802-35200	KZN165..ARL;RZN169..LHD..GEN;LN167,RZN169..(DCB,THDCB)..ARL W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53802-35241	KZN190;KZN165..(DCB,THDCB)..SR;LN16#,RZN169..(DCB,THDCB)..(ARL,GEN) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/2000 - 09/2000	1
53802-35201	KZN165..SR..ARL;LN167,RZN169..(DCB,THDCB)..ARL W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/2000 - 09/2001	1
53802-35241	LN192,RZN169,194..SA;KZN165..SR..(ARL,SA);LN167,RZN169..(DCB,THDCB)..ARL W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/2001 - 09/2001	1
53802-35321	LN167,192..DEFI..SA;LN167,RZN169..DLX..ARL;KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;KZN190,LN172,RZN174..SCB,THXTR,XTR W(SIDE TURN SIGNAL LAMP)	08/2000 - 03/2002	1
53802-35320	KZN190..SCB;RZN169..LHD..GEN;KZN165,LN167,172,RZN169,174..ARL W(SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53802-35231	KZN165..(DCB,THDCB)..SR..ARL;LN167,RZN169..(DCB,THDCB)..ARL;LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/2000 - 09/2001	1
53813B - EXTENSION, FRONT FENDER, RH
53813-35010	LN17#,RZN154,174;LN14#,152,155,157,16#,19#,RZN14#,16#,19#,YN140..DCB,SCB,THXTR	08/1997 - 09/1998	1
53813-35010	LN145..DCB;LN147..SCB..IV3;RZN149..(SCB,THSCB)..ARL..CBU;LN145,155,RZN154..LHD..(SCB,XTR);RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN147,RZN149..(DCB,SCB,THSCB)..(CBR,DSL)..CBU;LN152,RZN147..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN);KZN165,190,LN141,146,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
53813-35010	LN145..IV3;RZN149..LHD;RZN147..SCB,THSCB;LN145,RZN147..DCB..(GCC,GEN,TH)..CBU;LN145,155,RZN154..LHD..(SCB,XTR)..CBU;LN145,RZN149..(SCB,THSCB)..(ARL,SA)..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,190,LN140,141,146,147,152,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	09/2000 - 08/2001	1
53813-35010	LN147..IV3;LN147..DCB,THDCB;LN145,155..LHD..TH;RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,LN140,145,167,172,192,RZN142,147,169,174,194..ARL,SA	08/2001 - 09/2001	1
53814B - EXTENSION, FRONT FENDER, LH
53814-35010	LN145..DCB;LN147..SCB..IV3;LN147,RZN149..CBU;RZN147..ARL,GCC,GEN;LN145,155,RZN154..LHD..(SCB,XTR);RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;KZN165,190,LN141,146,152,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
53814-35010	LN147..IV3;LN147..DCB,THDCB;RZN149..ARL..CBU;LN145,155..LHD..TH;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,LN140,145,167,172,192,RZN142,147,169,174,194..ARL,SA	08/2001 - 09/2001	1
53814-35010	LN17#,RZN154,174;LN14#,152,155,157,16#,19#,RZN14#,16#,19#,YN140..DCB,SCB,THXTR	08/1997 - 09/1998	1
53814-35010	LN145..SA;LN145..IV3;RZN147..GCC;RZN149..CBU;LN145..DCB..CBU;RZN147..RHD..DCB..GEN;RZN147..RHD..(SCB,THSCB);LN145,155,RZN154..LHD..(SCB,XTR)..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,190,LN140,141,146,147,152,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	09/2000 - 08/2001	1
53847A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH
53087-35901	LN167,RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN194..(DCB,SADCB,THDCB)..SR..(ARL,SA);KZN190,LN166,RZN169..DCB..DLX..(CBR,DSL,TDE)..(GEN,SA)	08/1997 - 03/2006	1
53848A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH
53088-35901	LN167,RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN194..(DCB,SADCB,THDCB)..SR..(ARL,SA);KZN190,LN166,RZN169..DCB..DLX..(CBR,DSL,TDE)..(GEN,SA)	08/1997 - 03/2006	1
53853 - PAD, FRONT WHEEL OPENING EXTENSION, NO.3
53853-35050G0	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) LIGHT GREEN,6P4	08/1997 - 09/2000	2
53853-35050G1	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) DARK GREEN,6N7	08/1997 - 09/2000	2
53853-35050J0	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) DARK BLUE,8L7	08/1997 - 09/2000	2
53853-35050K0	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) GRAISH PURPLE,058 ,926	08/1997 - 09/2000	2
53853-35050A3	KZN165..SR..(ARL,SA);LN167,RZN169..(DCB,THDCB)..DLX..ARL;KZN190,LN167,192,RZN169,194..(DCB,SADCB)..(SA,TH) GRAYISH PURPLE,058 ,926	09/2000 - 03/2002	2
53911 - PANEL, FRONT VALANCE
53911-35190	KZN165,LN167,172,192,RZN169,174..ARL,TH	08/1997 - 09/2001	1
76621B - MUDGUARD, FRONT BODY, RH
76621-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76603-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76621-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76621-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76621B - MUDGUARD, FRONT BODY, RH
76621-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76603-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76621-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76621-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76622B - MUDGUARD, FRONT BODY, LH
76622-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76604-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76622-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76622-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76622B - MUDGUARD, FRONT BODY, LH
76622-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76604-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76622-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76622-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76641B - BRACKET, FRONT FENDER PANEL MUDGUARD, RH
76641-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA)	08/1997 - 03/2006	1
76642 - BRACKET, FRONT FENDER PANEL MUDGUARD, LH
76642-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA)	08/1997 - 03/2006	1
Common parts
75395-35040
90159-60476
90159-60478
90179-06127
90183-06027
90189-06212
90189-06220
90269-04045
90467-08185
90467-09166
90467-09195
90904-67036
90904-67037
91631-B0616
91631-J0612

(0108-0109)GCC,GEN ; (0109- )DCB,SCB,XTR..ARL,GCC,GEN ; (0203- )SA ; (0206-

Click highlighted areas on diagram

Part #	Description	Period	Qty
53238B - BRACKET, HOOD BUMPER MOUNTING
53238-35010	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
53301 - HOOD SUB-ASSY
53301-35060	KZN165,LN145,147,15#,167,172,192,RZN147,149,154,169,174..ARL,TH	08/1997 - 09/2001	1
53301B - CUSHION, HOOD BUMPER
90541-15010	LN14#,16#,191,RZN14#,16#,193	08/1997 - 11/1997	2
53341B - INSULATOR, HOOD
53341-35121	LN152..IV3;LN167..DLX..ARL;KZN190,LN147,172..DLX;KZN165..(DCB,SCB)..(ARL,SA);KZN165..(THDCB,THSCB,XTR)..SR	08/1997 - 03/2002	1
53341B - INSULATOR, HOOD
53341-35121	LN152..IV3;LN167..DLX..ARL;KZN190,LN147,172..DLX;KZN165..(DCB,SCB)..(ARL,SA);KZN165..(THDCB,THSCB,XTR)..SR	08/1997 - 03/2002	1
53384A - BUMPER, FENDER TO HOOD
53384-35010	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	3
53737H - SEAL, FRONT FENDER APRON, LH
53737-35040	LN157,192;LN152,167..DSL;LN152..DEFI..IV3;LN167..DLX..DEFI..ARL;LN152,167..DEFI..(SA,TH);KZN165..(DCB,SCB)..(ARL,SA);KZN165,LN150..(THDCB,THSCB,XTR)..SR;KZN190,LN140,145,147,172..DLX..(ARL,SA)	08/1997 - 03/2002	1
53737K - CLIP(FOR FRONT FENDER APRON SEAL)
90467-08011	LN152..DEFI..IV3;LN167..DLX..DEFI;LN152,157,167,192..DSL;KZN165..(THDCB,THSCB)..SR;KZN190,LN14#,166,172..DLX..(ARL,GCC,SA);KZN165,LN192..(DCB,SCB)..(DEFI,TDE)..(ARL,SA)	08/1997 - 03/2002	4
53737K - CLIP(FOR FRONT FENDER APRON SEAL)
90467-08011	LN152..DEFI..IV3;LN167..DLX..DEFI;LN152,157,167,192..DSL;KZN165..(THDCB,THSCB)..SR;KZN190,LN14#,166,172..DLX..(ARL,GCC,SA);KZN165,LN192..(DCB,SCB)..(DEFI,TDE)..(ARL,SA)	08/1997 - 03/2002	4
53801 - FENDER SUB-ASSY, FRONT RH
53801-35120	KZN190;LN167,RZN169..(DCB,THDCB)..(ARL,GEN);KZN165,LN166..(DCB,THDCB)..(ARL,GEN,SA) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/1997 - 08/2000	1
53801-35110	KZN190..SCB;KZN165,LN167,172,RZN169,174..ARL W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53801-35130	KZN190;KZN165,LN166..RHD..(DCB,THDCB);LN167,RZN169..RHD..(DCB,THDCB)..DLX W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53801-35100	KZN190..SCB;RZN169..LHD..GEN;KZN165,LN167,172,RZN169,174..ARL W(SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53801-35121	KZN190,LN192..(DEFI,TDE)..SA;KZN165,RZN194..(DCB,THDCB)..SR;LN16#,RZN169..(DCB,THDCB)..(ARL,GEN) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/2000 - 08/2001	1
53801-35111	LN167,192..DEFI..SA;LN167,RZN169..DLX..ARL;KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;KZN190,LN172,RZN174..SCB,THXTR,XTR W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/2000 - 03/2002	1
53801-35101	KZN165..SR..ARL;LN167,RZN169..DLX..ARL;LN167,192..SCB..DEFI..SA;KZN190,LN172,RZN174..(SCB,THXTR,XTR)..DLX W(SIDE TURN SIGNAL LAMP)	08/2000 - 06/2002	1
53801-35131	KZN190,LN192..DLX..(DEFI,TDE);RZN169..(DCB,THDCB)..DLX..ARL;KZN165,RZN194..(DCB,THDCB)..SR..(ARL,SA);LN16#,RZN169..RHD..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GEN) W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/2000 - 12/2999	1
53802 - FENDER SUB-ASSY, FRONT LH
53802-35240	KZN190;LN167,RZN169..(DCB,THDCB)..(ARL,GEN);KZN165,LN166..(DCB,THDCB)..(ARL,GEN,SA) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/1997 - 08/2000	1
53802-35230	LN166,RZN169..LHD..DCB..GEN;KZN165,LN167,RZN169..(DCB,THDCB)..ARL W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53802-35200	KZN165..ARL;RZN169..LHD..GEN;LN167,RZN169..(DCB,THDCB)..ARL W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53802-35241	KZN190;KZN165..(DCB,THDCB)..SR;LN16#,RZN169..(DCB,THDCB)..(ARL,GEN) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/2000 - 09/2000	1
53802-35201	KZN165..SR..ARL;LN167,RZN169..(DCB,THDCB)..ARL W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/2000 - 09/2001	1
53802-35241	LN192,RZN169,194..SA;KZN165..SR..(ARL,SA);LN167,RZN169..(DCB,THDCB)..ARL W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/2001 - 09/2001	1
53802-35321	LN167,192..DEFI..SA;LN167,RZN169..DLX..ARL;KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;KZN190,LN172,RZN174..SCB,THXTR,XTR W(SIDE TURN SIGNAL LAMP)	08/2000 - 03/2002	1
53802-35320	KZN190..SCB;RZN169..LHD..GEN;KZN165,LN167,172,RZN169,174..ARL W(SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53802-35231	KZN165..(DCB,THDCB)..SR..ARL;LN167,RZN169..(DCB,THDCB)..ARL;LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/2000 - 09/2001	1
53813B - EXTENSION, FRONT FENDER, RH
53813-35010	LN17#,RZN154,174;LN14#,152,155,157,16#,19#,RZN14#,16#,19#,YN140..DCB,SCB,THXTR	08/1997 - 09/1998	1
53813-35010	LN145..DCB;LN147..SCB..IV3;RZN149..(SCB,THSCB)..ARL..CBU;LN145,155,RZN154..LHD..(SCB,XTR);RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN147,RZN149..(DCB,SCB,THSCB)..(CBR,DSL)..CBU;LN152,RZN147..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN);KZN165,190,LN141,146,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
53813-35010	LN145..IV3;RZN149..LHD;RZN147..SCB,THSCB;LN145,RZN147..DCB..(GCC,GEN,TH)..CBU;LN145,155,RZN154..LHD..(SCB,XTR)..CBU;LN145,RZN149..(SCB,THSCB)..(ARL,SA)..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,190,LN140,141,146,147,152,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	09/2000 - 08/2001	1
53813-35010	LN147..IV3;LN147..DCB,THDCB;LN145,155..LHD..TH;RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,LN140,145,167,172,192,RZN142,147,169,174,194..ARL,SA	08/2001 - 09/2001	1
53814B - EXTENSION, FRONT FENDER, LH
53814-35010	LN145..DCB;LN147..SCB..IV3;LN147,RZN149..CBU;RZN147..ARL,GCC,GEN;LN145,155,RZN154..LHD..(SCB,XTR);RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;KZN165,190,LN141,146,152,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
53814-35010	LN147..IV3;LN147..DCB,THDCB;RZN149..ARL..CBU;LN145,155..LHD..TH;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,LN140,145,167,172,192,RZN142,147,169,174,194..ARL,SA	08/2001 - 09/2001	1
53814-35010	LN17#,RZN154,174;LN14#,152,155,157,16#,19#,RZN14#,16#,19#,YN140..DCB,SCB,THXTR	08/1997 - 09/1998	1
53814-35010	LN145..SA;LN145..IV3;RZN147..GCC;RZN149..CBU;LN145..DCB..CBU;RZN147..RHD..DCB..GEN;RZN147..RHD..(SCB,THSCB);LN145,155,RZN154..LHD..(SCB,XTR)..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,190,LN140,141,146,147,152,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	09/2000 - 08/2001	1
53847A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH
53087-35901	LN167,RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN194..(DCB,SADCB,THDCB)..SR..(ARL,SA);KZN190,LN166,RZN169..DCB..DLX..(CBR,DSL,TDE)..(GEN,SA)	08/1997 - 03/2006	1
53848A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH
53088-35901	LN167,RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN194..(DCB,SADCB,THDCB)..SR..(ARL,SA);KZN190,LN166,RZN169..DCB..DLX..(CBR,DSL,TDE)..(GEN,SA)	08/1997 - 03/2006	1
53853 - PAD, FRONT WHEEL OPENING EXTENSION, NO.3
53853-35050G0	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) LIGHT GREEN,6P4	08/1997 - 09/2000	2
53853-35050G1	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) DARK GREEN,6N7	08/1997 - 09/2000	2
53853-35050J0	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) DARK BLUE,8L7	08/1997 - 09/2000	2
53853-35050K0	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) GRAISH PURPLE,058 ,926	08/1997 - 09/2000	2
53853-35050A3	KZN165..SR..(ARL,SA);LN167,RZN169..(DCB,THDCB)..DLX..ARL;KZN190,LN167,192,RZN169,194..(DCB,SADCB)..(SA,TH) GRAYISH PURPLE,058 ,926	09/2000 - 03/2002	2
53911 - PANEL, FRONT VALANCE
53911-35190	KZN165,LN167,172,192,RZN169,174..ARL,TH	08/1997 - 09/2001	1
76621B - MUDGUARD, FRONT BODY, RH
76621-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76603-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76621-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76621-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76621B - MUDGUARD, FRONT BODY, RH
76621-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76603-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76621-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76621-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76622B - MUDGUARD, FRONT BODY, LH
76622-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76604-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76622-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76622-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76622B - MUDGUARD, FRONT BODY, LH
76622-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76604-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76622-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76622-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76641B - BRACKET, FRONT FENDER PANEL MUDGUARD, RH
76641-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA)	08/1997 - 03/2006	1
76642 - BRACKET, FRONT FENDER PANEL MUDGUARD, LH
76642-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA)	08/1997 - 03/2006	1
Common parts
75395-35040
90119-06225
90119-06374
90119-06779
90159-60476
90159-60478
90179-06127
90183-06027
90189-04099
90189-06212
90189-06220
90269-04059
90467-08185
90467-09166
90467-09195
90467-1001722
90904-67036
90904-67037
91631-B0616
93540-A4014
Linked diagrams
5252

(0109- )TH ; (0109- )THDCB,THSCB,THXTR

Click highlighted areas on diagram

Part #	Description	Period	Qty
53301 - HOOD SUB-ASSY
53301-35060	KZN165,LN145,147,15#,167,172,192,RZN147,149,154,169,174..ARL,TH	08/1997 - 09/2001	1
53301B - CUSHION, HOOD BUMPER
90541-15010	LN14#,16#,191,RZN14#,16#,193	08/1997 - 11/1997	2
53341B - INSULATOR, HOOD
53341-35121	LN152..IV3;LN167..DLX..ARL;KZN190,LN147,172..DLX;KZN165..(DCB,SCB)..(ARL,SA);KZN165..(THDCB,THSCB,XTR)..SR	08/1997 - 03/2002	1
53384A - BUMPER, FENDER TO HOOD
53384-35010	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	3
53737H - SEAL, FRONT FENDER APRON, LH
53737-35040	LN157,192;LN152,167..DSL;LN152..DEFI..IV3;LN167..DLX..DEFI..ARL;LN152,167..DEFI..(SA,TH);KZN165..(DCB,SCB)..(ARL,SA);KZN165,LN150..(THDCB,THSCB,XTR)..SR;KZN190,LN140,145,147,172..DLX..(ARL,SA)	08/1997 - 03/2002	1
53737K - CLIP(FOR FRONT FENDER APRON SEAL)
90467-08011	LN152..DEFI..IV3;LN167..DLX..DEFI;LN152,157,167,192..DSL;KZN165..(THDCB,THSCB)..SR;KZN190,LN14#,166,172..DLX..(ARL,GCC,SA);KZN165,LN192..(DCB,SCB)..(DEFI,TDE)..(ARL,SA)	08/1997 - 03/2002	4
53801 - FENDER SUB-ASSY, FRONT RH
53801-35120	KZN190;LN167,RZN169..(DCB,THDCB)..(ARL,GEN);KZN165,LN166..(DCB,THDCB)..(ARL,GEN,SA) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/1997 - 08/2000	1
53801-35110	KZN190..SCB;KZN165,LN167,172,RZN169,174..ARL W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53801-35130	KZN190;KZN165,LN166..RHD..(DCB,THDCB);LN167,RZN169..RHD..(DCB,THDCB)..DLX W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53801-35100	KZN190..SCB;RZN169..LHD..GEN;KZN165,LN167,172,RZN169,174..ARL W(SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53801-35121	KZN190,LN192..(DEFI,TDE)..SA;KZN165,RZN194..(DCB,THDCB)..SR;LN16#,RZN169..(DCB,THDCB)..(ARL,GEN) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/2000 - 08/2001	1
53801-35111	LN167,192..DEFI..SA;LN167,RZN169..DLX..ARL;KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;KZN190,LN172,RZN174..SCB,THXTR,XTR W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/2000 - 03/2002	1
53801-35101	KZN165..SR..ARL;LN167,RZN169..DLX..ARL;LN167,192..SCB..DEFI..SA;KZN190,LN172,RZN174..(SCB,THXTR,XTR)..DLX W(SIDE TURN SIGNAL LAMP)	08/2000 - 06/2002	1
53801-35131	KZN190,LN192..DLX..(DEFI,TDE);RZN169..(DCB,THDCB)..DLX..ARL;KZN165,RZN194..(DCB,THDCB)..SR..(ARL,SA);LN16#,RZN169..RHD..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GEN) W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/2000 - 12/2999	1
53802 - FENDER SUB-ASSY, FRONT LH
53802-35240	KZN190;LN167,RZN169..(DCB,THDCB)..(ARL,GEN);KZN165,LN166..(DCB,THDCB)..(ARL,GEN,SA) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/1997 - 08/2000	1
53802-35230	LN166,RZN169..LHD..DCB..GEN;KZN165,LN167,RZN169..(DCB,THDCB)..ARL W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53802-35200	KZN165..ARL;RZN169..LHD..GEN;LN167,RZN169..(DCB,THDCB)..ARL W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53802-35241	KZN190;KZN165..(DCB,THDCB)..SR;LN16#,RZN169..(DCB,THDCB)..(ARL,GEN) W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/2000 - 09/2000	1
53802-35201	KZN165..SR..ARL;LN167,RZN169..(DCB,THDCB)..ARL W(ANTENNA & SIDE TURN SIGNAL LAMP)	08/2000 - 09/2001	1
53802-35241	LN192,RZN169,194..SA;KZN165..SR..(ARL,SA);LN167,RZN169..(DCB,THDCB)..ARL W(SIDE TURN SIGNAL LAMP & OVER FENDER)	08/2001 - 09/2001	1
53802-35321	LN167,192..DEFI..SA;LN167,RZN169..DLX..ARL;KZN165..(DCB,SCB)..ARL;KZN165..(THDCB,THSCB)..SR;KZN190,LN172,RZN174..SCB,THXTR,XTR W(SIDE TURN SIGNAL LAMP)	08/2000 - 03/2002	1
53802-35320	KZN190..SCB;RZN169..LHD..GEN;KZN165,LN167,172,RZN169,174..ARL W(SIDE TURN SIGNAL LAMP)	08/1997 - 08/2000	1
53802-35231	KZN165..(DCB,THDCB)..SR..ARL;LN167,RZN169..(DCB,THDCB)..ARL;LN166,RZN169..LHD..DCB..DLX..(CBR,DSL)..GEN W(ANTENNA & OVER FENDER & SIDE TURN SIGNAL LAMP)	08/2000 - 09/2001	1
53813B - EXTENSION, FRONT FENDER, RH
53813-35010	LN17#,RZN154,174;LN14#,152,155,157,16#,19#,RZN14#,16#,19#,YN140..DCB,SCB,THXTR	08/1997 - 09/1998	1
53813-35010	LN145..DCB;LN147..SCB..IV3;RZN149..(SCB,THSCB)..ARL..CBU;LN145,155,RZN154..LHD..(SCB,XTR);RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;LN147,RZN149..(DCB,SCB,THSCB)..(CBR,DSL)..CBU;LN152,RZN147..(DCB,SCB,THSCB,XTR)..(ARL,GCC,GEN);KZN165,190,LN141,146,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
53813-35010	LN145..IV3;RZN149..LHD;RZN147..SCB,THSCB;LN145,RZN147..DCB..(GCC,GEN,TH)..CBU;LN145,155,RZN154..LHD..(SCB,XTR)..CBU;LN145,RZN149..(SCB,THSCB)..(ARL,SA)..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,190,LN140,141,146,147,152,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	09/2000 - 08/2001	1
53813-35010	LN147..IV3;LN147..DCB,THDCB;LN145,155..LHD..TH;RZN149..(SCB,THSCB)..ARL..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,LN140,145,167,172,192,RZN142,147,169,174,194..ARL,SA	08/2001 - 09/2001	1
53814B - EXTENSION, FRONT FENDER, LH
53814-35010	LN145..DCB;LN147..SCB..IV3;LN147,RZN149..CBU;RZN147..ARL,GCC,GEN;LN145,155,RZN154..LHD..(SCB,XTR);RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM;KZN165,190,LN141,146,152,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
53814-35010	LN147..IV3;LN147..DCB,THDCB;RZN149..ARL..CBU;LN145,155..LHD..TH;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,LN140,145,167,172,192,RZN142,147,169,174,194..ARL,SA	08/2001 - 09/2001	1
53814-35010	LN17#,RZN154,174;LN14#,152,155,157,16#,19#,RZN14#,16#,19#,YN140..DCB,SCB,THXTR	08/1997 - 09/1998	1
53814-35010	LN145..SA;LN145..IV3;RZN147..GCC;RZN149..CBU;LN145..DCB..CBU;RZN147..RHD..DCB..GEN;RZN147..RHD..(SCB,THSCB);LN145,155,RZN154..LHD..(SCB,XTR)..CBU;RZN149,154..(SCB,THSCB,THXTR,XTR)..ATM..ARL;KZN165,190,LN140,141,146,147,152,16#,17#,19#,RZN142,144,148,16#,174,19#..ARL,GCC,GEN,SA	09/2000 - 08/2001	1
53847A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH
53087-35901	LN167,RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN194..(DCB,SADCB,THDCB)..SR..(ARL,SA);KZN190,LN166,RZN169..DCB..DLX..(CBR,DSL,TDE)..(GEN,SA)	08/1997 - 03/2006	1
53848A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH
53088-35901	LN167,RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN194..(DCB,SADCB,THDCB)..SR..(ARL,SA);KZN190,LN166,RZN169..DCB..DLX..(CBR,DSL,TDE)..(GEN,SA)	08/1997 - 03/2006	1
53853 - PAD, FRONT WHEEL OPENING EXTENSION, NO.3
53853-35050G0	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) LIGHT GREEN,6P4	08/1997 - 09/2000	2
53853-35050G1	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) DARK GREEN,6N7	08/1997 - 09/2000	2
53853-35050J0	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) DARK BLUE,8L7	08/1997 - 09/2000	2
53853-35050K0	KZN165..(DCB,THDCB)..SR;LN167..(DCB,THDCB)..ARL;KZN190,LN166,RZN169,194..(DCB,SADCB,THDCB)..(ARL,GEN,SA) GRAISH PURPLE,058 ,926	08/1997 - 09/2000	2
53853-35050A3	KZN165..SR..(ARL,SA);LN167,RZN169..(DCB,THDCB)..DLX..ARL;KZN190,LN167,192,RZN169,194..(DCB,SADCB)..(SA,TH) GRAYISH PURPLE,058 ,926	09/2000 - 03/2002	2
53911 - PANEL, FRONT VALANCE
53911-35190	KZN165,LN167,172,192,RZN169,174..ARL,TH	08/1997 - 09/2001	1
76621B - MUDGUARD, FRONT BODY, RH
76621-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76603-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76621-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76621-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76622B - MUDGUARD, FRONT BODY, LH
76622-35050	RZN169..CBR;RZN169..DCB..SA;KZN165,190,LN192..SCB..DLX;LN167..DCB..DLX..DEFI..ARL;LN167,172..(SCB,XTR)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN171,191,RZN174,193..(DCB,XTR)..DLX..CBU;LN16#,172,RZN168..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA)	08/1997 - 03/2006	1
76604-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA) W(OVER FENDER)	08/1997 - 03/2006	1
76622-04070	LN167..TH..CBU;KZN165,LN192..(THDCB,XTR)..CBU;LN167,172,RZN169,174..THDCB,THSCB,THXTR	04/2001 - 09/2001	1
76622-35050	LN167,RZN169..(THDCB,THSCB)..(DEFI,EFI);KZN165,LN172,RZN174..(THDCB,THXTR)..(DEFI,EFI,TDE)	08/1997 - 04/2001	1
76641B - BRACKET, FRONT FENDER PANEL MUDGUARD, RH
76641-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA)	08/1997 - 03/2006	1
76642 - BRACKET, FRONT FENDER PANEL MUDGUARD, LH
76642-35020	KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN16#,192,RZN194..(DCB,THDCB)..(DSL,EFI)..(ARL,GEN,SA)	08/1997 - 03/2006	1
Common parts
75395-35040
90119-06255
90119-T0080
90119-T0170
90119-T0172
90159-60478
90167-T0018
90179-06127
90183-06027
90189-06212
90189-06220
90269-04059
90467-08185
90467-09166
90467-09195
90467-1001722
90904-67036
90904-67037
Linked diagrams
5252

KZN165R-JRMSTQ (1999)

(9708-0108)

(0108-0109)ARL,SA,TH ; (0109-0203)SA

(0108-0109)GCC,GEN ; (0109- )DCB,SCB,XTR..ARL,GCC,GEN ; (0203- )SA ; (0206-

(0109- )TH ; (0109- )THDCB,THSCB,THXTR

Part Price Details
