KZN165R-JRMSTQ (1999)

Toyota Hilux

Production Sep 1999 - Aug 2002
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009-0208)1KZTE..KZN165..TH ; (0208- )1KZTE..KZN165..ARL

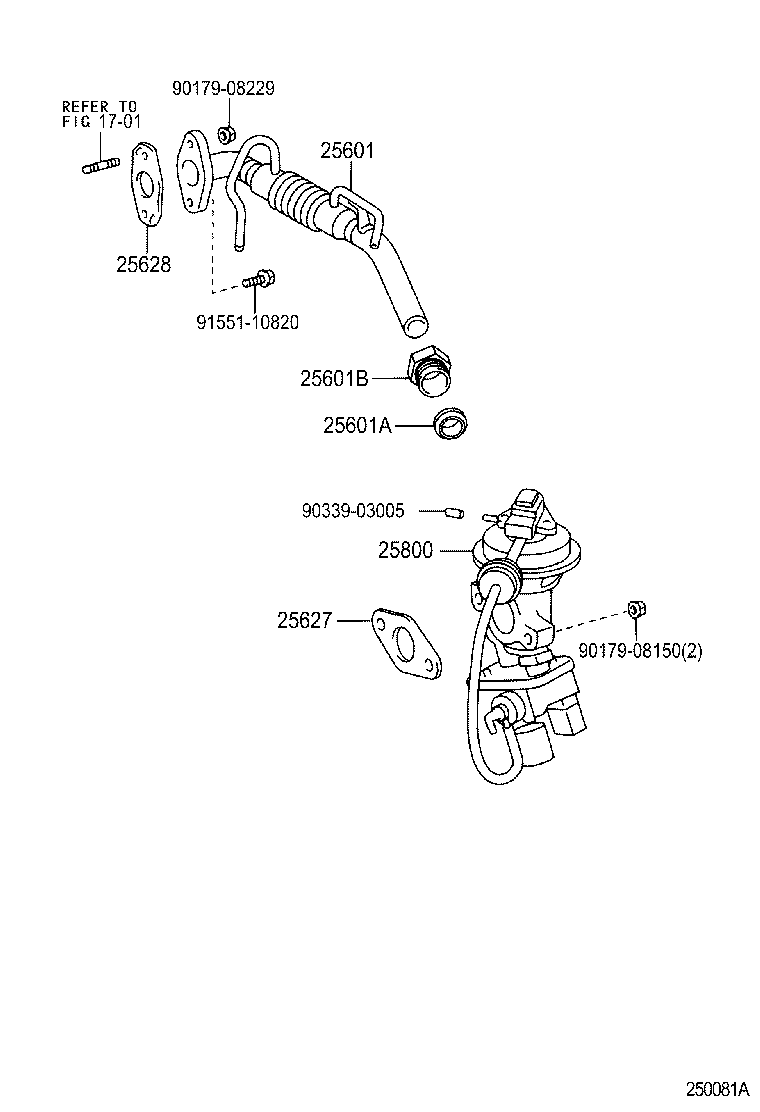

Click highlighted areas on diagram

diagram 1701 25601 25601A 25601B 25627 25628 25800 9017908150 9017908229 9033903005 9155110820
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-67021

1KZTE..KZN165..TH

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-26001

1KZTE..KZN165..TH

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-33002

1KZTE..KZN165..TH

 1
25627 - GASKET, EGR VALVE
25627-67010

1KZTE..KZN165..TH

 1
25628 - GASKET, EGR INLET
25628-67010

1KZTE..KZN165..TH

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-67060

1KZTE..KZN165..TH

 1
Common parts
90179-08150
90179-08229
90339-03005
91551-10820
Linked diagrams
1701
