KZN165R-JRMSTQ (1999)
Toyota Hilux

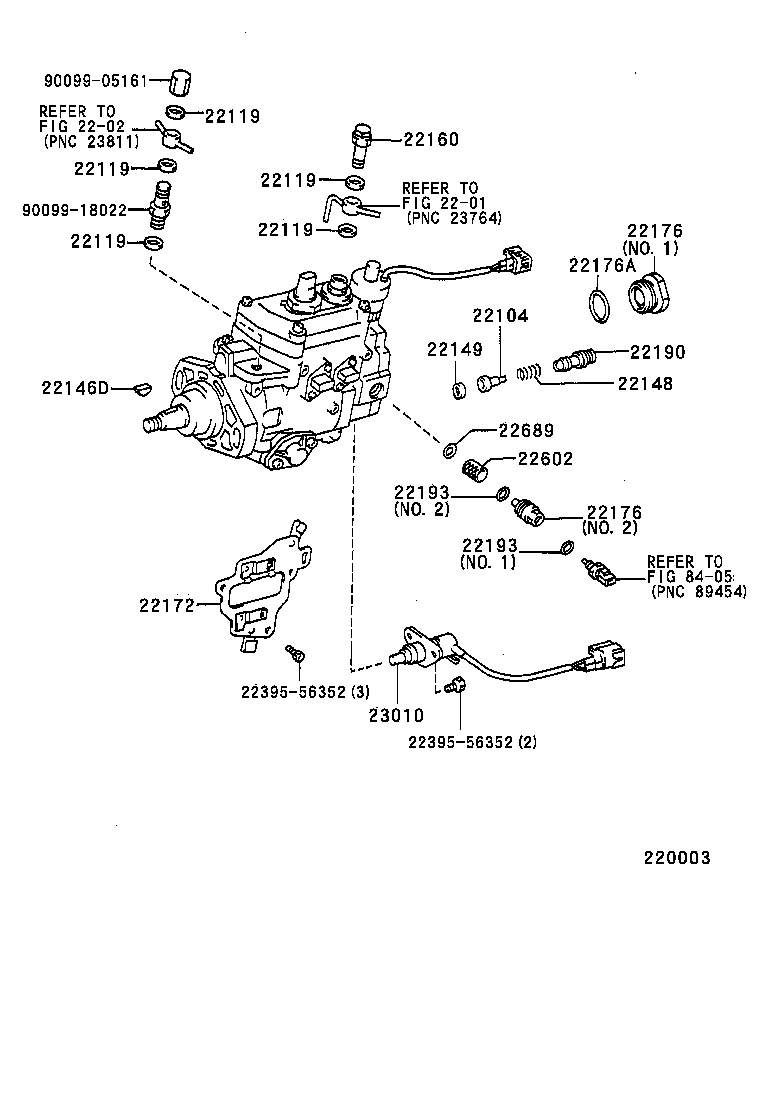

(9909-0009)1KZTE..KZN165..SR..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-67100 |
1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
4 | ||
| 22104-17010 |
1KZTE..KZN165..SR..ARL |
4 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
5 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
1KZTE..KZN165..SR..ARL |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-67100 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
1 | ||
| 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID | ||||
| 22172-67030 |
1KZTE..KZN165..SR..ARL |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-67030 |
1KZTE..KZN165..SR..ARL NO.2 |
1 | ||
| 22176-54640 |
1KZTE..KZN165..SR..ARL NO.1 |
1 | ||
| 22176-54640 |
1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-67030 |
1KZTE..KZN165..SR..ARL NO.2 |
1 | ||
| 22176-54640 |
1KZTE..KZN165..SR..ARL NO.1 |
1 | ||
| 22176-54640 |
1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 22193-54772 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
1 | ||
| 22190 - VALVE SUB-ASSY, SNUBBER | ||||
| 22190-6A290 |
1KZTE..KZN165..SR..ARL |
4 | ||
| 22190-6A680 |
1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
4 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-5B302 |
1KZTE..KZN165..SR..ARL NO.2 |
1 | ||
| 22193-67030 |
1KZTE..KZN165..SR..ARL NO.1 |
1 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-5B302 |
1KZTE..KZN165..SR..ARL NO.2 |
1 | ||
| 22193-67030 |
1KZTE..KZN165..SR..ARL NO.1 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
1KZTE..KZN165..SR..ARL |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
1KZTE..KZN165..SR..ARL |
1 | ||
| 23010 - VALVE ASSY, TIMING CONTROL | ||||
| 23010-67030 |
1KZTE..KZN165..SR..ARL |
1 | ||
| 23010-67010 |
1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
1 | ||
| Common parts | ||||
| 22395-56352 | ||||
| 90099-05161 | ||||
| 90099-18022 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2202 | ||||
| 8405 | ||||

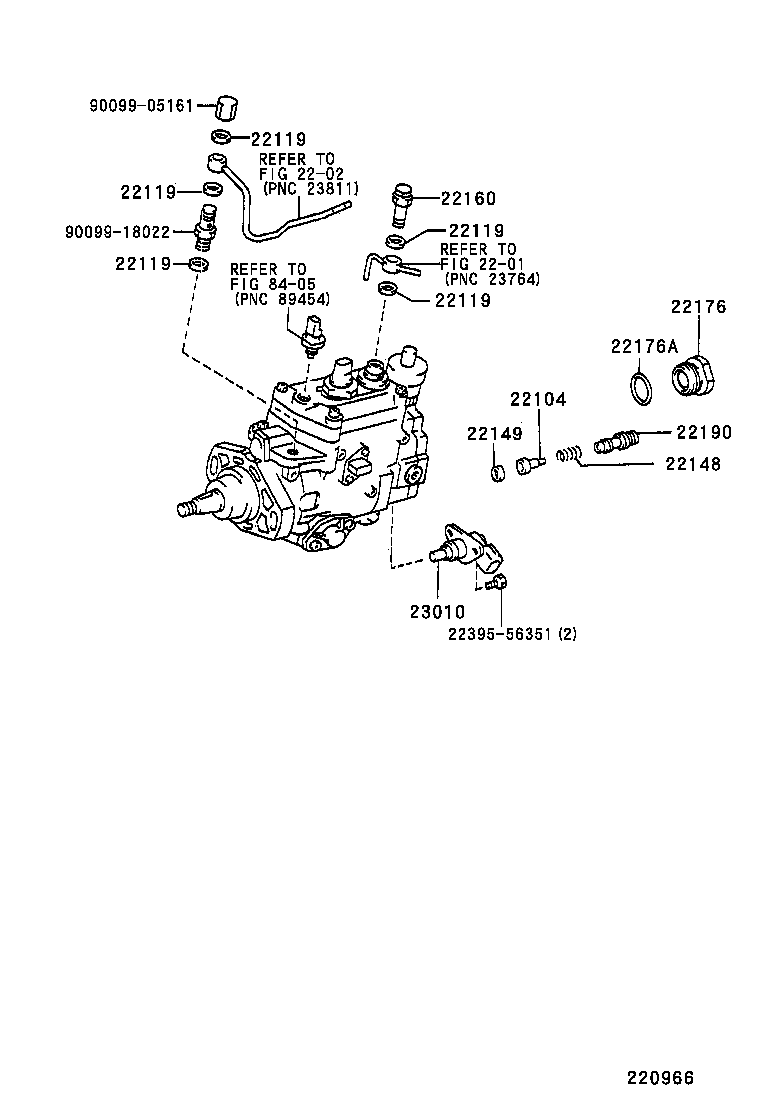

(0007- )1KZTE..SA ; (0008- )1KZTE..KZN165..DCB,SCB,THDCB,XTR..ARL,TH ; (0109-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-67100 |
1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
4 | ||
| 22104-17010 |
1KZTE..KZN165..SR..ARL |
4 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
5 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-67100 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-67030 |
1KZTE..KZN165..SR..ARL NO.2 |
1 | ||
| 22176-54640 |
1KZTE..KZN165..SR..ARL NO.1 |
1 | ||
| 22176-54640 |
1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 22193-54772 |
1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
1 | ||
| 22190 - VALVE SUB-ASSY, SNUBBER | ||||
| 22190-6A290 |
1KZTE..KZN165..SR..ARL |
4 | ||
| 22190-6A680 |
1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
4 | ||
| 23010 - VALVE ASSY, TIMING CONTROL | ||||
| 23010-67030 |
1KZTE..KZN165..SR..ARL |
1 | ||
| 23010-67010 |
1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA) |
1 | ||
| Common parts | ||||
| 22395-56351 | ||||
| 90099-05161 | ||||
| 90099-18022 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2202 | ||||
| 8405 | ||||
