KZN165R-JRMDTQ (2001)

Toyota Hilux

Production Sep 2001 - Aug 2002
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

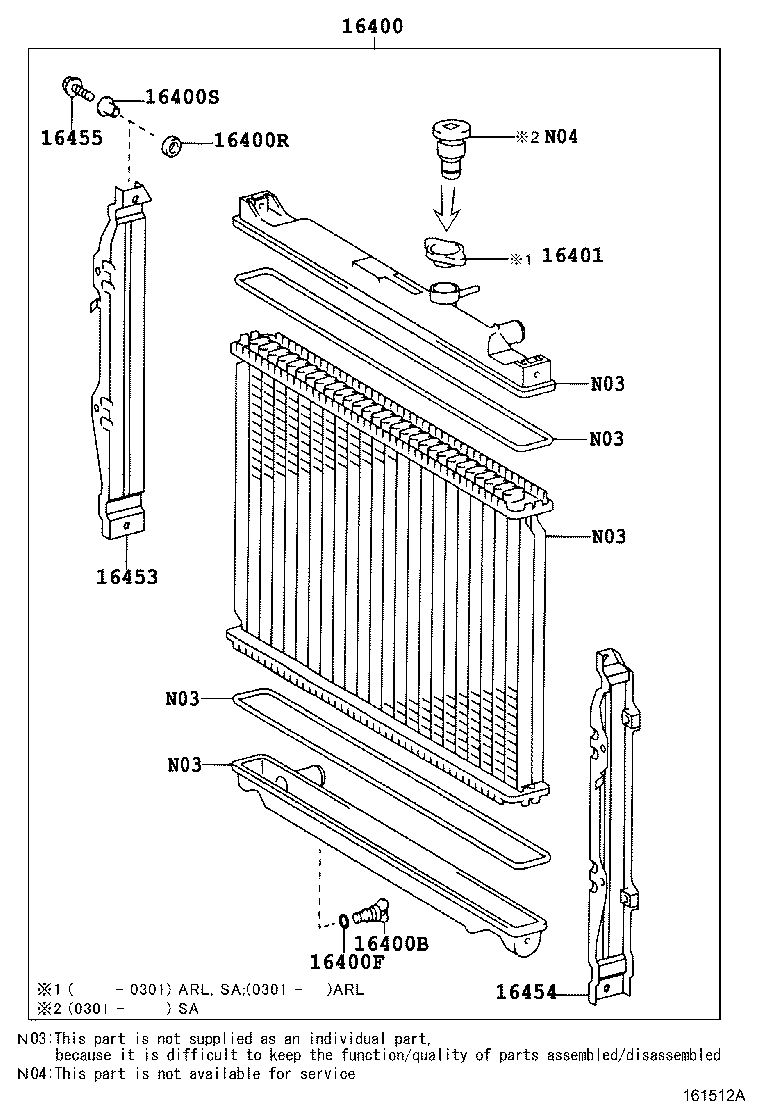

ILLUST NO. 2 OF 2(0109- )1KZTE..KZN165..ARL,TH ; (0203- )1KZTE..SA

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16400R 16400S 16401 16453 16454 16455
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-67190

1KZTE..KZN165..ARL

 1
16400-67220

1KZTE..KZN165..THDCB,THSCB

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

1KZTE..KZN165..THDCB,THSCB

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1KZTE..KZN165..THDCB,THSCB

 1
16400R - BUSHING(FOR RADIATOR)
16444-75180

1KZTE..KZN165..THDCB,THSCB

 2
16400S - COLLAR(FOR RADIATOR)
16445-75180

1KZTE..KZN165..THDCB,THSCB

 2
16401 - CAP SUB-ASSY, RADIATOR
16401-5B630

1KZTE..KZN165..THDCB,THSCB

 1
16453 - PLATE, RADIATOR SIDE
16453-67190

1KZTE..KZN165..THDCB,THSCB

 1
16454 - PLATE, RADIATOR SIDE
16454-67190

1KZTE..KZN165..THDCB,THSCB

 1
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
91651-B0820

1KZTE..KZN165..THDCB,THSCB

 4
