KZN165R-CRMSTT1 (2000)

Toyota Hilux

Production Sep 2000 - Aug 2002
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0108)2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA ; (9808-0009)5L..LN157 ;

Click highlighted areas on diagram

diagram 25706 25760 25860 25860 25860 2606 4301 88031R 88031R 88892S 9017906204 9041304008 9041304008 9044508331 9044704027 9044704056 9044704056 9046400369 9092901366 9092901386 9092901386 9099992002 9099992002 9099992002 9099992002 9099992002 91611B0616 9162140812 9162261014 9541340033 9541340033 9541349933 9541349936
Part # Description Qty Price
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-67020

1KZTE..KZN165..TH

 1
Common parts
90179-06204
90413-04008
90445-08331
90447-04027
90447-04056
90464-00369
90929-01366
90929-01386
90999-92002
91611-B0616
91621-40812
91622-61014
95413-40033
95413-49933
95413-49936
Linked diagrams
2606
4301

(0009-0208)1KZTE..KZN165..TH ; (0208- )1KZTE..KZN165..ARL

Click highlighted areas on diagram

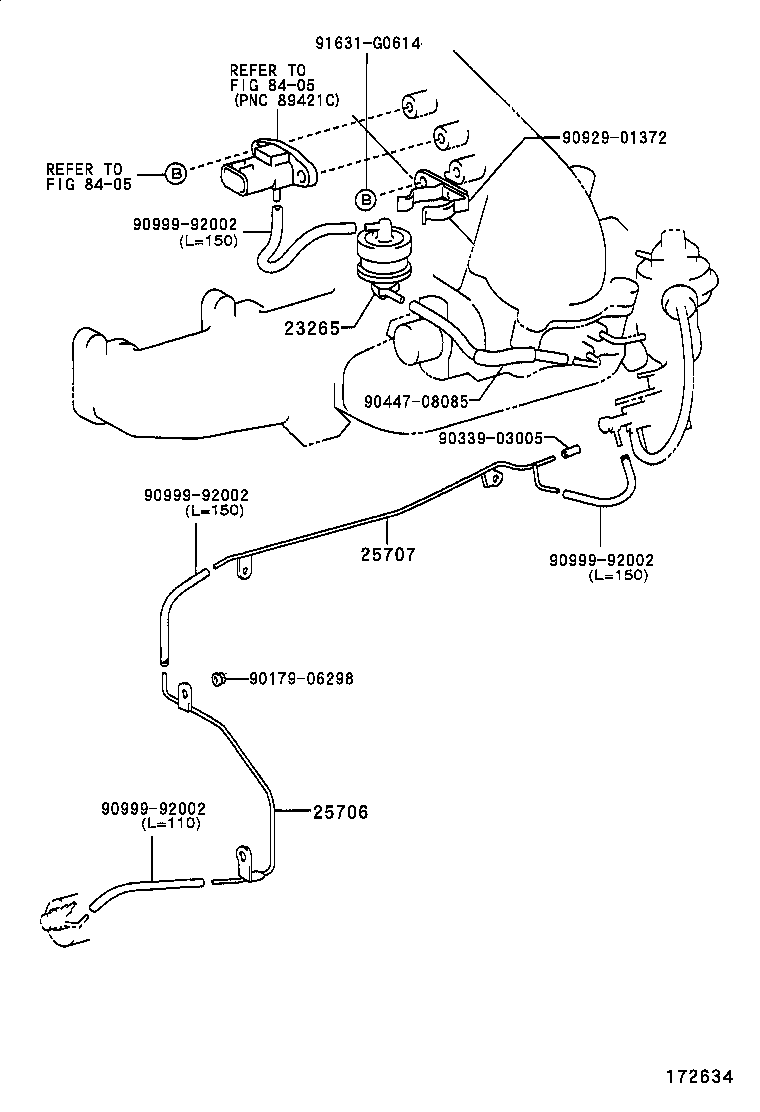

diagram 23265 25706 25707 8405 8405 9017906298 9033903005 9044708085 9092901372 9099992002 9099992002 9099992002 9099992002 91631G0614
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11044

1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-67020

1KZTE..KZN165..TH

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-67011

1KZTE..KZN165..TH

 1
Common parts
90179-06298
90339-03005
90447-08085
90929-01372
90999-92002
91631-G0614
Linked diagrams
8405
