KUN36R-URMSYT (2011)
Toyota Hilux

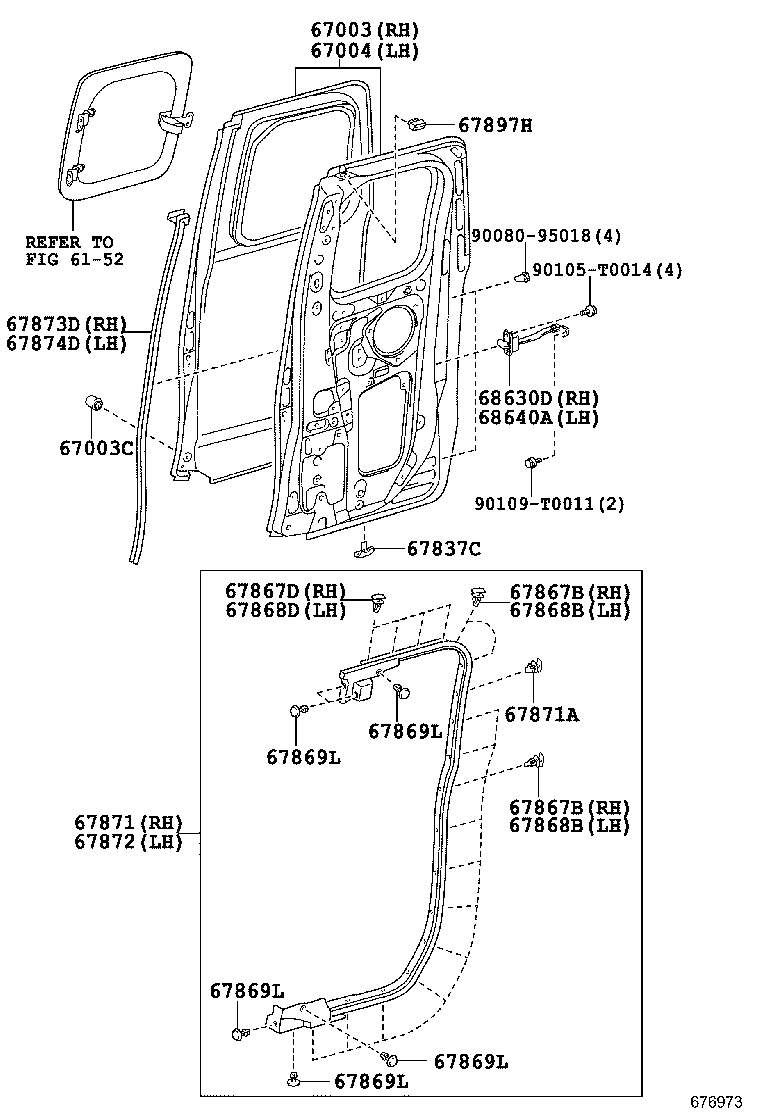

ILLUST NO. 1 OF 2(1107- )SMT
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-0K110 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
KUN26..5FC..SR;KUN26..5FC..DLX..LA;KUN26..DCB..5FC..IV3;KUN26..(DCB,SADCB,SMT,THDCB)..(4FC,5F);GGN15,25,35,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SMT,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-0K110 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-0K030 |
KUN15,16,2#,3#,TGN16..SMT |
2 | ||
| 67837-0K121 |
KUN15,2#,3#,TGN16..SMT |
2 | ||
| 67837-0K120 |
KUN15,2#,3#,TGN16..SMT |
2 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-12150 |
KUN15,16,2#,3#,TGN16..SMT |
13 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-12150 |
KUN15,16,2#,3#,TGN16..SMT |
13 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-52030 |
KUN15,16,2#,3#,TGN16..SMT |
4 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-12150 |
KUN15,16,2#,3#,TGN16..SMT |
13 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-12150 |
KUN15,16,2#,3#,TGN16..SMT |
13 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-52010 |
KUN15,16,2#,3#,TGN16..SMT |
4 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 90467-06084 |
KUN15,16,2#,3#,TGN16..SMT |
12 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 90467-06084 |
KUN15,16,2#,3#,TGN16..SMT |
12 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 90467-06084 |
KUN15,16,2#,3#,TGN16..SMT |
12 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 90467-06084 |
KUN15,16,2#,3#,TGN16..SMT |
12 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 90467-06084 |
KUN15,16,2#,3#,TGN16..SMT |
12 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0K050 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 90467-04034 |
KUN15,16,2#,3#,TGN16..SMT |
2 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0K050 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 67873D - WEATHERSTRIP, ACCESS PANEL, REAR RH | ||||
| 67873-0K010 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 67874D - WEATHERSTRIP, ACCESS PANEL, REAR LH | ||||
| 67874-0K010 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 67897H - CUSHION, REAR DOOR | ||||
| 67897-0K010 |
KUN15,16,2#,3#,TGN16..SMT |
2 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68640-0K071 |
KUN15,2#,3#,TGN16..SMT |
1 | ||
| 68640-0K070 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-0K070 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 68640-0K071 |
KUN15,2#,3#,TGN16..SMT |
1 | ||
| Common parts | ||||
| 90080-95018 | ||||
| 90105-T0014 | ||||
| 90109-T0011 | ||||
| Linked diagrams | ||||
| 6152 | ||||

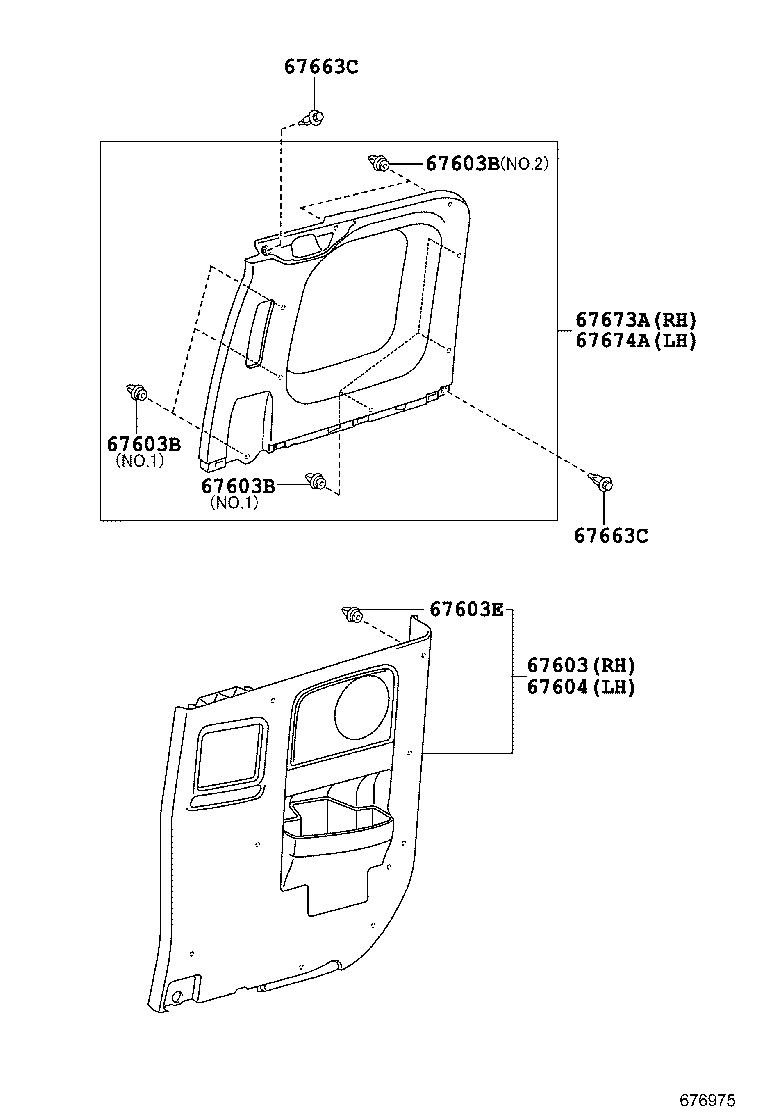

ILLUST NO. 2 OF 2(1107- )SMT
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0K310B1 |
KUN2#,3#..SMT;KUN15..SMT..HDCR MD.GRAY,TRIM1# |
1 | ||
| 67630-0K310E0 |
KUN15..SMT..SR;KUN16,2#,3#..SMT SAND BEIGE,TRIM4# |
1 | ||
| 67630-0K310B1 |
KUN2#,3#..SMT;KUN15..SMT..SR MD.GRAY,TRIM10 |
1 | ||
| 67630-0K310B2 |
KUN2#,3#..SMT;KUN15..SMT..SR DK.GRAY,TRIM11 |
1 | ||
| 67630-0K311C0 |
KUN15,2#,3#,TGN16..SMT BLACK,TRIM2# |
1 | ||
| 67630-0K311E0 |
KUN2#,3#..SMT;KUN15..SMT..SR SAND BEIGE,TRIM4# |
1 | ||
| 67630-0K311B1 |
KUN15,2#,3#,TGN16..SMT MD.GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
KUN15,16,2#,3#,TGN16..SMT NO.1:REFER ILLUST. |
12 | ||
| 67771-32120 |
KUN15,16,2#,3#,TGN16..SMT NO.2:REFER ILLUST. |
8 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
KUN15,16,2#,3#,TGN16..SMT NO.1:REFER ILLUST. |
12 | ||
| 67771-32120 |
KUN15,16,2#,3#,TGN16..SMT NO.2:REFER ILLUST. |
8 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
KUN15,16,2#,3#,TGN16..SMT NO.1:REFER ILLUST. |
12 | ||
| 67771-32120 |
KUN15,16,2#,3#,TGN16..SMT NO.2:REFER ILLUST. |
8 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
KUN15,16,2#,3#,TGN16..SMT |
16 | ||
| 90467-T0019 |
KUN15,2#,3#,TGN16..SMT |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0K310B1 |
KUN2#,3#..SMT;KUN15..SMT..HDCR MD.GRAY,TRIM1# |
1 | ||
| 67640-0K310E0 |
KUN15..SMT..SR;KUN16,2#,3#..SMT SAND BEIGE,TRIM4# |
1 | ||
| 67640-0K310B2 |
KUN2#,3#..SMT;KUN15..SMT..SR DK.GRAY,TRIM11 |
1 | ||
| 67640-0K310B1 |
KUN2#,3#..SMT;KUN15..SMT..SR MD.GRAY,TRIM10 |
1 | ||
| 67640-0K311B1 |
KUN15,2#,3#,TGN16..SMT MD.GRAY,TRIM1# |
1 | ||
| 67640-0K311C0 |
KUN15,2#,3#,TGN16..SMT BLACK,TRIM2# |
1 | ||
| 67640-0K311E0 |
KUN2#,3#..SMT;KUN15..SMT..SR SAND BEIGE,TRIM4# |
1 | ||
| 67663C - CLIP(FOR DOOR FRAME GARNISH) | ||||
| 90467-07071P6 |
KUN35..SMT..5F;KUN15,2#,36..SMT..SR MD.GRAY,TRIM1# |
4 | ||
| 90467-0707122 |
KUN2#,3#..SMT;KUN15..SMT..SR BLACK,TRIM11 |
4 | ||
| 90467-07071P6 |
KUN2#,3#..SMT;KUN15..SMT..HDCR MD.GRAY,TRIM1# |
4 | ||
| 90467-0707122 |
KUN15,2#,3#,TGN16..SMT BLACK,TRIM2# |
4 | ||
| 90467-07071E6 |
KUN15..SMT..SR;KUN16,2#,3#..SMT SAND BEIGE,TRIM4# |
4 | ||
| 90467-07071P6 |
KUN2#,3#..SMT;KUN15..SMT..SR MD.GRAY,TRIM10 |
4 | ||
| 67663C - CLIP(FOR DOOR FRAME GARNISH) | ||||
| 90467-0707122 |
KUN2#,3#..SMT;KUN15..SMT..SR BLACK,TRIM11 |
4 | ||
| 90467-07071P6 |
KUN2#,3#..SMT;KUN15..SMT..HDCR MD.GRAY,TRIM1# |
4 | ||
| 90467-0707122 |
KUN15,2#,3#,TGN16..SMT BLACK,TRIM2# |
4 | ||
| 90467-07071P6 |
KUN35..SMT..5F;KUN15,2#,36..SMT..SR MD.GRAY,TRIM1# |
4 | ||
| 90467-07071E6 |
KUN15..SMT..SR;KUN16,2#,3#..SMT SAND BEIGE,TRIM4# |
4 | ||
| 90467-07071P6 |
KUN2#,3#..SMT;KUN15..SMT..SR MD.GRAY,TRIM10 |
4 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67655-0K010B1 |
KUN2#,3#..SMT;KUN15..SMT..HDCR MD.GRAY,TRIM1# |
1 | ||
| 67655-0K010E0 |
KUN15..SMT..SR;KUN16,2#,3#..SMT SAND BEIGE,TRIM4# |
1 | ||
| 67655-0K010B1 |
KUN35..SMT..5F;KUN15,2#,36..SMT..SR MD.GRAY,TRIM1# |
1 | ||
| 67655-0K010B1 |
KUN2#,3#..SMT;KUN15..SMT..SR MD.GRAY,TRIM10 |
1 | ||
| 67655-0K010B2 |
KUN2#,3#..SMT;KUN15..SMT..SR DK.GRAY,TRIM11 |
1 | ||
| 67655-0K010C0 |
KUN15,2#,3#,TGN16..SMT BLACK,TRIM2# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67656-0K010C0 |
KUN15,2#,3#,TGN16..SMT BLACK,TRIM2# |
1 | ||
| 67656-0K010B1 |
KUN2#,3#..SMT;KUN15..SMT..SR MD.GRAY,TRIM10 |
1 | ||
| 67656-0K010B1 |
KUN2#,3#..SMT;KUN15..SMT..HDCR MD.GRAY,TRIM1# |
1 | ||
| 67656-0K010E0 |
KUN15..SMT..SR;KUN16,2#,3#..SMT SAND BEIGE,TRIM4# |
1 | ||
| 67656-0K010B1 |
KUN35..SMT..5F;KUN15,2#,36..SMT..SR MD.GRAY,TRIM1# |
1 | ||
| 67656-0K010B2 |
KUN2#,3#..SMT;KUN15..SMT..SR DK.GRAY,TRIM11 |
1 | ||
