KUN36R-URMSYT (2011)
Toyota Hilux
(1107- )SMT

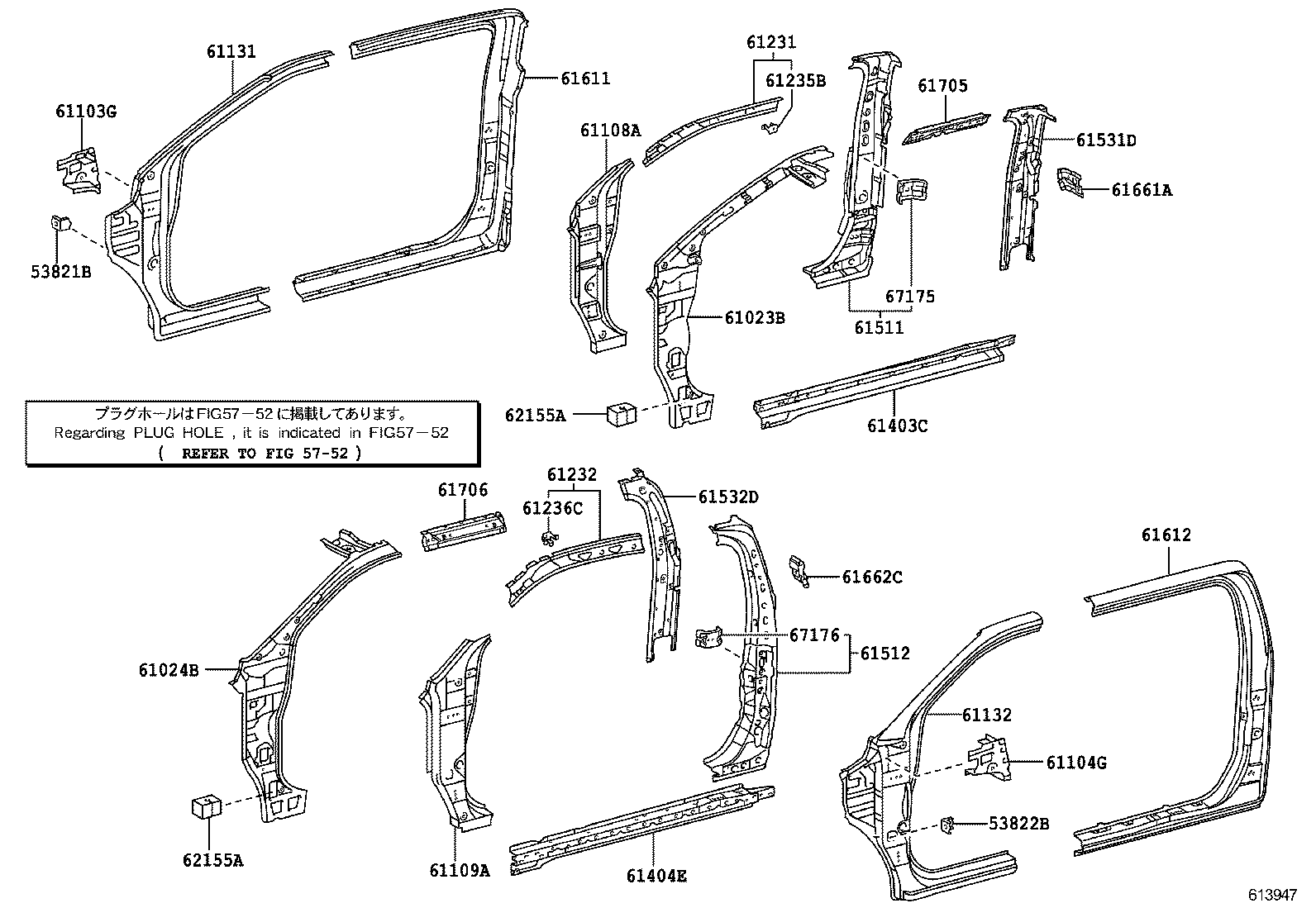

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-16010 |
KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-0K091 |
KUN25..SCB..MA;KUN35..LHD..GEN;KUN35..PHL,SA,TH;KUN15,LAN15,TGN16..DCB..SA;GGN25,35,KUN2#,36,LAN25,35,TGN26,36..ANCOM,ARL,GCC,GEN,IDN,PHL,SA,TH |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-0K102 |
KUN25..SCB..MA;KUN35..LHD..GEN;KUN35..PHL,SA,TH;KUN15,LAN15,TGN16..DCB..SA;GGN25,35,KUN2#,36,LAN25,35,TGN26,36..ANCOM,ARL,GCC,GEN,IDN,PHL,SA,TH |
1 | ||
| 61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61103-0K010 |
KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| 61104G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61104-0K010 |
KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-0K010 |
KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-0K010 |
KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-0K130 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-0K100 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61210-0K050 |
GGN15,KUN1#,2#,3#,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,PKN,TH) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61220-0K060 |
GGN15,KUN1#,2#,3#,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,PKN,TH) |
1 | ||
| 61235B - BRACKET, ASSIST GRIP | ||||
| 61235-0K010 |
GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,SMT,THSCB,XTR |
2 | ||
| 61236C - BRACKET, ASSIST GRIP | ||||
| 61235-0K010 |
GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,SMT,THSCB,XTR |
2 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-0K050 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-0K020 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61501-0K010 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-0K010 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 61531D - PANEL, CAB REAR PILLAR, INNER RH | ||||
| 61531-0K030 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 61532D - PANEL, CAB REAR PILLOR, INSIDE LH | ||||
| 61532-0K030 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-0K070 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-0K070 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 61661A - EXTENSION, QUARTER PANEL TO UPPER BACK, RH | ||||
| 61661-0K011 |
GGN15,KUN15,16,2#,3#,TGN16..SMT,XTR |
1 | ||
| 61662C - EXTENSION, QUARTER PANEL TO UPPER BACK, LH | ||||
| 61662-0K011 |
GGN15,KUN15,16,2#,3#,TGN16..SMT,XTR |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-0K071 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-0K070 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 62155A - PAD, COWL SIDE LOWER SILENCER | ||||
| 62155-0K010 |
KUN2#,3#..SMT;KUN15..SMT..HDCR;TGN16..SCB..HTWC..TH |
2 | ||
| 62155-0K010 |
KUN15,2#,3#..(SCB,SMT)..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 62155-0K010 |
KUN35..SMT..5F;KUN15,2#,36..SMT..SR;TGN16..SCB..HTWC..TH |
6 | ||
| 62155A - PAD, COWL SIDE LOWER SILENCER | ||||
| 62155-0K010 |
KUN2#,3#..SMT;KUN15..SMT..HDCR;TGN16..SCB..HTWC..TH |
2 | ||
| 62155-0K010 |
KUN15,2#,3#..(SCB,SMT)..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 62155-0K010 |
KUN35..SMT..5F;KUN15,2#,36..SMT..SR;TGN16..SCB..HTWC..TH |
6 | ||
| 67175 - REINFORCEMENT, REAR DOOR UPPER HINGE, RH | ||||
| 67175-0K030 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| 67176 - REINFORCEMENT, REAR DOOR UPPER HINGE, LH | ||||
| 67176-0K030 |
KUN15,16,2#,3#,TGN16..SMT |
1 | ||
| Linked diagrams | ||||
| 5752 | ||||
