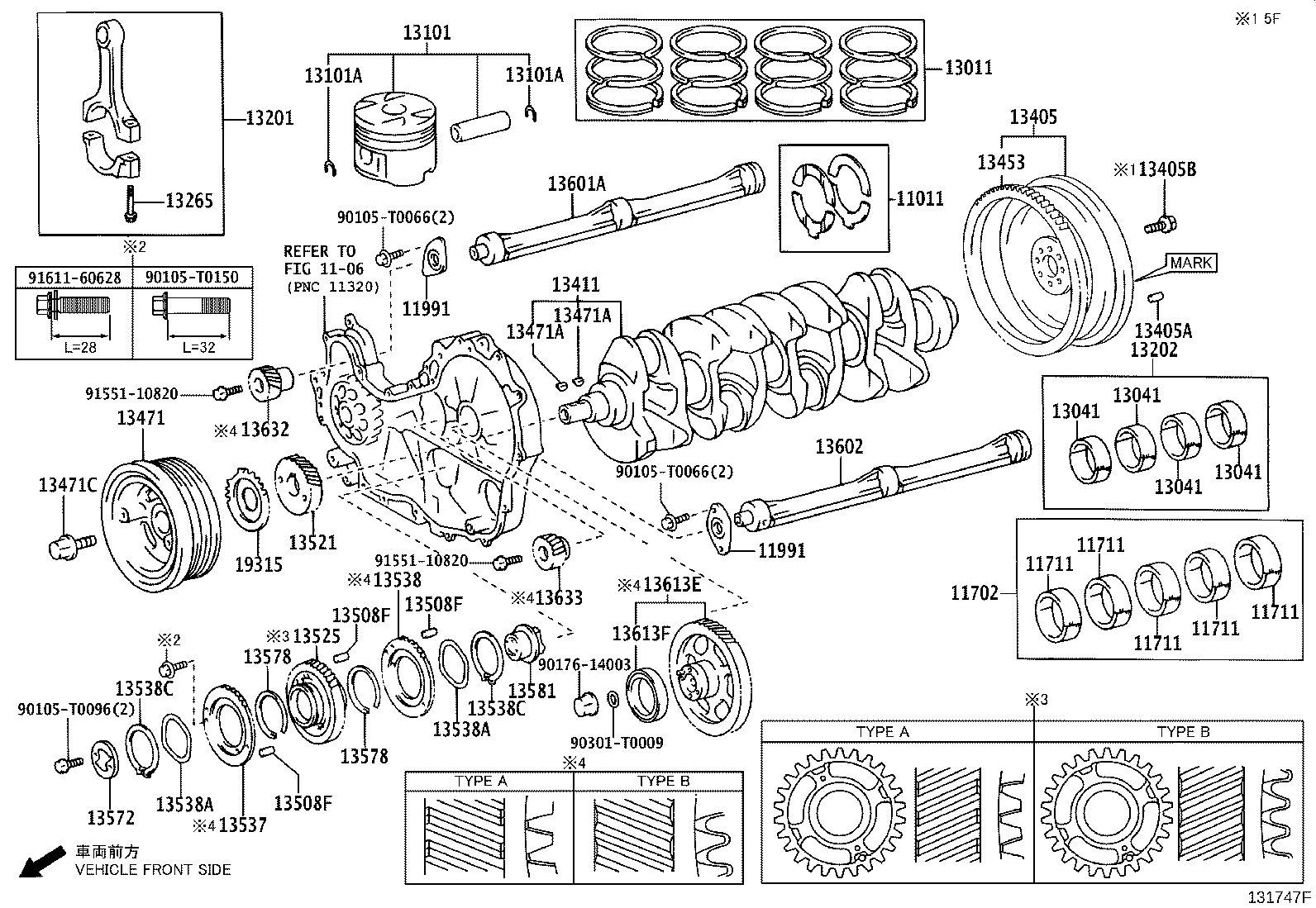

KUN36R-CRMSYN (2010)
Toyota Hilux
(0408- )1KDFTV..KUN36..5F ; (0408- )1KDFTV..KUN26..5F..SA ; (0408- )1KDFTV
*130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA STD,*130 |
1 | ||
| 11011-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA STD,*130 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
5 | ||
| 11991 - WASHER, BALANCESHAFT THRUST | ||||
| 11991-0L010 |
1KDFTV..KUN26,36..SA *130 |
2 | ||
| 11991-0L010 |
1KDFTV..KUN26,36..SA *130 |
2 | ||
| 11991 - WASHER, BALANCESHAFT THRUST | ||||
| 11991-0L010 |
1KDFTV..KUN26,36..SA *130 |
2 | ||
| 11991-0L010 |
1KDFTV..KUN26,36..SA *130 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-0L030 |
1KDFTV..KUN16,26,36 STD,*130 |
1 | ||
| 13011-0L030 |
1KDFTV..KUN16,26,36 STD,*130 |
1 | ||
| 13013-30022 |
1KDFTV..KUN26,36..SA O/S 0.50 |
1 | ||
| 13013-30022 |
1KDFTV..KUN26,36..SA O/S 0.50 |
1 | ||
| 13015-30022 |
1KDFTV..KUN26,36..SA O/S 1.00 |
1 | ||
| 13015-30022 |
1KDFTV..KUN26,36..SA O/S 1.00 |
1 | ||
| 13014-30022 |
1KDFTV..KUN26,36..SA O/S 0.75 |
1 | ||
| 13014-30022 |
1KDFTV..KUN26,36..SA O/S 0.75 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK4,*130:REFER R/M |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-30060 |
1KDFTV..KUN16,26,36 O/S 0.50 |
4 | ||
| 13103-30060 |
1KDFTV..KUN16,26,36 O/S 0.50 |
4 | ||
| 13104-30060 |
1KDFTV..KUN16,26,36 O/S 0.75 |
4 | ||
| 13104-30060 |
1KDFTV..KUN16,26,36 O/S 0.75 |
4 | ||
| 13105-30060 |
1KDFTV..KUN16,26,36 O/S 1.00 |
4 | ||
| 13105-30060 |
1KDFTV..KUN16,26,36 O/S 1.00 |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-67021 |
2KDFTV..KUN15,25,35..SA;1KDFTV..KUN26,36..LA,SA |
8 | ||
| 13265-67021 |
2KDFTV..KUN15,25,35..SA;1KDFTV..KUN26,36..LA,SA |
8 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-T0008 |
1KDFTV,2KDFTV..KUN2#,3#..SA L=22,OD=10,*130 |
3 | ||
| 90250-T0008 |
1KDFTV,2KDFTV..KUN2#,3#..SA L=22,OD=10,*130 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-T0113 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
8 | ||
| 90105-T0113 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-0L090 |
1KDFTV..KUN16..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..4FC..(PHL,TH);1KDFTV..KUN26,36..5F..(IDN,PHL,SA,TH) *130 |
1 | ||
| 13401-0L090 |
1KDFTV..KUN16..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..4FC..(PHL,TH);1KDFTV..KUN26,36..5F..(IDN,PHL,SA,TH) *130 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
1 | ||
| 13453-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
1 | ||
| 13408-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130,(L) |
2 | ||
| 90280-T0002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130,(L) |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130,(L) |
2 | ||
| 90280-T0002 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130,(L) |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-T0218 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
1 | ||
| 90119-T0218 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
1 | ||
| 13572-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
1 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
1 | ||
| 13581-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
1 | ||
| 13601A - BALANCESHAFT SUB-ASSY, NO.1 | ||||
| 13601-0L010 |
1KDFTV..KUN16,26,36..LA,PHL,SA,TH *130 |
1 | ||
| 13601-0L010 |
1KDFTV..KUN16,26,36..LA,PHL,SA,TH *130 |
1 | ||
| 13602 - BALANCESHAFT SUB-ASSY, NO.2 | ||||
| 13602-0L010 |
1KDFTV..KUN16,26,36..LA,PHL,SA,TH *130 |
1 | ||
| 13602-0L010 |
1KDFTV..KUN16,26,36..LA,PHL,SA,TH *130 |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
1 | ||
| 19315-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..SA *130 |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90105-T0096 | ||||
| 90105-T0150 | ||||
| 90176-14003 | ||||
| 90301-T0009 | ||||
| 91551-10820 | ||||
| 91611-60628 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 3502 | ||||
(1107- )1KDFTV..CO,LA,MA,PHL,SA,TH ; (1107-)1KDFTV..KUN26..SADCB,THDCB..4FC
*130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0066 | ||||
| 90105-T0096 | ||||
| 90105-T0150 | ||||
| 90176-14003 | ||||
| 90301-T0009 | ||||
| 91551-10820 | ||||
| 91611-60628 | ||||
| Linked diagrams | ||||
| 1106 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
