KUN35R-TRMDHN (2011)

Toyota Hilux

Production Aug 2011 - Dec 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )GGN15,25,35..RHD

Click highlighted areas on diagram

diagram 1603 1603 5355 871240K070 871240K080 8714 87208 87245A 87245B 87246A 87246B 90105T0066 90105T0066 90105T0066 90466T0025 90466T0025 90466T0025 90466T0025 90466T0029 90466T0029 90466T0029 90466T0029
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-0K020

KUN15..GCC,SA;KUN35..DLX..SA;KUN25..4FC..GEN;KUN25..LHD..DCB..5F..(GCC,SA);KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA);KUN25..LHD..(SCB,THDCB,THSCB,XTR)..(GEN,SA)

 1
87208-0K080

GGN15,25,35..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-0K610

GGN15,25,35..RHD

 1
87245B - HOSE, HEATER WATER, INLET B
87245-0K600

GGN15,25,35..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-0K620

GGN15,25,35..RHD

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-0K590

GGN15,25,35..RHD

 1
Common parts
87124-0K070
87124-0K080
90105-T0066
90466-T0025
90466-T0029
Linked diagrams
1603
5355
8714

(1108- )LAN15,25,35

Click highlighted areas on diagram

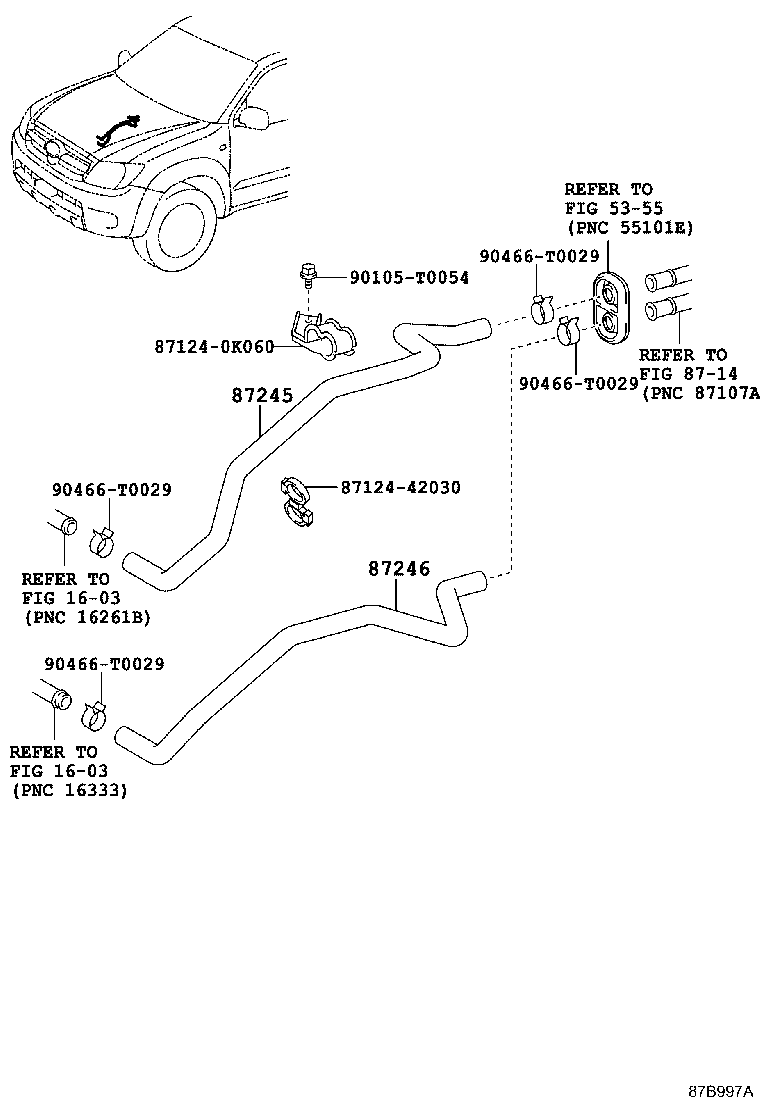

diagram 1603 1603 5355 871240K060 8712442030 8714 87245 87246 90105T0054 90466T0029 90466T0029 90466T0029 90466T0029
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-0K300

KUN15..GCC,SA;KUN25..4FC..GEN;KUN15..SCB..HDCR..GEN;KUN15..LHD..(DCB,XTR)..GEN;KUN25..LHD..DCB..5F..(GCC,SA);KUN10,16,26,3#..ARL,GCC,GEN,SA;KUN25..LHD..(SCB,THDCB,THSCB,XTR)..(GEN,SA)

 1
87245-0K570

LAN15,25,35

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-0K300

KUN15..GCC,SA;KUN25..4FC..GEN;KUN15..SCB..HDCR..GEN;KUN15..LHD..(DCB,XTR)..GEN;KUN25..LHD..DCB..5F..(GCC,SA);KUN10,16,26,3#..ARL,GCC,GEN,SA;KUN25..LHD..(SCB,THDCB,THSCB,XTR)..(GEN,SA)

 1
87245-0K700

LAN15,25,35

 1
Common parts
87124-0K060
87124-42030
90105-T0054
90466-T0029
Linked diagrams
1603
5355
8714
