KUN35R-TRMDHN (2011)

Toyota Hilux

Production Aug 2011 - Dec 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )GGN15,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36..SCB,THSCB..DCR,DEFI,HDCR,H

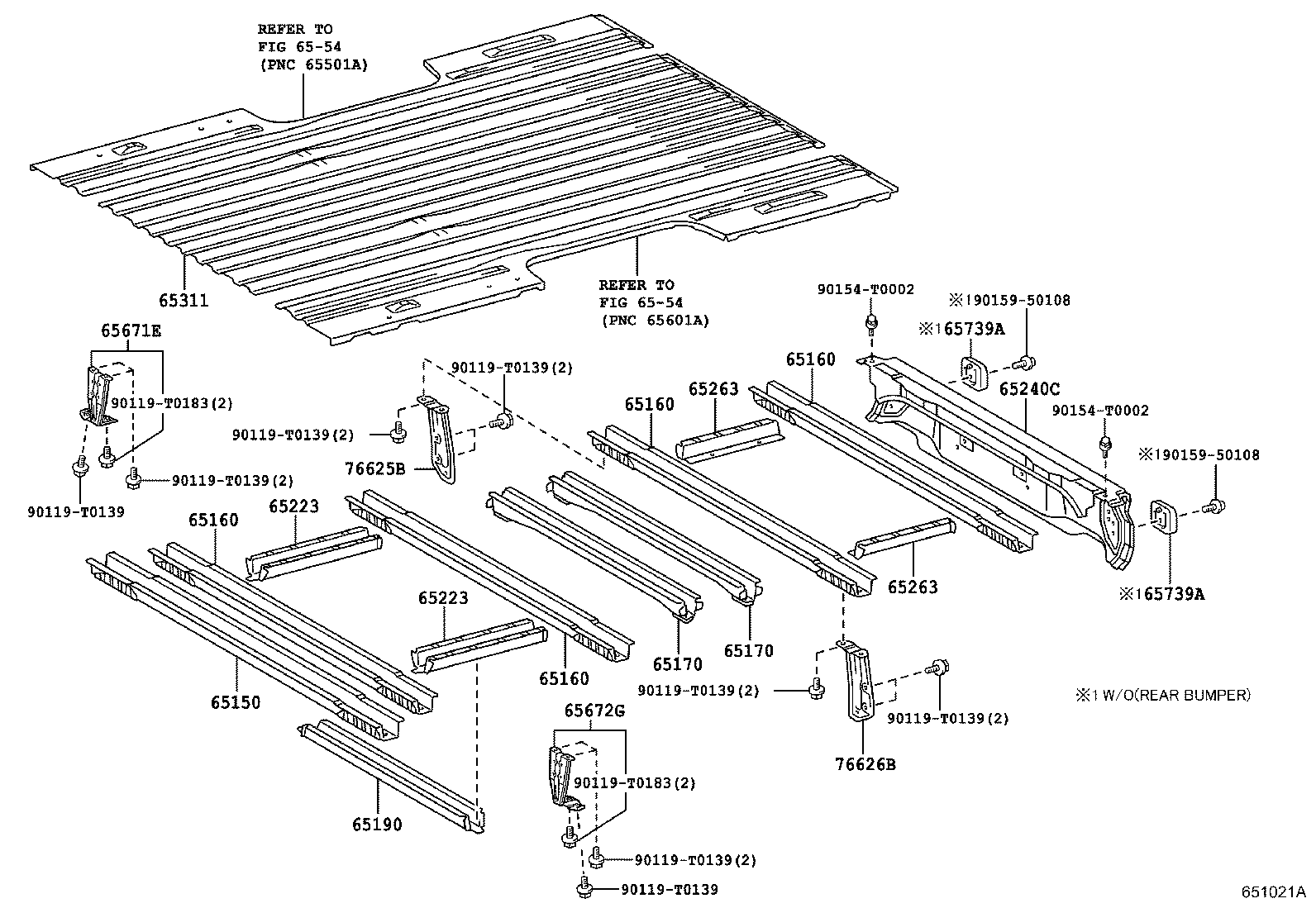

Click highlighted areas on diagram

diagram 65150 65160 65160 65160 65160 65170 65170 65190 65223 65223 65240C 65263 65263 65311 6554 6554 65671E 65672G 65739A 65739A 76625B 76626B 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90119T0139 90119T0183 90119T0183 90154T0002 90154T0002 9015950108 9015950108
Part # Description Qty Price
65150 - SILL ASSY, CROSS, NO.1
65151-0K010

GGN15,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,MA,SA,TH)..CBU

 1
65160 - SILL ASSY, CROSS, NO.2
65160-0K010

KUN36,LAN15,25..SCB;GGN15,KUN15,16,2#,35,TGN15,16,26,36..(SCB,THSCB)..(DCR,HDCR,HTWC,HTWCF,IART)..(ANCOM,ARL,GCC,GEN,LA,PKN,SA,TH)..CBU

 4
65160 - SILL ASSY, CROSS, NO.2
65160-0K010

KUN36,LAN15,25..SCB;GGN15,KUN15,16,2#,35,TGN15,16,26,36..(SCB,THSCB)..(DCR,HDCR,HTWC,HTWCF,IART)..(ANCOM,ARL,GCC,GEN,LA,PKN,SA,TH)..CBU

 4
65160 - SILL ASSY, CROSS, NO.2
65160-0K010

KUN36,LAN15,25..SCB;GGN15,KUN15,16,2#,35,TGN15,16,26,36..(SCB,THSCB)..(DCR,HDCR,HTWC,HTWCF,IART)..(ANCOM,ARL,GCC,GEN,LA,PKN,SA,TH)..CBU

 4
65160 - SILL ASSY, CROSS, NO.2
65160-0K010

KUN36,LAN15,25..SCB;GGN15,KUN15,16,2#,35,TGN15,16,26,36..(SCB,THSCB)..(DCR,HDCR,HTWC,HTWCF,IART)..(ANCOM,ARL,GCC,GEN,LA,PKN,SA,TH)..CBU

 4
65170 - SILL ASSY, CROSS, NO.2
65170-0K010

KUN26..4FC..CO;GGN15,LAN35,TGN15..CBU;KUN15,LAN25..RHD..(DLX,SR);TGN36..(SCB,THDCB)..(GEN,SA);KUN15..LHD..(GCC,GEN,PHL)..CBU;KUN15,LAN25,TGN16..LHD..SCB..SA;KUN2#,3#,LAN15,TGN16..(SCB,XTR)..(CNG,DCR,DEFI,HDCR)..(MA,SA,TH);GGN25,KUN10,16,2#,3#,TGN10,11,16,26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(DCR,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,TH)..CBU

 2
65170 - SILL ASSY, CROSS, NO.2
65170-0K010

KUN26..4FC..CO;GGN15,LAN35,TGN15..CBU;KUN15,LAN25..RHD..(DLX,SR);TGN36..(SCB,THDCB)..(GEN,SA);KUN15..LHD..(GCC,GEN,PHL)..CBU;KUN15,LAN25,TGN16..LHD..SCB..SA;KUN2#,3#,LAN15,TGN16..(SCB,XTR)..(CNG,DCR,DEFI,HDCR)..(MA,SA,TH);GGN25,KUN10,16,2#,3#,TGN10,11,16,26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(DCR,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,TH)..CBU

 2
65190 - SILL ASSY, CROSS, NO.5
65191-0K010

GGN15,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36..(SCB,THSCB)..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,MA,SA,TH)..CBU

 1
65223 - REINFORCEMENT, FLOOR PANEL, FRONT, NO.1 RH
65223-0K010

GGN15,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36..(SCB,THSCB)..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,MA,SA,TH)..CBU

 2
65223 - REINFORCEMENT, FLOOR PANEL, FRONT, NO.1 RH
65223-0K010

GGN15,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36..(SCB,THSCB)..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,MA,SA,TH)..CBU

 2
65240C - SILL ASSY, CROSS, NO.9
65240-0K070

KUN35,TGN16..SCB..SA

 1
65240-0K071

KUN35,TGN16..SCB..SA

 1
65263 - REINFORCEMENT, FLOOR SIDE FRAME
65263-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)..CBU

 2
65263 - REINFORCEMENT, FLOOR SIDE FRAME
65263-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)..CBU

 2
65311 - PANEL, FLOOR, CENTER
65311-0K010

KUN36,LAN15,25..SCB;GGN15,KUN15,16,2#,35,TGN15,16,26,36..(SCB,THSCB)..(DCR,HDCR,HTWC,HTWCF,IART)..(ANCOM,ARL,GCC,GEN,LA,PKN,SA,TH)..CBU

 1
65671E - BRACE, SIDE PANEL SKIRT, FRONT RH
65608-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..CBU

 1
65672G - BRACE, SIDE PANEL SKIRT, FRONT LH
65609-0K020

GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,SMT,THSCB,XTR)..CBU

 1
65739A - BUMPER, TAIL GATE
65739-0K040

KUN15..XTR..TH;KUN26..4FC..SR..ARL;KUN35..DCB..DLX..GEN;KUN25,LAN15..SCB..(MA,SA);KUN15,LAN25..LHD..SCB..SA;KUN25..RHD..DCB..DLX..(IDN,PKN,SA);KUN15,26..(4FC,5F)..DLX..(ARL,PHL)..CBU;GGN15,25,KUN10,16,LAN25,35,TGN10,15..RHD..DLX..CBU;KUN15,TGN16..RHD..(DCB,SCB,SMT)..(ARL,PKN,SA,TH)..CBU

RH

 1
65738-0K020

KUN15..XTR..TH;KUN26..4FC..SR..ARL;KUN35..DCB..DLX..GEN;KUN25,LAN15..SCB..(MA,SA);KUN15,LAN25..LHD..SCB..SA;KUN25..RHD..DCB..DLX..(IDN,PKN,SA);KUN15,26..(4FC,5F)..DLX..(ARL,PHL)..CBU;GGN15,25,KUN10,16,LAN25,35,TGN10,15..RHD..DLX..CBU;KUN15,TGN16..RHD..(DCB,SCB,SMT)..(ARL,PKN,SA,TH)..CBU

LH

 1
65739A - BUMPER, TAIL GATE
65739-0K040

KUN15..XTR..TH;KUN26..4FC..SR..ARL;KUN35..DCB..DLX..GEN;KUN25,LAN15..SCB..(MA,SA);KUN15,LAN25..LHD..SCB..SA;KUN25..RHD..DCB..DLX..(IDN,PKN,SA);KUN15,26..(4FC,5F)..DLX..(ARL,PHL)..CBU;GGN15,25,KUN10,16,LAN25,35,TGN10,15..RHD..DLX..CBU;KUN15,TGN16..RHD..(DCB,SCB,SMT)..(ARL,PKN,SA,TH)..CBU

RH

 1
65738-0K020

KUN15..XTR..TH;KUN26..4FC..SR..ARL;KUN35..DCB..DLX..GEN;KUN25,LAN15..SCB..(MA,SA);KUN15,LAN25..LHD..SCB..SA;KUN25..RHD..DCB..DLX..(IDN,PKN,SA);KUN15,26..(4FC,5F)..DLX..(ARL,PHL)..CBU;GGN15,25,KUN10,16,LAN25,35,TGN10,15..RHD..DLX..CBU;KUN15,TGN16..RHD..(DCB,SCB,SMT)..(ARL,PKN,SA,TH)..CBU

LH

 1
76625B - MUDGUARD, REAR BODY, RH
76607-0K040

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)..CBU

 1
76626B - MUDGUARD, REAR BODY, LH
76608-0K040

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)..CBU

 1
Common parts
90119-T0139
90119-T0183
90154-T0002
90159-50108
Linked diagrams
6554
