Toyota Hilux KUN35 REAR SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
GR
HILUX
KUN35R-TRMDHN (2011)
4804 - REAR SPRING & SHOCK ABSORBER

KUN35R-TRMDHN (2011)

Toyota Hilux

Production Aug 2011 - Dec 2015

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

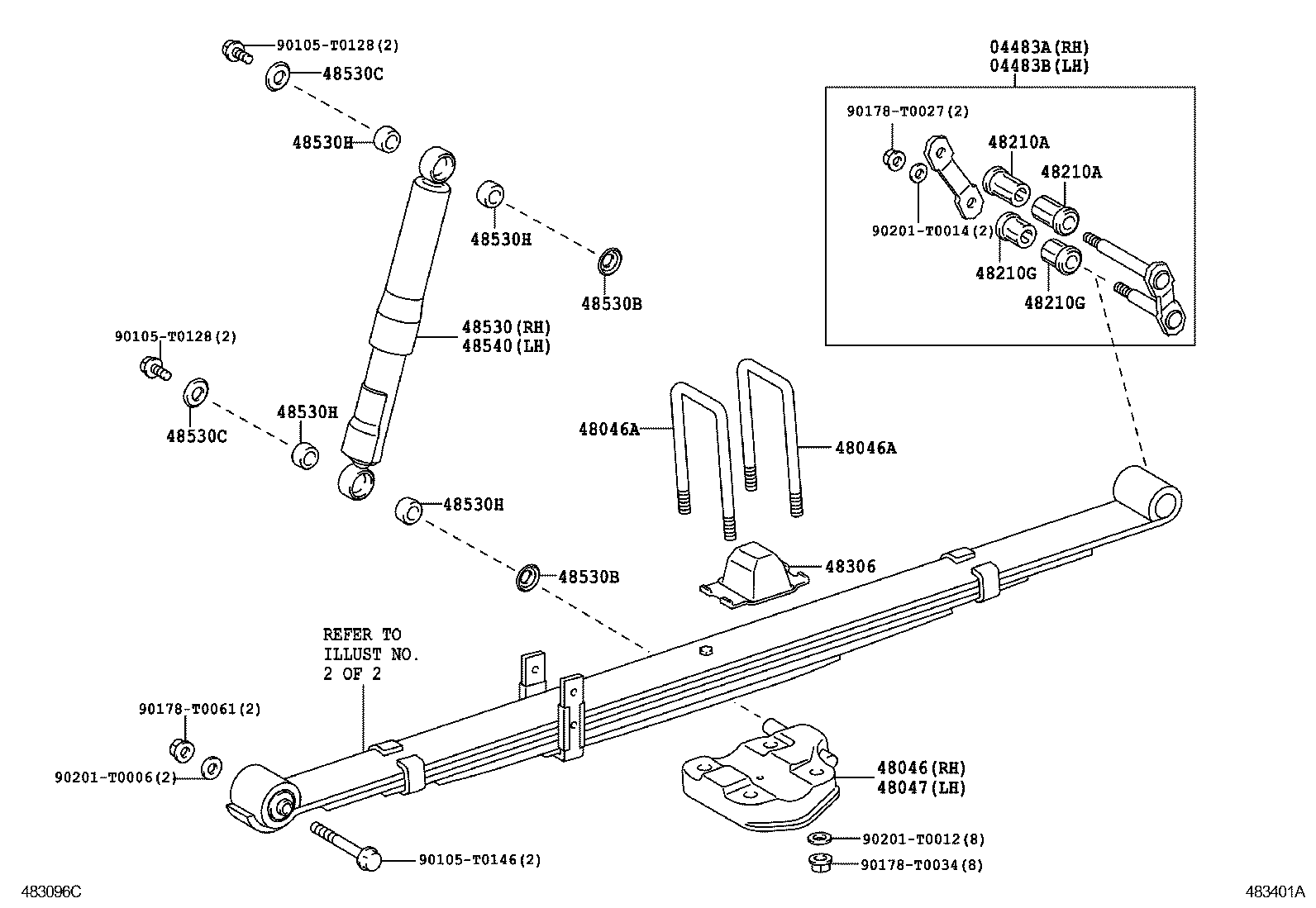

ILLUST NO. 1 OF 2(1108- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA ; (1204- )SADCB

Click highlighted areas on diagram

Part #	Description	Period	Qty
04483A - SHACKLE KIT, REAR SPRING, RH
04483-0K050	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36	07/2011 - 12/2999	1
04483B - SHACKLE KIT, REAR SPRING, LH
04483-0K050	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36	07/2011 - 12/2999	1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-0K020	GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
48046A - BOLT, U(FOR REAR SPRING)
90117-T0002	GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH L=170	07/2011 - 12/2999	4
48046A - BOLT, U(FOR REAR SPRING)
90117-T0002	GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH L=170	07/2011 - 12/2999	4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-0K020	GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-T0009	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-T0009	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-T0010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-T0010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-0K020	KUN26..SADCB;GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA	08/2011 - 12/2015	2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-0K170	GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA MARK 48531-0K170	08/2011 - 12/2015	1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-T3001	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-T3001	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-T3002	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-T3002	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	4
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0004	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0004	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0004	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0004	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	8
48540 - ABSORBER ASSY, SHOCK, REAR LH
48541-0K050	GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA MARK 48541-0K050	08/2011 - 12/2015	1
Common parts
90105-T0128
90105-T0146
90178-T0027
90178-T0034
90178-T0061
90201-T0006
90201-T0012
90201-T0014

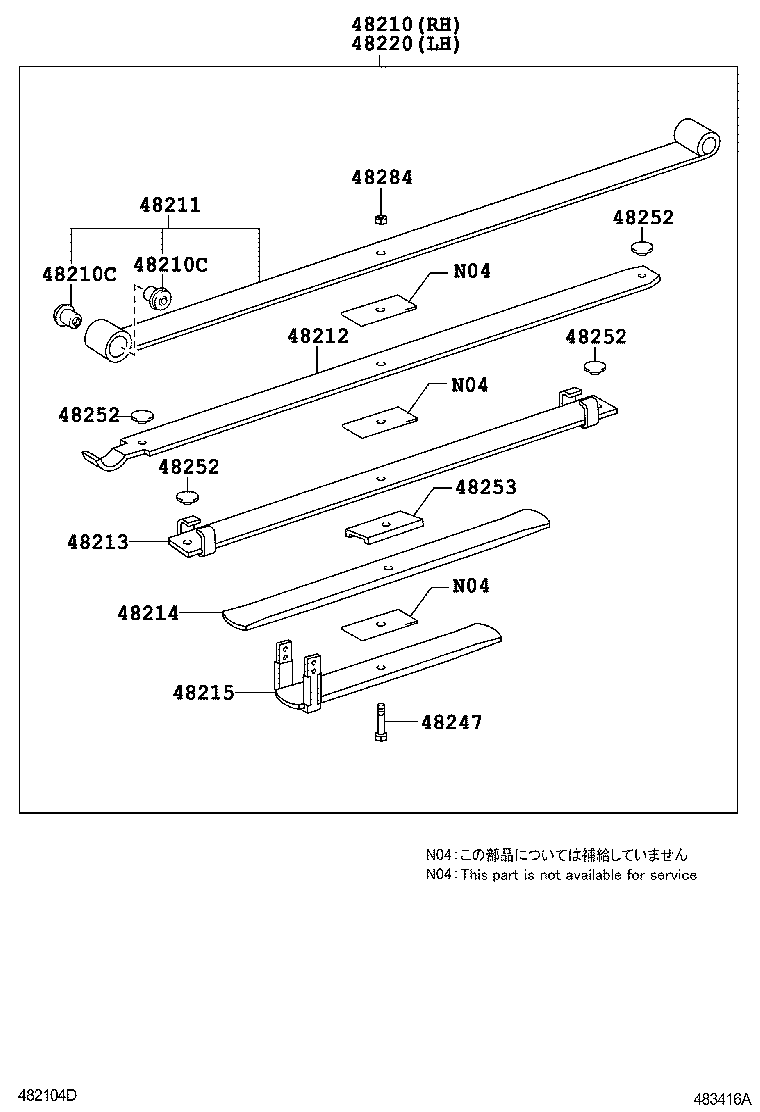

ILLUST NO. 2 OF 2(1108- )KUN2#,3#,LAN25,TGN36..SCB..SA

Click highlighted areas on diagram

5-LEAF

Part #	Description	Period	Qty
48210 - SPRING ASSY, REAR RH
48210-0K240	KUN2#,3#,LAN25,TGN36..SCB..SA 5-LEAF	08/2011 - 12/2015	1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-T0009	KUN26..SADCB;KUN16..SR..TH;KUN15..SMT..SR;KUN15,TGN16..DCB..TH;GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,SA	07/2011 - 12/2015	4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-T0009	KUN26..SADCB;KUN16..SR..TH;KUN15..SMT..SR;KUN15,TGN16..DCB..TH;GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,SA	07/2011 - 12/2015	4
48211 - LEAF, REAR SPRING, NO.1
48211-0K240	KUN2#,3#,LAN25,TGN36..SCB..SA	08/2011 - 12/2015	2
48212 - LEAF, REAR SPRING, NO.2
48212-0K240	KUN2#,3#,LAN25,TGN36..SCB..SA	08/2011 - 12/2015	2
48213 - LEAF, REAR SPRING, NO.3
48213-0K240	KUN2#,3#,LAN25,TGN36..SCB..SA	08/2011 - 12/2015	2
48214 - LEAF, REAR SPRING, NO.4
48214-0K240	KUN2#,3#,LAN25,TGN36..SCB..SA	08/2011 - 12/2015	2
48215 - LEAF, REAR SPRING, NO.5
48215-0K240	KUN2#,3#,LAN25,TGN36..SCB..SA	08/2011 - 12/2015	2
48220 - SPRING ASSY, REAR LH
48210-0K240	KUN2#,3#,LAN25,TGN36..SCB..SA 5-LEAF	08/2011 - 12/2015	1
48247 - BOLT, REAR SPRING, CENTER
48247-0K040	KUN15,2#,3#,LAN15,25,TGN15,16,36..SCB..SA	08/2011 - 12/2015	2
48252 - SILENCER, REAR SPRING
48252-0K040	KUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA	08/2011 - 12/2015	8
48252 - SILENCER, REAR SPRING
48252-0K040	KUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA	08/2011 - 12/2015	8
48252 - SILENCER, REAR SPRING
48252-0K040	KUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA	08/2011 - 12/2015	8
48252 - SILENCER, REAR SPRING
48252-0K040	KUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA	08/2011 - 12/2015	8
48253 - SPACER, REAR SPRING, NO.1
48253-0K040	KUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA	08/2011 - 12/2015	2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0K040	KUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA	08/2011 - 12/2015	2
