KUN35R-TRMDHN (2011)
Toyota Hilux

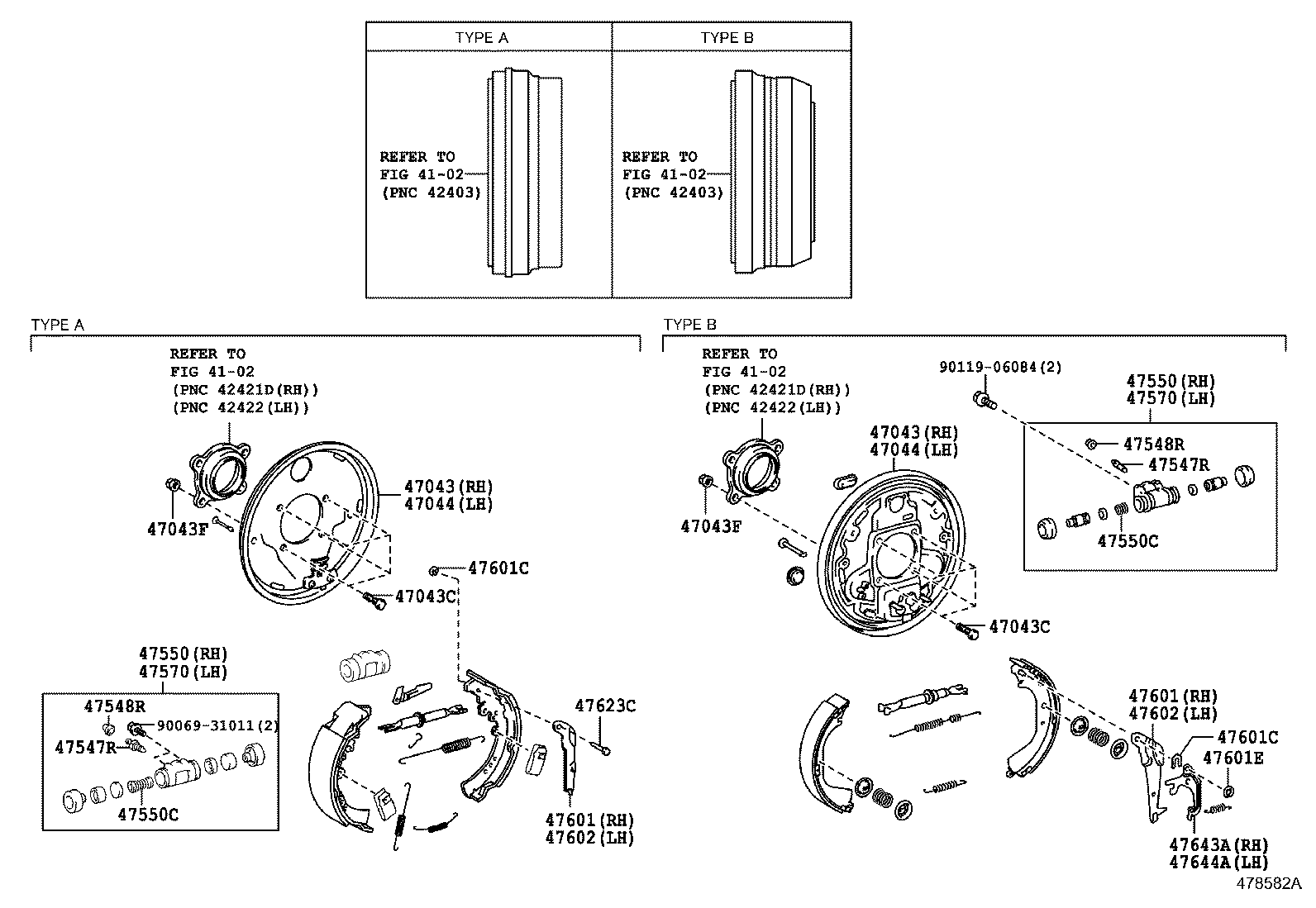

ILLUST NO. 1 OF 2(0408- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90016-AA602 | ||||
| 90069-31011 | ||||
| Linked diagrams | ||||
| 4102 | ||||

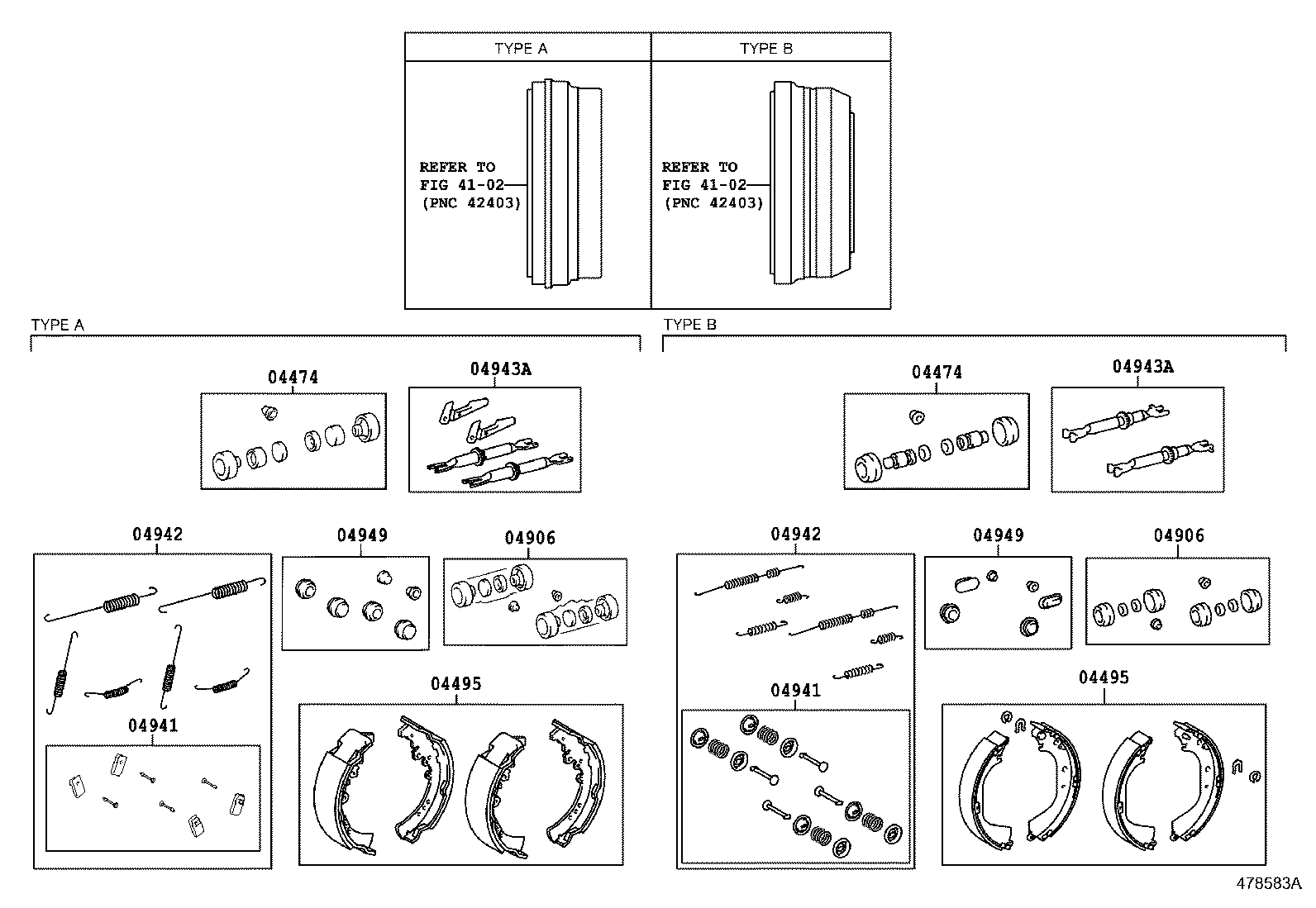

ILLUST NO. 2 OF 2(0408- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 2(1108- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-0K060 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 47043-71010 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-0K060 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 47043-71010 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-T0006 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH *10-1.25PX41-18 |
8 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-T0006 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH *10-1.25PX41-18 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90178-T0077 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90178-T0077 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-71010 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 47044-0K060 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-71010 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 47044-0K060 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 90069-0K072 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
2 | ||
| 47547-60020 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 90069-0K072 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
2 | ||
| 47547-60020 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
2 | ||
| 31478-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
2 | ||
| 31478-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-35190 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 47550-09090 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-35190 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 47550-09090 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90029-60011 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
2 | ||
| 90069-51002 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
2 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90029-60011 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
2 | ||
| 90069-51002 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-09090 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 47550-35190 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-09090 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 47550-35190 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47611-0K060 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 47612-35040 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47611-0K060 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 47612-35040 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90069-52023 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
2 | ||
| 90213-07010 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA T=1.6,*317 TYPE B:REF ILL. |
2 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90069-52023 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
2 | ||
| 90213-07010 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA T=1.6,*317 TYPE B:REF ILL. |
2 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47612-0K060 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 47611-35040 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47612-0K060 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 47611-35040 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 47623C - PIN, PARKING BRAKE LEVER | ||||
| 90069-35000 |
LAN25,35..RHD *317 TYPE A:REF ILL. |
2 | ||
| 90069-35000 |
LAN25..LHD;GGN25,35,KUN2#,3#,TGN26,36..SA *317 TYPE A:REF ILL. |
2 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47644-60010 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47643-60010 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| Common parts | ||||
| 90069-31011 | ||||
| 90119-06084 | ||||
| Linked diagrams | ||||
| 4102 | ||||
ILLUST NO. 2 OF 2(1108- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-0K030 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
2 | ||
| 04474-35080 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
2 | ||
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-0K030 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
2 | ||
| 04474-35080 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-35230 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA MARK NBK LN508,*317 TYPE B:REF ILL. |
1 | ||
| 04495-0K070 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA MARK NSA LN508,*317 TYPE A:REF ILL. |
1 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-35230 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA MARK NBK LN508,*317 TYPE B:REF ILL. |
1 | ||
| 04495-0K070 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA MARK NSA LN508,*317 TYPE A:REF ILL. |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-0K080 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 04906-35100 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-0K080 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 04906-35100 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-0K040 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 04941-25040 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-0K040 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 04941-25040 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-25070 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 04942-0K070 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-25070 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 04942-0K070 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-25020 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 04943-0K070 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-25020 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 04943-0K070 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-0K100 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 04949-13010 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-0K100 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE A:REF ILL. |
1 | ||
| 04949-13010 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..SA *317 TYPE B:REF ILL. |
1 | ||
| Linked diagrams | ||||
| 4102 | ||||
