Toyota Hilux KUN35 POWER STEERING TUBE

Manufacturers Home
Toyota
GR
HILUX
KUN35R-TRMDHN (2011)
4503 - POWER STEERING TUBE

KUN35R-TRMDHN (2011)

Toyota Hilux

Production Aug 2011 - Dec 2015

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1107- )KUN1#,2#,3#..RHD

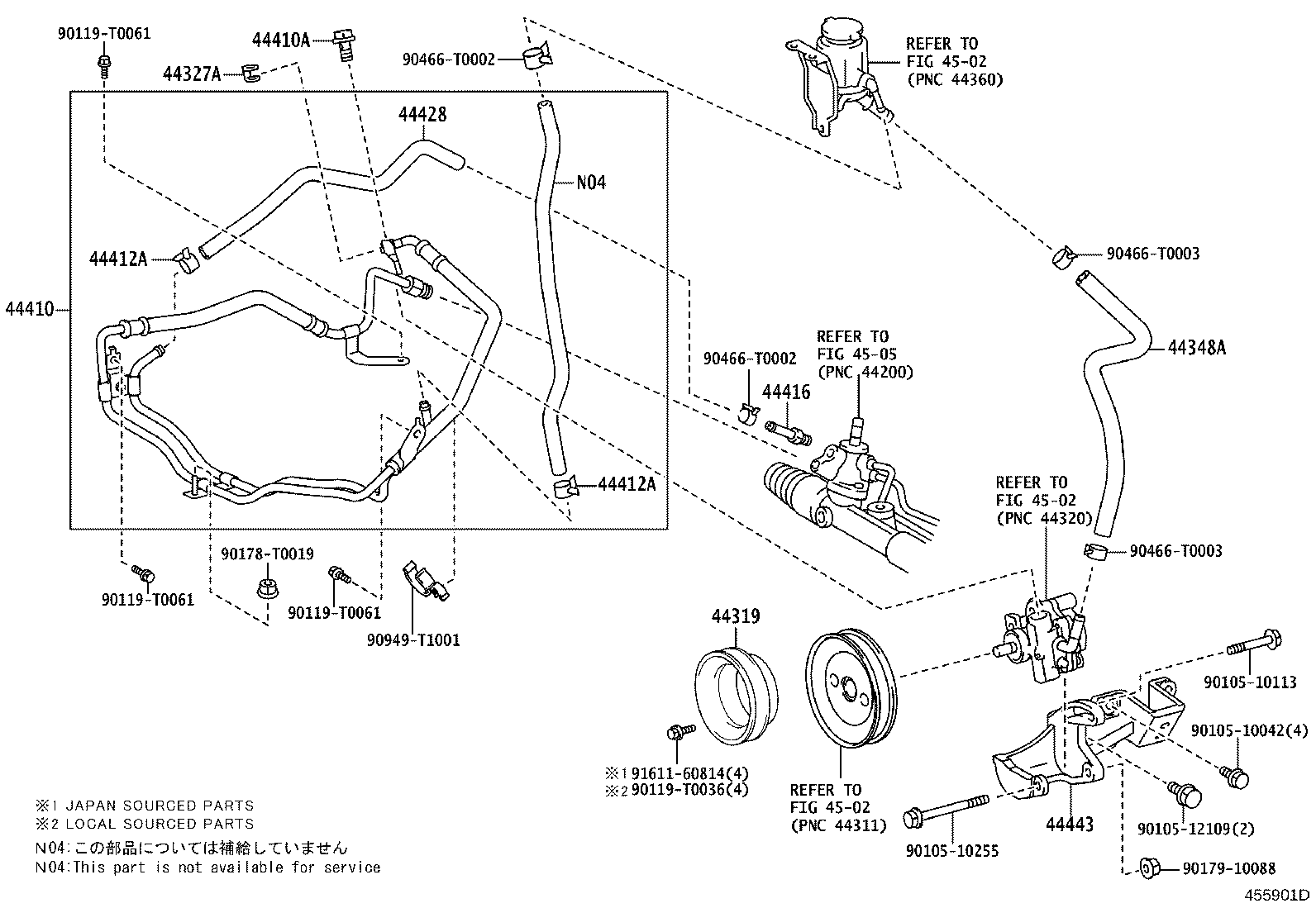

Click highlighted areas on diagram

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-0K010	KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)	07/2011 - 09/2016	1
44348-0K040	GGN15,25,35	07/2011 - 12/2999	1
44348-0K030	LAN15,25,35	08/2011 - 12/2015	1
44410 - TUBE ASSY, PRESSURE FEED
44410-0K140	LAN25,35..RHD	08/2011 - 10/2013	1
44410-0K120	KUN2#,3#..RHD	07/2011 - 09/2016	1
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90466-T0002	TGN26,36..RHD;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH	07/2011 - 09/2016	2
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90466-T0002	TGN26,36..RHD;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH	07/2011 - 09/2016	2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-0K010	KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
44428 - HOSE, RETURN, NO.2
44428-0K120	LAN25,35..RHD	08/2011 - 10/2013	1
44428-0K110	KUN2#,3#..RHD	07/2011 - 09/2016	1
44428-0K050	GGN15,25,35..RHD	07/2011 - 12/2015	1
Common parts
90119-T0061
90466-T0002
90466-T0003
Linked diagrams
4502

(1107- )GGN15,25,35..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030	GGN15,25,35,LAN15,25,35,TGN1#,26,36	07/2011 - 12/2999	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-0K010	KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)	07/2011 - 09/2016	1
44348-0K040	GGN15,25,35	07/2011 - 12/2999	1
44348-0K030	LAN15,25,35	08/2011 - 12/2015	1
44406 - TUBE SUB-ASSY, RETURN
44406-0K080	GGN25,35..RHD	07/2011 - 12/2015	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603	GGN15,25,35,LAN15,25,35,TGN1#,26,36	07/2011 - 12/2999	1
44411 - HOSE, PRESSURE FEED
44411-0K060	GGN25,35..RHD	07/2011 - 12/2015	1
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90466-T0002	TGN26,36..RHD;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH	07/2011 - 09/2016	2
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90466-T0002	TGN26,36..RHD;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH	07/2011 - 09/2016	2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-0K010	KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
44428 - HOSE, RETURN, NO.2
44428-0K120	LAN25,35..RHD	08/2011 - 10/2013	1
44428-0K110	KUN2#,3#..RHD	07/2011 - 09/2016	1
44428-0K050	GGN15,25,35..RHD	07/2011 - 12/2015	1
Common parts
90119-T0061
90466-T0002
90466-T0003
Linked diagrams
4502
4505

(1108- )LAN15,25,35..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44319 - PULLEY, VANE PUMP DRIVE
44319-22010	LAN15,25,35	08/2011 - 12/2015	1
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030	GGN15,25,35,LAN15,25,35,TGN1#,26,36	07/2011 - 12/2999	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-0K010	KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)	07/2011 - 09/2016	1
44348-0K040	GGN15,25,35	07/2011 - 12/2999	1
44348-0K030	LAN15,25,35	08/2011 - 12/2015	1
44410 - TUBE ASSY, PRESSURE FEED
44410-0K140	LAN25,35..RHD	08/2011 - 10/2013	1
44410-0K120	KUN2#,3#..RHD	07/2011 - 09/2016	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603	GGN15,25,35,LAN15,25,35,TGN1#,26,36	07/2011 - 12/2999	1
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90466-T0002	TGN26,36..RHD;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH	07/2011 - 09/2016	2
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90466-T0002	TGN26,36..RHD;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH	07/2011 - 09/2016	2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-0K010	KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
44428 - HOSE, RETURN, NO.2
44428-0K120	LAN25,35..RHD	08/2011 - 10/2013	1
44428-0K110	KUN2#,3#..RHD	07/2011 - 09/2016	1
44428-0K050	GGN15,25,35..RHD	07/2011 - 12/2015	1
44443 - BRACKET, PUMP
44443-26091	LAN15,25,35	08/2011 - 12/2015	1
Common parts
90105-10042
90105-10113
90105-10255
90105-12109
90119-T0036
90119-T0061
90178-T0019
90179-10088
90466-T0002
90466-T0003
90949-T1001
91611-60814
Linked diagrams
4502
4505

KUN35R-TRMDHN (2011)

(1107- )KUN1#,2#,3#..RHD

(1107- )GGN15,25,35..RHD

(1108- )LAN15,25,35..RHD
