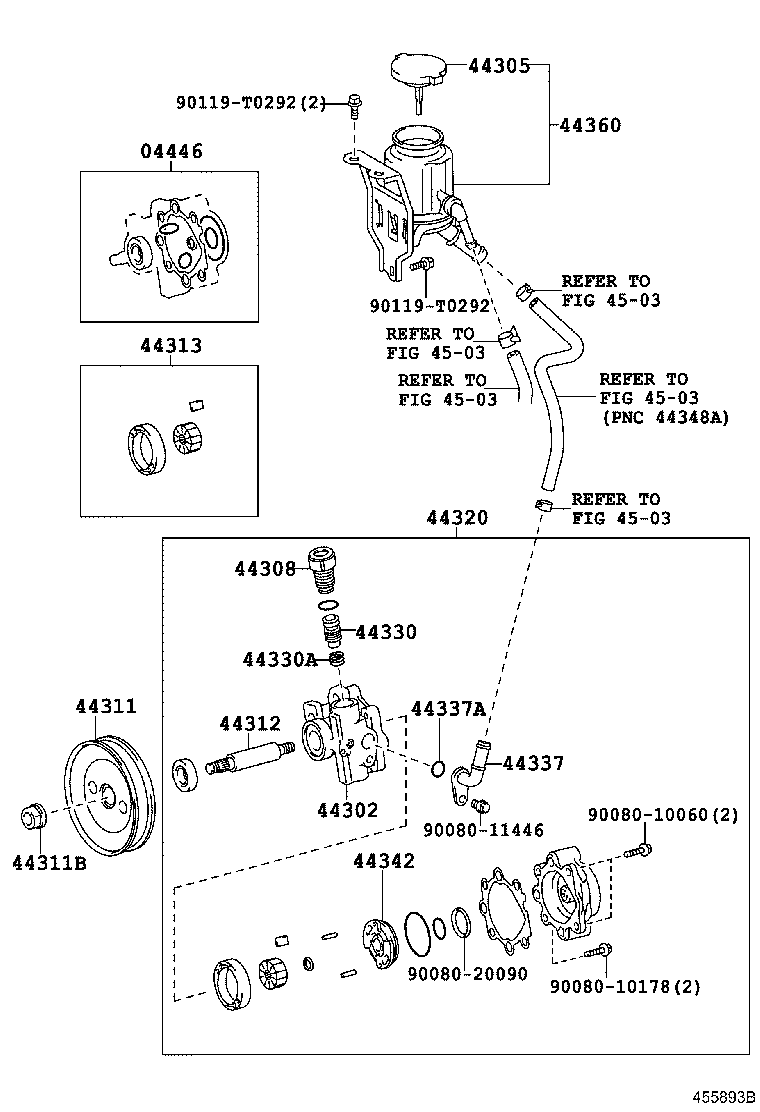

KUN35R-TRMDHN (2011)
Toyota Hilux
(1107- )KUN1#,2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-06110 |
GGN15,25,35,TGN1#,26,36 |
1 | ||
| 04446-0K010 |
KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 04446-0B030 |
LAN15,25,35 |
1 | ||
| 44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90316-T0001 |
KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-0K041 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35 |
1 | ||
| 44305-0K042 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-0K060 |
LAN25,35 |
1 | ||
| 44308-0K040 |
GGN25,35,TGN26,36 |
1 | ||
| 44308-0K050 |
KUN2#,3# |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-T0014 |
KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-06040 |
LAN15,25,35 OD=17.994-17.999 |
1 | ||
| 44312-0K010 |
KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44312-06030 |
LAN15,25,35 OD=17.999-18.004 |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-T0005 |
KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44312F - RING, SNAP, NO.1(FOR VANE PUMP SHAFT BEARING) | ||||
| 90520-T0001 |
KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44312G - RING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING) | ||||
| 90520-T0002 |
KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-09040 |
LAN25,35 |
1 | ||
| 44313-09010 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44313-09030 |
GGN15,25,35,TGN26,36 |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-0K010 |
KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-0K040 |
KUN2#,3# |
1 | ||
| 44320-0K020 |
LAN25,35 |
1 | ||
| 44310-0K060 |
GGN25,35 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-04030 |
LAN15,25,35 MARK C |
1 | ||
| 44330-04040 |
LAN15,25,35 MARK D |
1 | ||
| 44330-04020 |
LAN15,25,35 MARK B |
1 | ||
| 44330-04050 |
LAN15,25,35 MARK E |
1 | ||
| 44330-0K010 |
GGN15,25,35,TGN26,36 MARK A |
1 | ||
| 44330-0K130 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK A |
1 | ||
| 44330-0K140 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK B |
1 | ||
| 44330-0K020 |
GGN15,25,35,TGN26,36 MARK B |
1 | ||
| 44330-04010 |
LAN15,25,35 MARK A |
1 | ||
| 44330-0K160 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK D |
1 | ||
| 44330-04060 |
LAN15,25,35 MARK F |
1 | ||
| 44330-0K150 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK C |
1 | ||
| 44330-0K170 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK E |
1 | ||
| 44330-0K040 |
GGN15,25,35,TGN26,36 MARK D |
1 | ||
| 44330-0K030 |
GGN15,25,35,TGN26,36 MARK C |
1 | ||
| 44330-0K050 |
GGN15,25,35,TGN26,36 MARK E |
1 | ||
| 44330-0K180 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK F |
1 | ||
| 44330-0K060 |
GGN15,25,35,TGN26,36 MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-T0001 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 90080-50247 |
LAN15,25,35 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-06060 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 44337-0K020 |
LAN15,25,35 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-06010 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-0K010 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,LAN15,25,35;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44360-0K030 |
GGN15,25,35 |
1 | ||
| 44360-0K031 |
GGN15,25,35 |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90080-30093 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| Common parts | ||||
| 90080-10265 | ||||
| 90080-11505 | ||||
| 90119-T0292 | ||||
| 90178-T0032 | ||||
| Linked diagrams | ||||
| 4503 | ||||
(1107- )GGN15,25,35
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-06110 |
GGN15,25,35,TGN1#,26,36 |
1 | ||
| 04446-0K010 |
KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 04446-0B030 |
LAN15,25,35 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-06040 |
GGN15,25,35,TGN1#,26,36 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-0K041 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35 |
1 | ||
| 44305-0K042 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-0K060 |
LAN25,35 |
1 | ||
| 44308-0K040 |
GGN25,35,TGN26,36 |
1 | ||
| 44308-0K050 |
KUN2#,3# |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-09040 |
LAN25,35 |
1 | ||
| 44313-09010 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44313-09030 |
GGN15,25,35,TGN26,36 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-0K040 |
KUN2#,3# |
1 | ||
| 44320-0K020 |
LAN25,35 |
1 | ||
| 44310-0K060 |
GGN25,35 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-04030 |
LAN15,25,35 MARK C |
1 | ||
| 44330-04040 |
LAN15,25,35 MARK D |
1 | ||
| 44330-04020 |
LAN15,25,35 MARK B |
1 | ||
| 44330-04050 |
LAN15,25,35 MARK E |
1 | ||
| 44330-0K010 |
GGN15,25,35,TGN26,36 MARK A |
1 | ||
| 44330-0K130 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK A |
1 | ||
| 44330-0K140 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK B |
1 | ||
| 44330-0K020 |
GGN15,25,35,TGN26,36 MARK B |
1 | ||
| 44330-04010 |
LAN15,25,35 MARK A |
1 | ||
| 44330-0K160 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK D |
1 | ||
| 44330-04060 |
LAN15,25,35 MARK F |
1 | ||
| 44330-0K150 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK C |
1 | ||
| 44330-0K170 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK E |
1 | ||
| 44330-0K040 |
GGN15,25,35,TGN26,36 MARK D |
1 | ||
| 44330-0K030 |
GGN15,25,35,TGN26,36 MARK C |
1 | ||
| 44330-0K050 |
GGN15,25,35,TGN26,36 MARK E |
1 | ||
| 44330-0K180 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK F |
1 | ||
| 44330-0K060 |
GGN15,25,35,TGN26,36 MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-T0001 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 90080-50247 |
LAN15,25,35 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-06060 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 44337-0K020 |
LAN15,25,35 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-06010 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-0K010 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,LAN15,25,35;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44360-0K030 |
GGN15,25,35 |
1 | ||
| 44360-0K031 |
GGN15,25,35 |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90080-30093 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| Common parts | ||||
| 90080-10265 | ||||
| 90080-11505 | ||||
| 90119-T0196 | ||||
| 90119-T0292 | ||||
| 90119-T0344 | ||||
| Linked diagrams | ||||
| 4503 | ||||
| 8404 | ||||
(1108- )LAN15,25,35
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-06110 |
GGN15,25,35,TGN1#,26,36 |
1 | ||
| 04446-0K010 |
KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 04446-0B030 |
LAN15,25,35 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-04050 |
LAN15,25,35 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-0K041 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35 |
1 | ||
| 44305-0K042 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-0K060 |
LAN25,35 |
1 | ||
| 44308-0K040 |
GGN25,35,TGN26,36 |
1 | ||
| 44308-0K050 |
KUN2#,3# |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-26060 |
LAN15,25,35 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90080-17158 |
LAN15,25,35 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-06040 |
LAN15,25,35 OD=17.994-17.999 |
1 | ||
| 44312-0K010 |
KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44312-06030 |
LAN15,25,35 OD=17.999-18.004 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-09040 |
LAN25,35 |
1 | ||
| 44313-09010 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44313-09030 |
GGN15,25,35,TGN26,36 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-0K040 |
KUN2#,3# |
1 | ||
| 44320-0K020 |
LAN25,35 |
1 | ||
| 44310-0K060 |
GGN25,35 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-04030 |
LAN15,25,35 MARK C |
1 | ||
| 44330-04040 |
LAN15,25,35 MARK D |
1 | ||
| 44330-04020 |
LAN15,25,35 MARK B |
1 | ||
| 44330-04050 |
LAN15,25,35 MARK E |
1 | ||
| 44330-0K010 |
GGN15,25,35,TGN26,36 MARK A |
1 | ||
| 44330-0K130 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK A |
1 | ||
| 44330-0K140 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK B |
1 | ||
| 44330-0K020 |
GGN15,25,35,TGN26,36 MARK B |
1 | ||
| 44330-04010 |
LAN15,25,35 MARK A |
1 | ||
| 44330-0K160 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK D |
1 | ||
| 44330-04060 |
LAN15,25,35 MARK F |
1 | ||
| 44330-0K150 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK C |
1 | ||
| 44330-0K170 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK E |
1 | ||
| 44330-0K040 |
GGN15,25,35,TGN26,36 MARK D |
1 | ||
| 44330-0K030 |
GGN15,25,35,TGN26,36 MARK C |
1 | ||
| 44330-0K050 |
GGN15,25,35,TGN26,36 MARK E |
1 | ||
| 44330-0K180 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) MARK F |
1 | ||
| 44330-0K060 |
GGN15,25,35,TGN26,36 MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-T0001 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 90080-50247 |
LAN15,25,35 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-06060 |
KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 44337-0K020 |
LAN15,25,35 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90080-30049 |
LAN15,25,35 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-26020 |
LAN15,25,35 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-0K010 |
KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,LAN15,25,35;KUN15..SCB..(GCC,GEN,PHL,PKN,SA) |
1 | ||
| 44360-0K030 |
GGN15,25,35 |
1 | ||
| 44360-0K031 |
GGN15,25,35 |
1 | ||
| Common parts | ||||
| 90080-10060 | ||||
| 90080-10178 | ||||
| 90080-11446 | ||||
| 90080-20090 | ||||
| 90119-T0292 | ||||
| Linked diagrams | ||||
| 4503 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
