Toyota Hilux KUN35 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Manufacturers Home
Toyota
GR
HILUX
KUN35R-TRMDHN (2011)
3302 - CLUTCH HOUSING & TRANSMISSION CASE (MTM)

KUN35R-TRMDHN (2011)

Toyota Hilux

Production Aug 2011 - Dec 2015

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1107- )5F..HDCR ; (1107- )KUN16,26,36..5F

Click highlighted areas on diagram

R151,R156,R151F,R156F

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-0K010	KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 01/2016	1
31111-60281	LAN15,25,35	08/2011 - 12/2015	1
31111-0K090	KUN16,26,36..5F;KUN15,25,35..5F..HDCR TYPE D:REFER 33-01	07/2011 - 09/2016	1
33019C - BREATHER SUB-ASSY, TRANSMISSION
33019-71080	LAN15,35	08/2011 - 12/2015	1
33019-71110	KUN16,36..5F;KUN15,35..5F..HDCR	07/2011 - 12/2015	1
33019C - BREATHER SUB-ASSY, TRANSMISSION
33019-71080	LAN15,35	08/2011 - 12/2015	1
33019-71110	KUN16,36..5F;KUN15,35..5F..HDCR	07/2011 - 12/2015	1
33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE)
33191-71010	KUN16,36..5F;KUN15,35..5F..HDCR TYPE D:REFER 33-01	07/2011 - 12/2015	1
36149-60070	TGN26..5F..(GCC,GEN);GGN15,LAN15,25,35,TGN10,15..5F	07/2011 - 12/2015	1
33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE)
33191-71010	KUN16,36..5F;KUN15,35..5F..HDCR TYPE D:REFER 33-01	07/2011 - 12/2015	1
36149-60070	TGN26..5F..(GCC,GEN);GGN15,LAN15,25,35,TGN10,15..5F	07/2011 - 12/2015	1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	LAN15,25,35	08/2011 - 12/2015	1
90341-18006	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 12/2999	1
90341-18006	KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01	07/2011 - 12/2999	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 01/2019	1
90430-18008	LAN15,25,35	08/2011 - 12/2015	1
90430-18008	KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F TYPE D:REFER 33-01	07/2011 - 12/2999	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057	LAN15,25,35	08/2011 - 12/2015	1
90341-18006	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01	07/2011 - 12/2999	1
90341-18006	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 12/2999	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F TYPE D:REFER 33-01	07/2011 - 12/2999	1
90430-18008	LAN15,25,35	08/2011 - 12/2015	1
90430-18008	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 01/2019	1
33111 - CASE, MANUAL TRANSMISSION
33101-35051	LAN15,25,35	08/2011 - 01/2015	1
33101-0K030	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01	07/2011 - 12/2016	1
33101-0K010	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 05/2016	1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-41800	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE C:REFER 33-01	07/2011 - 12/2999	3
90331-14004	LAN15,25,35 OD=14	08/2011 - 12/2015	4
96411-41800	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01	07/2011 - 12/2999	3
33111C - PLUG(FOR TRANSMISSION CASE)
96411-41800	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE C:REFER 33-01	07/2011 - 12/2999	3
90331-14004	LAN15,25,35 OD=14	08/2011 - 12/2015	4
96411-41800	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01	07/2011 - 12/2999	3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LAN15,25,35 L=16,OD=12	08/2011 - 12/2015	4
90250-12002	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE C:REFER 33-01	07/2011 - 12/2999	2
90250-12002	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE D:REFER 33-01	07/2011 - 12/2999	2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LAN15,25,35 L=14,OD=15	08/2011 - 12/2015	2
90253-15001	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) L=14,OD=15,TYPE D:REFER 33-01	07/2011 - 12/2016	4
90253-15001	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=14,OD=15,TYPE C:REFER 33-01	07/2011 - 12/2999	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LAN15,25,35 L=14,OD=15	08/2011 - 12/2015	2
90253-15001	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) L=14,OD=15,TYPE D:REFER 33-01	07/2011 - 12/2016	4
90253-15001	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=14,OD=15,TYPE C:REFER 33-01	07/2011 - 12/2999	4
33118 - PLATE, STIFFENER, RH(MTM)
33118-04020	KUN1#,2#,3#..5F	07/2011 - 09/2016	1
33118-0K010	LAN15,25,35	08/2011 - 12/2015	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-0K010	LAN15,25,35	08/2011 - 12/2015	1
33119-0K020	KUN1#,2#,3#..5F	07/2011 - 09/2016	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-0K010	KUN26,36..5F;TGN36..DCB..5F..HTWCF;KUN16,TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 08/2012	1
33131-26020	LAN15,25,35	08/2011 - 12/2015	1
33018-0K070	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01	07/2011 - 09/2019	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-0K010	KUN26,36..5F;TGN36..DCB..5F..HTWCF;KUN16,TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 08/2012	1
33131-26020	LAN15,25,35	08/2011 - 12/2015	1
33018-0K070	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01	07/2011 - 09/2019	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-0K010	KUN26,36..5F;TGN36..DCB..5F..HTWCF;KUN16,TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 08/2012	1
33131-26020	LAN15,25,35	08/2011 - 12/2015	1
33018-0K070	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01	07/2011 - 09/2019	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-T0017	KUN16,26,36..5F;TGN36..DCB..5F..HTWCF;GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..(CNG,HDCR,HTWC) TYPE D:REFER 33-01	07/2011 - 08/2012	1
90311-T0017	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 08/2012	1
90311-30014	LAN15,25,35	08/2011 - 12/2015	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-T0017	KUN16,26,36..5F;TGN36..DCB..5F..HTWCF;GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..(CNG,HDCR,HTWC) TYPE D:REFER 33-01	07/2011 - 08/2012	1
90311-T0017	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 08/2012	1
90311-30014	LAN15,25,35	08/2011 - 12/2015	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-T0017	KUN16,26,36..5F;TGN36..DCB..5F..HTWCF;GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..(CNG,HDCR,HTWC) TYPE D:REFER 33-01	07/2011 - 08/2012	1
90311-T0017	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 08/2012	1
90311-30014	LAN15,25,35	08/2011 - 12/2015	1
33131D - RETAINER, BEARING, FRONT
33131-0K010	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 12/2018	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-0K010	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 12/2999	1
33151-35030	LAN15,25,35	08/2011 - 12/2015	1
33151-0K040	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01	07/2011 - 12/2999	1
33449B - MAGNET, TRANSMISSION
33449-26010	LAN15,25,35	08/2011 - 12/2015	1
33449-35030	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 12/2999	1
33449-35030	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01	07/2011 - 12/2999	1
Common parts
33197-0K010
33197-71070
82715-0K330
90119-08332
90119-T0225
90119-T0226
90119-T0227
90119-T0295
90119-T0296
90119-T0297
90447-11069
90469-T0004
91611-G0820
91612-61045
96132-51000
Linked diagrams
3312
3609
8401

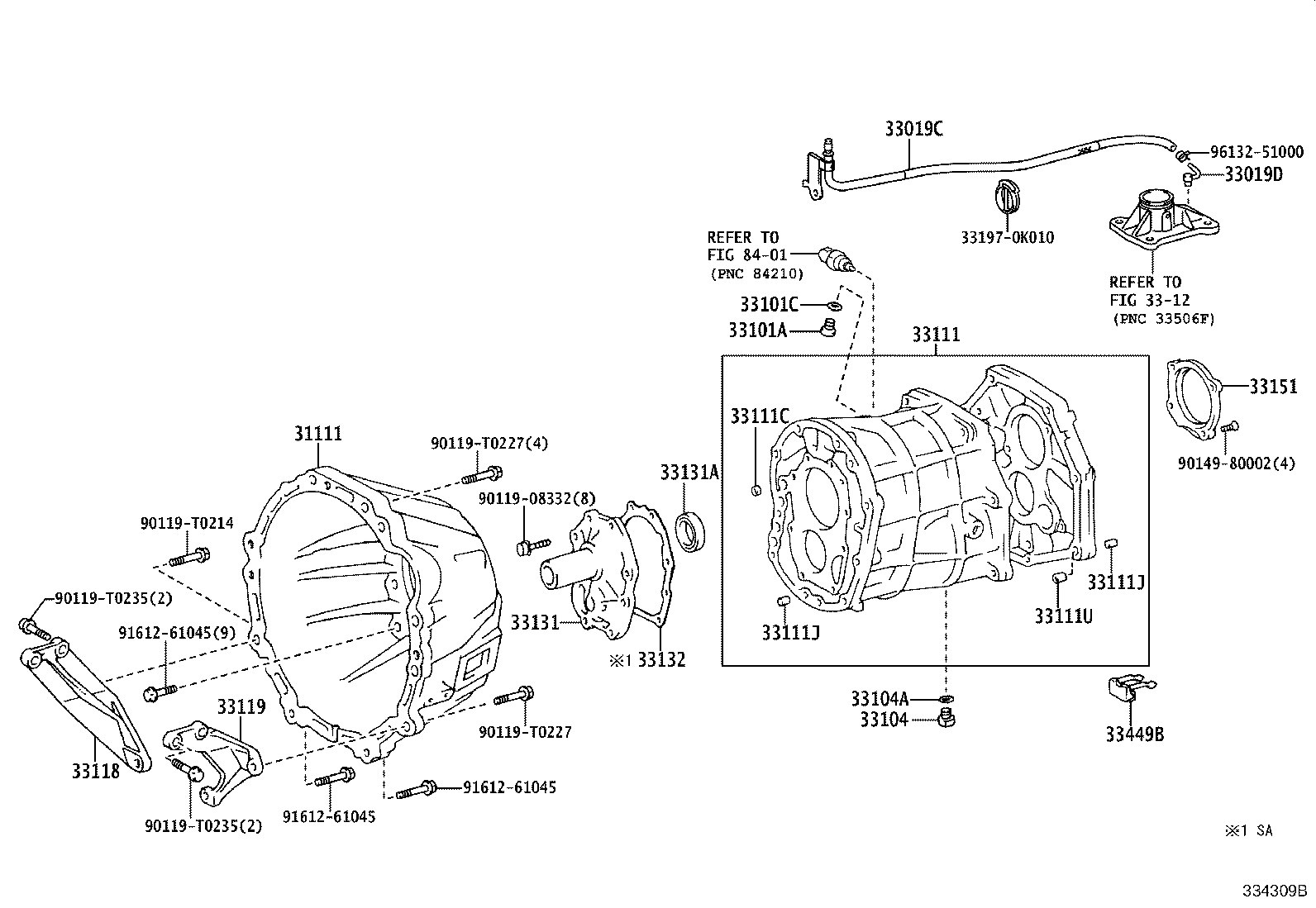

(1108- )LAN15,35

Click highlighted areas on diagram

G58

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-0K010	KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 01/2016	1
31111-60281	LAN15,25,35	08/2011 - 12/2015	1
31111-0K090	KUN16,26,36..5F;KUN15,25,35..5F..HDCR TYPE D:REFER 33-01	07/2011 - 09/2016	1
33019C - BREATHER SUB-ASSY, TRANSMISSION
33019-71080	LAN15,35	08/2011 - 12/2015	1
33019-71110	KUN16,36..5F;KUN15,35..5F..HDCR	07/2011 - 12/2015	1
33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE)
33191-71010	KUN16,36..5F;KUN15,35..5F..HDCR TYPE D:REFER 33-01	07/2011 - 12/2015	1
36149-60070	TGN26..5F..(GCC,GEN);GGN15,LAN15,25,35,TGN10,15..5F	07/2011 - 12/2015	1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	LAN15,25,35	08/2011 - 12/2015	1
90341-18006	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 12/2999	1
90341-18006	KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01	07/2011 - 12/2999	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 01/2019	1
90430-18008	LAN15,25,35	08/2011 - 12/2015	1
90430-18008	KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F TYPE D:REFER 33-01	07/2011 - 12/2999	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057	LAN15,25,35	08/2011 - 12/2015	1
90341-18006	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01	07/2011 - 12/2999	1
90341-18006	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 12/2999	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F TYPE D:REFER 33-01	07/2011 - 12/2999	1
90430-18008	LAN15,25,35	08/2011 - 12/2015	1
90430-18008	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 01/2019	1
33111 - CASE, MANUAL TRANSMISSION
33101-35051	LAN15,25,35	08/2011 - 01/2015	1
33101-0K030	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01	07/2011 - 12/2016	1
33101-0K010	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 05/2016	1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-41800	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE C:REFER 33-01	07/2011 - 12/2999	3
90331-14004	LAN15,25,35 OD=14	08/2011 - 12/2015	4
96411-41800	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01	07/2011 - 12/2999	3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LAN15,25,35 L=16,OD=12	08/2011 - 12/2015	4
90250-12002	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE C:REFER 33-01	07/2011 - 12/2999	2
90250-12002	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE D:REFER 33-01	07/2011 - 12/2999	2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	LAN15,25,35 L=16,OD=12	08/2011 - 12/2015	4
90250-12002	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE C:REFER 33-01	07/2011 - 12/2999	2
90250-12002	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE D:REFER 33-01	07/2011 - 12/2999	2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001	LAN15,25,35 L=14,OD=15	08/2011 - 12/2015	2
90253-15001	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) L=14,OD=15,TYPE D:REFER 33-01	07/2011 - 12/2016	4
90253-15001	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=14,OD=15,TYPE C:REFER 33-01	07/2011 - 12/2999	4
33118 - PLATE, STIFFENER, RH(MTM)
33118-04020	KUN1#,2#,3#..5F	07/2011 - 09/2016	1
33118-0K010	LAN15,25,35	08/2011 - 12/2015	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-0K010	LAN15,25,35	08/2011 - 12/2015	1
33119-0K020	KUN1#,2#,3#..5F	07/2011 - 09/2016	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-0K010	KUN26,36..5F;TGN36..DCB..5F..HTWCF;KUN16,TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 08/2012	1
33131-26020	LAN15,25,35	08/2011 - 12/2015	1
33018-0K070	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01	07/2011 - 09/2019	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-T0017	KUN16,26,36..5F;TGN36..DCB..5F..HTWCF;GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..(CNG,HDCR,HTWC) TYPE D:REFER 33-01	07/2011 - 08/2012	1
90311-T0017	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 08/2012	1
90311-30014	LAN15,25,35	08/2011 - 12/2015	1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-28010	LAN15,25,35	08/2011 - 12/2015	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-0K010	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 12/2999	1
33151-35030	LAN15,25,35	08/2011 - 12/2015	1
33151-0K040	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01	07/2011 - 12/2999	1
33449B - MAGNET, TRANSMISSION
33449-26010	LAN15,25,35	08/2011 - 12/2015	1
33449-35030	KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01	07/2011 - 12/2999	1
33449-35030	KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01	07/2011 - 12/2999	1
Common parts
33197-0K010
90119-08332
90119-T0214
90119-T0227
90119-T0235
90149-80002
91612-61045
96132-51000
Linked diagrams
3312
8401

KUN35R-TRMDHN (2011)

(1107- )5F..HDCR ; (1107- )KUN16,26,36..5F

(1108- )LAN15,35
