KUN35R-PRMSHT (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107-1502)2TRFE..TGN16..DCB,XTR..GEN ; (1107-1502)2TRFE..TGN16,36..ANCOM,GCC,SA ;

Click highlighted areas on diagram

W/O(AIR INJECTION SYSTEM)

diagram 17111 17111Z 17118 17141 17141K 17167 17173 17177 2211 90105T0108 90119T0233 90119T0236 90119T0238 90119T0342 90178T0019 9017908101 91551B0828 9161961230 9167100835
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
17118 - STAY, MANIFOLD
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17141 - MANIFOLD, EXHAUST
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
Common parts
90105-T0108
90119-T0233
90119-T0236
90119-T0238
90119-T0342
90178-T0019
90179-08101
91551-B0828
91619-61230
91671-00835
Linked diagrams
2211

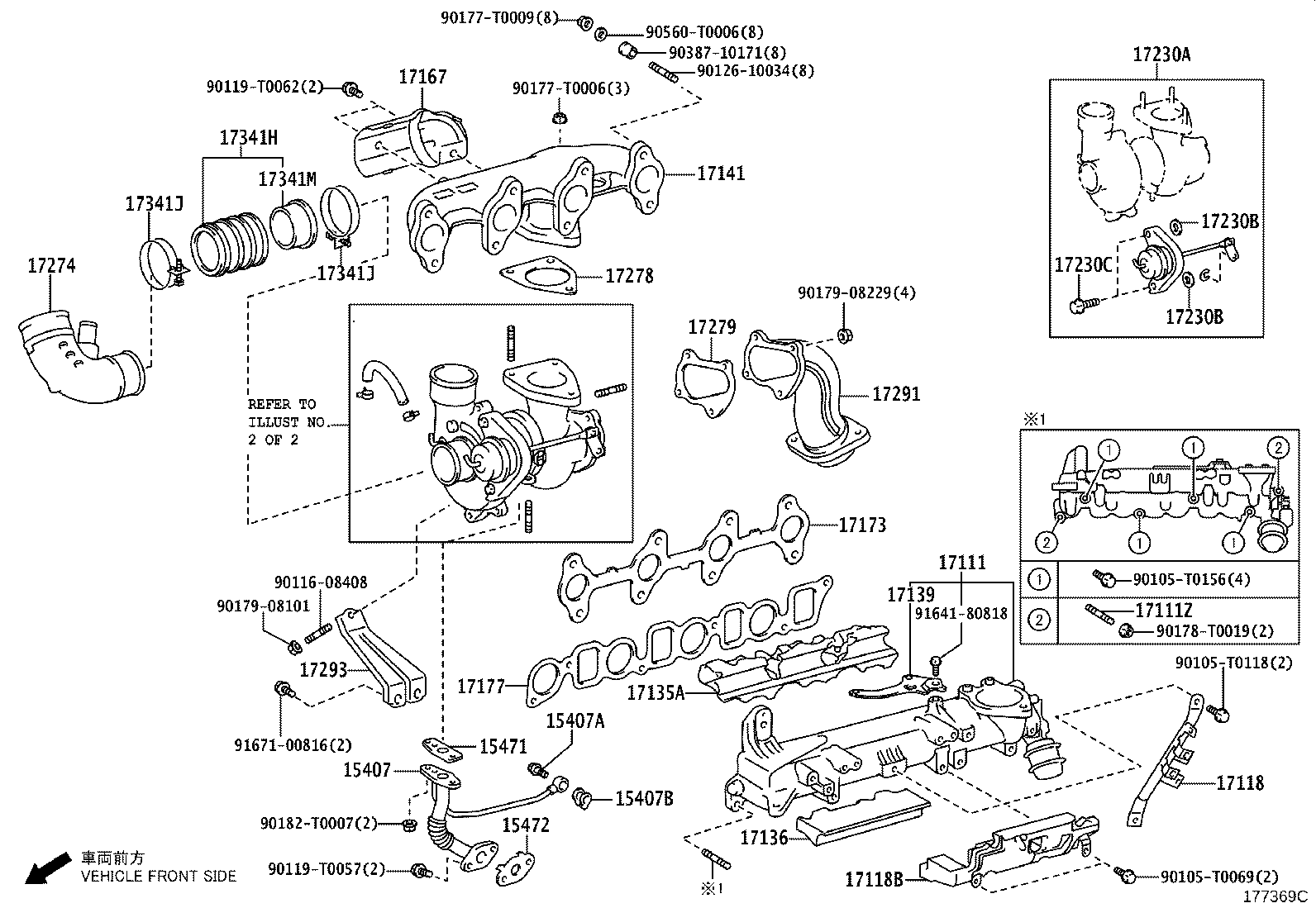

ILLUST NO. 1 OF 2(1107- )2KDFTV..KUN25..IDN,TH ; (1107- )2KDFTV..KUN35..5F..SR..TH ; (1107-

Click highlighted areas on diagram

WATER COOLING TURBO

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17118B 17135A 17136 17139 17141 17167 17173 17177 17271 17274 17276 17278 17279 17291 17293 90105T0069 90105T0118 90105T0156 9011608408 9011906748 90119T0057 90119T0062 90119T0062 9012608052 9012610034 90126T0010 90177T0006 90177T0009 90178T0019 90178T0019 9017908101 9017908229 9017910070 90182T0007 9020110109 9038710171 9046907011 90560T0006 9155180610 9155180814 9155180835 9164180818 91651B0814 91651B0814 9167100816 9415180600 9415180800 9415180800 9418401041
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471 - GASKET, TURBO OIL INLET
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
17111 - MANIFOLD, INTAKE
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
17118 - STAY, MANIFOLD
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118B - INSULATOR, INTAKE MANIFOLD
17853-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17853-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17853-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17853-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17853-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17853-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-30011

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17135-30011

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17135-30011

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17135-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17135-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17135-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17136 - INSULATOR, INTAKE MANIFOLD, NO.2
17136-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17136-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17136-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17136-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17136-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17136-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17139 - STAY, MANIFOLD, NO.2
17139-0L010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17139-0L010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17139-0L010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17139-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17139-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17139-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17141 - MANIFOLD, EXHAUST
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17271 - INSULATOR, TURBO, NO.1
17271-0L020

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17271-0L020

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17271-0L020

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17274 - ELBOW, COMPRESSOR INLET
17274-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17274-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17274-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17276 - GASKET, COMPRESSOR INLET
17276-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17276-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17276-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17291 - ELBOW, TURBINE OUTLET
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17293 - STAY, TURBOCHARGER
17293-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17293-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17293-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
Common parts
90105-T0069
90105-T0118
90105-T0156
90116-08408
90119-06748
90119-T0057
90119-T0062
90126-08052
90126-10034
90126-T0010
90177-T0006
90177-T0009
90178-T0019
90179-08101
90179-08229
90179-10070
90182-T0007
90201-10109
90387-10171
90469-07011
90560-T0006
91551-80610
91551-80814
91551-80835
91641-80818
91651-B0814
91671-00816
94151-80600
94151-80800
94184-01041

ILLUST NO. 1 OF 2(1208- )2KDFTV..KUN25..SCB..MA ; (1210- )2KDFTV..KUN35..SR..SA ; (1210- )2

Click highlighted areas on diagram

WATER COOLING TURBO

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17118B 17135A 17136 17139 17141 17167 17173 17177 17271 17274 17276 17278 17279 17291 17293 90105T0069 90105T0118 90105T0156 9011608408 9011906748 90119T0057 90119T0062 90119T0062 9012608052 9012610034 90126T0010 90177T0006 90177T0009 90178T0019 90178T0019 9017908101 9017908229 9017910070 90182T0007 9020110109 9038710171 9046907011 90560T0006 9155180610 9155180814 9155180835 9164180818 91651B0814 91651B0814 9167100816 9415180600 9415180800 9415180800 9418401041
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471 - GASKET, TURBO OIL INLET
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
17111 - MANIFOLD, INTAKE
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
17118 - STAY, MANIFOLD
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118B - INSULATOR, INTAKE MANIFOLD
17853-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17853-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17853-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17853-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17853-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17853-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-30011

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17135-30011

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17135-30011

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17135-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17135-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17135-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17136 - INSULATOR, INTAKE MANIFOLD, NO.2
17136-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17136-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17136-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17136-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17136-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17136-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17139 - STAY, MANIFOLD, NO.2
17139-0L010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17139-0L010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17139-0L010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17139-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17139-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17139-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17141 - MANIFOLD, EXHAUST
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17271 - INSULATOR, TURBO, NO.1
17271-0L020

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17271-0L020

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17271-0L020

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17274 - ELBOW, COMPRESSOR INLET
17274-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17274-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17274-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17276 - GASKET, COMPRESSOR INLET
17276-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17276-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17276-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17291 - ELBOW, TURBINE OUTLET
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17293 - STAY, TURBOCHARGER
17293-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17293-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17293-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
Common parts
90105-T0069
90105-T0118
90105-T0156
90116-08408
90119-06748
90119-T0057
90119-T0062
90126-08052
90126-10034
90126-T0010
90177-T0006
90177-T0009
90178-T0019
90179-08101
90179-08229
90179-10070
90182-T0007
90201-10109
90387-10171
90469-07011
90560-T0006
91551-80610
91551-80814
91551-80835
91641-80818
91651-B0814
91671-00816
94151-80600
94151-80800
94184-01041

ILLUST NO. 1 OF 2(1311- )2KDFTV..KUN15..SCB..TH ; (1311- )2KDFTV..KUN15..SMT..SR ; (1408- )

Click highlighted areas on diagram

WATER COOLING TURBO

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17118B 17135A 17136 17139 17141 17167 17173 17177 17271 17274 17276 17278 17279 17291 17293 90105T0069 90105T0118 90105T0156 9011608408 9011906748 90119T0057 90119T0062 90119T0062 9012608052 9012610034 90126T0010 90177T0006 90177T0009 90178T0019 90178T0019 9017908101 9017908229 9017910070 90182T0007 9020110109 9038710171 9046907011 90560T0006 9155180610 9155180814 9155180835 9164180818 91651B0814 91651B0814 9167100816 9415180600 9415180800 9415180800 9418401041
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471 - GASKET, TURBO OIL INLET
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
17111 - MANIFOLD, INTAKE
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
17118 - STAY, MANIFOLD
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118B - INSULATOR, INTAKE MANIFOLD
17853-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17853-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17853-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17853-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17853-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17853-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-30011

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17135-30011

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17135-30011

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17135-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17135-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17135-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17136 - INSULATOR, INTAKE MANIFOLD, NO.2
17136-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17136-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17136-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17136-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17136-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17136-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17139 - STAY, MANIFOLD, NO.2
17139-0L010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17139-0L010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17139-0L010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17139-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17139-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17139-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17141 - MANIFOLD, EXHAUST
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17271 - INSULATOR, TURBO, NO.1
17271-0L020

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17271-0L020

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17271-0L020

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17274 - ELBOW, COMPRESSOR INLET
17274-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17274-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17274-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17276 - GASKET, COMPRESSOR INLET
17276-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17276-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17276-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17291 - ELBOW, TURBINE OUTLET
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17293 - STAY, TURBOCHARGER
17293-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17293-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17293-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
Common parts
90105-T0069
90105-T0118
90105-T0156
90116-08408
90119-06748
90119-T0057
90119-T0062
90126-08052
90126-10034
90126-T0010
90177-T0006
90177-T0009
90178-T0019
90179-08101
90179-08229
90179-10070
90182-T0007
90201-10109
90387-10171
90469-07011
90560-T0006
91551-80610
91551-80814
91551-80835
91641-80818
91651-B0814
91671-00816
94151-80600
94151-80800
94184-01041

ILLUST NO. 1 OF 2(1107-1408)1KDFTV..KUN26..THDCB..5F..SR ; (1107-)1KDFTV..KUN26..THDCB..DLX ; (1

Click highlighted areas on diagram

CHILE SPEC(EURO 4 REGULATION)

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17118B 17135A 17136 17141 17167 17173 17177 17271 17274 17276 17278 17279 17291 17293 2321130030 9011608408 9011906748 9012608052 9012610034 9017908101 9017908229 9017910070 9020110109 9038710171 9046907011 9155180610 9155180814 9155180835 91651B0814 9167100816 9415180600 9415180800 9415180800 9418401041
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471 - GASKET, TURBO OIL INLET
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
17111 - MANIFOLD, INTAKE
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
17118 - STAY, MANIFOLD
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118B - INSULATOR, INTAKE MANIFOLD
17853-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17853-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-30011

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17135-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17136 - INSULATOR, INTAKE MANIFOLD, NO.2
17136-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17136-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17141 - MANIFOLD, EXHAUST
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17271 - INSULATOR, TURBO, NO.1
17271-0L020

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17274 - ELBOW, COMPRESSOR INLET
17274-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17276 - GASKET, COMPRESSOR INLET
17276-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17291 - ELBOW, TURBINE OUTLET
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17293 - STAY, TURBOCHARGER
17293-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
Common parts
23211-30030
90116-08408
90119-06748
90126-08052
90126-10034
90179-08101
90179-08229
90179-10070
90201-10109
90387-10171
90469-07011
91551-80610
91551-80814
91551-80835
91651-B0814
91671-00816
94151-80600
94151-80800
94184-01041

ILLUST NO. 1 OF 2(1107- )2KDFTV..KUN15..XTR..HDCR ; (1107-)2KDFTV..KUN35..DLX..CO,LA,SA ; (11

Click highlighted areas on diagram

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17119 17141 17173 17177 17230A 17230B 17230B 17230C 17278 17279 17291 17299 17861F 17861G 17873A 2501 25051 25861C 9010508286 90105T0053 90105T0118 90105T0118 90105T0121 90105T0156 9011610219 90116T0013 90116T0015 90116T0015 9011906748 90119T0057 9012608052 9012610035 90177T0006 90177T0009 90178T0019 90178T0019 9017908229 9017910070 90182T0007 9020110109 90560T0006 9155180812 9155180814 9155180814 9155180825 9155180835 9155180870 9167100816 9212280870 9212280870 9415180600 9415180800 9415180800 9418401041
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471 - GASKET, TURBO OIL INLET
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
17111 - MANIFOLD, INTAKE
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
17118 - STAY, MANIFOLD
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17141 - MANIFOLD, EXHAUST
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17291 - ELBOW, TURBINE OUTLET
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
Common parts
90105-08286
90105-T0053
90105-T0118
90105-T0121
90105-T0156
90116-10219
90116-T0013
90116-T0015
90119-06748
90119-T0057
90126-08052
90126-10035
90177-T0006
90177-T0009
90178-T0019
90179-08229
90179-10070
90182-T0007
90201-10109
90560-T0006
91551-80812
91551-80814
91551-80825
91551-80835
91551-80870
91671-00816
92122-80870
94151-80600
94151-80800
94184-01041
Linked diagrams
2501

ILLUST NO. 1 OF 2(1107-1208)2KDFTV..KUN35..PHL ; (1107-1208)2KDFTV..KUN25..SCB..MA ; (1107- )2KDF

Click highlighted areas on diagram

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17119 17141 17173 17177 17230A 17230B 17230B 17230C 17278 17279 17291 17299 17861F 17861G 17873A 2501 25051 25861C 9010508286 90105T0053 90105T0118 90105T0118 90105T0121 90105T0156 9011610219 90116T0013 90116T0015 90116T0015 9011906748 90119T0057 9012608052 9012610035 90177T0006 90177T0009 90178T0019 90178T0019 9017908229 9017910070 90182T0007 9020110109 90560T0006 9155180812 9155180814 9155180814 9155180825 9155180835 9155180870 9167100816 9212280870 9212280870 9415180600 9415180800 9415180800 9418401041
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471 - GASKET, TURBO OIL INLET
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
17111 - MANIFOLD, INTAKE
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
17118 - STAY, MANIFOLD
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17141 - MANIFOLD, EXHAUST
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17291 - ELBOW, TURBINE OUTLET
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
Common parts
90105-08286
90105-T0053
90105-T0118
90105-T0121
90105-T0156
90116-10219
90116-T0013
90116-T0015
90119-06748
90119-T0057
90126-08052
90126-10035
90177-T0006
90177-T0009
90178-T0019
90179-08229
90179-10070
90182-T0007
90201-10109
90560-T0006
91551-80812
91551-80814
91551-80825
91551-80835
91551-80870
91671-00816
92122-80870
94151-80600
94151-80800
94184-01041
Linked diagrams
2501

ILLUST NO. 1 OF 2(1107- )2KDFTV..KUN15..SMT..SR ; (1107- )2KDFTV..KUN35..DLX..TH ; (1107- )

Click highlighted areas on diagram

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17141 17167 17173 17177 17230A 17230B 17230B 17230C 17274 17278 17279 17291 17293 17341H 17341J 17341J 17341M 90105T0118 90105T0156 9011608408 90116T0015 9011906748 90119T0057 90119T0062 9012610034 90177T0006 90177T0009 90178T0019 9017908101 9017908229 9017910070 90182T0007 9020110109 9038710171 90560T0006 9155180814 9155180835 91651B0814 9167100816 9212280870 9415180600 9415180800 9418401041
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471 - GASKET, TURBO OIL INLET
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
17111 - MANIFOLD, INTAKE
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
17118 - STAY, MANIFOLD
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17141 - MANIFOLD, EXHAUST
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17274 - ELBOW, COMPRESSOR INLET
17274-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17274-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17291 - ELBOW, TURBINE OUTLET
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17293 - STAY, TURBOCHARGER
17293-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17293-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
Common parts
90105-T0118
90105-T0156
90116-08408
90116-T0015
90119-06748
90119-T0057
90119-T0062
90126-10034
90177-T0006
90177-T0009
90178-T0019
90179-08101
90179-08229
90179-10070
90182-T0007
90201-10109
90387-10171
90560-T0006
91551-80814
91551-80835
91651-B0814
91671-00816
92122-80870
94151-80600
94151-80800
94184-01041

ILLUST NO. 1 OF 2(1110- )2KDFTV..KUN25,35..LA ; (1311- )2KDFTV..KUN15..SMT..SR ; (1311- )2K

Click highlighted areas on diagram

*130,EURO 4 REGULATION

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17118B 17135A 17136 17139 17141 17167 17173 17177 17230A 17230B 17230B 17230C 17274 17278 17279 17291 17293 17341H 17341J 17341J 17341M 90105T0069 90105T0118 90105T0156 9011608408 90119T0057 90119T0062 9012610034 90177T0006 90177T0009 90178T0019 9017908101 9017908229 90182T0007 9038710171 90560T0006 9164180818 9167100816
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(L)

 1
15407-30120

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130,(J)

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-T0004

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-T0006

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15471 - GASKET, TURBO OIL INLET
15471-0L011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0L010

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(LA,PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,LA,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH

*130

 1
17111 - MANIFOLD, INTAKE
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
17118 - STAY, MANIFOLD
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17118B - INSULATOR, INTAKE MANIFOLD
17853-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17853-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-30011

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17135-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17136 - INSULATOR, INTAKE MANIFOLD, NO.2
17136-30010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17136-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV,2KDFTV..KUN3#..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,25..(4FC,5F)..(IDN,LA,TH)

*130

 1
17139 - STAY, MANIFOLD, NO.2
17139-0L010

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17139-0L010

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17141 - MANIFOLD, EXHAUST
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
17274 - ELBOW, COMPRESSOR INLET
17274-0L010

2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH)

*130,(J)

 1
17278-0L010

2KDFTV..KUN35..LA;1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH

*130

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-0L010

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;1KDFTV..KUN26,36..CO,LA;2KDFTV..KUN15..DCB..SR..TH

 1
17279-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH

*130,(L)

 1
17279-30030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)

*360

 1
17279-30030

2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26,36..PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC

*130,(J)

 1
17291 - ELBOW, TURBINE OUTLET
17291-0L060

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17293 - STAY, TURBOCHARGER
17293-0L050

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
Common parts
90105-T0069
90105-T0118
90105-T0156
90116-08408
90119-T0057
90119-T0062
90126-10034
90177-T0006
90177-T0009
90178-T0019
90179-08101
90179-08229
90182-T0007
90387-10171
90560-T0006
91641-80818
91671-00816

ILLUST NO. 2 OF 2(1107- )2KDFTV..KUN25..IDN,TH ; (1107- )2KDFTV..KUN35..5F..SR..TH ; (1107-

Click highlighted areas on diagram

WATER COOLING TURBO

diagram 04175 17201 9052304002
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17201 - TURBOCHARGER SUB-ASSY
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
Common parts
90523-04002

ILLUST NO. 2 OF 2(1208- )2KDFTV..KUN25..SCB..MA ; (1210- )2KDFTV..KUN35..SR..SA ; (1210- )2

Click highlighted areas on diagram

WATER COOLING TURBO

diagram 04175 17201 9052304002
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17201 - TURBOCHARGER SUB-ASSY
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
Common parts
90523-04002

ILLUST NO. 2 OF 2(1107- )2KDFTV..KUN15..SMT..SR ; (1107- )2KDFTV..KUN35..DLX..TH ; (1107- )

Click highlighted areas on diagram

diagram 04175 17201 17294 17294A 17294A 90116T0006 90126T0006 90126T0009
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17201 - TURBOCHARGER SUB-ASSY
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
Common parts
90116-T0006
90126-T0006
90126-T0009

ILLUST NO. 2 OF 2(1107- )2KDFTV..KUN15..XTR..HDCR ; (1107-)2KDFTV..KUN35..DLX..CO,LA,SA ; (11

Click highlighted areas on diagram

diagram 04175 17201 17294 17294A 17294A 9011606048 9011608260 90116T0006 90126T0009
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17201 - TURBOCHARGER SUB-ASSY
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
Common parts
90116-06048
90116-08260
90116-T0006
90126-T0009

ILLUST NO. 2 OF 2(1107-1208)2KDFTV..KUN35..PHL ; (1107-1208)2KDFTV..KUN25..SCB..MA ; (1107- )2KDF

Click highlighted areas on diagram

diagram 04175 17201 17294 17294A 17294A 9011606048 9011608260 90116T0006 90126T0009
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN2#,36..5F..(IDN,TH)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(L)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-30161

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(J)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-0L041

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

(L)

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-30162

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*360

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
04175-0L042

2KDFTV..KUN35..DLX..PHL;1KDFTV..KUN26,36..5F..SA;2KDFTV..KUN25..IDN,MA,TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..(4FC,5F)..SR..(PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17201 - TURBOCHARGER SUB-ASSY
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN25..IDN,TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..SR..(PHL,TH);2KDFTV..KUN35..DCB..DLX..(GEN,PHL)

*360

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17201-0L070

2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
Common parts
90116-06048
90116-08260
90116-T0006
90126-T0009

(1502- )2TRFE..TGN16..DCB,XTR..GEN ; (1502-)2TRFE..TGN16,36..ANCOM,GCC,SA ;

Click highlighted areas on diagram

W/O(AIR INJECTION SYSTEM)

diagram 17111 17111Z 17118 17141 17141K 17167 17173 17177 2211 90105T0108 90119T0233 90119T0236 90119T0238 90119T0342 90178T0019 9017908101 9161961230 9415180800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-0L030

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17101-0L030

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)

*360

 2
90116-T0011

2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH

*130

 2
17118 - STAY, MANIFOLD
17118-30180

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17118-30090

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

*360

 1
17118-0L050

2KDFTV..KUN35..LA;2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH

*130

 1
17141 - MANIFOLD, EXHAUST
17141-0L030

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0L010

2KDFTV..KUN35..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN16,25..IDN,LA,TH;2KDFTV..KUN15,35..5F..HDCR..(LA,TH);1KDFTV..KUN26,36..CO,LA,MA,PHL,SA,TH;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN

*130

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130

 1
17173-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(L)

 1
17173-30030

2KDFTV..KUN15..HDCR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN16,25,35..IDN,LA,TH

*130,(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

2KDFTV..KUN15..SMT..DLX;2KDFTV..KUN25,35..5F..TH;2KDFTV..KUN15..(DCB,SCB)..TH

THAI SPEC(EURO 3 REGULATION),*360

 1
17177-0L011

1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH

*130

 1
Common parts
90105-T0108
90119-T0233
90119-T0236
90119-T0238
90119-T0342
90178-T0019
90179-08101
91619-61230
94151-80800
Linked diagrams
2211
