KUN26R-PRPSYT (2004)
Toyota Hilux

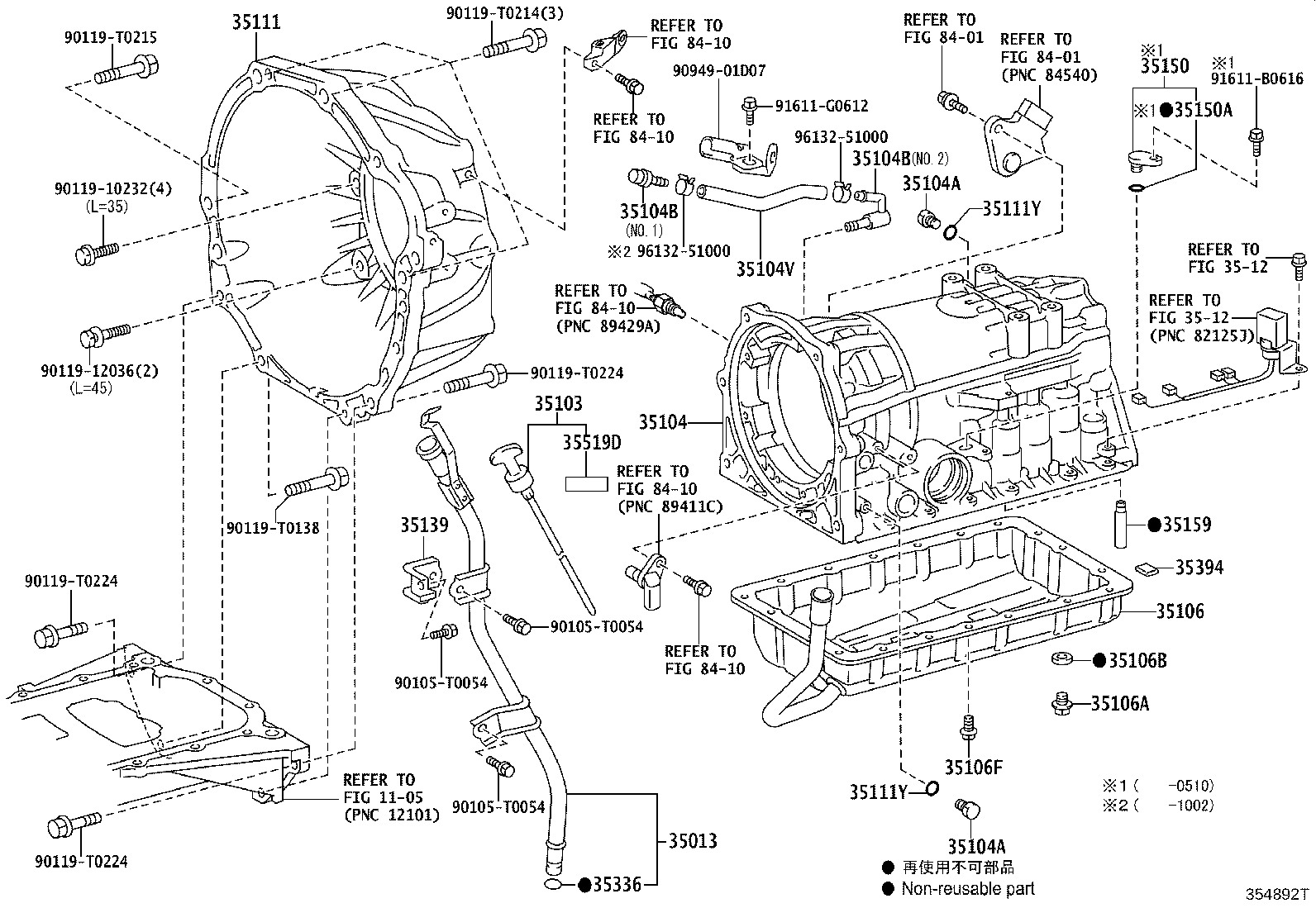

(0501- )TGN16,26,36..4FC
A343E,A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-0K030 |
KUN16,2#..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-0K030 |
KUN16,2#..4FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26060 |
KUN16,2#..4FC |
1 | ||
| 35104-35021 |
TGN16,26,36..4FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03168 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) NO.1 |
1 | ||
| 90930-03098 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) NO.2 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03168 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) NO.1 |
1 | ||
| 90930-03098 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) NO.2 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11118 |
KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH) |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-71020 |
KUN16,2#..4FC..(GEN,LA,MA,PHL,TH) |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
TGN16..XTR..TH;KUN26..4FC..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH) |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-35090 |
KUN16,2#..4FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
2 | ||
| 35150 - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-30010 |
KUN16,2#,TGN16,26,36..4FC |
1 | ||
| 35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG) | ||||
| 90301-09012 |
KUN16,2#,TGN16,26,36..4FC |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09011 |
TGN16,26,36 |
1 | ||
| 90301-09173 |
TGN26,36..4FC..DLX;KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20030 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
1 | ||
| Common parts | ||||
| 90105-T0054 | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 90119-T0138 | ||||
| 90119-T0214 | ||||
| 90119-T0215 | ||||
| 90119-T0224 | ||||
| 90949-01D07 | ||||
| 91611-B0616 | ||||
| 91611-G0612 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 3512 | ||||
| 8401 | ||||
| 8410 | ||||

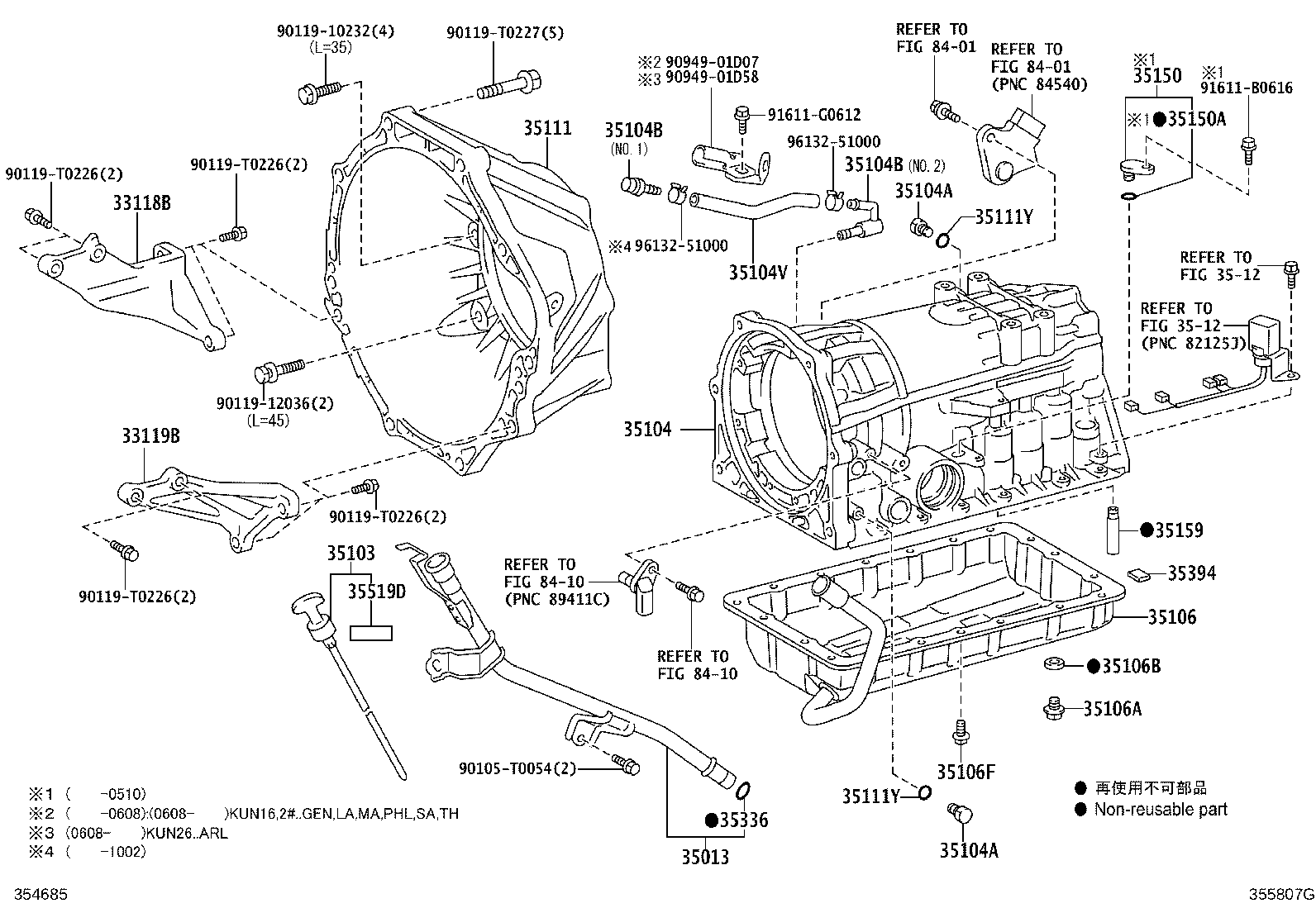

(0408- )KUN16,2#,36..4FC
A340E,A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118B - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-04020 |
KUN16,26..4FC..(ARL,GEN,PHL,TH) |
1 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-0K020 |
KUN16,26..4FC..(ARL,GEN,PHL,TH) |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-0K030 |
KUN16,2#..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-0K030 |
KUN16,2#..4FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26060 |
KUN16,2#..4FC |
1 | ||
| 35104-35021 |
TGN16,26,36..4FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03168 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) NO.1 |
1 | ||
| 90930-03098 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) NO.2 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03168 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) NO.1 |
1 | ||
| 90930-03098 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) NO.2 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11118 |
KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH) |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-71020 |
KUN16,2#..4FC..(GEN,LA,MA,PHL,TH) |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
TGN16..XTR..TH;KUN26..4FC..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH) |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-35090 |
KUN16,2#..4FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
2 | ||
| 35150 - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-30010 |
KUN16,2#,TGN16,26,36..4FC |
1 | ||
| 35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG) | ||||
| 90301-09012 |
KUN16,2#,TGN16,26,36..4FC |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09011 |
TGN16,26,36 |
1 | ||
| 90301-09173 |
TGN26,36..4FC..DLX;KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20030 |
TGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH) |
1 | ||
| Common parts | ||||
| 90105-T0054 | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 90119-T0226 | ||||
| 90119-T0227 | ||||
| 90949-01D07 | ||||
| 90949-01D58 | ||||
| 91611-B0616 | ||||
| 91611-G0612 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3512 | ||||
| 8401 | ||||
| 8410 | ||||
