Toyota Hilux KUN26 EXHAUST GAS RECIRCULATION SYSTEM

Manufacturers Home
Toyota
GR
HILUX
KUN26R-PRPSYQ (2005)
2501 - EXHAUST GAS RECIRCULATION SYSTEM

KUN26R-PRPSYQ (2005)

Toyota Hilux

Production Feb 2005 - Aug 2008

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0408-0608)1KDFTV ; (0608- )1KDFTV..KUN26..THDCB ; (0608- )1KDFTV..IDN,LA,PHL

Click highlighted areas on diagram

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-0L010	1KDFTV..KUN16,26..ARL *130	08/2004 - 08/2006	1
25601-30080	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	1
25601-30070	1KDFTV,2KDFTV..KUN15,16,2#,3#..ARL,SA 163 OR 184	07/2005 - 08/2006	1
25620G - GASKET, DIESEL THROTTLE
26171-30030	1KDFTV..KUN16,26..ARL NO.1	08/2006 - 08/2008	2
26171-30050	1KDFTV..KUN16,26..ARL NO.2	08/2006 - 08/2008	1
26171-0L010	1KDFTV..KUN16,26..ARL *130	08/2004 - 08/2006	2
26171-30030	1KDFTV,2KDFTV..KUN15,16,2#,3#..ARL,SA 163 OR 184	07/2005 - 08/2006	2
25620G - GASKET, DIESEL THROTTLE
26171-30030	1KDFTV..KUN16,26..ARL NO.1	08/2006 - 08/2008	2
26171-30050	1KDFTV..KUN16,26..ARL NO.2	08/2006 - 08/2008	1
26171-0L010	1KDFTV..KUN16,26..ARL *130	08/2004 - 08/2006	2
26171-30030	1KDFTV,2KDFTV..KUN15,16,2#,3#..ARL,SA 163 OR 184	07/2005 - 08/2006	2
25621 - CONNECTOR, INTAKE AIR(FOR GASKET)
17861-30090	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	1
17861-0L010	1KDFTV..KUN16,26..ARL *130	08/2004 - 08/2006	1
17861-30070	1KDFTV,2KDFTV..KUN15,16,2#,3#..ARL,SA 163 OR 184	07/2005 - 08/2006	1
25625 - BRACKET, EGR VALVE
26127-30030	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	1
26127-0L010	1KDFTV..KUN16,26;2KDFTV..KUN15,25..HDCR	08/2004 - 09/2004	1
25627 - GASKET, EGR VALVE
25627-0L010	1KDFTV..KUN16,26..ARL *130	08/2004 - 08/2006	1
25627-30030	1KDFTV,2KDFTV..KUN15,16,2#,3#..ARL,SA 163 OR 184	07/2005 - 08/2006	1
25627-30010	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	1
25628 - GASKET, EGR INLET
25628-0L010	1KDFTV..KUN16,26..ARL *130	08/2004 - 08/2006	1
25628-30030	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	1
25628-30020	1KDFTV,2KDFTV..KUN15,16,2#,3#..ARL,SA 163 OR 184	07/2005 - 08/2006	1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-30180	1KDFTV..KUN16,26..ARL	03/2008 - 08/2008	1
25800-30120	1KDFTV..KUN16,26..ARL	08/2006 - 03/2008	1
25800-0L010	1KDFTV..KUN16,26..ARL	08/2004 - 08/2006	1
Common parts
90105-08286
90105-T0053
90105-T0156
90116-T0013
90119-06749
90119-T0058
90178-T0019
90179-06298
90182-T0007
91551-80812
91551-80835
92122-80825
94151-80800
Linked diagrams
1104
1701
1708
2606

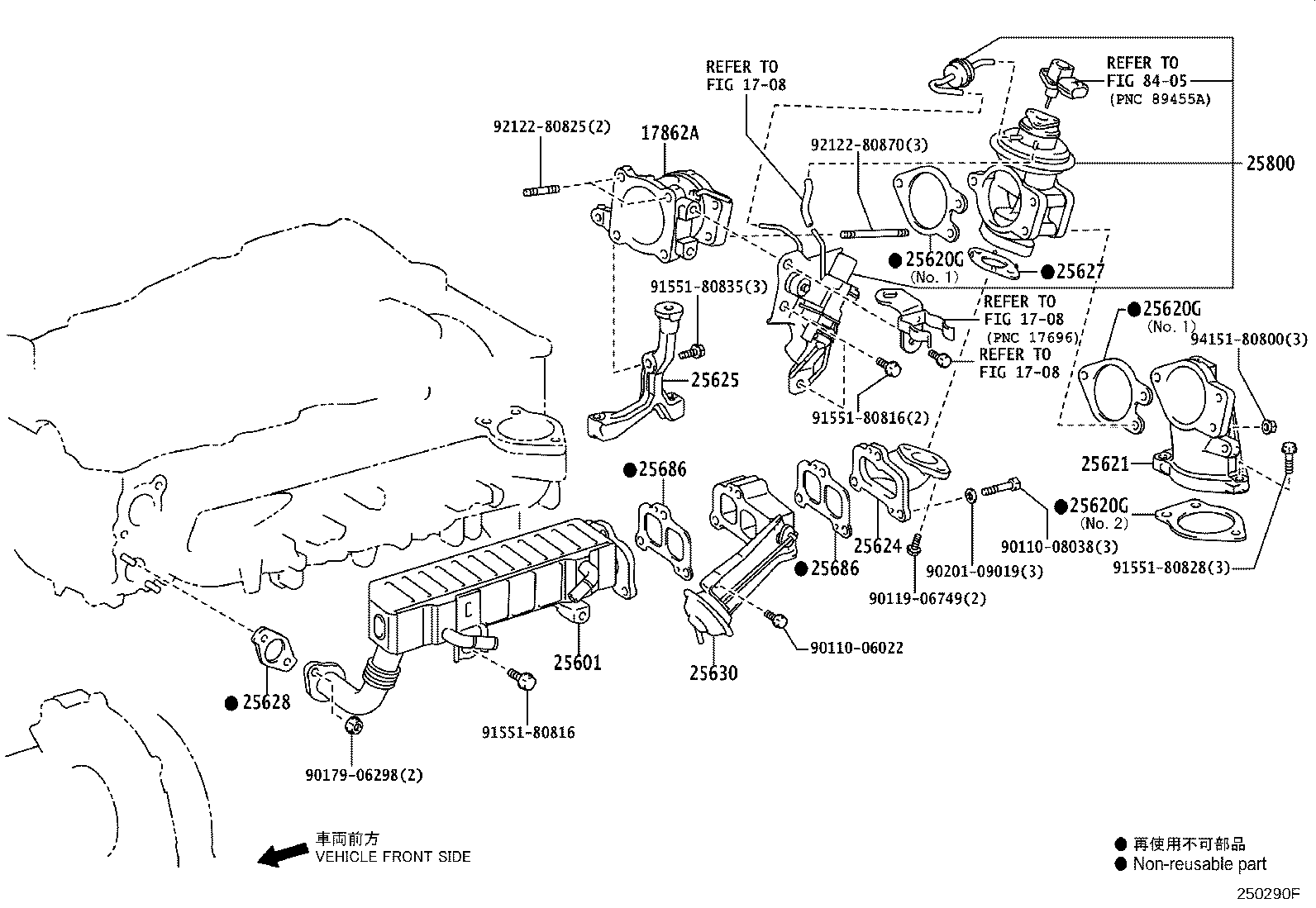

(0608- )1KDFTV..KUN16,26..ARL

Click highlighted areas on diagram

Part #	Description	Period	Qty
17862A - CONNECTOR, INTAKE AIR, NO.2
17862-30020	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	1
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-0L010	1KDFTV..KUN16,26..ARL *130	08/2004 - 08/2006	1
25601-30080	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	1
25601-30070	1KDFTV,2KDFTV..KUN15,16,2#,3#..ARL,SA 163 OR 184	07/2005 - 08/2006	1
25620G - GASKET, DIESEL THROTTLE
26171-30030	1KDFTV..KUN16,26..ARL NO.1	08/2006 - 08/2008	2
26171-30050	1KDFTV..KUN16,26..ARL NO.2	08/2006 - 08/2008	1
26171-0L010	1KDFTV..KUN16,26..ARL *130	08/2004 - 08/2006	2
26171-30030	1KDFTV,2KDFTV..KUN15,16,2#,3#..ARL,SA 163 OR 184	07/2005 - 08/2006	2
25620G - GASKET, DIESEL THROTTLE
26171-30030	1KDFTV..KUN16,26..ARL NO.1	08/2006 - 08/2008	2
26171-30050	1KDFTV..KUN16,26..ARL NO.2	08/2006 - 08/2008	1
26171-0L010	1KDFTV..KUN16,26..ARL *130	08/2004 - 08/2006	2
26171-30030	1KDFTV,2KDFTV..KUN15,16,2#,3#..ARL,SA 163 OR 184	07/2005 - 08/2006	2
25620G - GASKET, DIESEL THROTTLE
26171-30030	1KDFTV..KUN16,26..ARL NO.1	08/2006 - 08/2008	2
26171-30050	1KDFTV..KUN16,26..ARL NO.2	08/2006 - 08/2008	1
26171-0L010	1KDFTV..KUN16,26..ARL *130	08/2004 - 08/2006	2
26171-30030	1KDFTV,2KDFTV..KUN15,16,2#,3#..ARL,SA 163 OR 184	07/2005 - 08/2006	2
25621 - CONNECTOR, INTAKE AIR(FOR GASKET)
17861-30090	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	1
17861-0L010	1KDFTV..KUN16,26..ARL *130	08/2004 - 08/2006	1
17861-30070	1KDFTV,2KDFTV..KUN15,16,2#,3#..ARL,SA 163 OR 184	07/2005 - 08/2006	1
25624 - ADAPTER, EGR VALVE
25611-30010	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	1
25625 - BRACKET, EGR VALVE
26127-30030	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	1
26127-0L010	1KDFTV..KUN16,26;2KDFTV..KUN15,25..HDCR	08/2004 - 09/2004	1
25627 - GASKET, EGR VALVE
25627-0L010	1KDFTV..KUN16,26..ARL *130	08/2004 - 08/2006	1
25627-30030	1KDFTV,2KDFTV..KUN15,16,2#,3#..ARL,SA 163 OR 184	07/2005 - 08/2006	1
25627-30010	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	1
25628 - GASKET, EGR INLET
25628-0L010	1KDFTV..KUN16,26..ARL *130	08/2004 - 08/2006	1
25628-30030	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	1
25628-30020	1KDFTV,2KDFTV..KUN15,16,2#,3#..ARL,SA 163 OR 184	07/2005 - 08/2006	1
25630 - VALVE ASSY, EGR, NO.2
25630-30020	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	1
25686 - GASKET, EGR COOLER, NO.2
25686-30010	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	2
25686 - GASKET, EGR COOLER, NO.2
25686-30010	1KDFTV..KUN16,26..ARL	08/2006 - 08/2008	2
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-30180	1KDFTV..KUN16,26..ARL	03/2008 - 08/2008	1
25800-30120	1KDFTV..KUN16,26..ARL	08/2006 - 03/2008	1
25800-0L010	1KDFTV..KUN16,26..ARL	08/2004 - 08/2006	1
Common parts
90110-06022
90110-08038
90119-06749
90179-06298
90201-09019
91551-80816
91551-80828
91551-80835
92122-80825
92122-80870
94151-80800
Linked diagrams
1708
8405

KUN26R-PRPSYQ (2005)

(0408-0608)1KDFTV ; (0608- )1KDFTV..KUN26..THDCB ; (0608- )1KDFTV..IDN,LA,PHL

(0608- )1KDFTV..KUN16,26..ARL
