KUN26R-PRMDYQ (2008)
Toyota Hilux
(0808- )KUN26..DCB..TH ; (1008- )KUN26..DCB..ARL..CBU
W(VSC)

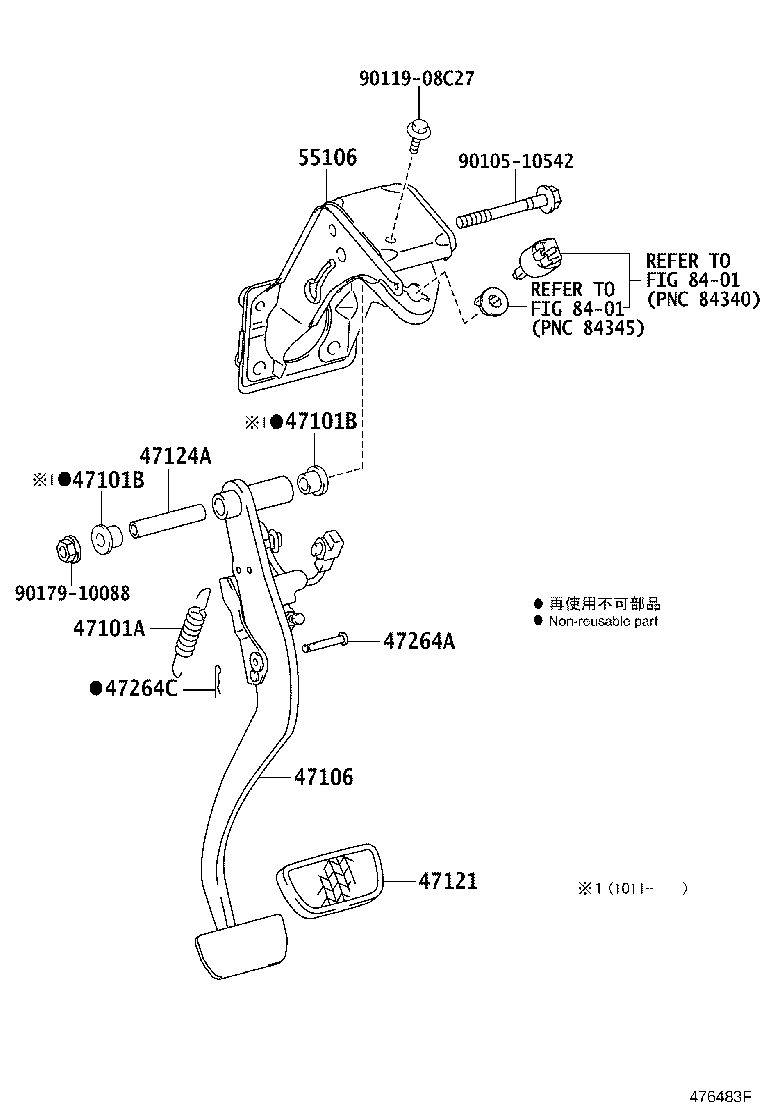

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-T0002 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 90507-T0002 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 90386-13015 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN26..4FC..(ARL,GEN,LA,PHL,SA);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN35,KUN10,25,3#,LAN15,25,35,TGN11..DLX,SR;KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 90386-13015 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN26..4FC..(ARL,GEN,LA,PHL,SA);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN35,KUN10,25,3#,LAN15,25,35,TGN11..DLX,SR;KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU |
2 | ||
| 47106 - PEDAL SUB-ASSY, BRAKE W/SWITCH | ||||
| 47106-71050 |
KUN26..DCB..5F..ARL..CBU VSC-WITH |
1 | ||
| 47106-71010 |
KUN26..DCB..5F..ARL..CBU VSC-WITH |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-52010 |
GGN15..5F..DLX;KUN16..SCB,SMT,XTR;GGN25..DCB..5F..ARL;KUN15,TGN16..XTR..DLX;TGN16..5F..(ARL,GCC,SA,TH);TGN26..LHD..5F..(GCC,GEN,SA);KUN2#,36..5F..(ARL,GCC,GEN,MA,PHL,PKN,SA,TH);KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;KUN10,15,35,LAN15,25,35,TGN10,11,36..(DCB,SCB,SMT,THDCB)..(GCC,GEN,IDN,PHL,SA,TH) |
1 | ||
| 31321-52010 |
KUN25..SCB..MA;KUN16,36..XTR..TH;KUN25..(DCB,XTR)..5F..SR;KUN25,35..DLX..(GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,PHL,SA,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);KUN16,36,TGN10..(DCB,SCB)..5F..(DLX,SR)..(ARL,GCC,IDN,SA,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16,26,36..5F..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90440-14008 |
KUN26..DCB..ARL..CBU VSC-WITH |
1 | ||
| 90387-10121 |
KUN26..DCB..ARL..CBU VSC-WITH |
1 | ||
| 90387-10003 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN26..4FC..(ARL,GEN,LA,PHL,SA);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN35,KUN10,25,3#,LAN15,25,35,TGN11..DLX,SR;KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU |
1 | ||
| 90387-10003 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-35010 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN26..4FC..(ARL,GEN,LA,PHL,SA);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN35,KUN10,25,3#,LAN15,25,35,TGN11..DLX,SR;KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU |
1 | ||
| 47148-35010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 90240-06025 |
KUN26..DCB..ARL..CBU VSC-WITH |
1 | ||
| 47264C - CLIP(FOR PUSH ROD CLEVIS PIN) | ||||
| 90468-16142 |
KUN26..DCB..ARL..CBU VSC-WITH |
1 | ||
| 90468-16012 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-0K010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..DLX..SA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN10..(DCB,SCB,XTR)..(DLX,SR)..(GCC,GEN,IDN,PHL,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 55106-0K010 |
TGN15..GCC;KUN2#..4FC..(ARL,GEN,MA,PHL);KUN26..5F..(ARL,GEN,IDN,PHL,TH);TGN16..(DCB,SCB,XTR)..(ARL,GCC,GEN,TH);GGN15,25,KUN1#,25,3#,TGN10,11,26..ARL,GCC,GEN,IDN,PHL,TH |
1 | ||
| 55106-71011 |
KUN26..DCB..ARL..CBU VSC-WITH |
1 | ||
| 55106-0K011 |
TGN16..ARL,GCC,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26..4FC..(ARL,GEN,PHL);KUN26..5F..(ARL,GEN,PHL,TH);KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16,25..DCB..(4FC,5FC)..SR;KUN10,15,3#,TGN10,11,15,26..GCC,GEN,IDN,PHL,TH;GGN25,KUN25..(DCB,SCB,SMT,THDCB,THSCB)..(ARL,GCC,GEN,PKN,TH)..CBU |
1 | ||
| Common parts | ||||
| 90105-10542 | ||||
| 90119-08C27 | ||||
| 90179-10088 | ||||
| Linked diagrams | ||||
| 8401 | ||||
