KUN26R-CRMDYQ3 (2008)

Toyota Hilux

Production Aug 2008 - Jul 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )RHD

Click highlighted areas on diagram

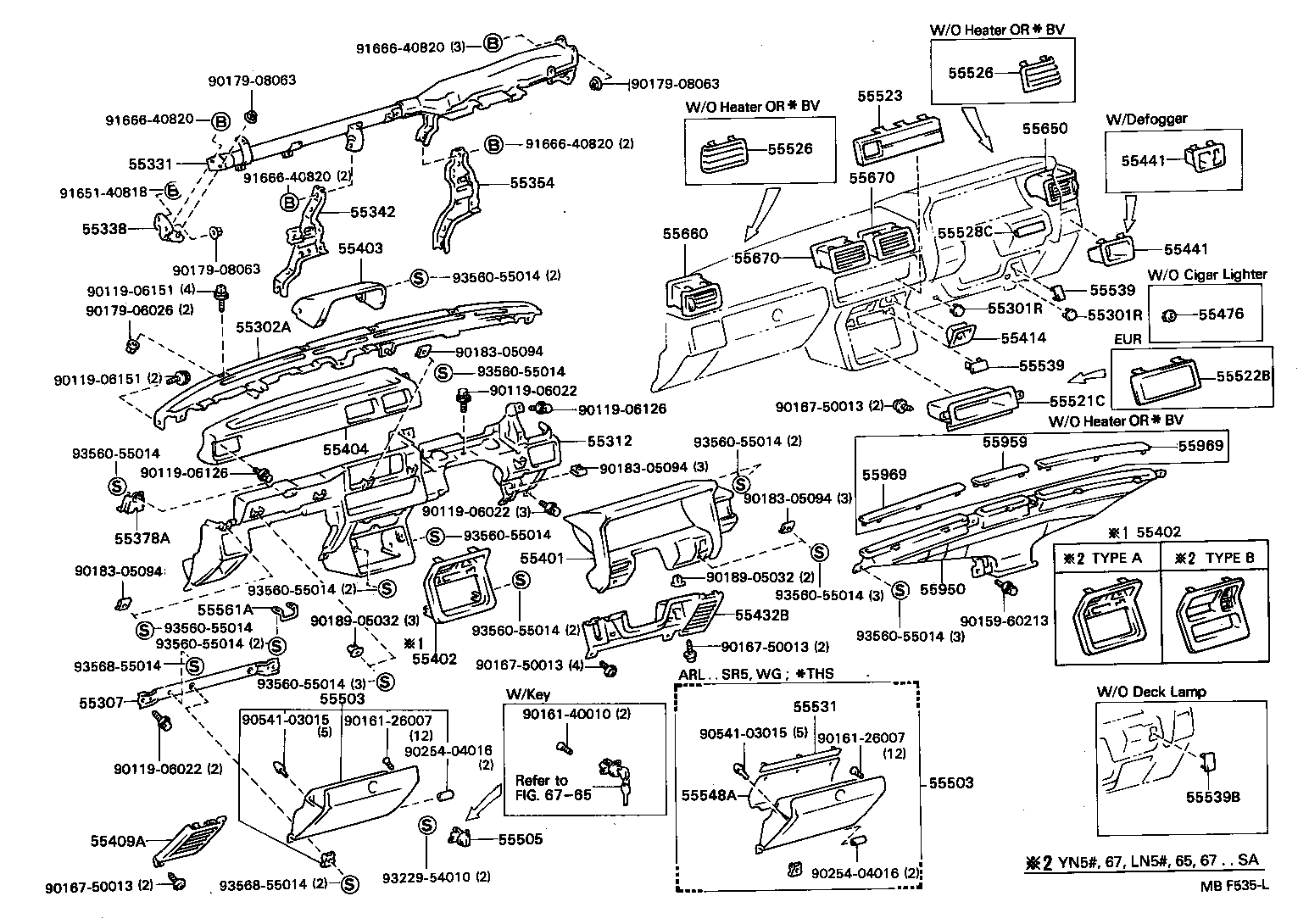

diagram 55301R 55301R 55302A 55307 55312 55331 55338 55342 55354 55378A 55401 55402 55402 55403 55404 55409A 55414 55432B 55441 55441 55476 55503 55503 55505 55521C 55522B 55523 55526 55526 55528C 55531 55539 55539 55539B 55548A 55561A 55650 55660 55670 55670 55950 55959 55969 55969 6765 9011906022 9011906022 9011906022 9011906126 9011906126 9011906151 9011906151 9015960213 9016126007 9016126007 9016140010 9016750013 9016750013 9016750013 9016750013 9017906026 9017908063 9017908063 9017908063 9018305094 9018305094 9018305094 9018305094 9018905032 9018905032 9025404016 9025404016 9054103015 9054103015 9165140818 9166640820 9166640820 9166640820 9166640820 9322954010 9356055014 9356055014 9356055014 9356055014 9356055014 9356055014 9356055014 9356055014 9356055014 9356055014 9356055014 9356055014 9356855014 9356855014
Part # Description Qty Price
Common parts
90119-06022
90119-06126
90119-06151
90159-60213
90161-26007
90161-40010
90167-50013
90179-06026
90179-08063
90183-05094
90189-05032
90254-04016
90541-03015
91651-40818
91666-40820
93229-54010
93560-55014
93568-55014
Linked diagrams
6765

ILLUST NO. 1 OF 2(0408- )RHD

Click highlighted areas on diagram

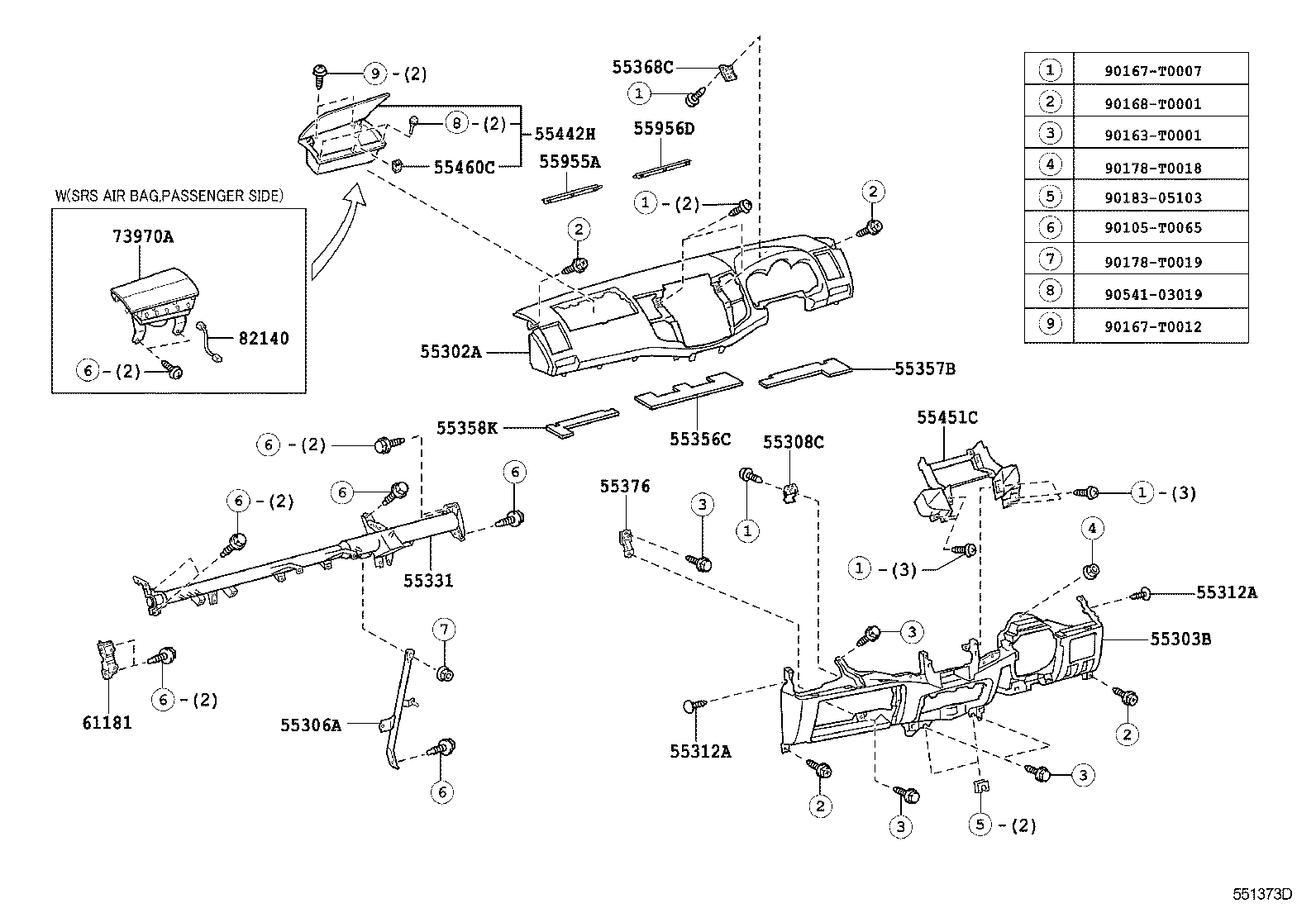

diagram 55302A 55303B 55306A 55308C 55312A 55312A 55331 55356C 55357B 55358K 55368C 55376 55442H 55451C 55460C 55955A 55956D 61181 73970A 82140 90105T0065 90163T0001 90167T0007 90167T0012 90168T0001 90178T0018 90178T0019 9018305103 9054103019
Part # Description Qty Price
55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER
55302-0K010B0

KUN26..ARL;KUN25..SR..MA;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F..SA;KUN15,35,TGN10..RHD..DLX..(IDN,SA);KUN15..RHD..(DCB,SCB,XTR)..DCR..(GEN,PKN,TH);KUN16,25..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,LAN15,25,35,TGN15,16,26,36..RHD..(5F,5FC)..(ARL,PKN,SA)

DK.GRAY,TRIM1#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-0K010B0

KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN15,16..RHD..(DCB,SCB);KUN36..(DCB,SCB)..5F..SA;KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN15,16,TGN16..XTR..(DCR,HTWC)..TH;GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN25,35,TGN10,16..RHD..5F..DLX..(ARL,GEN,IDN,SA)

GRAY,TRIM1#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-0K010

KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)

 1
55306-0K010

GGN25..5FC..SA;KUN15..XTR..TH;GGN25..DCB..ARL;GGN15,KUN16..DCB..DLX;KUN26..RHD..(ARL,GEN,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN25,3#,LAN25,35,TGN10,16,36..RHD;KUN15,TGN15..RHD..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN15,KUN16,LAN15..RHD..(SCB,SMT,XTR)..(DLX,SR)

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-0K010

KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)

 1
55308-0K010

GGN25..5FC..SA;KUN15..XTR..TH;GGN25..DCB..ARL;GGN15,KUN16..DCB..DLX;KUN26..RHD..(ARL,GEN,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN25,3#,LAN25,35,TGN10,16,36..RHD;KUN15,TGN15..RHD..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN15,KUN16,LAN15..RHD..(SCB,SMT,XTR)..(DLX,SR)

 1
55312A - CLIP, INSTRUMENT PANEL
90467-T0002B0

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..DCB..5F..SA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;KUN15..SR..DCR..(PHL,TH);TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN25,35..DLX..(ANCOM,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 2
55312A - CLIP, INSTRUMENT PANEL
90467-T0002B0

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..DCB..5F..SA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;KUN15..SR..DCR..(PHL,TH);TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN25,35..DLX..(ANCOM,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 2
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-0K010

KUN15..(SCB,XTR)..DLX..(GEN,TH);GGN15,25,KUN10,16,2#,36,TGN1#,26..(SCB,XTR)..(ARL,GCC,GEN,TH)

 1
55356-0K030

TGN16..ARL,GCC,TH;KUN26..ARL,GEN,PHL,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,3#,TGN10,11,15,26..GCC,GEN,IDN,PHL,TH;GGN25,KUN25..(DCB,SCB,SMT,THDCB,THSCB)..(ARL,GCC,GEN,PKN,TH)..CBU

 1
55357B - CUSHION, INSTRUMENT PANEL, NO.3
55358-0K020

KUN15..(SCB,XTR)..DLX..(GEN,TH);GGN15,25,KUN10,16,2#,36,TGN1#,26..(SCB,XTR)..(ARL,GCC,GEN,TH)

 1
55358-0K040

TGN16..ARL,GCC,TH;KUN26..ARL,GEN,PHL,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,3#,TGN10,11,15,26..GCC,GEN,IDN,PHL,TH;GGN25,KUN25..(DCB,SCB,SMT,THDCB,THSCB)..(ARL,GCC,GEN,PKN,TH)..CBU

 1
55358K - CUSHION, INSTRUMENT PANEL, NO.4
55358-0K030

TGN16..ARL,GCC,TH;KUN26..ARL,GEN,PHL,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,3#,TGN10,11,15,26..GCC,GEN,IDN,PHL,TH;GGN25,KUN25..(DCB,SCB,SMT,THDCB,THSCB)..(ARL,GCC,GEN,PKN,TH)..CBU

 1
55358-0K010

KUN15..(SCB,XTR)..DLX..(GEN,TH);GGN15,25,KUN10,16,2#,36,TGN1#,26..(SCB,XTR)..(ARL,GCC,GEN,TH)

 1
55368C - BRACKET, METER MOUNTING
55368-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
55368-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
55376-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
55451C - BOX, INSTRUMENT PANEL, NO.1
55451-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
55451-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
61181 - BRACKET, INSTRUMENT PANEL SIDE
61181-0K010

GGN25..5FC..SA;KUN15..XTR..TH;GGN25..DCB..ARL;GGN15,KUN16..DCB..DLX;KUN26..RHD..(ARL,GEN,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN25,3#,LAN25,35,TGN10,16,36..RHD;KUN15,TGN15..RHD..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN15,KUN16,LAN15..RHD..(SCB,SMT,XTR)..(DLX,SR)

 1
61181-0K010

KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN25..RHD..(DCB,SCB,XTR)..(GEN,SA,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)

 1
Common parts
90105-T0065
90163-T0001
90167-T0007
90167-T0012
90168-T0001
90178-T0018
90178-T0019
90183-05103
90541-03019

ILLUST NO. 2 OF 2(0408- )RHD

Click highlighted areas on diagram

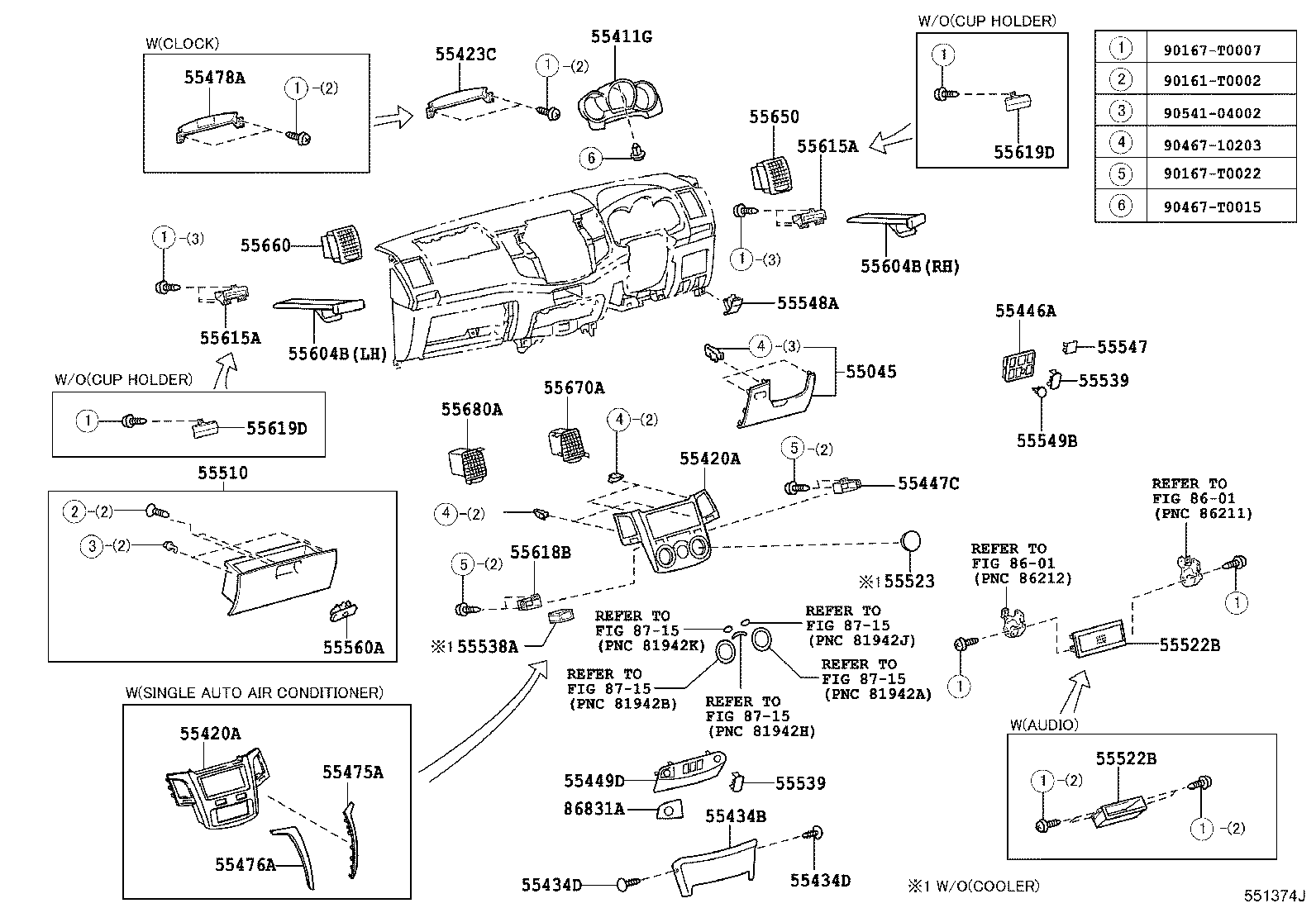

diagram 55045 55411G 55420A 55420A 55423C 55434B 55434D 55434D 55446A 55447C 55449D 55475A 55476A 55478A 55510 55522B 55522B 55523 55538A 55539 55539 55547 55548A 55549B 55560A 55604B 55604B 55615A 55615A 55618B 55619D 55619D 55650 55660 55670A 55680A 8601 8601 86831A 8715 8715 8715 8715 8715 90161T0002 90167T0007 90167T0022 9046710203 90467T0015 9054104002
Part # Description Qty Price
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045-0K010B0

KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN15,16..RHD..(DCB,SCB);KUN36..(DCB,SCB)..5F..SA;KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN15,16,TGN16..XTR..(DCR,HTWC)..TH;GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN25,35,TGN10,16..RHD..5F..DLX..(ARL,GEN,IDN,SA)

GRAY,TRIM1#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-0K010B0

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..DCB..5F..SA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN15..SR..DCR..(PHL,TH);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN36..(DCB,SCB)..5F..(LA,SA);KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB)..(GCC,GEN,PKN,SA,TH);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN26,36..DCB..5F..DLX..(LA,PHL);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

DK.GRAY,TRIM1#

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55412-0K010B1

KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;TGN26..DCB..(GEN,SA,TH);TGN36..4FC..(ANCOM,PHL);KUN15,TGN26..(THDCB,XTR)..DLX;TGN26..(SCB,XTR)..(ANCOM,SA,TH);KUN15,TGN26..DCB..DLX..(ANCOM,LA,PHL);KUN15,26..(DCB,XTR)..SR..DCR..(PHL,TH);TGN16,36..5F..DLX..(ANCOM,ARL,GEN,LA,SA);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,KUN2#,3#,LAN15,25,35,TGN10,15..DLX..(ANCOM,ARL,GEN,IDN,LA,SA)

DK.GRAY,TRIM1#

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55412-0K010B1

KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;TGN26..DCB..(GEN,SA,TH);TGN36..4FC..(ANCOM,PHL);KUN15,TGN26..(THDCB,XTR)..DLX;TGN26..(SCB,XTR)..(ANCOM,SA,TH);KUN15,TGN26..DCB..DLX..(ANCOM,LA,PHL);KUN15,26..(DCB,XTR)..SR..DCR..(PHL,TH);TGN16,36..5F..DLX..(ANCOM,ARL,GEN,LA,SA);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,KUN2#,3#,LAN15,25,35,TGN10,15..DLX..(ANCOM,ARL,GEN,IDN,LA,SA)

DK.GRAY,TRIM1#

 1
55446A - BASE, SWITCH HOLE, NO.1
55446-0K010B0

KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN15,16..RHD..(DCB,SCB);KUN36..(DCB,SCB)..5F..SA;KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN15,16,TGN16..XTR..(DCR,HTWC)..TH;GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN25,35,TGN10,16..RHD..5F..DLX..(ARL,GEN,IDN,SA)

GRAY,TRIM1#

 1
55447C - BASE, SWITCH HOLE, NO.2
55447-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
55447-0K010

KUN35..DLX;TGN36..LHD..DCB;TGN36..ANCOM..IV3;TGN26..ANCOM..CBU;KUN35..SR..(PHL,TH);TGN16..ARL,GCC,SA,TH;GGN25..DCB..(ARL,LA);GGN15,KUN16..DCB..DLX;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26..ARL,GEN,LA,PHL,TH;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN36,TGN10,15..GCC,GEN,IDN,LA,TH;KUN10,25,LAN15,25,35,TGN11..DLX,SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN26,36,TGN36..(SCB,XTR)..(ANCOM,LA,SA)..CBU

 1
55449D - BASE, SWITCH
55449-0K010B0

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..DCB..5F..SA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;KUN15..SR..DCR..(PHL,TH);TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN25,35..DLX..(ANCOM,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-0K010B0

KUN15..(SCB,XTR)..DLX..(GEN,TH);GGN15,25,KUN16,2#,TGN15,16,26..(SCB,XTR)..(ARL,GEN,TH)

GRAY,TRIM1#

 1
55550-0K080B0

KUN16,26..ARL

GRAY,TRIM1#

 1
55522B - COVER, RADIO TUNER OPENING
55522-0K010

GGN15..SCB,XTR;KUN25..LHD..SA;TGN26..LA..IV3;TGN26..DCB..LA;KUN26..ARL,LA,PHL;TGN16..ARL,GCC,SA;TGN36..ANCOM..IV3;GGN15..DCB..5FC..SR;LAN15,25,35,TGN15..DLX..CBU;KUN26,TGN16..(THDCB,XTR)..GEN;GGN15,KUN35..DCB..DLX..(ARL,SA);KUN15..(DCB,SCB)..(GCC,GEN,PHL,SA);TGN26..LHD..(ANCOM,GCC,GEN,SA)..CBU;GGN25,TGN36..(DCB,SCB)..(ANCOM,ARL,LA)..CBU;KUN10,16,25,3#,TGN10,11..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,PKN

 1
55522B - COVER, RADIO TUNER OPENING
55522-0K010

GGN15..SCB,XTR;KUN25..LHD..SA;TGN26..LA..IV3;TGN26..DCB..LA;KUN26..ARL,LA,PHL;TGN16..ARL,GCC,SA;TGN36..ANCOM..IV3;GGN15..DCB..5FC..SR;LAN15,25,35,TGN15..DLX..CBU;KUN26,TGN16..(THDCB,XTR)..GEN;GGN15,KUN35..DCB..DLX..(ARL,SA);KUN15..(DCB,SCB)..(GCC,GEN,PHL,SA);TGN26..LHD..(ANCOM,GCC,GEN,SA)..CBU;GGN25,TGN36..(DCB,SCB)..(ANCOM,ARL,LA)..CBU;KUN10,16,25,3#,TGN10,11..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,PKN

 1
55538A - COVER, COOLER SWITCH HOLE
55538-0K010B0

KUN15..XTR..DLX;KUN25..LHD..SCB..SA;KUN35..DCB..DLX..SA;TGN26..ANCOM,GEN,TH;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GEN,SA);KUN15..SR..DCR..(PHL,TH);TGN26..DCB..DLX..(LA,SA);KUN15,36..DCB..DLX..(LA,PHL);KUN35,TGN36..5F..DLX..(ANCOM,GEN,LA);KUN25,TGN10..SCB..DLX..(GEN,IDN,LA,MA);KUN2#..(DCB,THDCB,THSCB)..DLX..(ANCOM,GEN,LA,SA);GGN15,25,KUN26,TGN36..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,16,LAN15,25,35,TGN15..(DCB,SCB)..(ARL,GEN,PKN,SA,TH)

DK.GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-0K010B0

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..DCB..5F..SA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;KUN15..SR..DCR..(PHL,TH);TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN25,35..DLX..(ANCOM,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-0K010B0

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..DCB..5F..SA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;KUN15..SR..DCR..(PHL,TH);TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN25,35..DLX..(ANCOM,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 1
55547 - COVER, REMOTE CONTROL MIRROR HOLE
55547-0K010B0

GGN15,25,KUN16,26..DLX..ARL

GRAY,TRIM1#

 1
55549B - COVER, INSTRUMENT PANEL HOLE, NO.2
55549-0K010B0

TGN36..SCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..XTR..DLX;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;KUN26..4FC..(LA,PHL,TH);KUN15..SR..DCR..(PHL,TH);TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN26..DCB..5F..(LA,PHL,SA,TH);KUN16,26,TGN16..(THDCB,XTR)..SR..(GEN,TH);GGN25,KUN15..(DCB,SCB)..(ANCOM,GEN,PKN,SA,TH);KUN25,35,TGN16..5F..DLX..(ANCOM,ARL,GEN,LA,SA);GGN15,25,KUN26,LAN15,25,35,TGN15..(DLX,STD)..(ARL,GEN,PKN,SA)

GRAY,TRIM1#

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55506-33030B5

TGN36..SCB;KUN26..THDCB;KUN25..SR..MA;KUN26..ARL,LA;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN36..DCB..(ANCOM,SA);TGN26,36..DCB..5F..DLX..LA;KUN36..(DCB,SCB)..5F..(LA,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15,TGN10..DLX..(IDN,PHL,SA);KUN15..(DCB,SCB,XTR)..DCR..(GEN,PKN,TH);KUN16,25..(DCB,SCB,THDCB,THSCB)..DLX..(ANCOM,ARL,GEN,LA,SA,TH);GGN15,25,LAN15,25,35,TGN15,16,26..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 1
55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-0K010B0

KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..THDCB..SR;KUN16,TGN16..XTR..TH;KUN26,36..DCB..5F..SA;KUN15..SR..DCR..(PHL,TH);TGN26..DCB..(GCC,GEN,SA,TH);KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB)..(GCC,GEN,PKN,SA,TH);KUN15,36,TGN26..DCB..DLX..(ANCOM,LA,PHL);KUN25,TGN36..(DCB,XTR)..SR..(MA,PHL,SA,TH);TGN26..(SCB,THDCB,XTR)..(ANCOM,GCC,GEN,SA,TH);KUN2#,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA)

DK.GRAY,TRIM1#,RH

 1
55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-0K010B0

KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..THDCB..SR;KUN16,TGN16..XTR..TH;KUN26,36..DCB..5F..SA;KUN15..SR..DCR..(PHL,TH);TGN26..DCB..(GCC,GEN,SA,TH);KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB)..(GCC,GEN,PKN,SA,TH);KUN15,36,TGN26..DCB..DLX..(ANCOM,LA,PHL);KUN25,TGN36..(DCB,XTR)..SR..(MA,PHL,SA,TH);TGN26..(SCB,THDCB,XTR)..(ANCOM,GCC,GEN,SA,TH);KUN2#,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA)

DK.GRAY,TRIM1#,RH

 1
55618B - BASE, SWITCH HOLE, NO.3
55618-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
55618-0K010

KUN35..DLX;TGN36..LHD..DCB;TGN36..ANCOM..IV3;TGN26..ANCOM..CBU;KUN35..SR..(PHL,TH);TGN16..ARL,GCC,SA,TH;GGN25..DCB..(ARL,LA);GGN15,KUN16..DCB..DLX;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26..ARL,GEN,LA,PHL,TH;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN36,TGN10,15..GCC,GEN,IDN,LA,TH;KUN10,25,LAN15,25,35,TGN11..DLX,SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN26,36,TGN36..(SCB,XTR)..(ANCOM,LA,SA)..CBU

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-0K010B0

KUN36..LA,SA;GGN15,25,KUN15,16,2#,35,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,GEN,LA,MA,PHL,SA,TH

DK.GRAY,TRIM1#

 1
55650-0K011B0

TGN36..CBU;GGN25..5FC..SA;KUN35..DLX..PHL;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GEN,LA,SA);KUN15,16,TGN10,16..(DLX,STD)..(ARL,GEN,IDN,PHL,SA,TH);GGN15,35,KUN2#,3#,LAN15,25,35,TGN15..ANCOM,ARL,GEN,LA,MA,SA

DK.GRAY,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55650-0K010B0

KUN36..LA,SA;GGN15,25,KUN15,16,2#,35,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,GEN,LA,MA,PHL,SA,TH

DK.GRAY,TRIM1#

 1
55660-0K050B0

TGN36..CBU;GGN25..5FC..SA;KUN35..DLX..PHL;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GEN,LA,SA);KUN15,16,TGN10,16..(DLX,STD)..(ARL,GEN,IDN,PHL,SA,TH);GGN15,35,KUN2#,3#,LAN15,25,35,TGN15..ANCOM,ARL,GEN,LA,MA,SA

DK.GRAY,TRIM1#

 1
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55670-0K011B0

TGN36..CBU;GGN25..5FC..SA;KUN35..DLX..PHL;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GEN,LA,SA);KUN15,16,TGN10,16..(DLX,STD)..(ARL,GEN,IDN,PHL,SA,TH);GGN15,35,KUN2#,3#,LAN15,25,35,TGN15..ANCOM,ARL,GEN,LA,MA,SA

DK.GRAY,TRIM1#

 1
55670-0K010B0

KUN15..XTR..DLX;KUN15..(DCB,SCB)..(GEN,PHL,SA,TH);GGN15,25,KUN16,26,TGN36..ARL,PHL,TH;KUN25,35,LAN15,25,35,TGN15,16,26..ARL,GEN,MA,SA,TH

DK.GRAY,TRIM1#

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55680-0K010B0

KUN15..XTR..DLX;KUN15..(DCB,SCB)..(GEN,PHL,SA,TH);GGN15,25,KUN16,26,TGN36..ARL,PHL,TH;KUN25,35,LAN15,25,35,TGN15,16,26..ARL,GEN,MA,SA,TH

DK.GRAY,TRIM1#

 1
55680-0K011B0

TGN36..CBU;GGN25..5FC..SA;KUN35..DLX..PHL;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GEN,LA,SA);KUN15,16,TGN10,16..(DLX,STD)..(ARL,GEN,IDN,PHL,SA,TH);GGN15,35,KUN2#,3#,LAN15,25,35,TGN15..ANCOM,ARL,GEN,LA,MA,SA

DK.GRAY,TRIM1#

 1
86831A - COVER, ACCESSORY SOCKET
86831-0K010B0

TGN36..SCB..DLX;TGN36..4FC..ANCOM;TGN26..DCB..DLX..LA;KUN25,35..SCB..(LA,MA);TGN26..DLX..(ANCOM,GEN,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN16,25..(DCB,SCB,THSCB)..DLX..(ANCOM,ARL,GEN,SA,TH);KUN35,TGN16..(DCB,SCB,XTR)..5F..DLX..(ANCOM,ARL,GEN,SA);GGN15,25,KUN15,26,LAN15,25,35,TGN15..(DCB,SCB,XTR)..(DLX,STD)..(ARL,GEN,PKN,SA,TH)

GRAY,TRIM1#

 1
Common parts
90161-T0002
90167-T0007
90167-T0022
90467-10203
90467-T0015
90541-04002
Linked diagrams
8601
8715

ILLUST NO. 1 OF 2(1107- )RHD

Click highlighted areas on diagram

diagram 55302A 55303B 55306A 55308C 55312A 55312A 55331 55356C 55357B 55358K 55368C 55376 55442H 55451C 55460C 55536B 55955A 55956D 61181 73970A 82140 90105T0065 90163T0001 90167T0007 90167T0012 90168T0001 90178T0018 90178T0019 9018305103 90183T0001 9054103019
Part # Description Qty Price
Common parts
90105-T0065
90163-T0001
90167-T0007
90167-T0012
90168-T0001
90178-T0018
90178-T0019
90183-05103
90183-T0001
90541-03019

ILLUST NO. 2 OF 2(1107- )RHD

Click highlighted areas on diagram

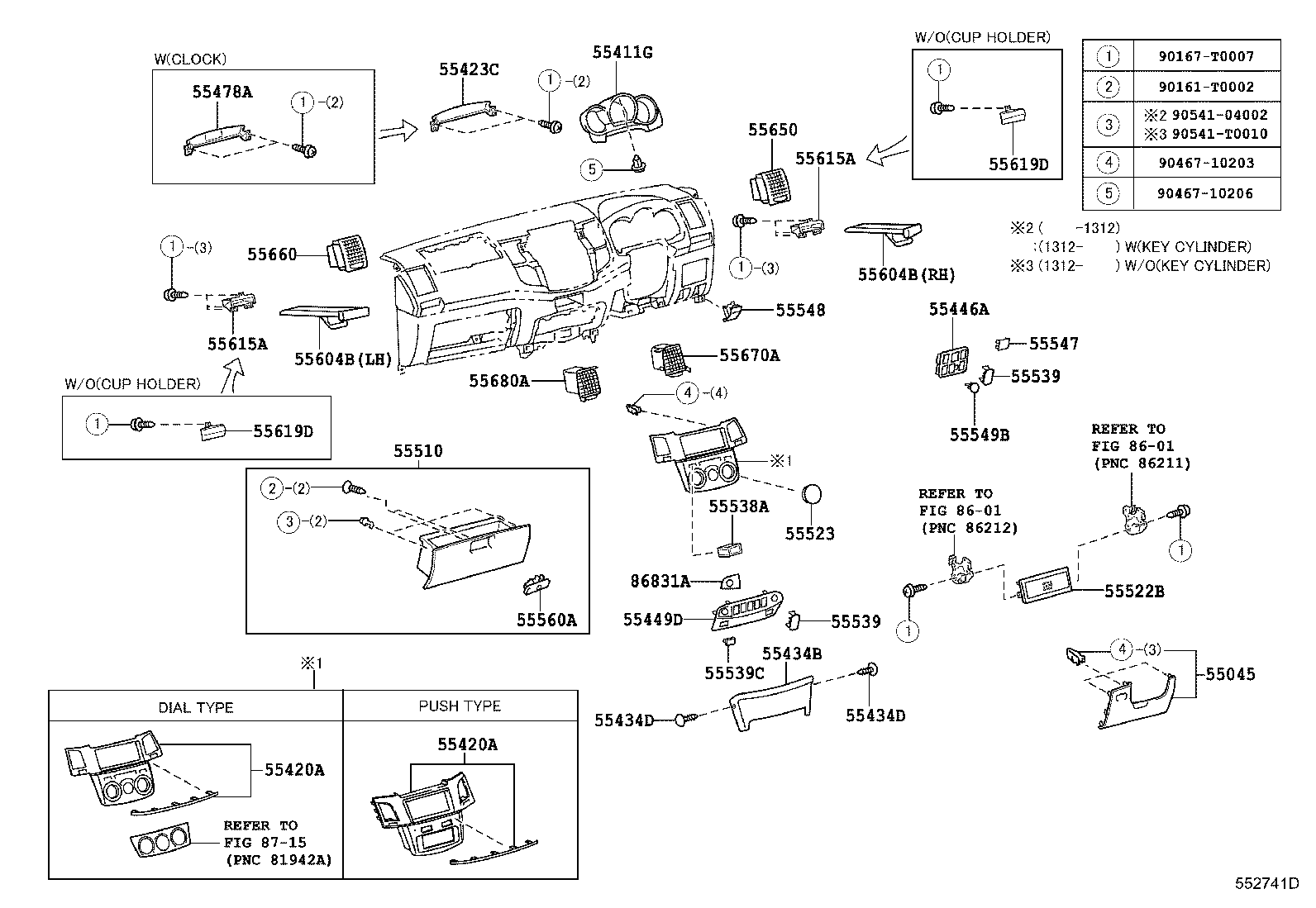

diagram 55045 55411G 55420A 55420A 55423C 55434B 55434D 55434D 55446A 55449D 55478A 55510 55522B 55523 55538A 55539 55539 55539C 55547 55548 55549B 55560A 55604B 55604B 55615A 55615A 55619D 55619D 55650 55660 55670A 55680A 8601 8601 86831A 8715 90161T0002 90167T0007 9046710203 9046710206 9054104002 90541T0010
Part # Description Qty Price
Common parts
90161-T0002
90167-T0007
90467-10203
90467-10206
90541-04002
90541-T0010
Linked diagrams
8601
8715
