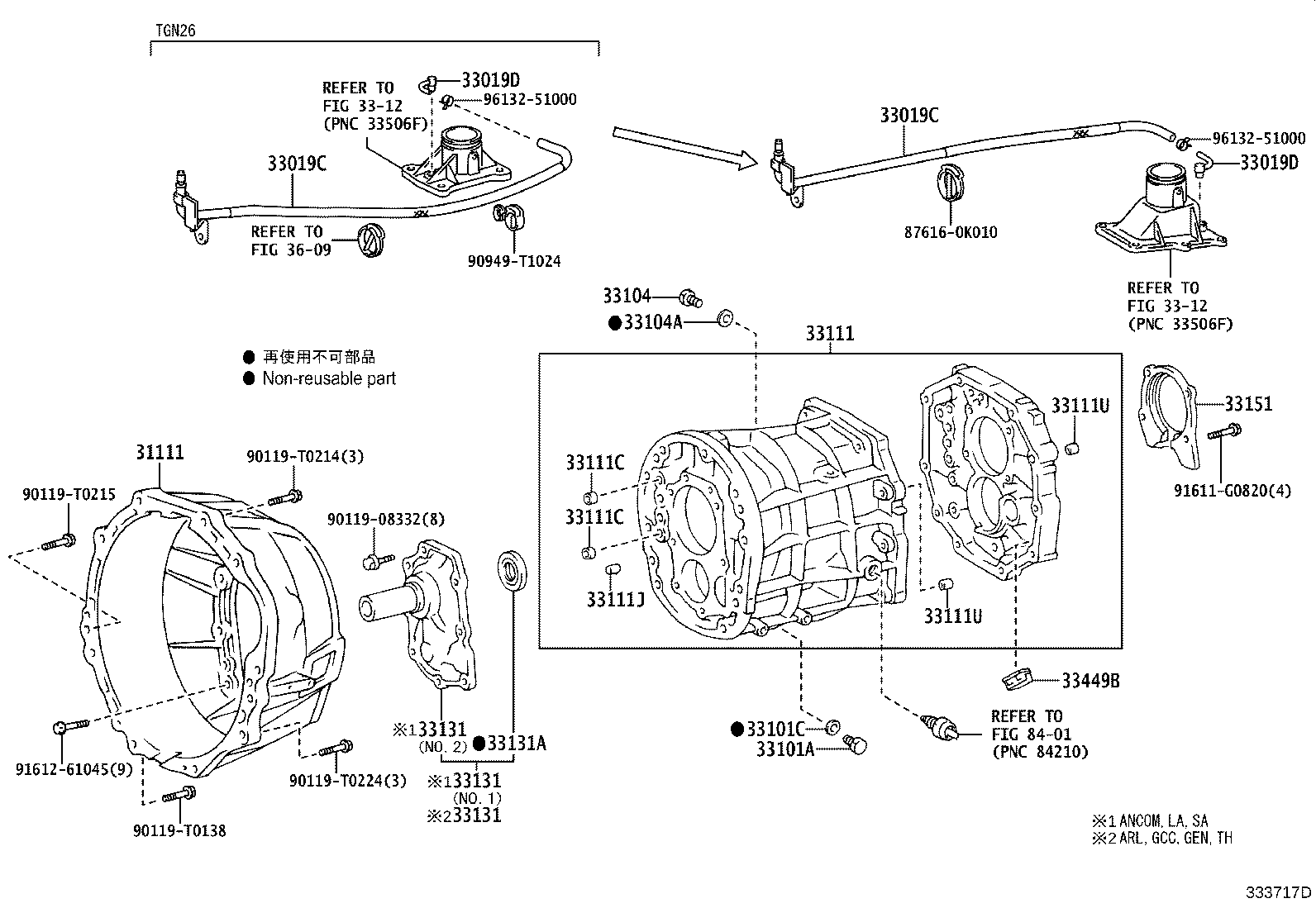

KUN26R-CRMDYQ3 (2008)
Toyota Hilux
(0808- )TGN11,16,26,36..5F
R150,R150F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-35101 |
KUN16,2#..XTR..TH;KUN16,2#..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
1 | ||
| 31111-0K070 |
TGN11,16,26..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71100 |
KUN2#..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71100 |
KUN2#..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-60040 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-41800 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) OD=18,TYPE A:REFER 33-01 |
3 | ||
| 90331-14004 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) OD=14,TYPE A:REFER 33-01 |
1 | ||
| 96411-41800 |
TGN16..XTR;GGN15..5F..DLX;TGN36..5F..CBU;TGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN25,KUN16,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN15,25,35,TGN11..5F..(HDCR,HTWC)..(ANCOM,GCC,GEN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-41800 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) OD=18,TYPE A:REFER 33-01 |
3 | ||
| 90331-14004 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) OD=14,TYPE A:REFER 33-01 |
1 | ||
| 96411-41800 |
TGN16..XTR;GGN15..5F..DLX;TGN36..5F..CBU;TGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN25,KUN16,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN15,25,35,TGN11..5F..(HDCR,HTWC)..(ANCOM,GCC,GEN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) L=16,OD=12,TYPE A:REFER 33-01 |
2 | ||
| 90250-12002 |
KUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH) L=16,OD=12,TYPE B:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) L=14,OD=15,TYPE A:REFER 33-01 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) L=14,OD=15,TYPE A:REFER 33-01 |
4 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-35031 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-35031 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-35031 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35020 |
KUN16,2#..XTR..TH;KUN2#,TGN16,26..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
1 | ||
| Common parts | ||||
| 87616-0K010 | ||||
| 90119-08332 | ||||
| 90119-T0138 | ||||
| 90119-T0214 | ||||
| 90119-T0215 | ||||
| 90119-T0224 | ||||
| 90949-T1024 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3609 | ||||
| 8401 | ||||
(1107- )TGN11,16,26,36..5F
R150,R150F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 33197-0K010 | ||||
| 90119-08332 | ||||
| 90119-T0138 | ||||
| 90119-T0214 | ||||
| 90119-T0215 | ||||
| 90119-T0224 | ||||
| 90119-T0225 | ||||
| 90119-T0295 | ||||
| 90119-T0296 | ||||
| 90119-T0297 | ||||
| 90949-T1024 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3609 | ||||
| 8401 | ||||
