KUN26R-CRMDYQ3 (2008)

Toyota Hilux

Production Aug 2008 - Jul 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0908)1KDFTV ; (0408- )2KDFTV..KUN15,25..HDCR..TH ; (0908-1008)1KDFTV..GEN,

Click highlighted areas on diagram

diagram 12229 12261 12262 1701 90105T0053 9155180812
Part # Description Qty Price
12229 - PIPE, VENTILATION
12229-30040

1KDFTV..KUN16,26..ARL

*163 OR *184

 1
12229-30040

1KDFTV..KUN16,26..ARL

*163 OR *184

 1
12229-0L010

1KDFTV..KUN16,26..ARL

*130

 1
12229-0L010

1KDFTV..KUN16,26..ARL

*130

 1
12261 - HOSE, VENTILATION
12261-0L030

1KDFTV..KUN16,26..ARL

*130

 1
12261-0L030

1KDFTV..KUN16,26..ARL

*130

 1
12261-30040

2KDFTV..KUN25..TH;1KDFTV..KUN16,26..ARL

*163 OR *184

 1
12261-30040

2KDFTV..KUN25..TH;1KDFTV..KUN16,26..ARL

*163 OR *184

 1
12261-30090

1KDFTV..KUN16,26..ARL

 1
12261-30090

1KDFTV..KUN16,26..ARL

 1
12262 - HOSE, VENTILATION, NO.2
12262-0L010

1KDFTV..KUN16,26..ARL

*130

 1
12262-0L010

1KDFTV..KUN16,26..ARL

*130

 1
12262-30040

2KDFTV..KUN25..TH;1KDFTV..KUN16,26..ARL

*163 OR *184

 1
12262-30040

2KDFTV..KUN25..TH;1KDFTV..KUN16,26..ARL

*163 OR *184

 1
Common parts
90105-T0053
91551-80812
Linked diagrams
1701

(1008- )1KDFTV

Click highlighted areas on diagram

diagram 12229 12261 12262 1701 90105T0053 9155180812
Part # Description Qty Price
12229 - PIPE, VENTILATION
12229-30040

1KDFTV..KUN16,26..ARL

*163 OR *184

 1
12229-30040

1KDFTV..KUN16,26..ARL

*163 OR *184

 1
12229-0L010

1KDFTV..KUN16,26..ARL

*130

 1
12229-0L010

1KDFTV..KUN16,26..ARL

*130

 1
12261 - HOSE, VENTILATION
12261-0L030

1KDFTV..KUN16,26..ARL

*130

 1
12261-0L030

1KDFTV..KUN16,26..ARL

*130

 1
12261-30040

2KDFTV..KUN25..TH;1KDFTV..KUN16,26..ARL

*163 OR *184

 1
12261-30040

2KDFTV..KUN25..TH;1KDFTV..KUN16,26..ARL

*163 OR *184

 1
12261-30090

1KDFTV..KUN16,26..ARL

 1
12261-30090

1KDFTV..KUN16,26..ARL

 1
12262 - HOSE, VENTILATION, NO.2
12262-0L010

1KDFTV..KUN16,26..ARL

*130

 1
12262-0L010

1KDFTV..KUN16,26..ARL

*130

 1
12262-30040

2KDFTV..KUN25..TH;1KDFTV..KUN16,26..ARL

*163 OR *184

 1
12262-30040

2KDFTV..KUN25..TH;1KDFTV..KUN16,26..ARL

*163 OR *184

 1
Common parts
90105-T0053
91551-80812
Linked diagrams
1701

(0908-1008)1KDFTV..KUN16,26..ARL

Click highlighted areas on diagram

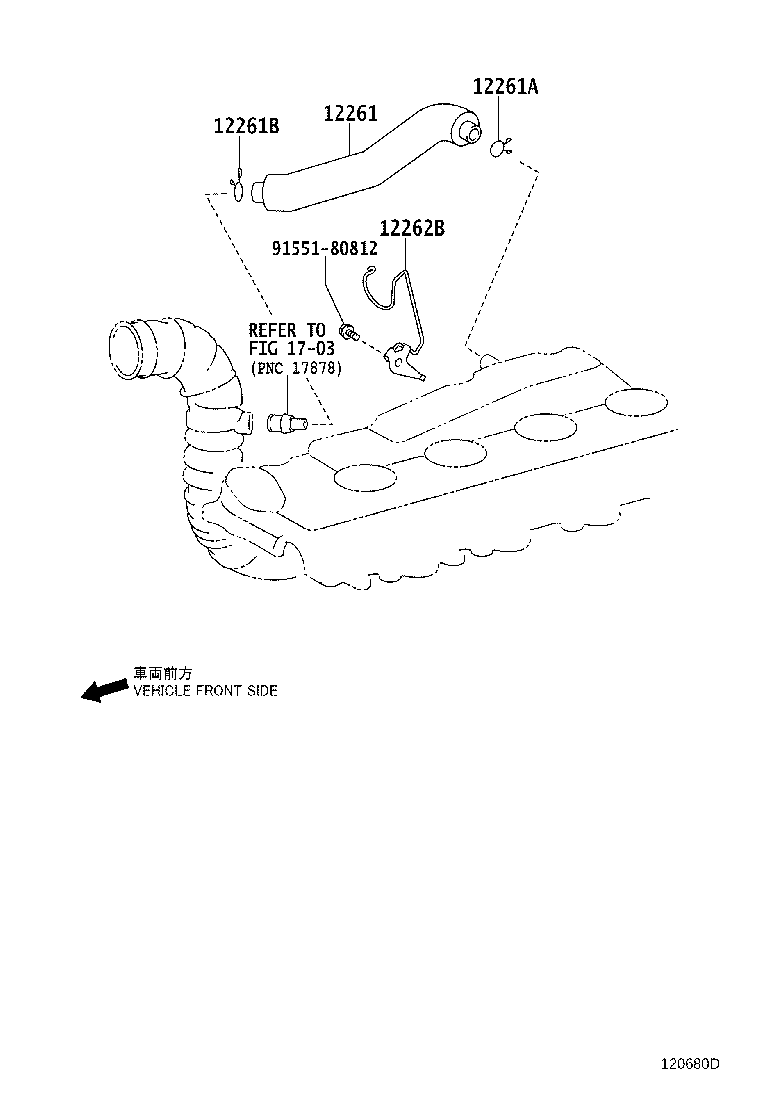

diagram 12261 12261A 12261B 12262B 1703 9155180812
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-0L030

1KDFTV..KUN16,26..ARL

*130

 1
12261-30040

2KDFTV..KUN25..TH;1KDFTV..KUN16,26..ARL

*163 OR *184

 1
12261-30090

1KDFTV..KUN16,26..ARL

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

1KDFTV..KUN16,26..ARL

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21006

1KDFTV..KUN16,26..ARL

 1
12262B - CLAMP(FOR VENTILATION HOSE)
16581-30180

1KDFTV..KUN16,26..ARL

 1
Common parts
91551-80812
Linked diagrams
1703

(1107- )1KDFTV ; (1107- )2KDFTV..KUN35..LA; (1107- )2KDFTV..KUN35..4FC ;

Click highlighted areas on diagram

diagram 12203 12229 12261 12262 1701 90105T0053 9155180812 9167100816
Part # Description Qty Price
Common parts
90105-T0053
91551-80812
91671-00816
Linked diagrams
1701
