KUN25R-TRMDHE (2005)

Toyota Hilux

Production Mar 2005 - Sep 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

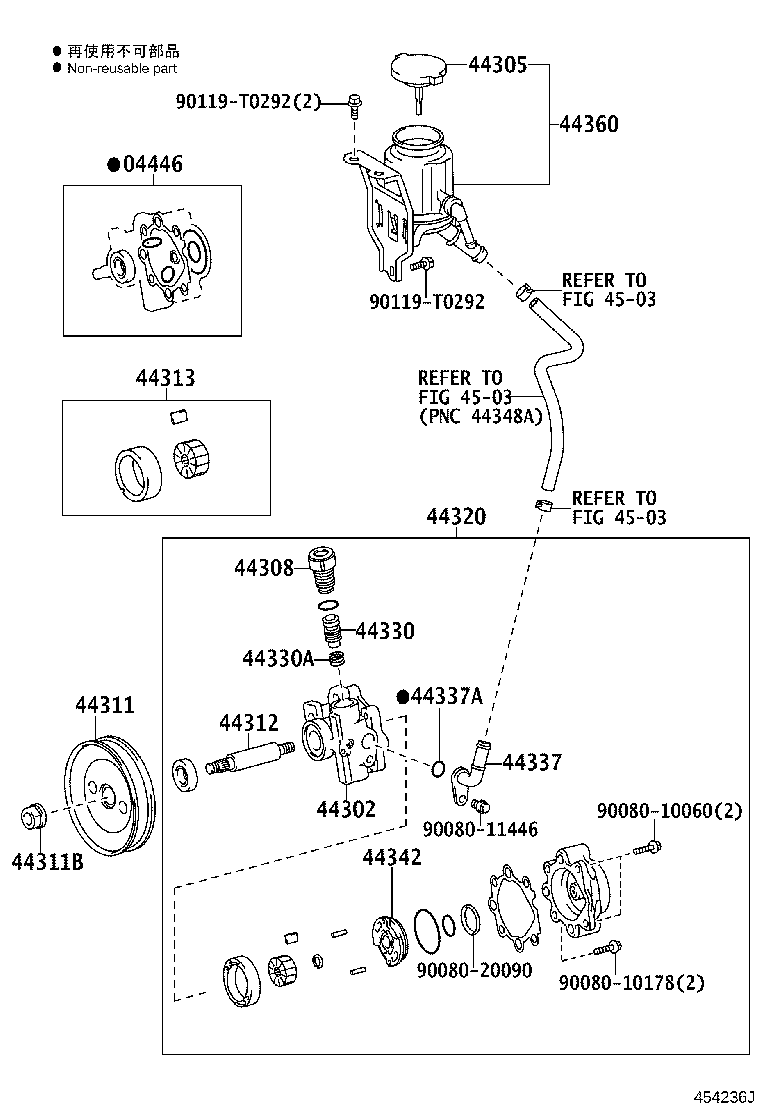

(0507- )LAN15,25,35

Click highlighted areas on diagram

diagram 04446 44302 44305 44308 44311 44311B 44312 44313 44320 44330 44330A 44337 44337A 44342 44360 4503 4503 4503 9008010060 9008010178 9008011446 9008020090 90119T0292 90119T0292
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-0B040

KUN15..DCB;KUN10,16,2#,3#;KUN15..XTR..SR;KUN15..SCB..(GCC,GEN,SA)

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-0K020

KUN15..XTR..SR;KUN35..GEN,LA,SA;KUN15..SCB..(GCC,GEN,SA);GGN15,25,KUN10,16,2#,36,LAN15,25,35;KUN15,35..DCB..(ANCOM,GCC,GEN,PHL,TH)

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-0K050

KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB,XTR)..5F;KUN25..ANCOM,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
44308-0K050

KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
44312 - SHAFT, VANE PUMP
44312-0K010

KUN16..4FC;KUN15..DCB,SMT;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);KUN10,2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
44312-0K010

KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15,16,36..XTR..SR..TH;KUN25..ANCOM,GCC,GEN,LA,SA;KUN10,15..SCB..(GCC,GEN,PKN,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH)

 1
44313 - ROTOR, VANE PUMP
44313-09010

KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR);KUN25,TGN16..5F..(ANCOM,ARL,GCC,GEN,LA,SA)

 1
44313-09010

KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
44320 - PUMP ASSY, VANE
44310-0K040

KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB,XTR)..5F;KUN25..ANCOM,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
44310-0K040

KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-0K140

KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR)

MARK B

 1
44330-0K130

KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR)

MARK A

 1
44330-0K170

KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR)

MARK E

 1
44330-0K160

KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR)

MARK D

 1
44330-0K150

KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR)

MARK C

 1
44330-0K180

KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR)

MARK F

 1
44330-0K150

KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

MARK C

 1
44330-0K180

KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

MARK F

 1
44330-0K160

KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

MARK D

 1
44330-0K130

KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

MARK A

 1
44330-0K170

KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

MARK E

 1
44330-0K140

KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

MARK B

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-T0001

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN25..ANCOM,GCC,GEN,LA,SA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN15,16,36,TGN16..XTR..SR..TH;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN36..SCB..(ANCOM,GCC,GEN,LA,PKN,SA);KUN15,TGN36..DCB..(ANCOM,GCC,GEN,PHL,SA,TH);GGN15,25,KUN10,TGN1#..(5F,5FC)..(DLX,SR)..(ANCOM,ARL,GCC,GEN,IDN,SA)

 1
90501-T0001

TGN16..XTR;KUN15..DCB,SMT;GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH;KUN16,TGN10,15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,SA)..CBU

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-06060

GGN25..5FC..SA;KUN15..DCB,SMT;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN10,2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
44337-06060

KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15,16,36..XTR..SR..TH;KUN25..ANCOM,GCC,GEN,LA,SA;KUN15..SCB..(GCC,GEN,PKN,SA);GGN15,25,KUN10..ANCOM,ARL,GCC,SA;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH)

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-0K010

KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15,16,36..XTR..SR..TH;KUN25..ANCOM,GCC,GEN,LA,SA;KUN15..SCB..(GCC,GEN,PKN,SA);KUN10,16,LAN15,25,35..DCB,SCB;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH)

 1
44360-0K010

KUN16..4FC;KUN15..DCB,SMT;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
Common parts
90080-10060
90080-10178
90080-11446
90080-20090
90119-T0292
Linked diagrams
4503

(1107- )KUN1#,2#,3#

Click highlighted areas on diagram

diagram 04446 44302A 44305 44308 44310C 44312 44312A 44312F 44312G 44313 44316 44320 44330 44330A 44337 44341 44360 44362A 4503 4503 4503 4503 4503 9008010265 9008011505 90119T0292 90119T0292 90178T0032
Part # Description Qty Price
Common parts
90080-10265
90080-11505
90119-T0292
90178-T0032
Linked diagrams
4503

(1107- )GGN15,25,35

Click highlighted areas on diagram

diagram 04446 44303A 44305 44308 44313 44320 44330 44330A 44337 44341 44360 44362A 4503 4503 4503 8404 9008010265 9008011505 90119T0196 90119T0292 90119T0344
Part # Description Qty Price
Common parts
90080-10265
90080-11505
90119-T0196
90119-T0292
90119-T0344
Linked diagrams
4503
8404
