KUN25R-TRMDHE (2005)
Toyota Hilux

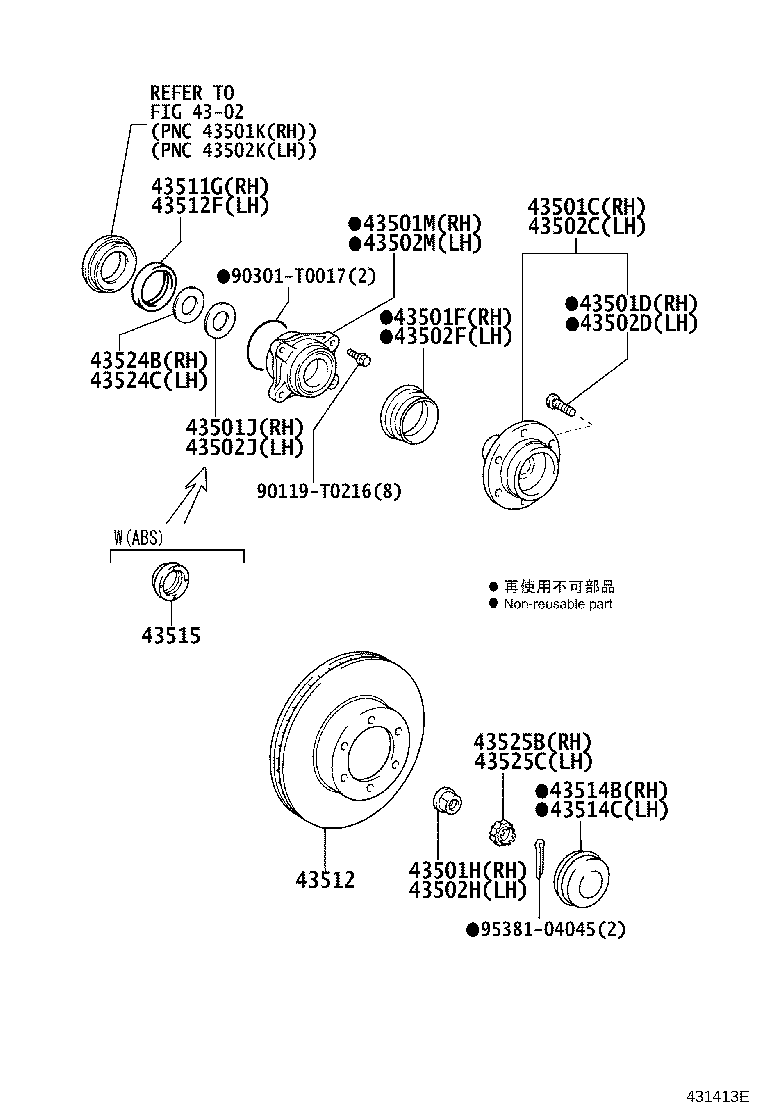

(0408- )GGN25,KUN2#,LAN25,TGN26
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-0K030 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 43502-0K030 |
GGN25..5FC..SA;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
TGN36..SCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
6 | ||
| 90942-02049 |
TGN36..CBU;GGN25..5FC..SA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
6 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90312-T0001 |
TGN36..SCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 90312-T0001 |
TGN36..CBU;GGN25..5FC..SA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-T0040 |
GGN25,KUN2#,LAN25,TGN26 |
1 | ||
| 90179-28007 |
GGN25,KUN2#,LAN25,TGN26 |
1 | ||
| 90178-28002 |
GGN25..5FC..SA;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 43501J - SPACER (FOR FRONT AXLE HUB RH) | ||||
| 90560-T0013 |
KUN25..DLX..MA |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90369-T0003 |
TGN36..DLX;KUN35..SCB..LA;KUN25..SCB..MA;TGN26..DCB..DLX..LA;TGN26..ANCOM,GCC,GEN,TH;KUN35..LHD..(DCB,THDCB)..DLX;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA;KUN25,TGN36..(DCB,XTR)..SR..(MA,PHL,TH);KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 90369-T0003 |
KUN26..XTR..SA;TGN26..GCC,GEN,LA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25,TGN36..(DCB,SCB)..(ANCOM,ARL,LA)..CBU;KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,TH |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-0K030 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 43502-0K030 |
GGN25..5FC..SA;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
TGN36..SCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
6 | ||
| 90942-02049 |
TGN36..CBU;GGN25..5FC..SA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
6 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90312-T0001 |
TGN36..SCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 90312-T0001 |
TGN36..CBU;GGN25..5FC..SA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90178-T0040 |
GGN25,KUN2#,LAN25,TGN26 |
1 | ||
| 90179-28007 |
GGN25,KUN2#,LAN25,TGN26 |
1 | ||
| 90178-28002 |
GGN25..5FC..SA;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 43502J - SPACER (FOR FRONT AXLE HUB LH) | ||||
| 90560-T0013 |
KUN25..DLX..MA |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90369-T0003 |
TGN36..DLX;KUN35..SCB..LA;KUN25..SCB..MA;TGN26..DCB..DLX..LA;TGN26..ANCOM,GCC,GEN,TH;KUN35..LHD..(DCB,THDCB)..DLX;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA;KUN25,TGN36..(DCB,XTR)..SR..(MA,PHL,TH);KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 90369-T0003 |
KUN26,36..XTR..SA;TGN26..GCC,GEN,LA;TGN36..ANCOM..IV3;TGN26..DLX..ANCOM..CBU;GGN25,TGN36..(DCB,SCB)..(ANCOM,ARL,LA)..CBU;KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,TH |
1 | ||
| 43511G - SEAL, OIL (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90316-T0002 |
GGN25..5FC..SA;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 90316-T0002 |
KUN25..MA |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-0K060 |
KUN35..GEN;GGN25,KUN2#,36,TGN26,36..ARL,GCC,GEN,MA,PHL,TH |
2 | ||
| 43512-0K060 |
KUN26,36..XTR..SA;KUN26..(DCB,SCB)..4FC..(ARL,GEN,PHL);KUN26..(DCB,SCB,SMT,XTR)..5F..(ARL,GEN,PHL,TH);GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT,THDCB,THSCB)..(ARL,GCC,GEN,MA,PHL,PKN,TH)..CBU |
2 | ||
| 43512F - SEAL, OIL (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90316-T0002 |
KUN25..MA |
1 | ||
| 90316-T0002 |
GGN25..5FC..SA;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-0K010 |
KUN25..MA |
1 | ||
| 43514-0K010 |
GGN25..5FC..SA;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-0K010 |
KUN25..MA |
1 | ||
| 43514-0K010 |
GGN25..5FC..SA;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 43524B - SPACER, FRONT WHEEL INNER BEARING, RH | ||||
| 43524-0K020 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 43524C - SPACER, FRONT WHEEL INNER BEARING, LH | ||||
| 43524-0K020 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-35010 |
GGN25,KUN2#,LAN25,TGN26 |
1 | ||
| 43525-71010 |
KUN25..MA |
1 | ||
| 43525-71010 |
GGN25..5FC..SA;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-71010 |
GGN25..5FC..SA;TGN26..DLX..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 43525-71010 |
KUN25..MA |
1 | ||
| 43525-35010 |
GGN25,KUN2#,LAN25,TGN26 |
1 | ||
| Common parts | ||||
| 90119-T0216 | ||||
| 90301-T0017 | ||||
| 95381-04045 | ||||
| Linked diagrams | ||||
| 4302 | ||||

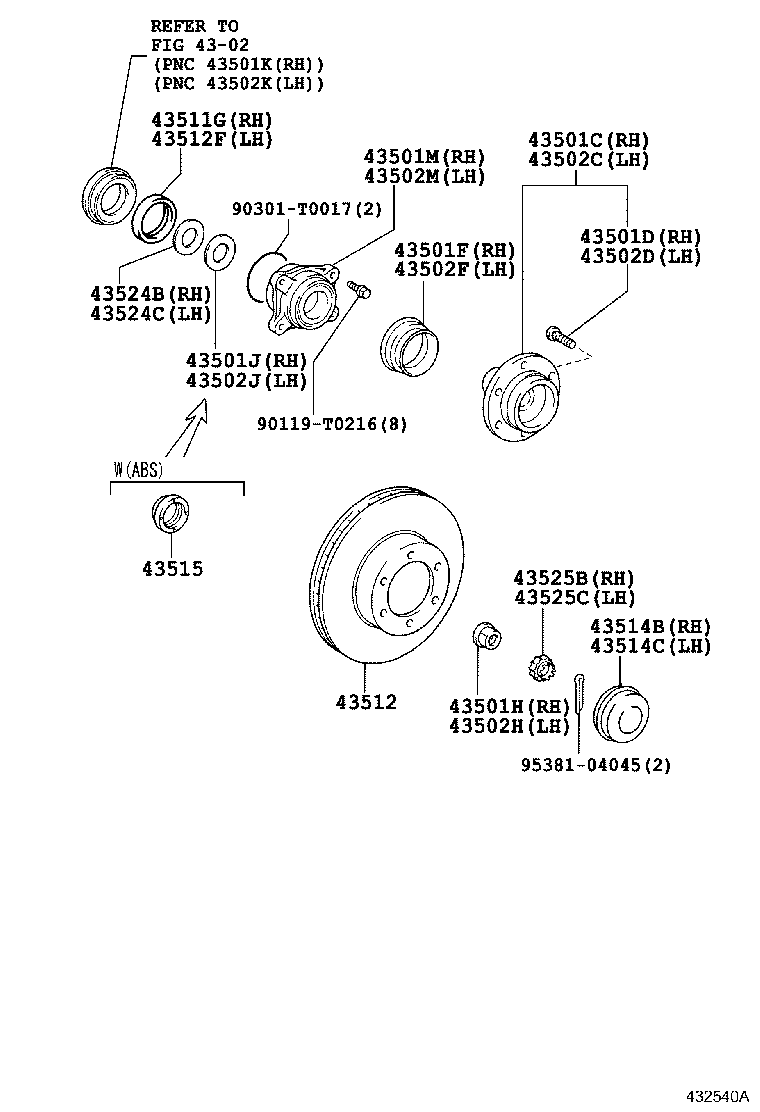

(1107- )GGN25,KUN2#,LAN25,TGN26
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0216 | ||||
| 90301-T0017 | ||||
| 95381-04045 | ||||
| Linked diagrams | ||||
| 4302 | ||||
