KUN25R-TRMDHE (2005)
Toyota Hilux

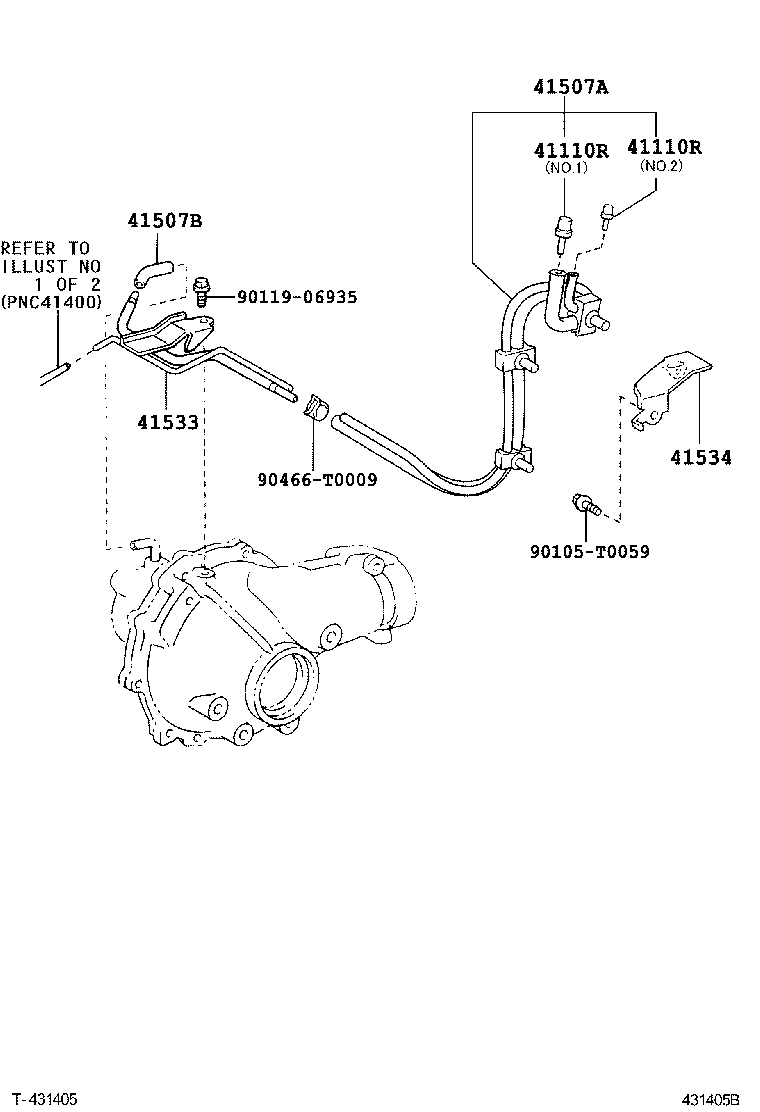

ILLUST NO. 2 OF 2(0408- )KUN25..ANCOM,GCC,LA,MA,SA,TH
W(A.D.D)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110R - PLUG, BREATHER (FOR FRONT DIFFERENTIAL) | ||||
| 90930-03136 |
GGN25..5FC..SA;KUN25..SCB..MA;TGN26..ANCOM..CBU;KUN25..GCC,GEN,LA,PKN;KUN26,LAN25..DLX..(ARL,SA);GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA) |
1 | ||
| 90930-03136 |
GGN25..5FC..SA;KUN25..SCB..MA;TGN26..ANCOM..CBU;KUN25..GCC,GEN,LA,PKN;KUN26,LAN25..DLX..(ARL,SA);GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA) |
1 | ||
| 90930-03136 |
KUN26..DLX..ARL;KUN25..THDCB,THSCB;KUN25..SCB..(LA,MA);KUN25..DCB..(GCC,LA) AUTO DISCONNECT DIFFERENTIAL-WITH,NO.1 |
1 | ||
| 90930-03136 |
KUN26..DLX..ARL;KUN25..THDCB,THSCB;KUN25..SCB..(LA,MA);KUN25..DCB..(GCC,LA) AUTO DISCONNECT DIFFERENTIAL-WITH,NO.1 |
1 | ||
| 90930-03159 |
KUN26..DLX..ARL;KUN25..THDCB,THSCB;KUN25..SCB..(LA,MA);KUN25..DCB..(GCC,LA) AUTO DISCONNECT DIFFERENTIAL-WITH,NO.2 |
1 | ||
| 90930-03159 |
KUN26..DLX..ARL;KUN25..THDCB,THSCB;KUN25..SCB..(LA,MA);KUN25..DCB..(GCC,LA) AUTO DISCONNECT DIFFERENTIAL-WITH,NO.2 |
1 | ||
| 41110R - PLUG, BREATHER (FOR FRONT DIFFERENTIAL) | ||||
| 90930-03136 |
GGN25..5FC..SA;KUN25..SCB..MA;TGN26..ANCOM..CBU;KUN25..GCC,GEN,LA,PKN;KUN26,LAN25..DLX..(ARL,SA);GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA) |
1 | ||
| 90930-03136 |
GGN25..5FC..SA;KUN25..SCB..MA;TGN26..ANCOM..CBU;KUN25..GCC,GEN,LA,PKN;KUN26,LAN25..DLX..(ARL,SA);GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA) |
1 | ||
| 90930-03136 |
KUN26..DLX..ARL;KUN25..THDCB,THSCB;KUN25..SCB..(LA,MA);KUN25..DCB..(GCC,LA) AUTO DISCONNECT DIFFERENTIAL-WITH,NO.1 |
1 | ||
| 90930-03136 |
KUN26..DLX..ARL;KUN25..THDCB,THSCB;KUN25..SCB..(LA,MA);KUN25..DCB..(GCC,LA) AUTO DISCONNECT DIFFERENTIAL-WITH,NO.1 |
1 | ||
| 90930-03159 |
KUN26..DLX..ARL;KUN25..THDCB,THSCB;KUN25..SCB..(LA,MA);KUN25..DCB..(GCC,LA) AUTO DISCONNECT DIFFERENTIAL-WITH,NO.2 |
1 | ||
| 90930-03159 |
KUN26..DLX..ARL;KUN25..THDCB,THSCB;KUN25..SCB..(LA,MA);KUN25..DCB..(GCC,LA) AUTO DISCONNECT DIFFERENTIAL-WITH,NO.2 |
1 | ||
| 41507B - TUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 90445-T0014 |
KUN25..MA |
1 | ||
| 90445-T0014 |
KUN25..MA |
1 | ||
| 90445-T0014 |
GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 90445-T0014 |
GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 41533 - TUBE, FRONT DIFFERENTIAL BREATHER | ||||
| 41533-0K020 |
KUN25..SCB..MA;KUN26..DLX..ARL;LAN25..LHD..SCB;KUN25..GCC,GEN,LA,PKN;TGN26..LHD..5F..DLX..(GCC,GEN,LA,SA) |
1 | ||
| 41533-0K020 |
KUN25..SCB..MA;KUN26..DLX..ARL;LAN25..LHD..SCB;KUN25..GCC,GEN,LA,PKN;TGN26..LHD..5F..DLX..(GCC,GEN,LA,SA) |
1 | ||
| 41533-0K010 |
KUN26..DLX..ARL;LAN25..LHD..SCB;KUN25..SCB..(LA,MA);KUN25..DCB..(GCC,LA);KUN25,TGN26..(THDCB,THSCB)..DLX;TGN26..DCB..5F..DLX..(GCC,LA,SA) AUTO DISCONNECT DIFFERENTIAL-WITH |
1 | ||
| 41533-0K010 |
KUN26..DLX..ARL;LAN25..LHD..SCB;KUN25..SCB..(LA,MA);KUN25..DCB..(GCC,LA);KUN25,TGN26..(THDCB,THSCB)..DLX;TGN26..DCB..5F..DLX..(GCC,LA,SA) AUTO DISCONNECT DIFFERENTIAL-WITH |
1 | ||
| 41534 - BRACKET, FRONT DIFFERENTIAL BREATHER | ||||
| 41534-0K010 |
KUN25..MA |
1 | ||
| 41534-0K010 |
KUN25..MA |
1 | ||
| 41534-0K010 |
TGN26..ANCOM..CBU;TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 41534-0K010 |
TGN26..ANCOM..CBU;TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| Common parts | ||||
| 90105-T0059 | ||||
| 90119-06935 | ||||
| 90466-T0009 | ||||
