KUN25R-TRMDHE (2005)
Toyota Hilux

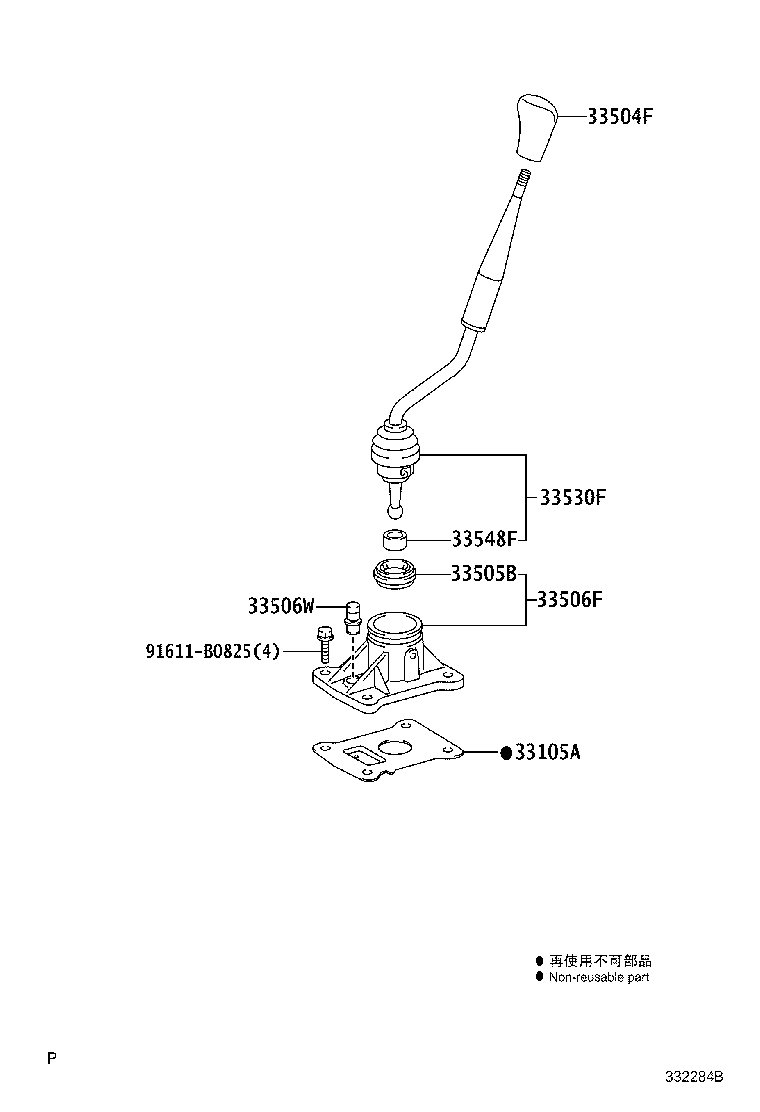

(0408-0808)KUN2#,LAN25,TGN26..5F ; (0502-0808)GGN25..5F..ARL ; (0504-0808)GGN25..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM) | ||||
| 33144-35030 |
GGN25,KUN2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0D050B0 |
KUN25..SCB..MA;KUN15..XTR..DLX;KUN25..DCB..5F..SR;KUN25..ANCOM,GEN,LA;TGN26..DCB..DLX..LA;KUN15..SR..DCR..(PHL,TH);KUN26..(THDCB,XTR)..5F..(ARL,GEN);KUN26..(DCB,SCB)..5F..(ARL,LA,TH);KUN15,TGN10,36..5F..DLX..(ANCOM,IDN,LA,PHL);GGN15,25,KUN3#,LAN15,TGN15,16..5F..(ANCOM,ARL,GEN,LA,PKN);KUN15,16,TGN26..(DCB,SCB,THDCB)..5F..(ANCOM,ARL,GEN,PKN,TH) DK.GRAY,TRIM1# |
1 | ||
| 33505B - SEAT SUB-ASSY, SHIFT LEVER | ||||
| 33505-35030 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33505-35020 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-0K010 |
GGN25,KUN2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33506W - PLUG, BREATHER (FOR SHIFT LEVER RETAINER) | ||||
| 90930-03075 |
GGN25,KUN2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-0K140 |
KUN2#..RHD..5F |
1 | ||
| 33530-0K141 |
KUN2#..RHD..5F |
1 | ||
| 33530-0K142 |
KUN2#..RHD..5F |
1 | ||
| 33530-0K451 |
KUN2#..RHD..5F..(ARL,GEN,MA,PKN,SA,TH) |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-04010 |
TGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN16,36,TGN10..(DCB,SCB)..5F..(DLX,SR);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16,26..5F..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 33548-04010 |
GGN15..5F..DLX;TGN36..5F..SR..LA;KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..DLX;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);GGN25,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;KUN15,35,TGN10,36..(DCB,SCB,SMT,THDCB)..5F..(ANCOM,GCC,GEN,IDN,PHL,SA,TH);KUN10,2#,LAN15,25,35,TGN11..5F..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| Common parts | ||||
| 91611-B0825 | ||||

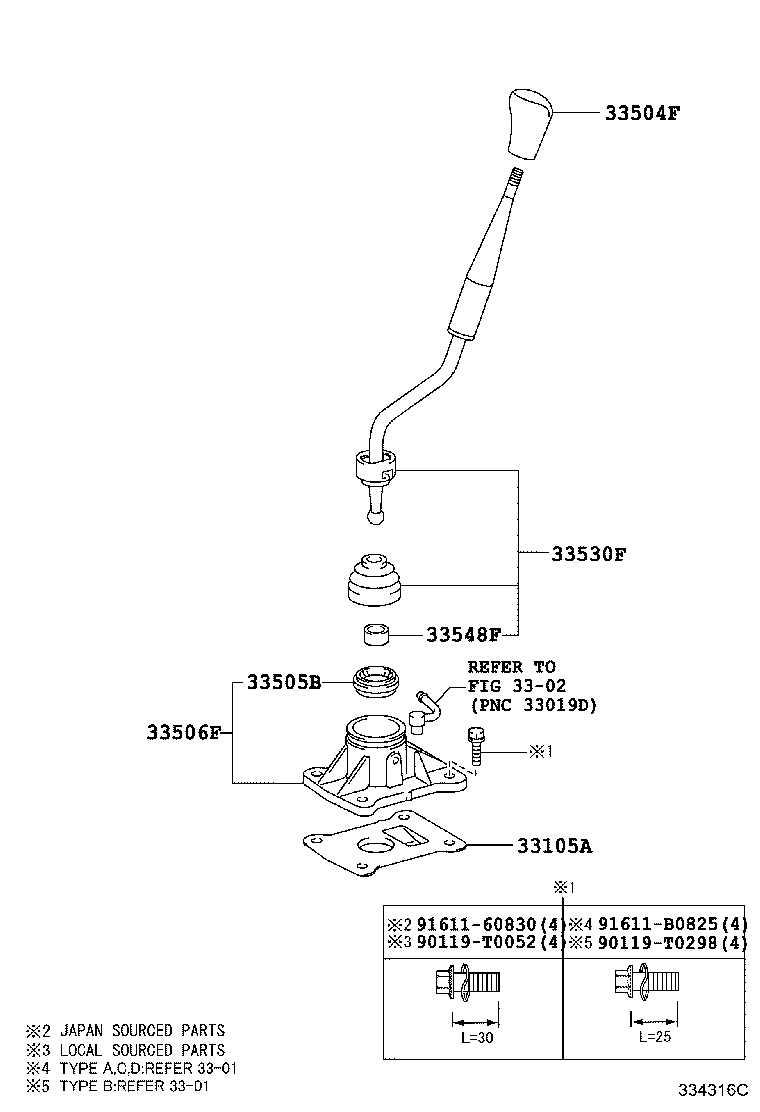

(0808- )KUN10,2#..5F ; (0808- )KUN15..DCR..GCC,GEN,PHL,PKN,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM) | ||||
| 33144-35030 |
GGN25,KUN2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0D050B0 |
KUN25..SCB..MA;KUN15..XTR..DLX;KUN25..DCB..5F..SR;KUN25..ANCOM,GEN,LA;TGN26..DCB..DLX..LA;KUN15..SR..DCR..(PHL,TH);KUN26..(THDCB,XTR)..5F..(ARL,GEN);KUN26..(DCB,SCB)..5F..(ARL,LA,TH);KUN15,TGN10,36..5F..DLX..(ANCOM,IDN,LA,PHL);GGN15,25,KUN3#,LAN15,TGN15,16..5F..(ANCOM,ARL,GEN,LA,PKN);KUN15,16,TGN26..(DCB,SCB,THDCB)..5F..(ANCOM,ARL,GEN,PKN,TH) DK.GRAY,TRIM1# |
1 | ||
| 33505B - SEAT SUB-ASSY, SHIFT LEVER | ||||
| 33505-35030 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33505-35020 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-0K010 |
GGN25,KUN2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-0K140 |
KUN2#..RHD..5F |
1 | ||
| 33530-0K141 |
KUN2#..RHD..5F |
1 | ||
| 33530-0K142 |
KUN2#..RHD..5F |
1 | ||
| 33530-0K451 |
KUN2#..RHD..5F..(ARL,GEN,MA,PKN,SA,TH) |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-04010 |
TGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN16,36,TGN10..(DCB,SCB)..5F..(DLX,SR);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16,26..5F..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 33548-04010 |
GGN15..5F..DLX;TGN36..5F..SR..LA;KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..DLX;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);GGN25,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;KUN15,35,TGN10,36..(DCB,SCB,SMT,THDCB)..5F..(ANCOM,GCC,GEN,IDN,PHL,SA,TH);KUN10,2#,LAN15,25,35,TGN11..5F..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| Common parts | ||||
| 90119-T0052 | ||||
| 91611-60830 | ||||
| 91611-B0825 | ||||
| Linked diagrams | ||||
| 3302 | ||||
(1107- )KUN25..5F ; (1107- )KUN10,15,26,LAN15,35,TGN10,15..5F..DCR,DEFI,HTWC,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0052 | ||||
| 90119-T0298 | ||||
| 91611-60830 | ||||
| 91611-B0825 | ||||
| Linked diagrams | ||||
| 3302 | ||||
