KUN25R-PRPDHP (2012)

Toyota Hilux

Production Feb 2012 - Sep 2016
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1202- )KUN25..PKN

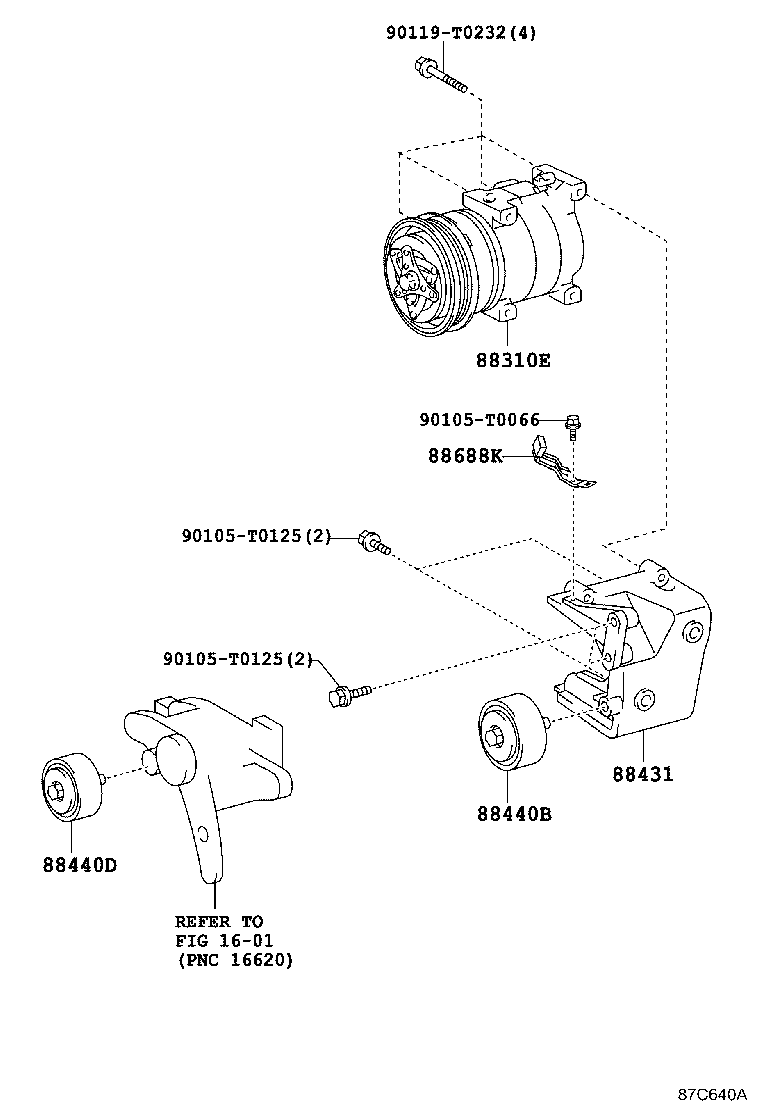

Click highlighted areas on diagram

diagram 1601 88310E 88431 88440B 88440D 88688K 90105T0066 90105T0125 90105T0125 90119T0232
Part # Description Qty Price
88310E - COMPRESSOR, W/MAGNET CLUTCH
88310-0K720

KUN25..PKN

AIR CONDITIONER-SINGLE AIR CONDITIONER

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0K110

KUN25..PKN

AIR CONDITIONER-SINGLE AIR CONDITIONER

 1
88440B - PULLEY ASSY, IDLE
88440-0K370

KUN25..PKN

AIR CONDITIONER-SINGLE AIR CONDITIONER

 1
88440D - PULLEY ASSY, IDLE NO.2
88440-0K360

KUN25..PKN

AIR CONDITIONER-SINGLE AIR CONDITIONER

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-0K680

KUN25..PKN

AIR CONDITIONER-SINGLE AIR CONDITIONER

 1
Common parts
90105-T0066
90105-T0125
90119-T0232
Linked diagrams
1601
