Toyota Hilux KUN25 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
HILUX
KUN25R-PRPDHP (2012)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

KUN25R-PRPDHP (2012)

Toyota Hilux

Production Feb 2012 - Sep 2016

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1202- )PKN

Click highlighted areas on diagram

MANUAL HEATER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0K380	KUN25..PKN AIR CONDITIONER-SINGLE AIR CONDITIONER	02/2012 - 09/2016	1
87050-0K290	KUN15,25..PKN	02/2012 - 09/2016	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K112	KUN1#,2#,3#,TGN10,16..IDN,PKN,TH	07/2011 - 09/2016	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K020	KUN15,25..PKN	02/2012 - 09/2016	1
87130D - BLOWER ASSY
87130-0K190	KUN15,25..PKN	02/2012 - 09/2016	1
87138C - RESISTOR, BLOWER
87138-0K090	KUN15,16,35,TGN16..RHD;KUN26..RHD..(GEN,MA,TH);KUN26,36,TGN36..(SCB,XTR)..SA;KUN25,36..RHD..(GEN,IDN,PKN,TH);GGN15,25,KUN10,26,LAN15,25,35,TGN10,15,26..RHD..(DLX,STD)	07/2011 - 09/2016	1
87139C - FILTER, CLEAN AIR
87139-06080	KUN26..MA,PHL,TH;KUN1#,25,3#,TGN10,16..IDN,PHL,PKN,TH STANDARD	07/2011 - 09/2016	1
87139-50100	KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF	07/2011 - 12/2999	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0K270	KUN16,2#,3#..RHD..(DCB,SCB,SMT)..(4FC,5FC)..(ARL,GEN,IDN,PKN,TH)	07/2011 - 09/2016	1
88548B - CASE, AIR FILTER
88548-0K010	KUN25..RHD..(GEN,IDN,PKN,TH);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN10,15,16,26,36..RHD	07/2011 - 09/2016	1
Common parts
90119-T0209
90119-T0294
90159-T0005
90178-T0065
90480-26022
Linked diagrams
5355
8715

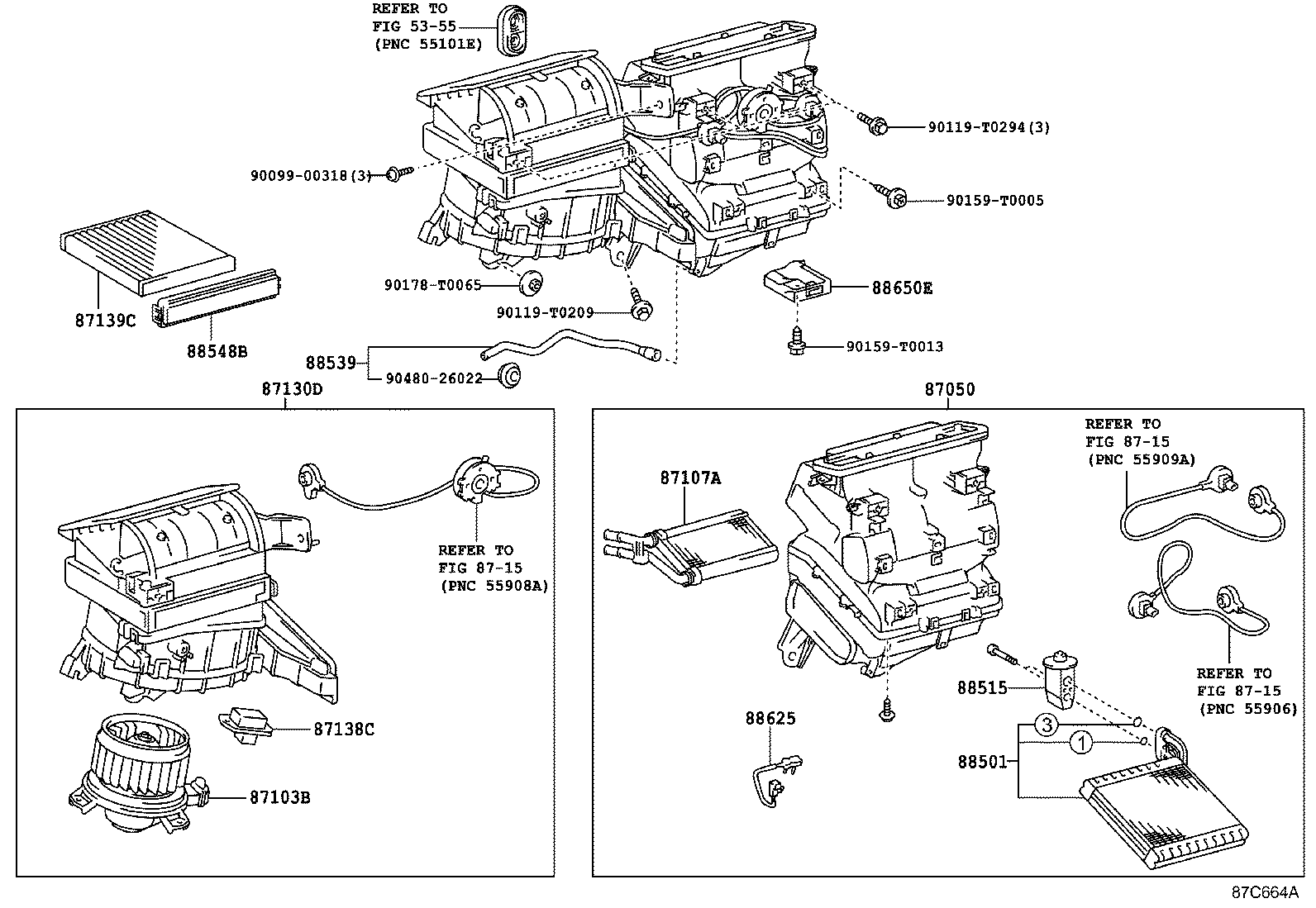

ILLUST NO. 1 OF 2(1202- )KUN25..PKN

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0K380	KUN25..PKN AIR CONDITIONER-SINGLE AIR CONDITIONER	02/2012 - 09/2016	1
87050-0K290	KUN15,25..PKN	02/2012 - 09/2016	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K112	KUN1#,2#,3#,TGN10,16..IDN,PKN,TH	07/2011 - 09/2016	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K020	KUN15,25..PKN	02/2012 - 09/2016	1
87130D - BLOWER ASSY
87130-0K190	KUN15,25..PKN	02/2012 - 09/2016	1
87138C - RESISTOR, BLOWER
87138-0K090	KUN15,16,35,TGN16..RHD;KUN26..RHD..(GEN,MA,TH);KUN26,36,TGN36..(SCB,XTR)..SA;KUN25,36..RHD..(GEN,IDN,PKN,TH);GGN15,25,KUN10,26,LAN15,25,35,TGN10,15,26..RHD..(DLX,STD)	07/2011 - 09/2016	1
87139C - FILTER, CLEAN AIR
87139-06080	KUN26..MA,PHL,TH;KUN1#,25,3#,TGN10,16..IDN,PHL,PKN,TH STANDARD	07/2011 - 09/2016	1
87139-50100	KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF	07/2011 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K090	KUN25..5F..PKN;KUN25..RHD..4FC..DLX;KUN15,25..LHD..(SCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER	07/2011 - 04/2015	1
88501-0K091	KUN25..PKN AIR CONDITIONER-SINGLE AIR CONDITIONER	05/2015 - 09/2016	1
88515 - VALVE, COOLER EXPANSION
88515-0K100	KUN25..5F..PKN;KUN25..RHD..4FC..DLX AIR CONDITIONER-SINGLE AIR CONDITIONER	02/2012 - 09/2016	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0K270	KUN16,2#,3#..RHD..(DCB,SCB,SMT)..(4FC,5FC)..(ARL,GEN,IDN,PKN,TH)	07/2011 - 09/2016	1
88548B - CASE, AIR FILTER
88548-0K010	KUN25..RHD..(GEN,IDN,PKN,TH);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN10,15,16,26,36..RHD	07/2011 - 09/2016	1
88625 - THERMISTOR, COOLER, NO.1
88620-02110	KUN25..5F..PKN;KUN25..RHD..4FC..DLX;KUN15,25..LHD..(SCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER	07/2011 - 09/2016	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-0K120	KUN25..PKN FRONT HEATER-WITH(EVAPORATOR)&AIR CONDITIONER-SINGLE AIR CONDITIONER	02/2012 - 09/2016	1
Common parts
90099-00318
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355
8715

KUN25R-PRPDHP (2012)

ILLUST NO. 1 OF 2(1202- )PKN

ILLUST NO. 1 OF 2(1202- )KUN25..PKN
