KUN25R-PRMSHT (2008)
Toyota Hilux
(0910-1008)1KDFTV..KUN26..GEN ; (0910- )2KDFTV..KUN25..THDCB,THSCB ; (1008- )
CHILE SPEC

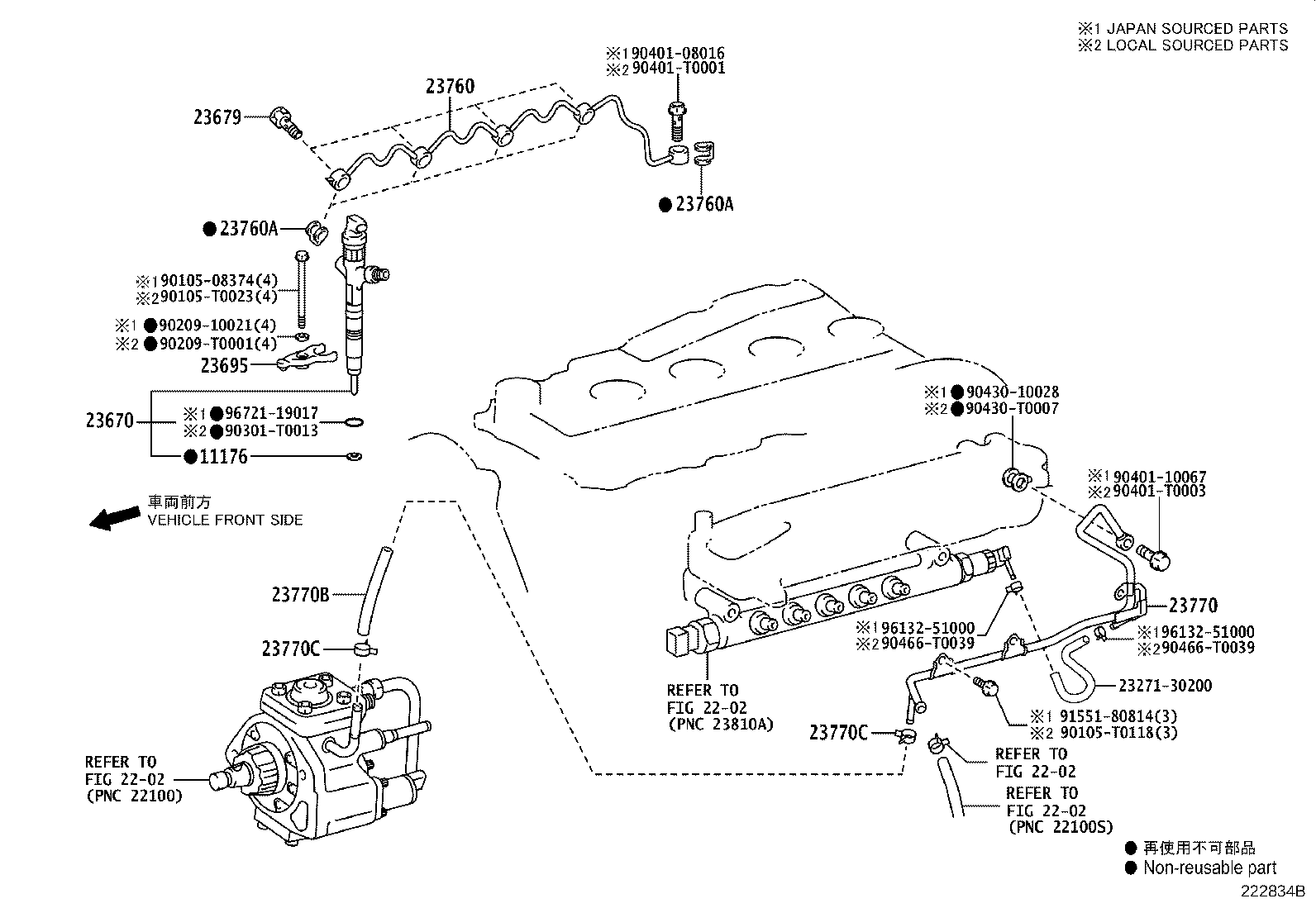

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,XTR)..(ANCOM,GCC,GEN,LA,MA,PHL,TH) *130 |
4 | ||
| 11176-30011 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 11176-0L011 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,XTR)..(ANCOM,GCC,GEN,LA,MA,PHL,TH) *130 |
4 | ||
| 11176-30011 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 11176-0L011 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,XTR)..(ANCOM,GCC,GEN,LA,MA,PHL,TH) *130 |
4 | ||
| 11176-30011 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 11176-0L011 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,XTR)..(ANCOM,GCC,GEN,LA,MA,PHL,TH) *130 |
4 | ||
| 11176-30011 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 11176-0L011 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09060 |
2KDFTV..KUN10,15,25,35 |
4 | ||
| 23670-09061 |
2KDFTV..KUN10,15,25,35..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,MA,PHL,TH) *130 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *130 |
4 | ||
| 23670-39236 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09060 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09060 |
2KDFTV..KUN10,15,25,35 |
4 | ||
| 23670-09061 |
2KDFTV..KUN10,15,25,35..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,MA,PHL,TH) *130 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *130 |
4 | ||
| 23670-39236 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09060 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09060 |
2KDFTV..KUN10,15,25,35 |
4 | ||
| 23670-09061 |
2KDFTV..KUN10,15,25,35..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,MA,PHL,TH) *130 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *130 |
4 | ||
| 23670-39236 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09060 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09060 |
2KDFTV..KUN10,15,25,35 |
4 | ||
| 23670-09061 |
2KDFTV..KUN10,15,25,35..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,MA,PHL,TH) *130 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *130 |
4 | ||
| 23670-39236 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09060 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23679 - SCREW, INJECTOR FOLLOW | ||||
| 23679-30020 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23679-0L010 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
4 | ||
| 23679-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-30011 |
1KDFTV,2KDFTV..KUN1#,2#,3#..GCC,GEN,IDN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23695-30010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..GCC,GEN,PHL,TH *163 OR *184 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH *130 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH |
4 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23760-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 23760-30020 |
2KDFTV..KUN25..TH *163 OR *184 |
1 | ||
| 23760-0L010 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
1 | ||
| 23760A - GASKET | ||||
| 90430-T0008 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
5 | ||
| 90904-30013 |
2KDFTV..KUN25..TH *163 OR *184 |
5 | ||
| 90430-T0008 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
5 | ||
| 23760A - GASKET | ||||
| 90430-T0008 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
5 | ||
| 90904-30013 |
2KDFTV..KUN25..TH *163 OR *184 |
5 | ||
| 90430-T0008 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
5 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23770-30060 |
2KDFTV..KUN25..TH *163 OR *184 |
1 | ||
| 23770-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
1 | ||
| 23770-0L030 |
2KDFTV..KUN25,35..SR..TH |
1 | ||
| 23770-0L020 |
2KDFTV..KUN25..TH *130 |
1 | ||
| 23770B - HOSE, FUEL | ||||
| 95333-06020 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,XTR)..(ANCOM,GCC,GEN,LA,MA,PHL,TH) *H,L=200,*130 |
1 | ||
| 95337-06020 |
1KDFTV..KUN16,26..ARL;2KDFTV..KUN25,35..SR..TH L=200 |
1 | ||
| 95337-06020 |
2KDFTV..KUN25..TH L=200,*163 OR *184,*130 |
1 | ||
| 23273-30180 |
2KDFTV..KUN25..TH L=200 |
1 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 90466-T0043 |
2KDFTV..KUN25..TH *130 |
2 | ||
| 96135-51100 |
2KDFTV..KUN25..TH *163 OR *184 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25,35..SR..TH |
2 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 90466-T0043 |
2KDFTV..KUN25..TH *130 |
2 | ||
| 96135-51100 |
2KDFTV..KUN25..TH *163 OR *184 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25,35..SR..TH |
2 | ||
| Common parts | ||||
| 23271-30200 | ||||
| 90105-08374 | ||||
| 90209-10021 | ||||
| 90401-08016 | ||||
| 90401-10067 | ||||
| 90430-10028 | ||||
| 91551-80814 | ||||
| 96132-51000 | ||||
| 96721-19017 | ||||
| Linked diagrams | ||||
| 2202 | ||||
(0908- )2KDFTV..KUN35..DLX ; (0908- )2KDFTV..KUN35..SR..PHL,SA ; (0908- )2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,XTR)..(ANCOM,GCC,GEN,LA,MA,PHL,TH) *130 |
4 | ||
| 11176-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,XTR)..(ANCOM,GCC,GEN,LA,MA,PHL,TH) *130 |
4 | ||
| 11176-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,XTR)..(ANCOM,GCC,GEN,LA,MA,PHL,TH) *130 |
4 | ||
| 11176-30011 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 11176-30011 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 11176-30011 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 11176-0L011 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
4 | ||
| 11176-0L011 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
4 | ||
| 11176-0L011 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09060 |
2KDFTV..KUN10,15,25,35 |
4 | ||
| 23670-09060 |
2KDFTV..KUN10,15,25,35 |
4 | ||
| 23670-09060 |
2KDFTV..KUN10,15,25,35 |
4 | ||
| 23670-09061 |
2KDFTV..KUN10,15,25,35..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,MA,PHL,TH) *130 |
4 | ||
| 23670-09061 |
2KDFTV..KUN10,15,25,35..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,MA,PHL,TH) *130 |
4 | ||
| 23670-09061 |
2KDFTV..KUN10,15,25,35..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,MA,PHL,TH) *130 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *130 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *130 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *130 |
4 | ||
| 23670-39236 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-39236 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-39236 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09060 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09060 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09060 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23679 - SCREW, INJECTOR FOLLOW | ||||
| 23679-30020 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23679-30020 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23679-30020 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23679-0L010 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
4 | ||
| 23679-0L010 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
4 | ||
| 23679-0L010 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
4 | ||
| 23679-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
4 | ||
| 23679-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
4 | ||
| 23679-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-30011 |
1KDFTV,2KDFTV..KUN1#,2#,3#..GCC,GEN,IDN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23695-30011 |
1KDFTV,2KDFTV..KUN1#,2#,3#..GCC,GEN,IDN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23695-30011 |
1KDFTV,2KDFTV..KUN1#,2#,3#..GCC,GEN,IDN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23695-30010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..GCC,GEN,PHL,TH *163 OR *184 |
4 | ||
| 23695-30010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..GCC,GEN,PHL,TH *163 OR *184 |
4 | ||
| 23695-30010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..GCC,GEN,PHL,TH *163 OR *184 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH *130 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH *130 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH *130 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH |
4 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23760-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 23760-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 23760-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 23760-30020 |
2KDFTV..KUN25..TH *163 OR *184 |
1 | ||
| 23760-30020 |
2KDFTV..KUN25..TH *163 OR *184 |
1 | ||
| 23760-30020 |
2KDFTV..KUN25..TH *163 OR *184 |
1 | ||
| 23760-0L010 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
1 | ||
| 23760-0L010 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
1 | ||
| 23760-0L010 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
1 | ||
| 23760A - GASKET | ||||
| 90430-T0008 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
5 | ||
| 90430-T0008 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
5 | ||
| 90430-T0008 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
5 | ||
| 90904-30013 |
2KDFTV..KUN25..TH *163 OR *184 |
5 | ||
| 90904-30013 |
2KDFTV..KUN25..TH *163 OR *184 |
5 | ||
| 90904-30013 |
2KDFTV..KUN25..TH *163 OR *184 |
5 | ||
| 90430-T0008 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
5 | ||
| 90430-T0008 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
5 | ||
| 90430-T0008 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
5 | ||
| 23760A - GASKET | ||||
| 90430-T0008 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
5 | ||
| 90430-T0008 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
5 | ||
| 90430-T0008 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
5 | ||
| 90904-30013 |
2KDFTV..KUN25..TH *163 OR *184 |
5 | ||
| 90904-30013 |
2KDFTV..KUN25..TH *163 OR *184 |
5 | ||
| 90904-30013 |
2KDFTV..KUN25..TH *163 OR *184 |
5 | ||
| 90430-T0008 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
5 | ||
| 90430-T0008 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
5 | ||
| 90430-T0008 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
5 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23770-30060 |
2KDFTV..KUN25..TH *163 OR *184 |
1 | ||
| 23770-30060 |
2KDFTV..KUN25..TH *163 OR *184 |
1 | ||
| 23770-30060 |
2KDFTV..KUN25..TH *163 OR *184 |
1 | ||
| 23770-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
1 | ||
| 23770-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
1 | ||
| 23770-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
1 | ||
| 23770-0L030 |
2KDFTV..KUN25,35..SR..TH |
1 | ||
| 23770-0L030 |
2KDFTV..KUN25,35..SR..TH |
1 | ||
| 23770-0L030 |
2KDFTV..KUN25,35..SR..TH |
1 | ||
| 23770-0L020 |
2KDFTV..KUN25..TH *130 |
1 | ||
| 23770-0L020 |
2KDFTV..KUN25..TH *130 |
1 | ||
| 23770-0L020 |
2KDFTV..KUN25..TH *130 |
1 | ||
| 23770B - HOSE, FUEL | ||||
| 95333-06020 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,XTR)..(ANCOM,GCC,GEN,LA,MA,PHL,TH) *H,L=200,*130 |
1 | ||
| 95333-06020 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,XTR)..(ANCOM,GCC,GEN,LA,MA,PHL,TH) *H,L=200,*130 |
1 | ||
| 95333-06020 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,XTR)..(ANCOM,GCC,GEN,LA,MA,PHL,TH) *H,L=200,*130 |
1 | ||
| 95337-06020 |
1KDFTV..KUN16,26..ARL;2KDFTV..KUN25,35..SR..TH L=200 |
1 | ||
| 95337-06020 |
1KDFTV..KUN16,26..ARL;2KDFTV..KUN25,35..SR..TH L=200 |
1 | ||
| 95337-06020 |
1KDFTV..KUN16,26..ARL;2KDFTV..KUN25,35..SR..TH L=200 |
1 | ||
| 95337-06020 |
2KDFTV..KUN25..TH L=200,*163 OR *184,*130 |
1 | ||
| 95337-06020 |
2KDFTV..KUN25..TH L=200,*163 OR *184,*130 |
1 | ||
| 95337-06020 |
2KDFTV..KUN25..TH L=200,*163 OR *184,*130 |
1 | ||
| 23273-30180 |
2KDFTV..KUN25..TH L=200 |
1 | ||
| 23273-30180 |
2KDFTV..KUN25..TH L=200 |
1 | ||
| 23273-30180 |
2KDFTV..KUN25..TH L=200 |
1 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 90466-T0043 |
2KDFTV..KUN25..TH *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..TH *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..TH *130 |
2 | ||
| 96135-51100 |
2KDFTV..KUN25..TH *163 OR *184 |
2 | ||
| 96135-51100 |
2KDFTV..KUN25..TH *163 OR *184 |
2 | ||
| 96135-51100 |
2KDFTV..KUN25..TH *163 OR *184 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25,35..SR..TH |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25,35..SR..TH |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25,35..SR..TH |
2 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 90466-T0043 |
2KDFTV..KUN25..TH *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..TH *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..TH *130 |
2 | ||
| 96135-51100 |
2KDFTV..KUN25..TH *163 OR *184 |
2 | ||
| 96135-51100 |
2KDFTV..KUN25..TH *163 OR *184 |
2 | ||
| 96135-51100 |
2KDFTV..KUN25..TH *163 OR *184 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25,35..SR..TH |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25,35..SR..TH |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25,35..SR..TH |
2 | ||
| Common parts | ||||
| 23271-30290 | ||||
| 90105-08374 | ||||
| 90105-T0023 | ||||
| 90105-T0118 | ||||
| 90209-10021 | ||||
| 90209-T0001 | ||||
| 90301-T0013 | ||||
| 90401-08016 | ||||
| 90401-10067 | ||||
| 90401-T0001 | ||||
| 90401-T0003 | ||||
| 90430-10028 | ||||
| 90430-T0007 | ||||
| 90466-T0039 | ||||
| 91551-80814 | ||||
| 95337-04016 | ||||
| 96132-51000 | ||||
| 96721-19017 | ||||
| Linked diagrams | ||||
| 2202 | ||||
(0908- )2KDFTV..KUN25,35..SR..TH ; (1008-)1KDFTV..KUN26..THDCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,XTR)..(ANCOM,GCC,GEN,LA,MA,PHL,TH) *130 |
4 | ||
| 11176-30011 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 11176-0L011 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09060 |
2KDFTV..KUN10,15,25,35 |
4 | ||
| 23670-09061 |
2KDFTV..KUN10,15,25,35..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,MA,PHL,TH) *130 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *130 |
4 | ||
| 23670-39236 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09060 |
2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23670-09360 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23679 - SCREW, INJECTOR FOLLOW | ||||
| 23679-30020 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23679-0L010 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
4 | ||
| 23679-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-30011 |
1KDFTV,2KDFTV..KUN1#,2#,3#..GCC,GEN,IDN,MA,PHL,SA,TH *163 OR *184 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH *163 OR *184 |
4 | ||
| 23695-30010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..GCC,GEN,PHL,TH *163 OR *184 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH *130 |
4 | ||
| 23695-0L010 |
2KDFTV..KUN25..TH |
4 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23760-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 23760-30020 |
2KDFTV..KUN25..TH *163 OR *184 |
1 | ||
| 23760-0L010 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
1 | ||
| 23760A - GASKET | ||||
| 90430-T0008 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
5 | ||
| 90904-30013 |
2KDFTV..KUN25..TH *163 OR *184 |
5 | ||
| 90430-T0008 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
5 | ||
| 23760A - GASKET | ||||
| 90430-T0008 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
5 | ||
| 90904-30013 |
2KDFTV..KUN25..TH *163 OR *184 |
5 | ||
| 90430-T0008 |
1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH) *130 |
5 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23770-30060 |
2KDFTV..KUN25..TH *163 OR *184 |
1 | ||
| 23770-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
1 | ||
| 23770-0L030 |
2KDFTV..KUN25,35..SR..TH |
1 | ||
| 23770-0L020 |
2KDFTV..KUN25..TH *130 |
1 | ||
| 23770B - HOSE, FUEL | ||||
| 95333-06020 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,XTR)..(ANCOM,GCC,GEN,LA,MA,PHL,TH) *H,L=200,*130 |
1 | ||
| 95337-06020 |
1KDFTV..KUN16,26..ARL;2KDFTV..KUN25,35..SR..TH L=200 |
1 | ||
| 95337-06020 |
2KDFTV..KUN25..TH L=200,*163 OR *184,*130 |
1 | ||
| 23273-30180 |
2KDFTV..KUN25..TH L=200 |
1 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 90466-T0043 |
2KDFTV..KUN25..TH *130 |
2 | ||
| 96135-51100 |
2KDFTV..KUN25..TH *163 OR *184 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25,35..SR..TH |
2 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 90466-T0043 |
2KDFTV..KUN25..TH *130 |
2 | ||
| 96135-51100 |
2KDFTV..KUN25..TH *163 OR *184 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
2 | ||
| 90466-T0043 |
2KDFTV..KUN25,35..SR..TH |
2 | ||
| Common parts | ||||
| 23271-30200 | ||||
| 90105-08374 | ||||
| 90105-T0023 | ||||
| 90105-T0118 | ||||
| 90209-10021 | ||||
| 90209-T0001 | ||||
| 90301-T0013 | ||||
| 90401-08016 | ||||
| 90401-10067 | ||||
| 90401-T0001 | ||||
| 90401-T0003 | ||||
| 90430-10028 | ||||
| 90430-T0007 | ||||
| 90466-T0039 | ||||
| 91551-80814 | ||||
| 96132-51000 | ||||
| 96721-19017 | ||||
| Linked diagrams | ||||
| 2202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
