KUN25L-TRMDHN (2008)
Toyota Hilux

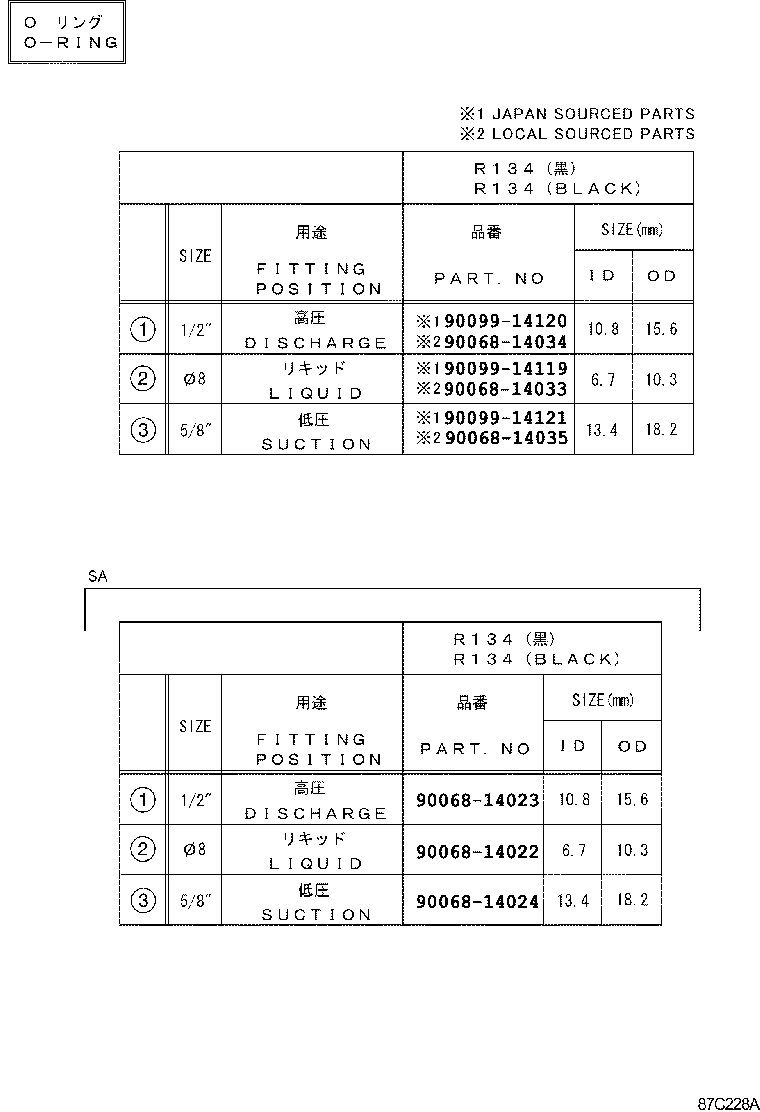

ILLUST NO. 2 OF 2(0408- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14033 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

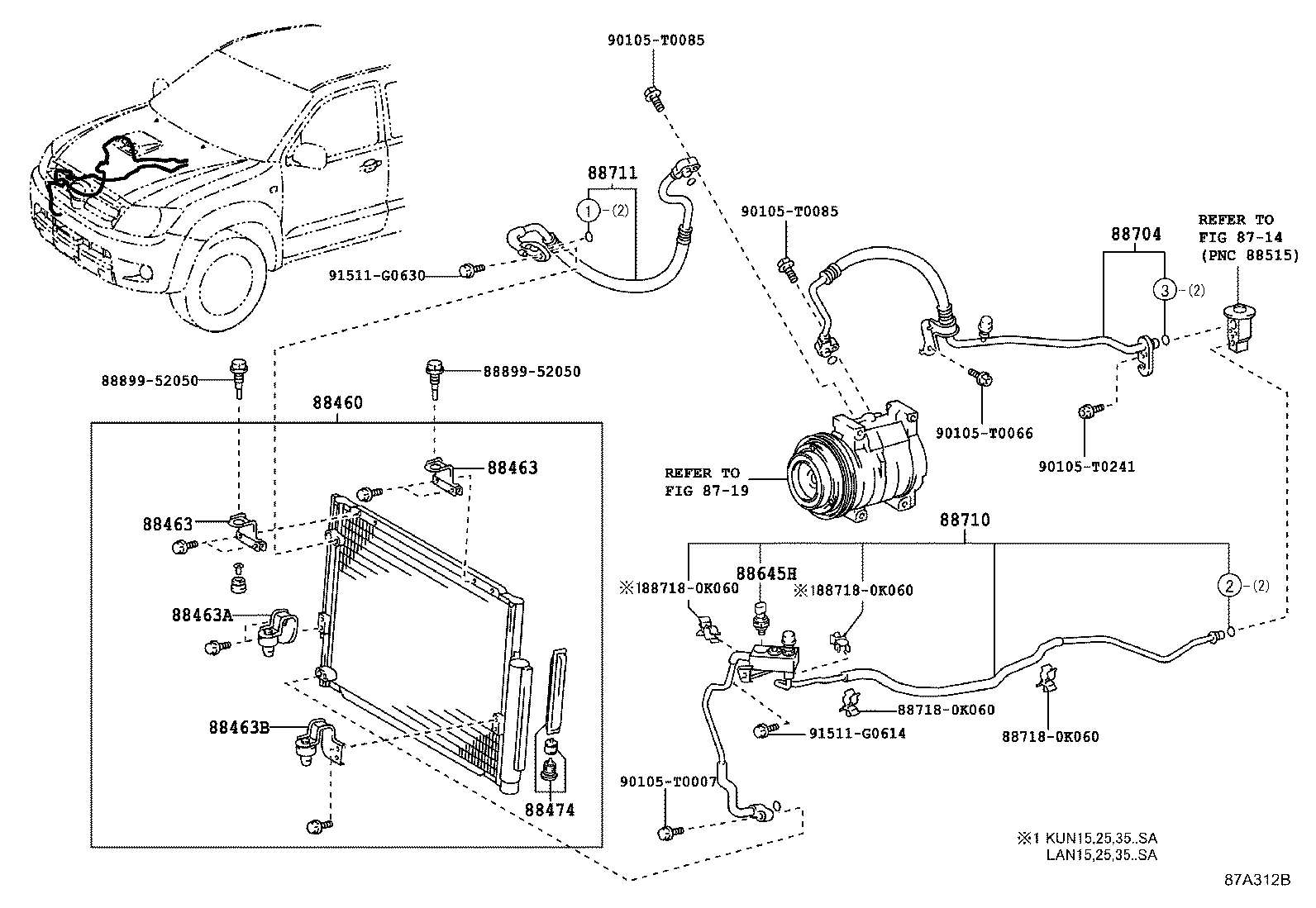

ILLUST NO. 1 OF 2(0408- )KUN10,16,25..ANCOM,ARL,GCC,GEN,LA,MA,SA,TH ; (0408- )KUN15..DCB,SCB,X
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K080 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K080 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K080 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K200 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K200 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K200 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K210 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K210 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K210 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-02220 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
KUN35..ANCOM;TGN36..5F..DLX;TGN26..SR..ANCOM;KUN35..SCB..LA..CBU;TGN36..4FC..DLX..LA;KUN35..DCB..DLX..(LA,SA);KUN15,2#,36,LAN15,25,35,TGN15,16,26..DLX..(ANCOM,LA,SA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88645-34010 |
KUN35..ANCOM;TGN36..5F..DLX;TGN26..SR..ANCOM;KUN35..SCB..LA..CBU;TGN36..4FC..DLX..LA;KUN35..DCB..DLX..(LA,SA);KUN15,2#,36,LAN15,25,35,TGN15,16,26..DLX..(ANCOM,LA,SA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88645-34010 |
KUN35..ANCOM;TGN36..5F..DLX;TGN26..SR..ANCOM;KUN35..SCB..LA..CBU;TGN36..4FC..DLX..LA;KUN35..DCB..DLX..(LA,SA);KUN15,2#,36,LAN15,25,35,TGN15,16,26..DLX..(ANCOM,LA,SA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K010 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K010 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K010 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K190 |
KUN15,25..DLX..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K190 |
KUN15,25..DLX..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K190 |
KUN15,25..DLX..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K010 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K010 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K010 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K010 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K010 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K010 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K090 |
KUN15,25..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K090 |
KUN15,25..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K090 |
KUN15,25..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K011 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K011 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K011 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K091 |
KUN15,25..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K091 |
KUN15,25..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K091 |
KUN15,25..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K012 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K012 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K012 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K092 |
KUN15,25..DLX..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K092 |
KUN15,25..DLX..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K092 |
KUN15,25..DLX..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88688-0K340 | ||||
| 88718-0K060 | ||||
| 88718-0KB20 | ||||
| 88899-52050 | ||||
| 90091-40617 | ||||
| 90091-40620 | ||||
| 90179-06274 | ||||
| 91511-60630 | ||||
| 91551-80625 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(0810- )KUN15,2#,3#,LAN15,25,35..DCB,SCB..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K080 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K200 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K210 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-02220 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
KUN35..ANCOM;TGN36..5F..DLX;TGN26..SR..ANCOM;KUN35..SCB..LA..CBU;TGN36..4FC..DLX..LA;KUN35..DCB..DLX..(LA,SA);KUN15,2#,36,LAN15,25,35,TGN15,16,26..DLX..(ANCOM,LA,SA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K010 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K190 |
KUN15,25..DLX..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K010 |
KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K010 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K090 |
KUN15,25..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K011 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K091 |
KUN15,25..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K012 |
LAN15,25,35..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88711-0K092 |
KUN15,25..DLX..SA;KUN35..DCB..DLX..SA AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88718-0K060 | ||||
| 88899-52050 | ||||
| 90105-T0007 | ||||
| 90105-T0066 | ||||
| 90105-T0085 | ||||
| 90105-T0241 | ||||
| 91511-G0614 | ||||
| 91511-G0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(1107- )KUN25..SCB..GEN,LA,MA,SA ; (1107-)KUN25..DCB,SMT,THDCB,THSCB,XTR ; (
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14033 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
