KUN25L-TRMDHG (2005)

Toyota Hilux

Production Feb 2005 - Oct 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

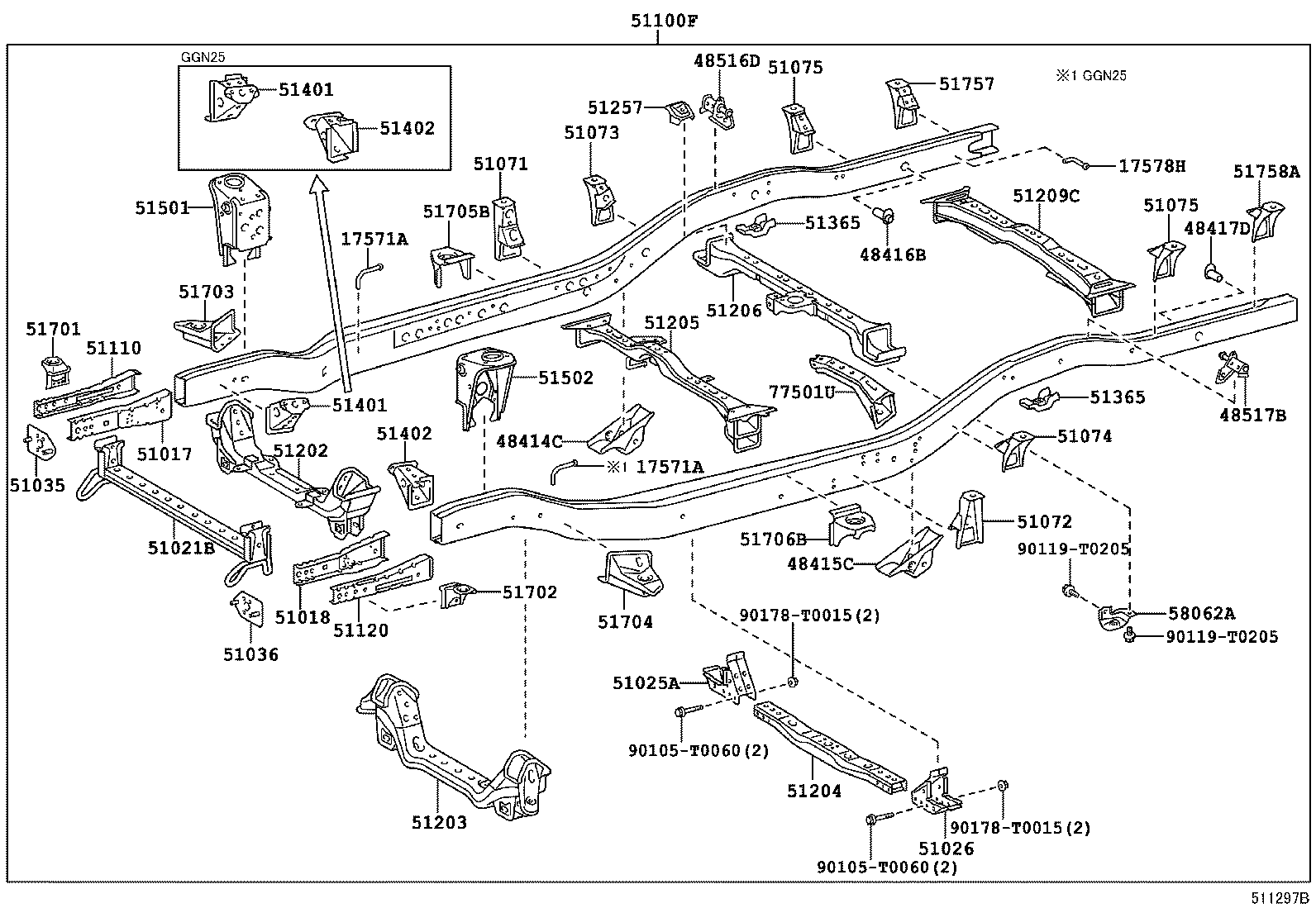

ILLUST NO. 1 OF 2(0502- )GGN25,KUN2#,3#,LAN25,TGN26,36..SCB,THSCB

Click highlighted areas on diagram

diagram 17571A 17571A 17578H 48414C 48415C 48416B 48417D 48516D 48517B 51017 51018 51021B 51025A 51026 51035 51036 51071 51072 51073 51074 51075 51075 51100F 51110 51120 51202 51203 51204 51205 51206 51209C 51257 51365 51365 51401 51401 51402 51402 51501 51502 51701 51702 51703 51704 51705B 51706B 51757 51758A 58062A 77501U 90105T0060 90105T0060 90119T0205 90119T0205 90178T0015 90178T0015
Part # Description Qty Price
17571A - BRACKET, EXHAUST PIPE SUPPORT, NO.9
17571-0L010

1KDFTV..KUN16..4FC;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1KDFTV..KUN16..SCB,SMT,XTR;2TRFE..TGN16..ARL,GCC,SA,TH;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);2KDFTV,2TRFE..KUN15,TGN16..XTR..DLX;2KDFTV,1TRFE..KUN15,TGN10..(DCB,SCB,SMT)..(GCC,GEN,IDN,PHL,SA,TH);1KDFTV,1TRFE,2TRFE..KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;1KDFTV,2KDFTV,5LE,2TRFE..KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
17571-0L010

2TRFE..TGN36..SCB;1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;2TRFE..TGN26,36..DCB..5F..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA);1KDFTV,1TRFE..KUN16,TGN15..DCB,SCB;2TRFE..TGN16..5F..(ARL,GCC,GEN,SA);1KDFTV,2TRFE..KUN16,36,TGN16..XTR..TH;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN10,36,LAN15,25,35,TGN10,11..(DCB,SCB)..5F..CBU

 1
17571A - BRACKET, EXHAUST PIPE SUPPORT, NO.9
17571-0L010

1KDFTV..KUN16..4FC;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1KDFTV..KUN16..SCB,SMT,XTR;2TRFE..TGN16..ARL,GCC,SA,TH;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);2KDFTV,2TRFE..KUN15,TGN16..XTR..DLX;2KDFTV,1TRFE..KUN15,TGN10..(DCB,SCB,SMT)..(GCC,GEN,IDN,PHL,SA,TH);1KDFTV,1TRFE,2TRFE..KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;1KDFTV,2KDFTV,5LE,2TRFE..KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
17571-0L010

2TRFE..TGN36..SCB;1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;2TRFE..TGN26,36..DCB..5F..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA);1KDFTV,1TRFE..KUN16,TGN15..DCB,SCB;2TRFE..TGN16..5F..(ARL,GCC,GEN,SA);1KDFTV,2TRFE..KUN16,36,TGN16..XTR..TH;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN10,36,LAN15,25,35,TGN10,11..(DCB,SCB)..5F..CBU

 1
17578H - BRACKET, EXHAUST PIPE SUPPORT, NO.10
17505-0L010

2TRFE..TGN36..SCB;1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25..(DCB,XTR)..SR;2TRFE..TGN26,36..DCB..5F..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA);1KDFTV,2TRFE..KUN16,36,TGN16..XTR..TH;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);1KDFTV,1TRFE..KUN16,TGN10..(DCB,SCB)..(DLX,SR);1GRFE,2KDFTV,5LE,1TRFE,2TRFE..GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
17505-0L010

1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;2TRFE..TGN16..ARL,GCC,SA,TH;1GRFE..GGN25..DCB..(ANCOM,ARL,LA);2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);2KDFTV,2TRFE..KUN15,TGN16..XTR..DLX;1GRFE,1KDFTV..GGN15,KUN16..DCB..(4FC,5FC)..SR;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1GRFE,1KDFTV,1TRFE..GGN15,KUN16,TGN10..SCB,SMT,XTR;1KDFTV,1TRFE,2TRFE..KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;1GRFE,1KDFTV,2KDFTV,5LE,2TRFE..GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
48414C - BRACKET, SPRING, NO.3 RH
48404-0K020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
48404-0K020

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
48415C - BRACKET, SPRING, NO.3 LH
48407-0K020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
48407-0K020

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
48416B - BRACKET, SPRING, NO.4 RH
48405-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
48405-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
48417D - BRACKET, SPRING, NO.4 LH
48405-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
48405-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
48505-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
48505-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-0K020

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
51017-0K020

KUN35..DLX;TGN36..SCB;KUN25..SR..MA;KUN26..4FC..TH;KUN26..DCB..5F..SA;KUN26..ARL,GEN,LA,PHL;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;KUN2#..(SCB,XTR)..(MA,TH);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-0K020

KUN35..DLX;TGN36..SCB;KUN25..SR..MA;KUN26..4FC..TH;KUN26..DCB..5F..SA;KUN26..ARL,GEN,LA,PHL;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;KUN2#..(SCB,XTR)..(MA,TH);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA

 1
51018-0K020

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51021-0K020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
51021-0K020

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH
51025-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH
51026-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51035-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
51035-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51036-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
51036-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51071-0K020

TGN36..SCB..CBU;TGN36..ANCOM..IV3;TGN26..SCB..(GCC,LA);TGN26..SCB..ANCOM..CBU;GGN15,25,KUN15,16,2#,3#,LAN15,25,TGN15,16..(SCB,THSCB)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,SA,TH)

 1
51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51071-0K020

TGN36..SCB..CBU;TGN36..ANCOM..IV3;TGN26..SCB..(GCC,LA);TGN26..SCB..ANCOM..CBU;GGN15,25,KUN15,16,2#,3#,LAN15,25,TGN15,16..(SCB,THSCB)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,SA,TH)

 1
51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51073-0K010

TGN36..ANCOM..IV3;TGN15,36..SCB..CBU;TGN26..SCB..(GCC,LA);KUN15,TGN16..XTR..DLX;TGN26..SCB..ANCOM..CBU;TGN16..(SCB,SMT)..(ARL,GCC,SA,TH);KUN15..(SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,KUN10,16,2#,3#,LAN15,25,TGN10,11..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,LA,MA,SA,TH)

 1
51073-0K010

KUN15..SCB..SA;KUN16,TGN16..(SCB,XTR)..SR;KUN16,36,TGN10..SCB..(DLX,SR);TGN26..(SCB,XTR)..(ANCOM,GCC,SA,TH);TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN,SA);KUN15,26,36..(SCB,XTR)..(ARL,GCC,GEN,PKN,TH);GGN15,25,KUN10,25,35,LAN15,25,TGN11,15,36..SCB,THSCB,XTR

 1
51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51074-0K010

TGN36..ANCOM..IV3;TGN15,36..SCB..CBU;TGN26..SCB..(GCC,LA);KUN15,TGN16..XTR..DLX;TGN26..SCB..ANCOM..CBU;TGN16..(SCB,SMT)..(ARL,GCC,SA,TH);KUN15..(SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,KUN10,16,2#,3#,LAN15,25,TGN10,11..(SCB,SMT,THSCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,LA,MA,SA,TH)

 1
51074-0K010

KUN15..SCB..SA;KUN16,TGN16..(SCB,XTR)..SR;KUN16,36,TGN10..SCB..(DLX,SR);TGN26..(SCB,XTR)..(ANCOM,GCC,SA,TH);TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN,SA);KUN15,26,36..(SCB,XTR)..(ARL,GCC,GEN,PKN,TH);GGN15,25,KUN10,25,35,LAN15,25,TGN11,15,36..SCB,THSCB,XTR

 1
51075 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.3 RH
51075-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 2
51075-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 2
51075 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.3 RH
51075-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 2
51075-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 2
51100F - FRAME SUB-ASSY
51001-0K310

KUN25..SCB..LA

 1
51001-0K311

KUN25..SCB..LA

 1
51001-0K312

KUN25..(SCB,THSCB)..(GEN,LA,MA)

 1
51110 - EXTENSION ASSY, SIDE RAIL, RH
51110-0K020

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
51110-0K020

KUN35..DLX;TGN36..SCB;KUN25..SR..MA;KUN26..4FC..TH;KUN26..DCB..5F..SA;KUN26..ARL,GEN,LA,PHL;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;KUN2#..(SCB,XTR)..(MA,TH);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA

 1
51120 - EXTENSION ASSY, SIDE RAIL, LH
51120-0K020

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
51120-0K020

KUN35..DLX;TGN36..SCB;KUN25..SR..MA;KUN26..4FC..TH;KUN26..DCB..5F..SA;KUN26..ARL,GEN,LA,PHL;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;KUN2#..(SCB,XTR)..(MA,TH);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-0K020

KUN2#

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-0K020

KUN2#

 1
51202-0K030

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-0K020

KUN2#;GGN25..5FC

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-0K040

KUN2#,TGN26..LA

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-0K030

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
51205-0K030

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51209-0K010

TGN16..XTR;KUN26..THDCB;KUN25..SCB..MA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN15,TGN36..DCB..(ANCOM,PHL);KUN26,36..(DCB,XTR)..(LA,PHL,TH);GGN25,KUN15,16,LAN15,TGN15,26..(DCB,SCB,THDCB,XTR)..(ANCOM,GEN,PKN,TH);KUN25,35,TGN10,16,36..(DCB,SCB,THDCB,THSCB)..5F..DLX..(ANCOM,GEN,IDN,LA)

 1
51209-0K010

KUN16..4FC;TGN16..XTR;TGN26..GEN,LA;TGN36..LHD..CBU;TGN36..ANCOM..IV3;KUN16..(SCB,SMT)..CBU;TGN16,26..(ANCOM,TH)..CBU;KUN25,TGN10..ANCOM,GEN,IDN,LA,MA,PKN,TH;GGN25,KUN15,26,3#,TGN15..ANCOM,GEN,LA,PHL,TH

 1
51257 - REINFORCEMENT, FRAME NO.5 CROSSMEMBER, RH
51257-0K010

TGN36..SCB;KUN25..SR..MA;KUN26..ARL,LA,PHL;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(SCB,XTR)..(MA,TH);TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN26,TGN16..(DCB,XTR)..4FC..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN16,26,36..(THDCB,XTR)..(GEN,TH);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
51257-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
51365 - STOPPER, REAR BUMPER
57081-0K020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 2
57081-0K020

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 2
51365 - STOPPER, REAR BUMPER
57081-0K020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 2
57081-0K020

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 2
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-0K020

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
51401-0K020

KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-0K020

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
51401-0K020

KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-0K020

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
51402-0K020

KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-0K020

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
51402-0K020

KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-0K020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
51501-0K020

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-0K020

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
51502-0K020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-0K020

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
51701-0K020

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-0K020

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
51701-0K020

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
51703-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
51704-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51731-0K010

TGN36..ANCOM..IV3;TGN15,36..SCB..CBU;TGN26..SCB..(GCC,LA);TGN26..SCB..ANCOM..CBU;TGN16..SCB..(ARL,GCC,SA,TH);GGN15,KUN1#,2#,3#,LAN15,25,TGN10,11..(SCB,THSCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51731-0K010

TGN36..ANCOM..IV3;TGN15,36..SCB..CBU;TGN26..SCB..(GCC,LA);TGN26..SCB..ANCOM..CBU;TGN16..SCB..(ARL,GCC,SA,TH);GGN15,KUN1#,2#,3#,LAN15,25,TGN10,11..(SCB,THSCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
51757 - BRACKET, BODY SUPPORT, NO.4 RH
51077-0K011

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
51077-0K010

GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 1
51758A - BRACKET, BODY SUPPORT, NO.4 LH
51077-0K010

GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 1
51077-0K011

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
58062A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR
58062-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
58062-0K010

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
77501U - BRACKET SUB-ASSY, FUEL TANK
77501-0K020

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
77501-0K020

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
Common parts
90105-T0060
90119-T0205
90178-T0015

ILLUST NO. 1 OF 2(1107- )KUN2#,3#,LAN25,TGN26,36..SCB,THSCB

Click highlighted areas on diagram

diagram 17571A 17578H 48414C 48415C 48416B 48417D 48516D 48517B 51017 51018 51021B 51025A 51026 51035 51036 51071 51072 51073 51074 51075 51075 51100F 51110 51120 51202 51203 51204 51205 51206 51209C 51257 51365 51365 51401 51402 51501 51502 51701 51702 51703 51704 51705B 51706B 51757 51758A 58062A 77501U 90105T0060 90105T0060 90119T0205 90119T0205 90178T0015 90178T0015
Part # Description Qty Price
Common parts
90105-T0060
90119-T0205
90178-T0015
