Toyota Hilux KUN25 VANE PUMP & RESERVOIR (POWER STEERING)

Manufacturers Home
Toyota
GR
HILUX
KUN25L-TRMDHG (2005)
4502 - VANE PUMP & RESERVOIR (POWER STEERING)

KUN25L-TRMDHG (2005)

Toyota Hilux

Production Feb 2005 - Oct 2008

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

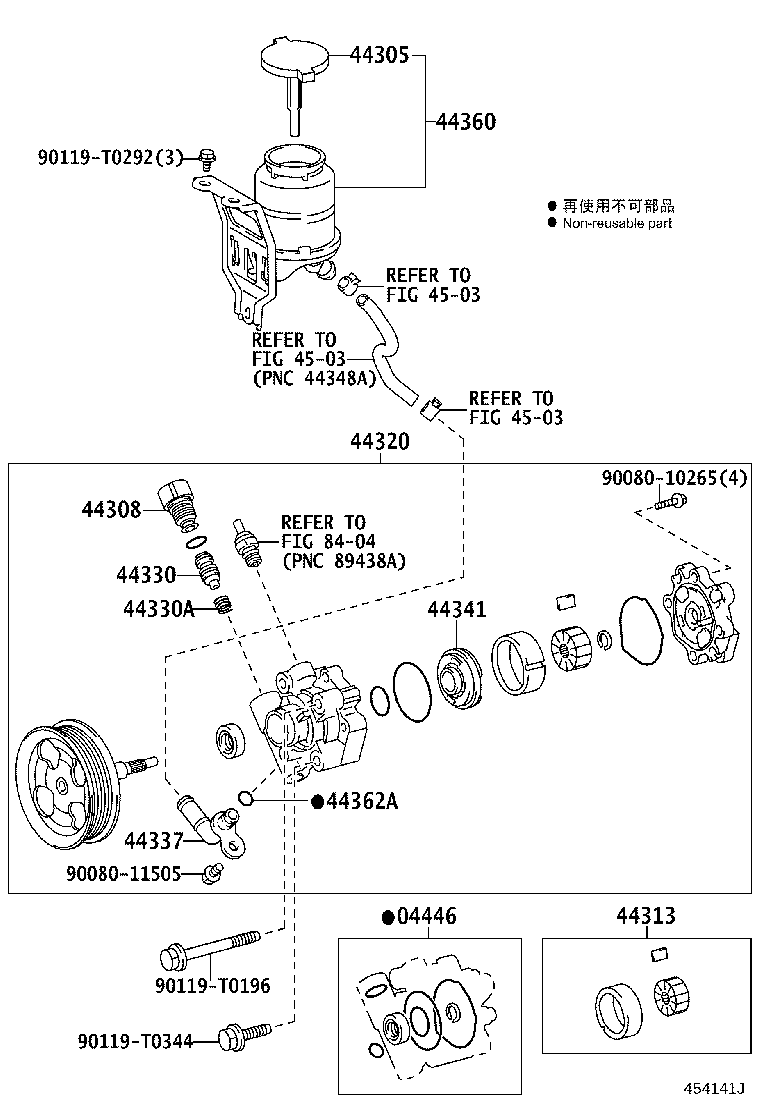

(0502- )GGN15,25,35

Click highlighted areas on diagram

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-0B040	KUN15..DCB;KUN10,16,2#,3#;KUN15..XTR..SR;KUN15..SCB..(GCC,GEN,SA)	08/2004 - 04/2008	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-0K020	KUN15..XTR..SR;KUN35..GEN,LA,SA;KUN15..SCB..(GCC,GEN,SA);GGN15,25,KUN10,16,2#,36,LAN15,25,35;KUN15,35..DCB..(ANCOM,GCC,GEN,PHL,TH)	08/2004 - 09/2007	1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-0K050	KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB,XTR)..5F;KUN25..ANCOM,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
44308-0K050	KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
44313 - ROTOR, VANE PUMP
44313-09010	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR);KUN25,TGN16..5F..(ANCOM,ARL,GCC,GEN,LA,SA)	08/2004 - 02/2012	1
44313-09010	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
44320 - PUMP ASSY, VANE
44310-0K040	KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB,XTR)..5F;KUN25..ANCOM,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
44310-0K040	KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
44330 - VALVE ASSY, FLOW CONTROL
44330-0K140	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR) MARK B	08/2004 - 02/2012	1
44330-0K130	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR) MARK A	08/2004 - 02/2012	1
44330-0K170	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR) MARK E	08/2004 - 02/2012	1
44330-0K160	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR) MARK D	08/2004 - 02/2012	1
44330-0K150	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR) MARK C	08/2004 - 02/2012	1
44330-0K180	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR) MARK F	08/2004 - 02/2012	1
44330-0K150	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH MARK C	08/2008 - 12/2999	1
44330-0K180	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH MARK F	08/2008 - 12/2999	1
44330-0K160	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH MARK D	08/2008 - 12/2999	1
44330-0K130	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH MARK A	08/2008 - 12/2999	1
44330-0K170	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH MARK E	08/2008 - 12/2999	1
44330-0K140	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH MARK B	08/2008 - 12/2999	1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-T0001	KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN25..ANCOM,GCC,GEN,LA,SA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN15,16,36,TGN16..XTR..SR..TH;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN36..SCB..(ANCOM,GCC,GEN,LA,PKN,SA);KUN15,TGN36..DCB..(ANCOM,GCC,GEN,PHL,SA,TH);GGN15,25,KUN10,TGN1#..(5F,5FC)..(DLX,SR)..(ANCOM,ARL,GCC,GEN,IDN,SA)	08/2004 - 02/2012	1
90501-T0001	TGN16..XTR;KUN15..DCB,SMT;GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH;KUN16,TGN10,15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,SA)..CBU	08/2008 - 12/2999	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-06060	GGN25..5FC..SA;KUN15..DCB,SMT;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN10,2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
44337-06060	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15,16,36..XTR..SR..TH;KUN25..ANCOM,GCC,GEN,LA,SA;KUN15..SCB..(GCC,GEN,PKN,SA);GGN15,25,KUN10..ANCOM,ARL,GCC,SA;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH)	08/2004 - 02/2012	1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-06010	KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN25..ANCOM,GCC,GEN,LA,SA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN15,16,36,TGN16..XTR..SR..TH;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN36..SCB..(ANCOM,GCC,GEN,LA,PKN,SA);KUN15,TGN36..DCB..(ANCOM,GCC,GEN,PHL,SA,TH);GGN15,25,KUN10,TGN1#..(5F,5FC)..(DLX,SR)..(ANCOM,ARL,GCC,GEN,IDN,SA)	08/2004 - 02/2012	1
44341-06010	TGN16..XTR;KUN15..DCB,SMT;GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH;KUN16,TGN10,15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,SA)..CBU	08/2008 - 12/2999	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-0K010	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15,16,36..XTR..SR..TH;KUN25..ANCOM,GCC,GEN,LA,SA;KUN15..SCB..(GCC,GEN,PKN,SA);KUN10,16,LAN15,25,35..DCB,SCB;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH)	08/2004 - 02/2012	1
44360-0K010	KUN16..4FC;KUN15..DCB,SMT;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)	08/2008 - 12/2999	1
44362A - RING, O(FOR VANE PUMP OIL RESERVOIR)
90080-30093	KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN25..ANCOM,GCC,GEN,LA,SA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN15,16,36,TGN16..XTR..SR..TH;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN36..SCB..(ANCOM,GCC,GEN,LA,PKN,SA);KUN15,TGN36..DCB..(ANCOM,GCC,GEN,PHL,SA,TH);GGN15,25,KUN10,TGN1#..(5F,5FC)..(DLX,SR)..(ANCOM,ARL,GCC,GEN,IDN,SA)	08/2004 - 02/2012	1
90080-30093	TGN16..XTR;KUN15..DCB,SMT;GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH;KUN16,TGN10,15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,SA)..CBU	08/2008 - 12/2999	1
Common parts
90080-10265
90080-11505
90119-T0196
90119-T0292
90119-T0344
Linked diagrams
4503
8404

(0507- )LAN15,25,35

Click highlighted areas on diagram

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-0B040	KUN15..DCB;KUN10,16,2#,3#;KUN15..XTR..SR;KUN15..SCB..(GCC,GEN,SA)	08/2004 - 04/2008	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-0K020	KUN15..XTR..SR;KUN35..GEN,LA,SA;KUN15..SCB..(GCC,GEN,SA);GGN15,25,KUN10,16,2#,36,LAN15,25,35;KUN15,35..DCB..(ANCOM,GCC,GEN,PHL,TH)	08/2004 - 09/2007	1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-0K050	KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB,XTR)..5F;KUN25..ANCOM,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
44308-0K050	KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
44312 - SHAFT, VANE PUMP
44312-0K010	KUN16..4FC;KUN15..DCB,SMT;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);KUN10,2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
44312-0K010	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15,16,36..XTR..SR..TH;KUN25..ANCOM,GCC,GEN,LA,SA;KUN10,15..SCB..(GCC,GEN,PKN,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH)	08/2004 - 02/2012	1
44313 - ROTOR, VANE PUMP
44313-09010	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR);KUN25,TGN16..5F..(ANCOM,ARL,GCC,GEN,LA,SA)	08/2004 - 02/2012	1
44313-09010	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
44320 - PUMP ASSY, VANE
44310-0K040	KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB,XTR)..5F;KUN25..ANCOM,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
44310-0K040	KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
44330 - VALVE ASSY, FLOW CONTROL
44330-0K140	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR) MARK B	08/2004 - 02/2012	1
44330-0K130	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR) MARK A	08/2004 - 02/2012	1
44330-0K170	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR) MARK E	08/2004 - 02/2012	1
44330-0K160	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR) MARK D	08/2004 - 02/2012	1
44330-0K150	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR) MARK C	08/2004 - 02/2012	1
44330-0K180	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,16,36,TGN16..XTR..SR..TH;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,16,TGN10,11,15..(DCB,SCB)..(DLX,SR) MARK F	08/2004 - 02/2012	1
44330-0K150	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH MARK C	08/2008 - 12/2999	1
44330-0K180	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH MARK F	08/2008 - 12/2999	1
44330-0K160	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH MARK D	08/2008 - 12/2999	1
44330-0K130	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH MARK A	08/2008 - 12/2999	1
44330-0K170	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH MARK E	08/2008 - 12/2999	1
44330-0K140	KUN16..4FC;TGN16..XTR;KUN15..DCB,SMT;KUN16..SCB,SMT,XTR;TGN16..ARL,GCC,SA,TH;KUN15..SCB..(GCC,GEN,PHL,SA);KUN16,TGN10,15..(DCB,SCB)..(ARL,GCC,GEN,IDN,SA)..CBU;KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH MARK B	08/2008 - 12/2999	1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-T0001	KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN25..ANCOM,GCC,GEN,LA,SA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN15,16,36,TGN16..XTR..SR..TH;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN36..SCB..(ANCOM,GCC,GEN,LA,PKN,SA);KUN15,TGN36..DCB..(ANCOM,GCC,GEN,PHL,SA,TH);GGN15,25,KUN10,TGN1#..(5F,5FC)..(DLX,SR)..(ANCOM,ARL,GCC,GEN,IDN,SA)	08/2004 - 02/2012	1
90501-T0001	TGN16..XTR;KUN15..DCB,SMT;GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN10,2#,3#,TGN11..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH;KUN16,TGN10,15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,SA)..CBU	08/2008 - 12/2999	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-06060	GGN25..5FC..SA;KUN15..DCB,SMT;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN10,2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
44337-06060	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15,16,36..XTR..SR..TH;KUN25..ANCOM,GCC,GEN,LA,SA;KUN15..SCB..(GCC,GEN,PKN,SA);GGN15,25,KUN10..ANCOM,ARL,GCC,SA;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH)	08/2004 - 02/2012	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-0K010	KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15,16,36..XTR..SR..TH;KUN25..ANCOM,GCC,GEN,LA,SA;KUN15..SCB..(GCC,GEN,PKN,SA);KUN10,16,LAN15,25,35..DCB,SCB;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH)	08/2004 - 02/2012	1
44360-0K010	KUN16..4FC;KUN15..DCB,SMT;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)	08/2008 - 12/2999	1
Common parts
90080-10060
90080-10178
90080-11446
90080-20090
90119-T0292
Linked diagrams
4503

(1107- )KUN1#,2#,3#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-10265
90080-11505
90119-T0292
90178-T0032
Linked diagrams
4503

(1107- )GGN15,25,35

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-10265
90080-11505
90119-T0196
90119-T0292
90119-T0344
Linked diagrams
4503
8404

KUN25L-TRMDHG (2005)

(0502- )GGN15,25,35

(0507- )LAN15,25,35

(1107- )KUN1#,2#,3#

(1107- )GGN15,25,35
