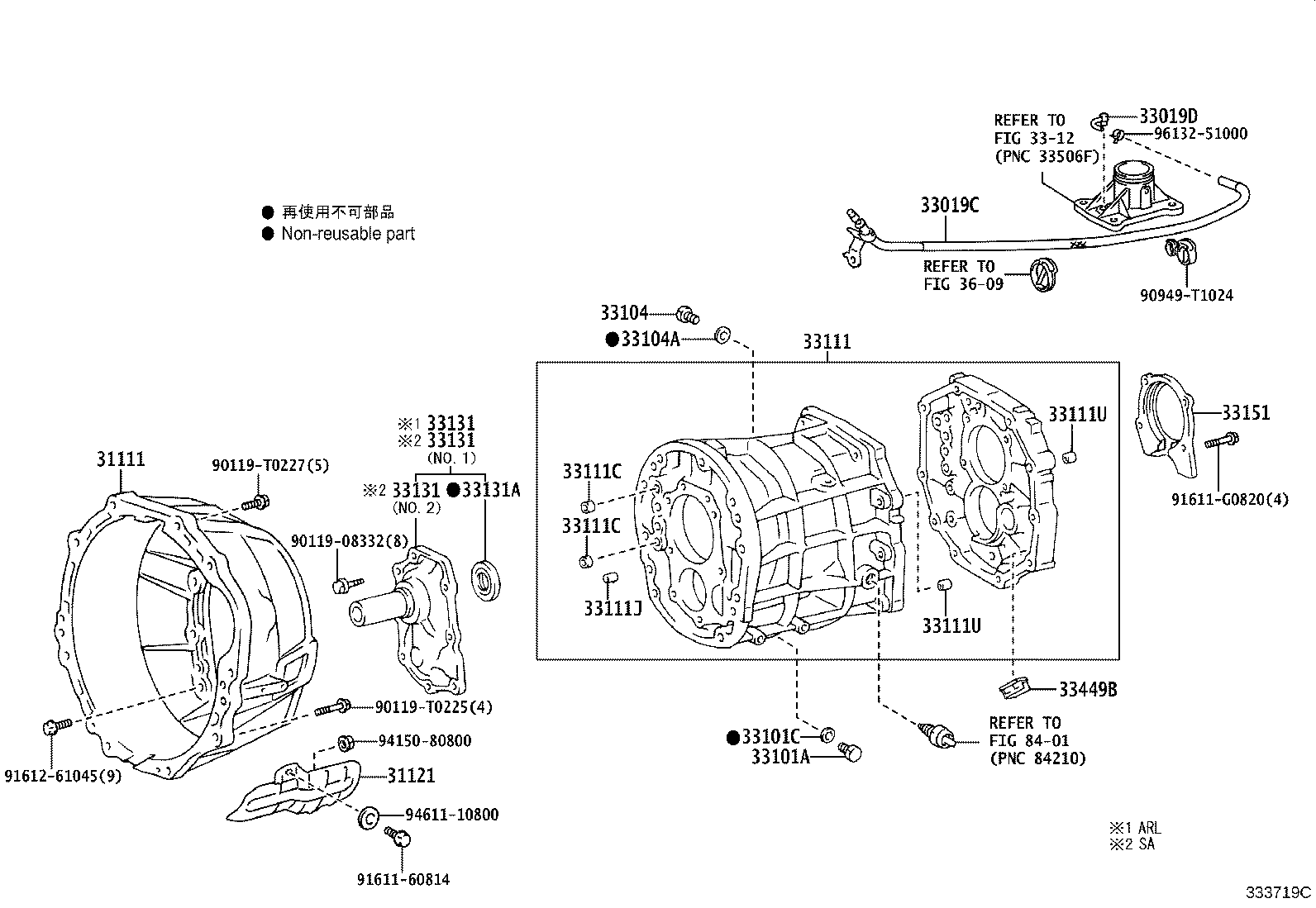

KUN25L-TRMDHG (2005)
Toyota Hilux
(0408-0808)5F..HDCR ; (0408-0808)KUN16,26,36..5F
R151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA) |
1 | ||
| 90341-18006 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA) |
1 | ||
| 90430-18008 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 90341-18006 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90430-18008 |
TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA) |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) OD=14 |
4 | ||
| 90331-14004 |
KUN36;KUN16,26..(DCB,SCB)..5F..(LA,SA,TH);GGN25,KUN15,25,35..(DCB,SCB)..5F..(HDCR,HTWC)..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 96411-41800 |
TGN16..XTR;GGN15..5F..DLX;TGN36..5F..CBU;TGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN25,KUN16,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN15,25,35,TGN11..5F..(HDCR,HTWC)..(ANCOM,GCC,GEN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 96411-41800 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) OD=14 |
4 | ||
| 90331-14004 |
KUN36;KUN16,26..(DCB,SCB)..5F..(LA,SA,TH);GGN25,KUN15,25,35..(DCB,SCB)..5F..(HDCR,HTWC)..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 96411-41800 |
TGN16..XTR;GGN15..5F..DLX;TGN36..5F..CBU;TGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN25,KUN16,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN15,25,35,TGN11..5F..(HDCR,HTWC)..(ANCOM,GCC,GEN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 96411-41800 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 90250-12002 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) L=16,OD=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) L=14,OD=15 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) L=14,OD=15 |
2 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-04020 |
KUN25..SCB..MA;KUN16,36..XTR..TH;KUN16,36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..5F..SR;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 33118-04020 |
KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-0K020 |
KUN25..SCB..MA;KUN16,36..XTR..TH;KUN16,36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..5F..SR;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 33119-0K020 |
KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449-26010 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-T0226 | ||||
| 90119-T0227 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| Linked diagrams | ||||
| 8401 | ||||

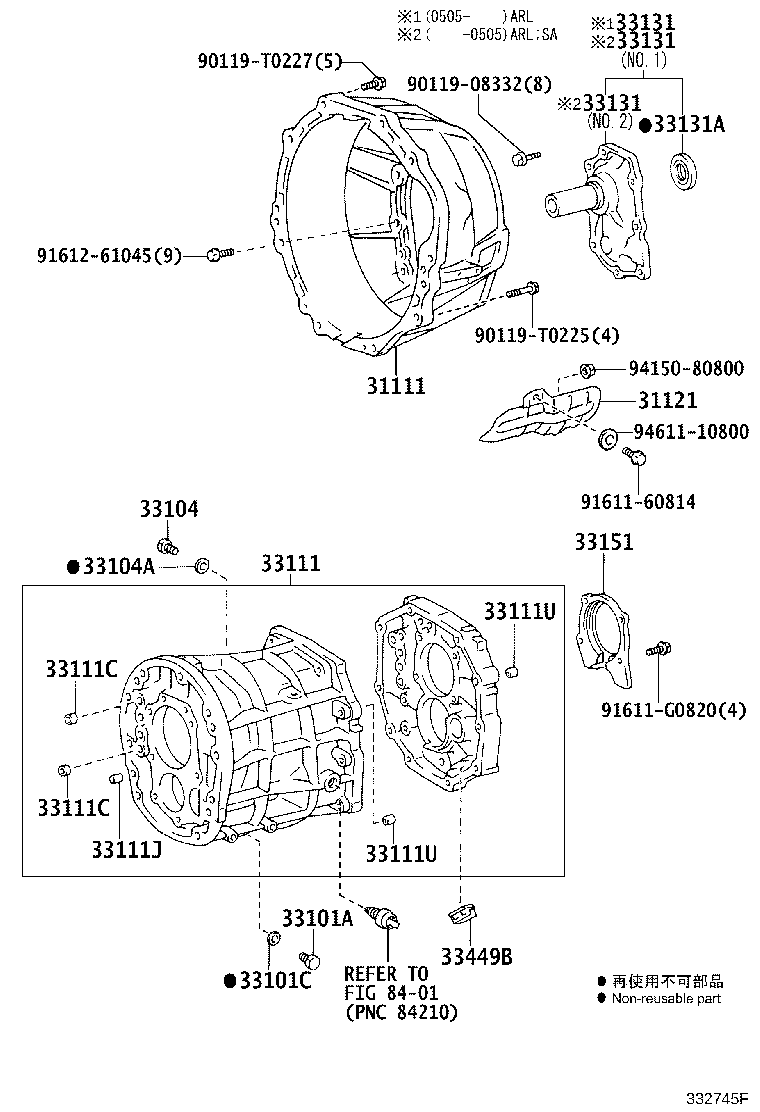

(0502-0808)GGN15,25..5F
R150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31101-0K010 |
GGN15,25..5F |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA) |
1 | ||
| 90341-18006 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA) |
1 | ||
| 90430-18008 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 90341-18006 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90430-18008 |
TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA) |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) OD=14 |
4 | ||
| 90331-14004 |
KUN36;KUN16,26..(DCB,SCB)..5F..(LA,SA,TH);GGN25,KUN15,25,35..(DCB,SCB)..5F..(HDCR,HTWC)..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 96411-41800 |
TGN16..XTR;GGN15..5F..DLX;TGN36..5F..CBU;TGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN25,KUN16,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN15,25,35,TGN11..5F..(HDCR,HTWC)..(ANCOM,GCC,GEN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 96411-41800 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) OD=14 |
4 | ||
| 90331-14004 |
KUN36;KUN16,26..(DCB,SCB)..5F..(LA,SA,TH);GGN25,KUN15,25,35..(DCB,SCB)..5F..(HDCR,HTWC)..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 96411-41800 |
TGN16..XTR;GGN15..5F..DLX;TGN36..5F..CBU;TGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN25,KUN16,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN15,25,35,TGN11..5F..(HDCR,HTWC)..(ANCOM,GCC,GEN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 96411-41800 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 90250-12002 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) L=16,OD=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) L=14,OD=15 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) L=14,OD=15 |
2 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449-26010 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-T0225 | ||||
| 90119-T0227 | ||||
| 91611-60814 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 94150-80800 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0808- )5F..HDCR ; (0808- )KUN16,26,36..5F
R151,R151F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71100 |
KUN2#..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71100 |
KUN2#..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA) |
1 | ||
| 90341-18006 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA) |
1 | ||
| 90430-18008 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 90341-18006 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90430-18008 |
TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA) |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) OD=14 |
4 | ||
| 90331-14004 |
KUN36;KUN16,26..(DCB,SCB)..5F..(LA,SA,TH);GGN25,KUN15,25,35..(DCB,SCB)..5F..(HDCR,HTWC)..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 96411-41800 |
TGN16..XTR;GGN15..5F..DLX;TGN36..5F..CBU;TGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN25,KUN16,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN15,25,35,TGN11..5F..(HDCR,HTWC)..(ANCOM,GCC,GEN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 96411-41800 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) OD=14 |
4 | ||
| 90331-14004 |
KUN36;KUN16,26..(DCB,SCB)..5F..(LA,SA,TH);GGN25,KUN15,25,35..(DCB,SCB)..5F..(HDCR,HTWC)..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 96411-41800 |
TGN16..XTR;GGN15..5F..DLX;TGN36..5F..CBU;TGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN25,KUN16,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN15,25,35,TGN11..5F..(HDCR,HTWC)..(ANCOM,GCC,GEN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 96411-41800 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 90250-12002 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) L=16,OD=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) L=14,OD=15 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) L=14,OD=15 |
2 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-04020 |
KUN25..SCB..MA;KUN16,36..XTR..TH;KUN16,36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..5F..SR;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 33118-04020 |
KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-0K020 |
KUN25..SCB..MA;KUN16,36..XTR..TH;KUN16,36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..5F..SR;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 33119-0K020 |
KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449-26010 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| Common parts | ||||
| 33197-71050 | ||||
| 87616-0K010 | ||||
| 90119-08332 | ||||
| 90119-T0226 | ||||
| 90119-T0227 | ||||
| 90447-11069 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3609 | ||||
| 8401 | ||||
(0808- )GGN15,25..5F
R150,R150F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31101-0K010 |
GGN15,25..5F |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71100 |
KUN2#..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA) |
1 | ||
| 90341-18006 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA) |
1 | ||
| 90430-18008 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 90341-18006 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90430-18008 |
TGN15;TGN36..SCB;TGN36..DCB..SA;TGN26,36..DCB..5F..DLX..LA;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN15,TGN16,26..(DCB,SCB)..(DLX,SR)..(ANCOM,PHL,SA) |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) OD=14 |
4 | ||
| 90331-14004 |
KUN36;KUN16,26..(DCB,SCB)..5F..(LA,SA,TH);GGN25,KUN15,25,35..(DCB,SCB)..5F..(HDCR,HTWC)..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 96411-41800 |
TGN16..XTR;GGN15..5F..DLX;TGN36..5F..CBU;TGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN25,KUN16,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN15,25,35,TGN11..5F..(HDCR,HTWC)..(ANCOM,GCC,GEN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 96411-41800 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) OD=14 |
4 | ||
| 90331-14004 |
KUN36;KUN16,26..(DCB,SCB)..5F..(LA,SA,TH);GGN25,KUN15,25,35..(DCB,SCB)..5F..(HDCR,HTWC)..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 96411-41800 |
TGN16..XTR;GGN15..5F..DLX;TGN36..5F..CBU;TGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN25,KUN16,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN15,25,35,TGN11..5F..(HDCR,HTWC)..(ANCOM,GCC,GEN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 96411-41800 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 90250-12002 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) L=16,OD=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) L=14,OD=15 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) L=14,OD=15 |
2 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) T/P C:SEE 33-01,NO.2 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449-26010 |
TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-T0225 | ||||
| 90119-T0227 | ||||
| 90949-T1024 | ||||
| 91611-60814 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 94150-80800 | ||||
| 94611-10800 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3609 | ||||
| 8401 | ||||
(1107- )5F..HDCR ; (1107- )KUN16,26,36..5F
R151,R156,R151F,R156F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 33197-0K010 | ||||
| 33197-71070 | ||||
| 82715-0K330 | ||||
| 90119-08332 | ||||
| 90119-T0225 | ||||
| 90119-T0226 | ||||
| 90119-T0227 | ||||
| 90119-T0295 | ||||
| 90119-T0296 | ||||
| 90119-T0297 | ||||
| 90447-11069 | ||||
| 90469-T0004 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3609 | ||||
| 8401 | ||||
(1107- )GGN15,25..5F
R150,R150F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 33197-0K010 | ||||
| 90119-08332 | ||||
| 90119-T0225 | ||||
| 90119-T0227 | ||||
| 90119-T0295 | ||||
| 90119-T0296 | ||||
| 90949-T1024 | ||||
| 91611-60814 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 94150-80800 | ||||
| 94611-10800 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3609 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
