KUN25L-TRMDHG (2005)
Toyota Hilux
(0502-0808)GGN15,25..5F ; (0808- )GGN25..5F..SA

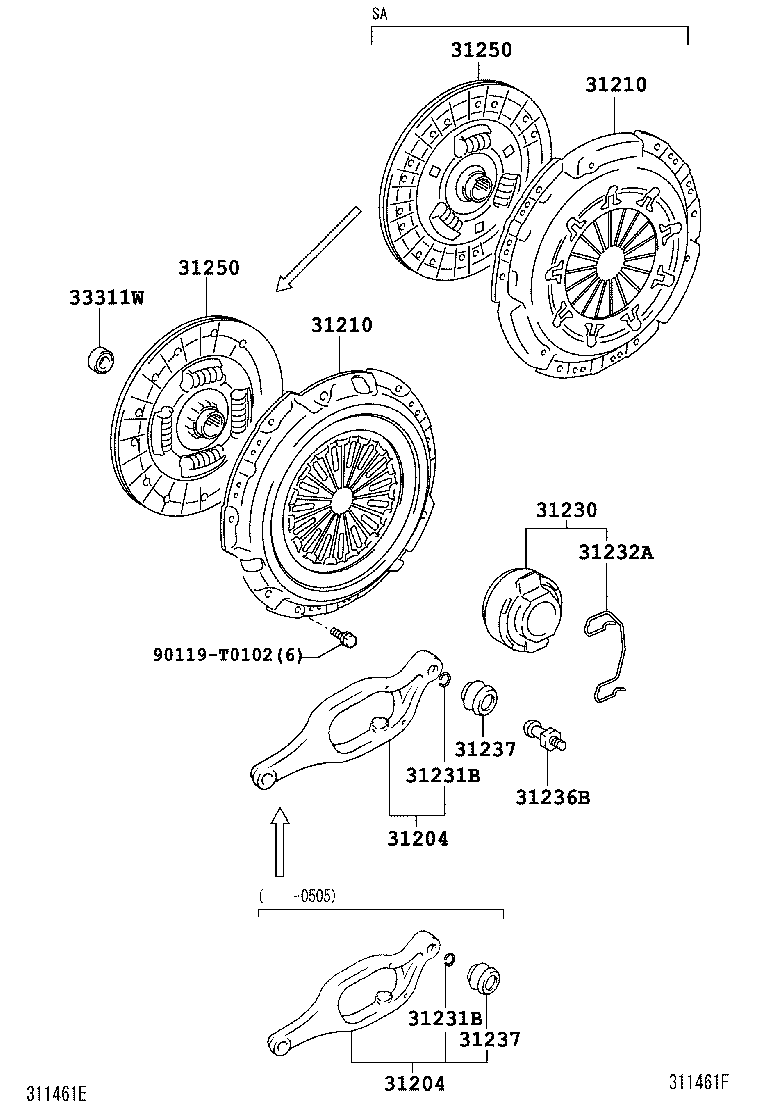

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-0K080 |
KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204-0K060 |
GGN15,25..5F TYPE C:REFER 33-01 |
1 | ||
| 31204-0K081 |
KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-0K080 |
KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204-0K060 |
GGN15,25..5F TYPE C:REFER 33-01 |
1 | ||
| 31204-0K081 |
KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31230-71010 |
KUN26..5F..(LA,SA);KUN25,3#..DLX..(ANCOM,LA,SA) |
1 | ||
| 31231B - RING, SNAP(FOR CLUTCH RELEASE HUB) | ||||
| 90521-22003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90520-T0031 |
KUN36..RHD..5F;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN10,15..GCC,GEN,PHL,TH;KUN2#,35..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 31231B - RING, SNAP(FOR CLUTCH RELEASE HUB) | ||||
| 90521-22003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90520-T0031 |
KUN36..RHD..5F;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN10,15..GCC,GEN,PHL,TH;KUN2#,35..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31237 - BOOT, CLUTCH RELEASE FORK SUPPORT | ||||
| 31237-60010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31237-0K010 |
GGN15..5F..DLX;KUN36..RHD..5F;KUN16..SCB,SMT,XTR;KUN10,15..GCC,GEN,PHL,TH;GGN25,KUN16..DCB..5F..ARL;KUN2#,35..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 31237 - BOOT, CLUTCH RELEASE FORK SUPPORT | ||||
| 31237-60010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31237-0K010 |
GGN15..5F..DLX;KUN36..RHD..5F;KUN16..SCB,SMT,XTR;KUN10,15..GCC,GEN,PHL,TH;GGN25,KUN16..DCB..5F..ARL;KUN2#,35..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-0K200 |
KUN16,26..5F;KUN15,25..HDCR |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-0K200 |
KUN16,26..5F;KUN15,25..HDCR |
1 | ||
| Common parts | ||||
| 90119-T0102 | ||||
(0507- )LAN15,25,35
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-60081 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-0K080 |
KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204-0K060 |
GGN15,25..5F TYPE C:REFER 33-01 |
1 | ||
| 31204-0K081 |
KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31230-71010 |
KUN26..5F..(LA,SA);KUN25,3#..DLX..(ANCOM,LA,SA) |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-0K200 |
KUN16,26..5F;KUN15,25..HDCR |
1 | ||
| Common parts | ||||
| 90119-T0102 | ||||
(1107- )GGN15,25..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0102 | ||||
(1107- )5F..HDCR ; (1107- )KUN16,26,36..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 31241-71010 | ||||
| 31243-0K010 | ||||
| 90119-T0102 | ||||
| Linked diagrams | ||||
| 3301 | ||||
