KUN25L-PRMDHV (2005)

Toyota Hilux

Production Jul 2005 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0408- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74348B 74348C 74603 74603 74611B 74617A 74617C 74631C 74631C 9015960353 9015960353 9015960353 90162T0001 90162T0001
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-0K010B0

KUN10,15,25,TGN1#,26..DLX..GCC

LT.GRAY,TRIM1#,3#

 1
74310-0K100B0

KUN10,15,25,TGN1#,26..DLX..GCC

SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#,3#

 1
74320 - VISOR ASSY, LH
74320-0K150B0

KUN10,15,25,TGN1#,26..GCC

SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#,3#

 1
74320-0K020B0

KUN10,15,25,TGN1#,26..DLX..GCC

LT.GRAY,TRIM1#,3#

 1
74348B - HOLDER, VISOR, RH
74348-0K010B0

KUN10,15,25,TGN1#,26..GCC

LT.GRAY,TRIM1#,3#

 1
74348C - HOLDER, VISOR, LH
74348-0K010B0

KUN10,15,25,TGN1#,26..GCC

LT.GRAY,TRIM1#,3#

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-0K020B0

KUN25,TGN26..GCC

LT.GRAY,TRIM1#,3#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-0K020B0

KUN25,TGN26..GCC

LT.GRAY,TRIM1#,3#

 2
74611B - GRIP, ASSIST
74611-0K040B0

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 3
74617A - PLUG, ASSIST GRIP
74615-0K010B0

KUN25,TGN26..GCC

LT.GRAY,TRIM1#,3#,FRONT-RH,REAR-LH

 2
74616-0K010B0

KUN25,TGN26..GCC

LT.GRAY,TRIM1#,3#,FRONT-LH,REAR-RH

 2
Common parts
90159-60353
90162-T0001

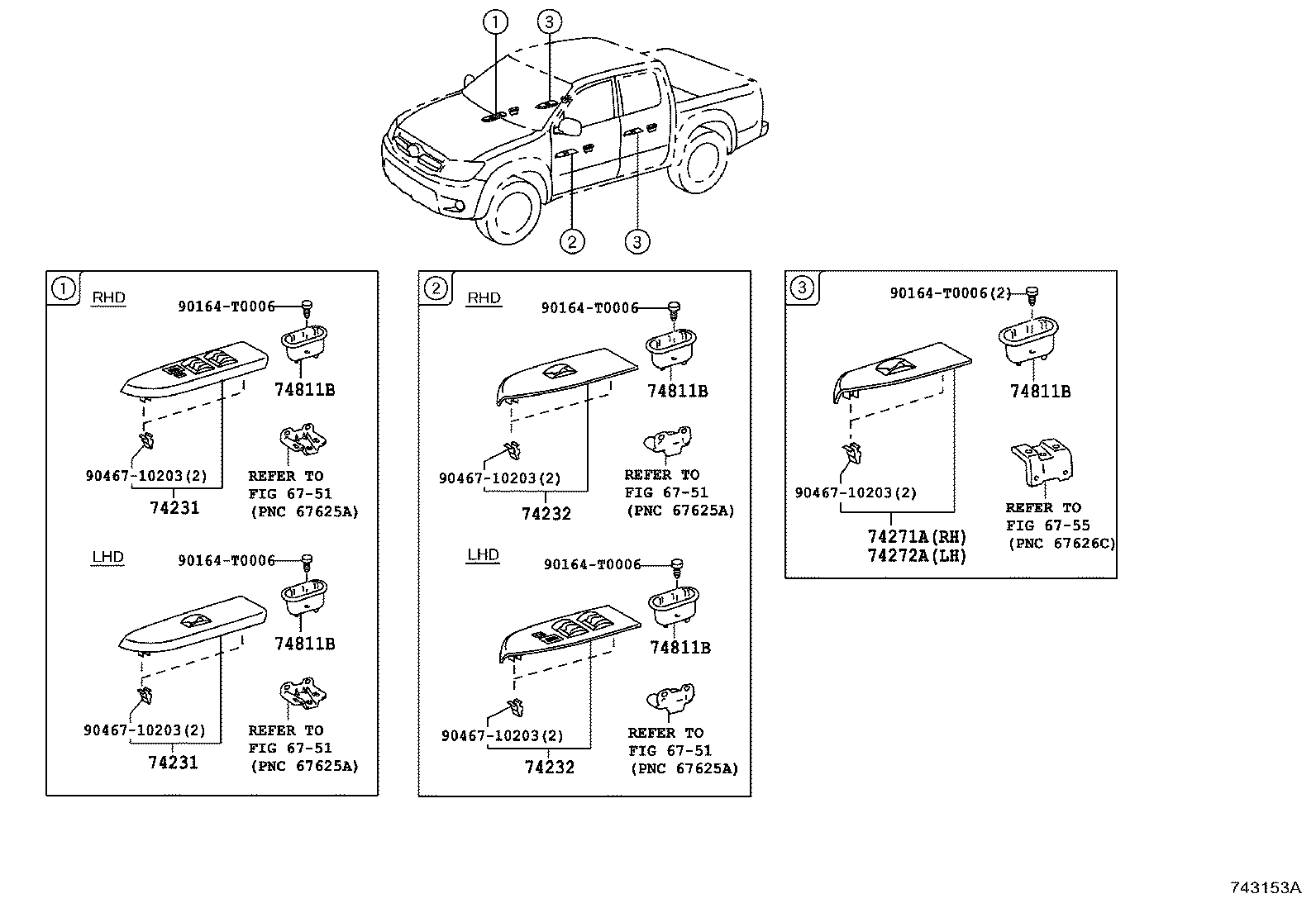

ILLUST NO. 1 OF 2(0408- )LHD..DCB,THDCB

Click highlighted areas on diagram

ARMREST

diagram 6751 6751 6755 6755 74231 74232 74271A 74272A 74811B 74811B 74811B 74811B 90164T0006 90164T0006 90164T0006 90164T0006 9046710203 9046710203 9046710203 9046710203
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0K020B0

KUN10,15,25,TGN11,15,16,26..DLX..GCC

POWER DOOR LOCK-WITH,GRAY,TRIM1#,3#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0K020B0

KUN15,25,TGN15,16,26..DCB..DLX..GCC

POWER DOOR LOCK-WITH,GRAY,TRIM1#,3#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-0K010B0

KUN15,25,TGN15,16,26..DCB..DLX..GCC

POWER DOOR LOCK-WITH,GRAY,TRIM1#,3#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-0K010B0

KUN15,25,TGN15,16,26..DCB..DLX..GCC

POWER DOOR LOCK-WITH,GRAY,TRIM1#,3#

 1
74811B - HANDLE, DOOR PULL
74811-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 4
74811B - HANDLE, DOOR PULL
74811-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 4
74811B - HANDLE, DOOR PULL
74811-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 4
74811B - HANDLE, DOOR PULL
74811-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 4
Common parts
90164-T0006
90467-10203
Linked diagrams
6751
6755

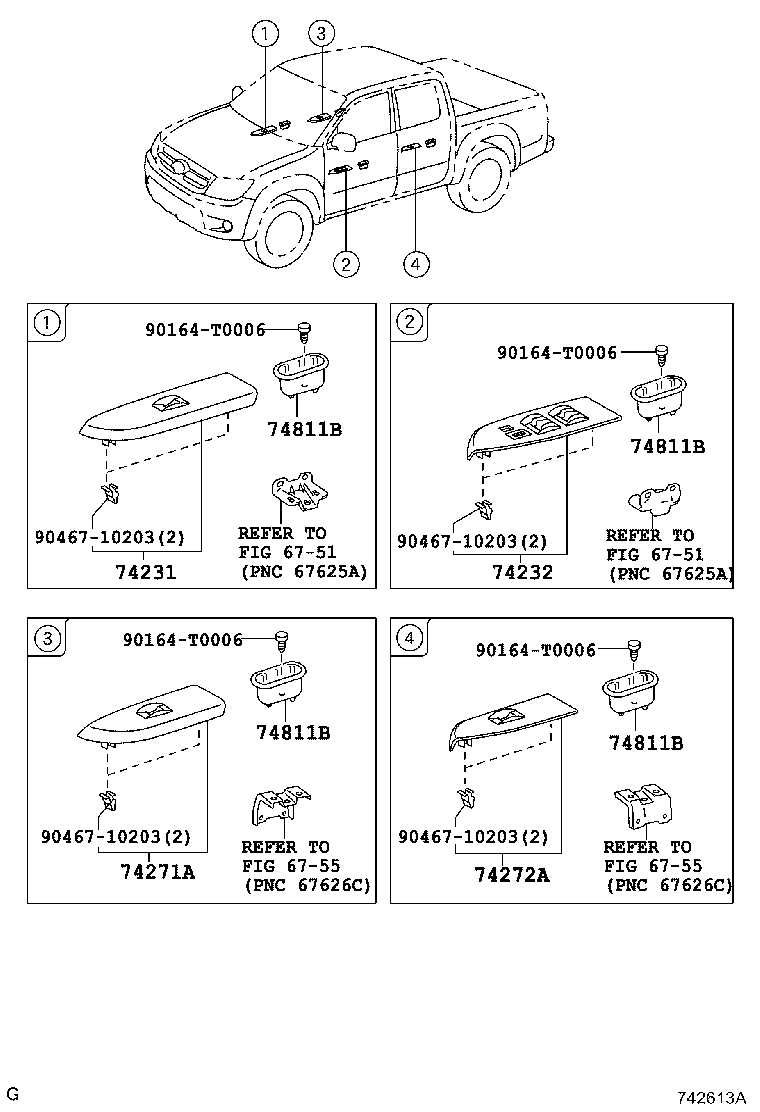

ILLUST NO. 1 OF 2(1107- )DCB,SADCB,THDCB

Click highlighted areas on diagram

ARMREST

diagram 6751 6751 6751 6751 6755 74231 74231 74232 74232 74271A 74272A 74811B 74811B 74811B 74811B 74811B 90164T0006 90164T0006 90164T0006 90164T0006 90164T0006 9046710203 9046710203 9046710203 9046710203 9046710203
Part # Description Qty Price
Common parts
90164-T0006
90467-10203
Linked diagrams
6751
6755

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74348B 74348C 74603 74603 74611B 74617A 74617C 74631C 74631C 9015960353 9015960353 9015960353 90162T0001 90162T0001
Part # Description Qty Price
Common parts
90159-60353
90162-T0001
